Merax Metal Cabin Bed (Model: 140x200cm) Instruction Manual

1. Introduction

Thank you for choosing the Merax Metal Cabin Bed. This manual provides essential information for the safe assembly, operation, and maintenance of your new bed. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

This cabin bed features a robust metal frame, a unique safety railing with a window design, decorative elements, an interchangeable safety ladder, and integrated storage compartments. It is designed to provide a comfortable sleeping area while maximizing space efficiency.

2. Safety Information

• Maximum Weight Capacity: Do not exceed the maximum weight of 120 kg (264 lbs) on the bed frame.
• Proper Installation: Ensure the correct installation is done according to these instructions to avoid instability and potential hazards.
• Sharp Edges/Pinch Points: Exercise caution during assembly and use to avoid contact with sharp edges or pinch points.
• Mattress Thickness: Use a mattress with a recommended thickness of 8-10 cm (3-4 inches) to ensure proper railing height for safety.
• Power Tools: Avoid using power tools for assembly as they may overtighten fasteners and damage components. Hand tools are sufficient and recommended.
• Regular Checks: Periodically check all bolts and fasteners to ensure they remain tight. Retighten as necessary.

3. Package Contents

Your Merax Metal Cabin Bed is shipped in 4 packages. Due to shipping logistics, these packages may arrive at different times. Please ensure all packages have arrived before beginning assembly.

All necessary tools for assembly, including a screwdriver, are included in the packaging. Please verify that all components and hardware are present and undamaged before proceeding.

4. Setup and Assembly Instructions

This product requires complete assembly. An estimated assembly time of 2 hours is recommended with 2 people. Detailed installation instructions are included within the packaging. Follow these steps carefully:

1. Unpack Components: Carefully unpack all components and hardware. Lay them out on a clean, soft surface (e.g., a carpet or blanket) to prevent scratches.
2. Identify Parts: Refer to the included parts list and diagrams to identify each component.
3. Assemble Frame: Begin by assembling the main metal frame structure according to the step-by-step diagrams. Ensure all bolts are finger-tightened initially.
4. Install Slats: Attach the 16 bed slats to the frame.
5. Attach Ladder and Storage: Assemble and attach the interchangeable safety ladder and integrated storage compartments. The ladder can be positioned on either side of the bed.
6. Final Tightening: Once all components are in place, systematically tighten all bolts and fasteners using the provided tools. Do not overtighten.
7. Final Check: Verify that the bed is stable and all connections are secure before use.

Figure 4.1: Overall dimensions of the Merax Metal Cabin Bed. Please refer to this diagram for detailed measurements in centimeters.

Figure 4.2: The Merax Cabin Bed showcasing the spacious area underneath, suitable for a desk or shelving unit (not included).

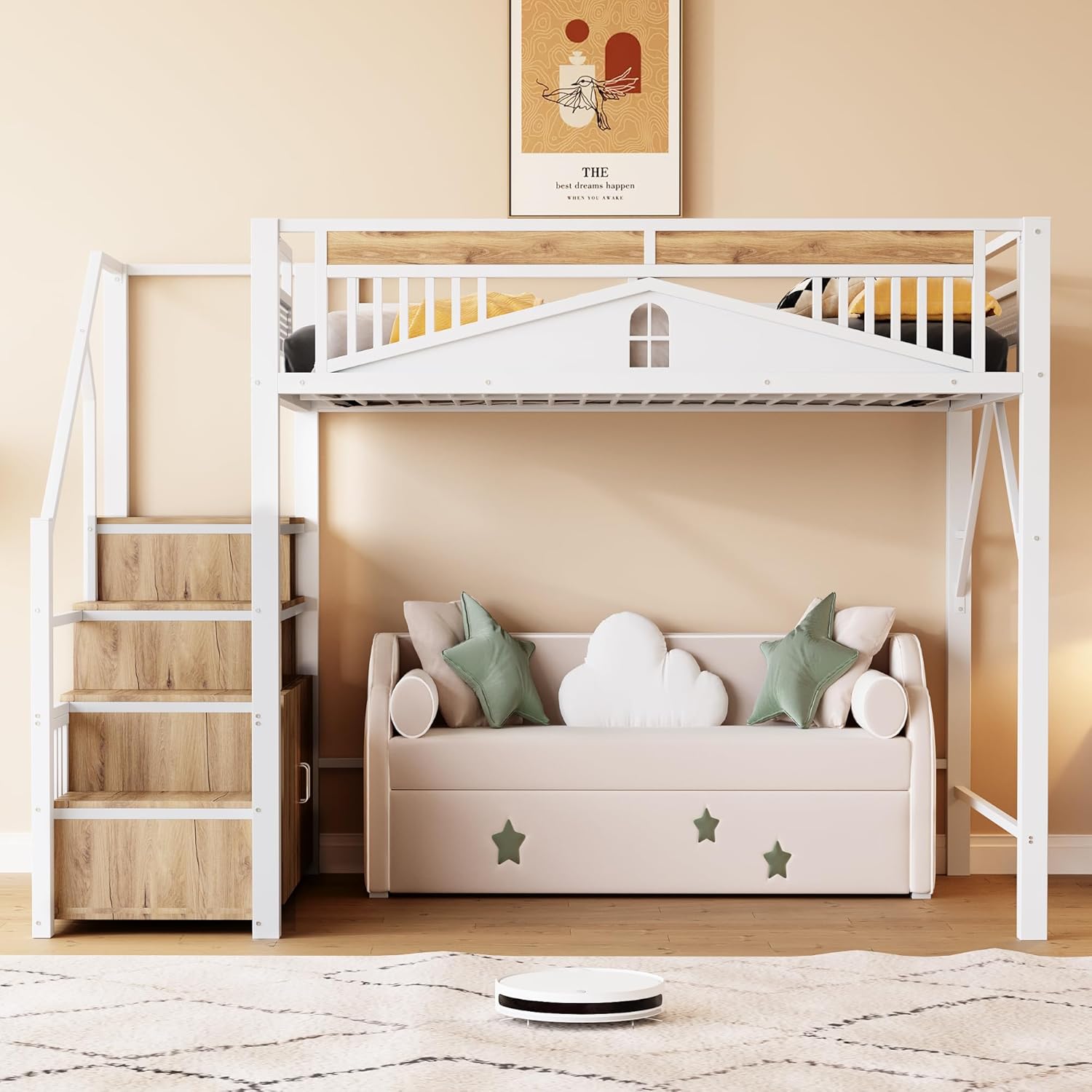

Figure 4.3: Illustration of the versatile under-bed space, which can accommodate a sofa or other furniture for a multi-functional room.

5. Operating Instructions

The Merax Metal Cabin Bed is designed for straightforward use. Once assembled, ensure the mattress is placed securely on the slat base.

• Using the Ladder: The integrated staircase design provides safe access to the bed. Each step includes a built-in storage space. Always use the ladder to access the bed.
• Storage Compartments: Utilize the integrated storage compartments within the staircase and the small cabinet for organizing personal items.
• Under-Bed Space: The raised design offers ample space underneath the bed, which can be used for various purposes such as a play area, study space, or additional storage.
• Safety Railing: The uniquely shaped safety fence with a window design provides security and prevents accidental falls during sleep.

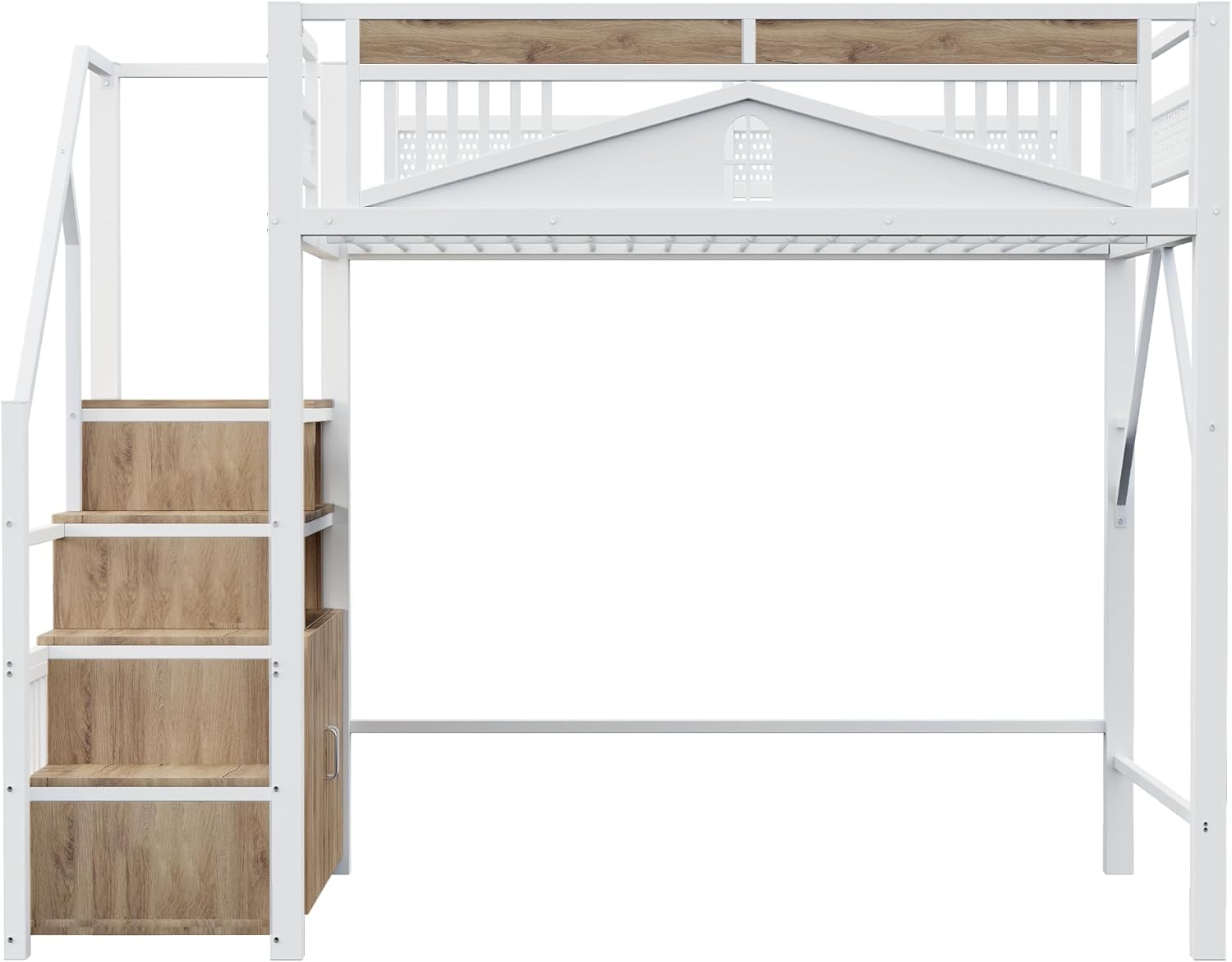

Figure 5.1: Front view highlighting the staircase with integrated storage and the safety railing.

Figure 5.2: Side view illustrating the open storage compartments within the staircase structure.

6. Maintenance

Regular maintenance will help prolong the life and appearance of your Merax Metal Cabin Bed.

• Cleaning: Wipe the metal frame and MDF components with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, which can damage the finish.
• Fastener Checks: Periodically (e.g., every 3-6 months) inspect all bolts, screws, and connections. Tighten any that have become loose to maintain stability and safety.
• Avoid Moisture: Keep the bed in a dry environment to prevent rust on metal parts and swelling of MDF components.
• Weight Distribution: Ensure weight is distributed evenly on the bed to prevent undue stress on the frame.

7. Troubleshooting

If you encounter any issues with your Merax Metal Cabin Bed, please refer to the following common solutions:

• Bed feels unstable or wobbly:
  • Ensure all bolts and fasteners are securely tightened.
  • Verify that all components are correctly aligned according to the assembly instructions.
  • Check that the bed is placed on a flat, even surface.
• Squeaking noises:
  • Retighten all bolts and connections.
  • Apply a small amount of lubricant (e.g., silicone spray) to metal-on-metal contact points if tightening does not resolve the issue.
• Missing parts or damaged components:
  • Review the package contents list to confirm if any parts are indeed missing.
  • Contact Merax customer support with your purchase details for assistance.

8. Specifications

9. Warranty and Support

Specific warranty information for the Merax Metal Cabin Bed is not provided in this manual. For details regarding warranty coverage, claims, or technical support, please contact Merax directly through their official website or the retailer from whom the product was purchased.

When contacting support, please have your product model number (140x200cm Metal Cabin Bed) and purchase information readily available.
