EXTRASTAR Camping Lantern LP-256316 User Manual

1. Introduction

This manual provides comprehensive instructions for the safe and efficient use of your EXTRASTAR Camping Lantern LP-256316. Please read this document thoroughly before operating the device and retain it for future reference. This lantern is designed to provide reliable illumination for various outdoor activities and emergency situations.

2. Product Overview

The EXTRASTAR Camping Lantern LP-256316 is a portable, battery-powered LED light designed for versatility and durability. It features a compact design, dual lighting modes, and convenient hanging options.

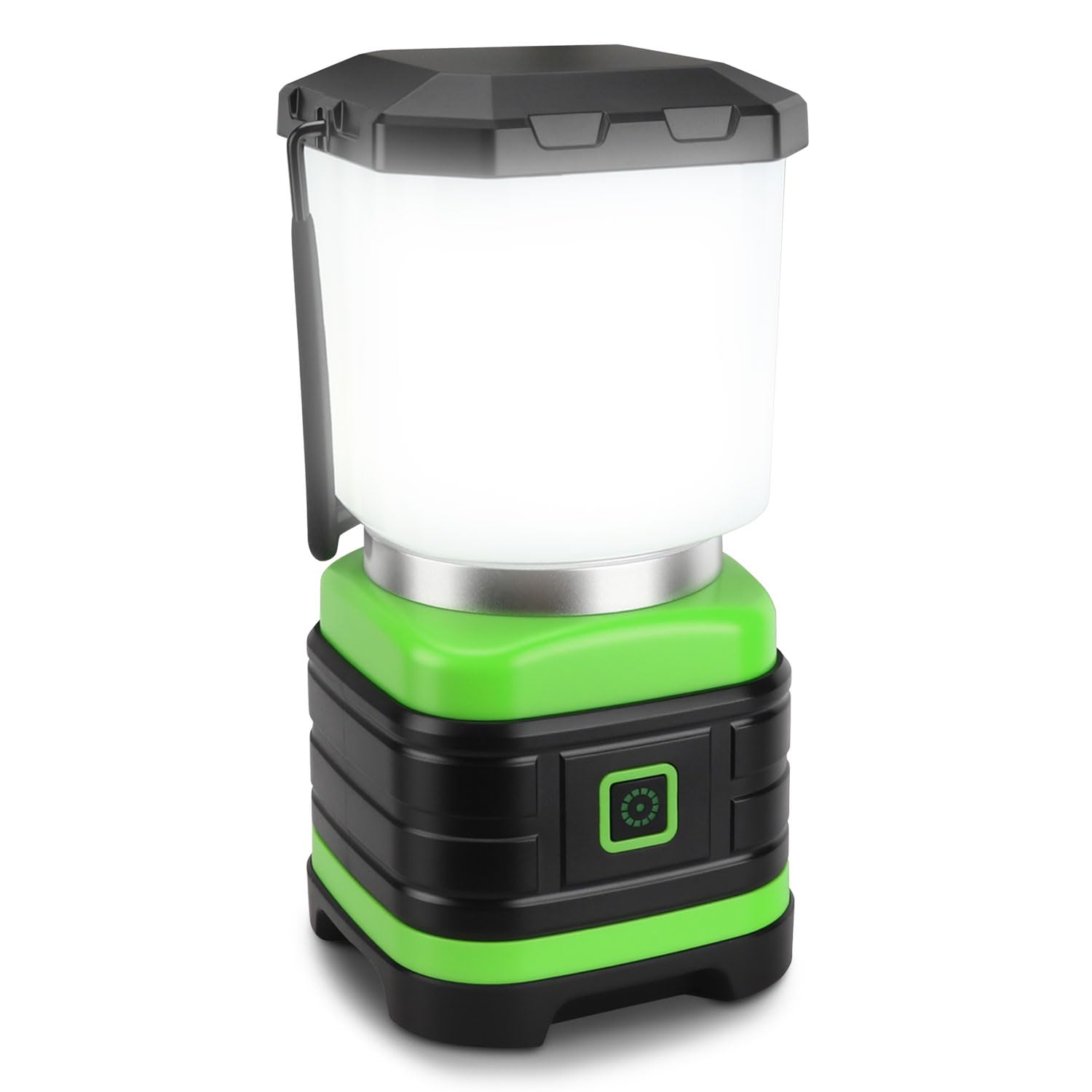

Figure 2.1: The EXTRASTAR Camping Lantern LP-256316, showcasing its compact and robust design.

Key Features:

• Luminous and Durable: Provides 260 lumens of light, illuminating a 360-degree area. The semi-transparent housing ensures uniform, glare-free light.
• Dual Mode with Dimmable Light: Easily switch between high and low light modes.
• Two-way Hook Lamp: Equipped with hooks on both the top and bottom for flexible hanging.
• Battery Powered: Operates on 3 AA alkaline batteries (not included), ensuring functionality during power outages.
• Portable and Lightweight: Compact size allows for easy storage and transport in cabins, backpacks, or survival kits.

3. Setup

Battery Installation:

1. Locate the battery compartment cover at the bottom of the lantern.
2. Twist or slide the cover to open the compartment.
3. Insert 3 AA alkaline batteries (not included) into the compartment, ensuring correct polarity (+ and -) as indicated inside the compartment.
4. Replace the battery compartment cover securely.

Note: Batteries are not included with the product. Use only AA alkaline batteries.

4. Operating Instructions

Turning On/Off and Mode Selection:

The lantern features a single power button for easy operation.

• To turn on: Press the power button once. The lantern will illuminate in High light mode.
• To switch modes: Press the power button again to switch to Low light mode.
• To turn off: Press the power button a third time to turn the lantern off.

Figure 4.1: Illustration of the two lighting modes: High (Resaltar) and Low (Poca Luz).

Using the Hooks:

The lantern is equipped with two integrated hooks for versatile placement.

• Use the top hook to hang the lantern from tent poles, branches, or other elevated structures.
• The bottom hook provides an alternative hanging point, useful for directing light downwards or securing the lantern in various positions.

Figure 4.2: Demonstrates the use of the top handle and bottom hook for carrying and hanging the lantern.

Figure 4.3: Examples of the lantern's application in different indoor and outdoor settings, including camping, fishing, and vehicle maintenance.

5. Maintenance

• Cleaning: Wipe the exterior of the lantern with a soft, dry cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these may damage the surface or internal components.
• Battery Care: If the lantern will not be used for an extended period (e.g., more than one month), remove the batteries to prevent potential leakage and damage to the device.
• Storage: Store the lantern in a cool, dry place, away from direct sunlight and extreme temperatures.

6. Troubleshooting

If you encounter any issues with your EXTRASTAR Camping Lantern, please refer to the following common problems and solutions:

• Problem: The lantern does not turn on.
  • Solution: Check if the batteries are inserted correctly with the correct polarity. Replace old or depleted batteries with new AA alkaline batteries.
• Problem: The light is dim or flickers.
  • Solution: This usually indicates low battery power. Replace all three AA batteries with new ones.

7. Specifications

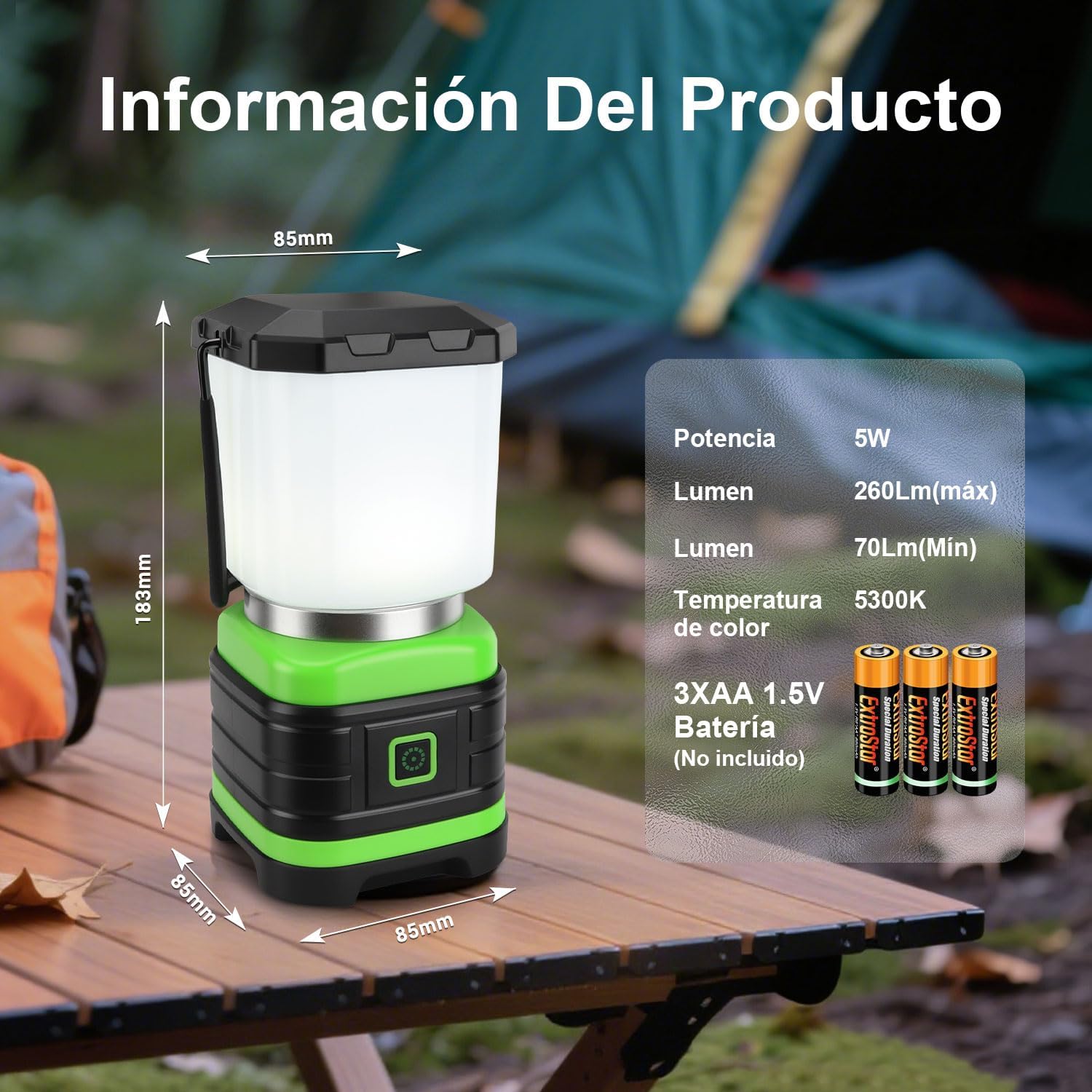

Figure 7.1: Visual representation of the lantern's dimensions and core specifications.

8. Warranty and Support

For detailed warranty information, please refer to the documentation included with your product packaging or visit the official EXTRASTAR website. If you require technical assistance or have questions not covered in this manual, please contact EXTRASTAR customer support.

EXTRASTAR Customer Support: Please refer to the contact information provided on the product packaging or the official EXTRASTAR website.
