Instruction Manual for Generic Replacement Felt and Zip Tie Downs Kit for GE DCVH680EJ0WW Dryer

Introduction

This manual provides instructions for the installation and maintenance of the Generic Replacement Felt and Zip Tie Downs Kit, designed for the GE DCVH680EJ0WW dryer model. This kit includes the necessary felt seal and zip ties for securing it, ensuring proper dryer operation and efficiency. Please read these instructions carefully before proceeding with installation.

Safety Information

• Always disconnect power to the dryer before attempting any repairs or installations. Failure to do so can result in electric shock or injury.
• Wear appropriate personal protective equipment, such as gloves, to prevent cuts or abrasions.
• If you are unsure about any step, consult a qualified appliance technician.
• Keep all small parts away from children.

Package Contents

Verify that all components are present in your kit:

• 1 x Dryer Felt Seal
• 2 x Zip Tie Downs

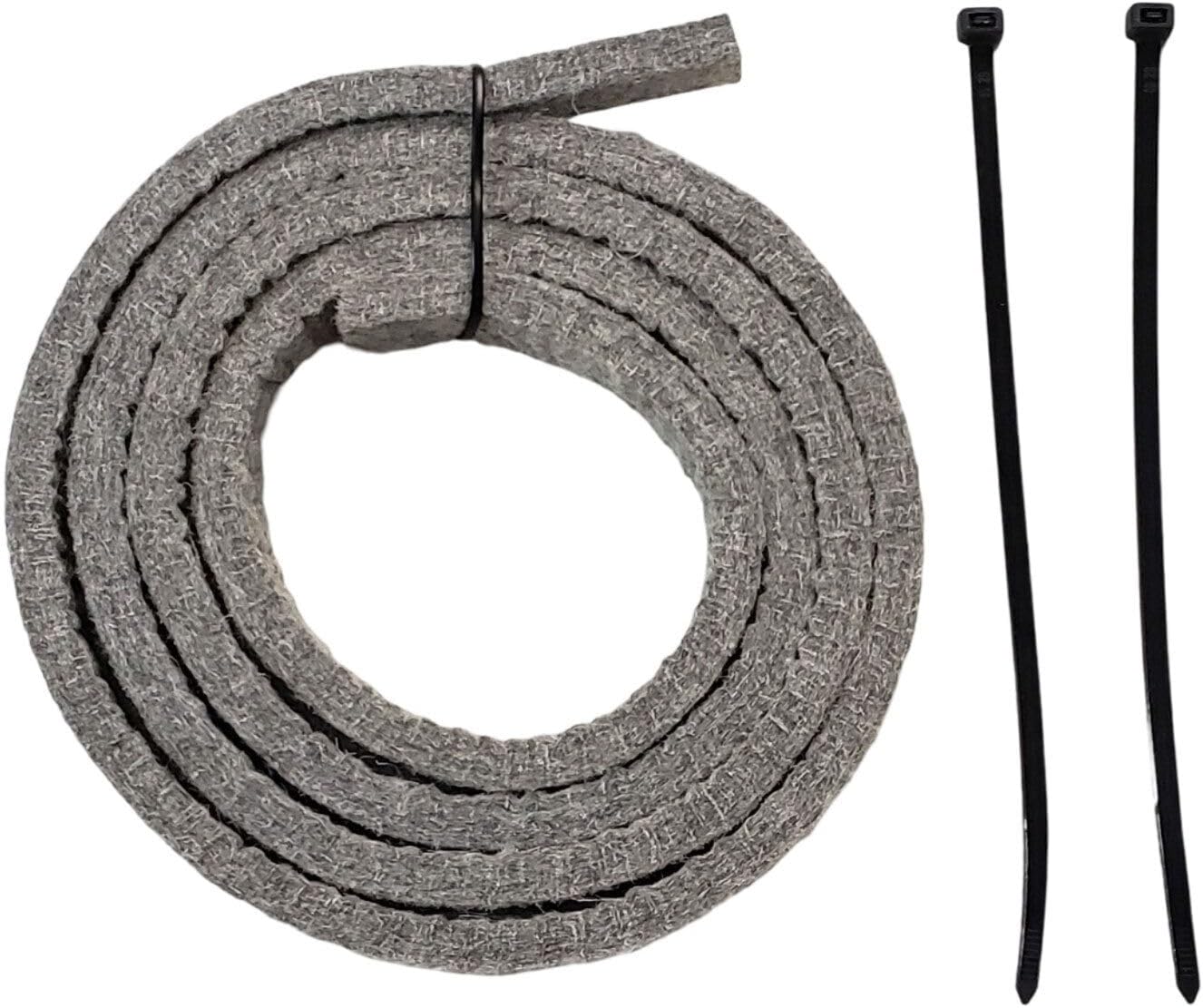

Image: The replacement dryer felt seal, coiled, accompanied by two black zip ties. This kit is designed for dryer maintenance and repair.

Installation (Setup)

Compatibility Check: Before installation, ensure this kit is compatible with your specific dryer model, GE DCVH680EJ0WW. Appliance parts can look similar, so verifying the model number is crucial.

1. Disconnect Power: Unplug the dryer from the electrical outlet or turn off the circuit breaker supplying power to the dryer.
2. Access Dryer Drum: Depending on your dryer model, you may need to remove the top panel, front panel, or both to gain access to the dryer drum and the existing felt seal. Refer to your dryer's service manual for specific disassembly instructions.
3. Remove Old Felt: Carefully remove the worn or damaged felt seal from around the dryer drum. Note its original position and orientation. Clean any lint or debris from the area where the new felt will be installed.
4. Install New Felt: Position the new felt seal around the dryer drum, ensuring it sits correctly in the designated groove or channel. The felt should create a snug seal between the drum and the dryer housing.
5. Secure with Zip Ties: Use the provided zip ties to secure the felt in place, if applicable to your dryer's design. Ensure the felt is evenly distributed and not bunched up. Trim any excess from the zip ties.
6. Reassemble Dryer: Carefully reassemble the dryer panels, ensuring all screws and fasteners are securely tightened. Double-check that no wires are pinched or disconnected during reassembly.
7. Restore Power: Plug the dryer back into the electrical outlet or turn on the circuit breaker.

Post-Installation Check (Operating)

After installation, perform a test run to ensure proper operation:

• Run the dryer on a short, unheated cycle. Listen for any unusual noises, such as squealing or grinding, which might indicate improper felt installation or other issues.
• Check for proper drum rotation and ensure there are no obstructions.
• If any issues are observed, disconnect power and re-inspect the felt installation.

Maintenance

Regular maintenance can extend the life of your dryer and its components:

• Clean Lint Filter: Clean the lint filter before or after every load to maintain airflow and prevent lint buildup.
• Inspect Venting: Periodically check and clean the dryer's exhaust vent to prevent blockages, which can lead to overheating and reduced efficiency.
• Check Felt Condition: Over time, the felt seal may wear down. If you notice excessive noise, lint leakage, or reduced drying performance, inspect the felt seal for wear and consider replacement.

Troubleshooting

If you encounter issues after installing the felt kit, consider the following:

• Dryer Making Noise: Ensure the felt is properly seated and not rubbing against other components. Check for any foreign objects that may have fallen into the dryer during reassembly.
• Lint Leakage: This indicates the felt seal may not be installed correctly or is damaged. Re-inspect the seal for gaps or improper placement.
• Poor Drying Performance: While a new felt seal helps, poor drying can also be caused by a clogged lint filter, restricted exhaust vent, or a faulty heating element. Check these components as well.

Specifications

• Part Number: FRIC-PL-APP-TP-22052025-001239
• Compatible Dryer Model: GE DCVH680EJ0WW
• Manufacturer: Fricparts
• Item Package Quantity: 1
• Number Of Pieces: 1 (Kit contains multiple components, but is sold as one package unit)
• Color: Black/White (referring to zip ties/felt color)

Warranty and Support

For warranty information or technical support regarding this replacement part, please contact the seller or manufacturer directly. Keep your purchase receipt as proof of purchase.
