Introduction
This manual provides essential information for the installation, operation, maintenance, and troubleshooting of your YANPXDOE Washing Machine Door Lock, model DM-7 XQG100-UH1205FT/XQG80-B1202FP. This component is crucial for the safe and proper functioning of your washing machine by securing the door during operation.
Product Overview
The washing machine door lock, also known as a switch lock, is a safety mechanism designed to prevent the washing machine door from being opened while the machine is in use. This ensures user safety and prevents water leakage during wash cycles.
Image 1: Front view of the YANPXDOE washing machine door lock, model DM-7. This image displays the primary housing and visible model identification markings.

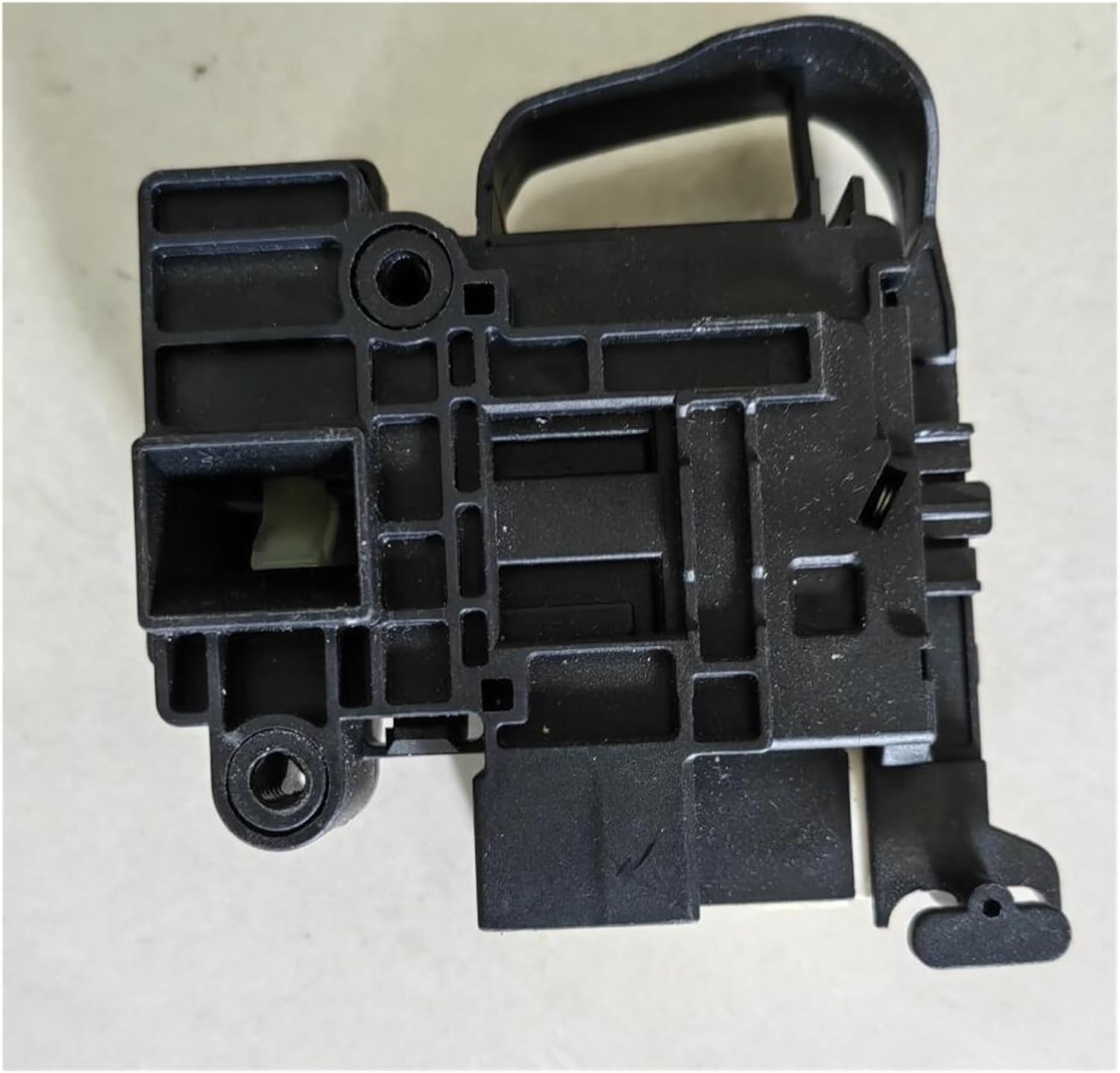

Image 2: Rear view of the YANPXDOE washing machine door lock. This perspective highlights the mounting points and the structural design of the component.
Image 3: Side view of the YANPXDOE washing machine door lock. This image provides a clear view of the electrical connector interface.
Setup and Installation
Installation of a washing machine door lock typically involves working with electrical components and appliance disassembly. For safety and proper function, it is highly recommended that installation be performed by a qualified technician. Incorrect installation can lead to appliance damage, electrical hazards, or improper operation.
General Installation Guidelines (for qualified personnel):
- Disconnect Power: Always unplug the washing machine from the power outlet before beginning any installation or repair work.
- Access the Lock: Depending on the washing machine model, access to the door lock may require removing the top panel, front panel, or door gasket.
- Disconnect Wiring: Carefully disconnect the electrical wiring from the old door lock, noting the position of each wire.
- Remove Old Lock: Unscrew or unclip the old door lock from its mounting position.
- Install New Lock: Position the new YANPXDOE door lock (DM-7 XQG100-UH1205FT/XQG80-B1202FP) and secure it with screws or clips.
- Connect Wiring: Reconnect the electrical wiring to the new door lock, ensuring all connections are secure and correctly placed.
- Reassemble: Reattach any panels or gaskets that were removed.
- Test Functionality: Plug the washing machine back in and perform a test cycle to ensure the door lock engages and disengages correctly.
Warning: Attempting installation without proper knowledge or tools can result in injury or damage to the appliance.
Operating Principles
The door lock functions as a safety interlock. When a wash cycle begins, the lock mechanism engages, preventing the door from being opened until the cycle is complete or safely paused. This ensures that water and detergent remain inside the drum and prevents accidental opening during high-speed spinning.
- Function Introduction: The switch lock is used to prevent the washing machine door from being accidentally opened during the washing process, ensuring safety.
- Operation Method: Generally, the switch lock is enabled or disabled automatically by the washing machine's control system when a cycle starts or finishes. Some models may allow manual override or pausing, which would disengage the lock after a short delay.
- Indicator Light: Many washing machines are equipped with an indicator light that shows the switch lock status (on or off). Refer to your washing machine's main user manual for specific indicator light meanings.
Maintenance
Regular inspection and cleaning can help prolong the life and ensure the reliable operation of your washing machine door lock.
- Cleaning and Maintenance: Regularly check the switch lock components for any debris, lint, or detergent residue. Keep the area around the lock mechanism clean to ensure smooth operation. Use a soft, damp cloth for cleaning; avoid harsh chemicals.
- Inspection: Periodically inspect the door lock for any visible signs of wear, damage, or loose connections. Ensure the door closes securely and the lock engages without excessive force.
Troubleshooting
If you encounter issues with your washing machine door lock, consider the following common troubleshooting steps:
- Door Not Locking:
- Ensure the washing machine door is fully closed and latched. A partially open door will prevent the lock from engaging.
- Check for any obstructions (e.g., clothing) preventing the door from closing properly.
- Verify the washing machine is receiving power.
- Door Not Unlocking:
- Troubleshooting: If the switch lock cannot be released, check the power supply, whether the door is fully closed, and whether there are other fault signals displayed on the washing machine's control panel.
- Wait a few minutes after a cycle ends or after pausing the machine; some locks have a built-in delay.
- Try unplugging the washing machine for 5-10 minutes to reset the control board, then plug it back in.
- Unusual Noises: If the lock makes grinding or clicking noises that are not typical, it may indicate mechanical wear.
If these steps do not resolve the issue, it is recommended to contact a qualified appliance repair technician for diagnosis and repair.
Specifications
| Feature | Detail |
|---|---|
| Brand | YANPXDOE |
| Model Number | DM-7 XQG100-UH1205FT/XQG80-B1202FP |
| Part Type | Washing Machine Door Lock |
| Package Dimensions | 0.39 x 0.39 x 0.39 inches |
| Item Weight | 1.76 ounces |
| Assembly Required | No (refers to the lock itself, not its installation into the machine) |
| Number of Pieces | 1 |
Warranty and Support
Specific warranty information for this YANPXDOE product is not provided in this manual. For details regarding warranty coverage, returns, or technical support, please refer to the original purchase documentation or contact the seller directly. Ensure you have your purchase receipt and product model number available when contacting support.
