Instruction Manual for FKFGBB PCB05-510-V04 2033233.D Inverter Drive Control Board

1. Introduction

This manual provides essential information for the proper installation, operation, maintenance, and troubleshooting of the FKFGBB PCB05-510-V04 2033233.D Inverter Drive Control Board. This control board is designed for compatibility with Hisense AS-18TR4RGSCD00 Air Conditioner Outdoor Units. Please read this manual thoroughly before proceeding with any procedures to ensure safe and efficient use.

2. Safety Information

Warning: Installation and servicing should only be performed by qualified and experienced technicians. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Always disconnect power to the air conditioning unit before attempting any installation, maintenance, or repair.
• Ensure proper grounding of the unit and all components.
• Wear appropriate personal protective equipment (PPE), including insulated gloves and safety glasses.
• Do not touch live electrical components.
• Verify all connections are secure and correct before restoring power.
• Keep the control board dry and free from moisture.

3. Product Overview

The PCB05-510-V04 2033233.D is an inverter drive control board designed to manage the operation of an air conditioner's outdoor unit. It features high-quality, durable materials for long-term reliability and is engineered to withstand conditions such as high temperature and pressure, thereby extending the service life of the equipment. This motherboard offers strong stability, along with dust, moisture, and corrosion resistance. It incorporates intelligent temperature control with precise algorithms for fast temperature adjustment, powerful cooling, and efficient operation through frequency conversion technology.

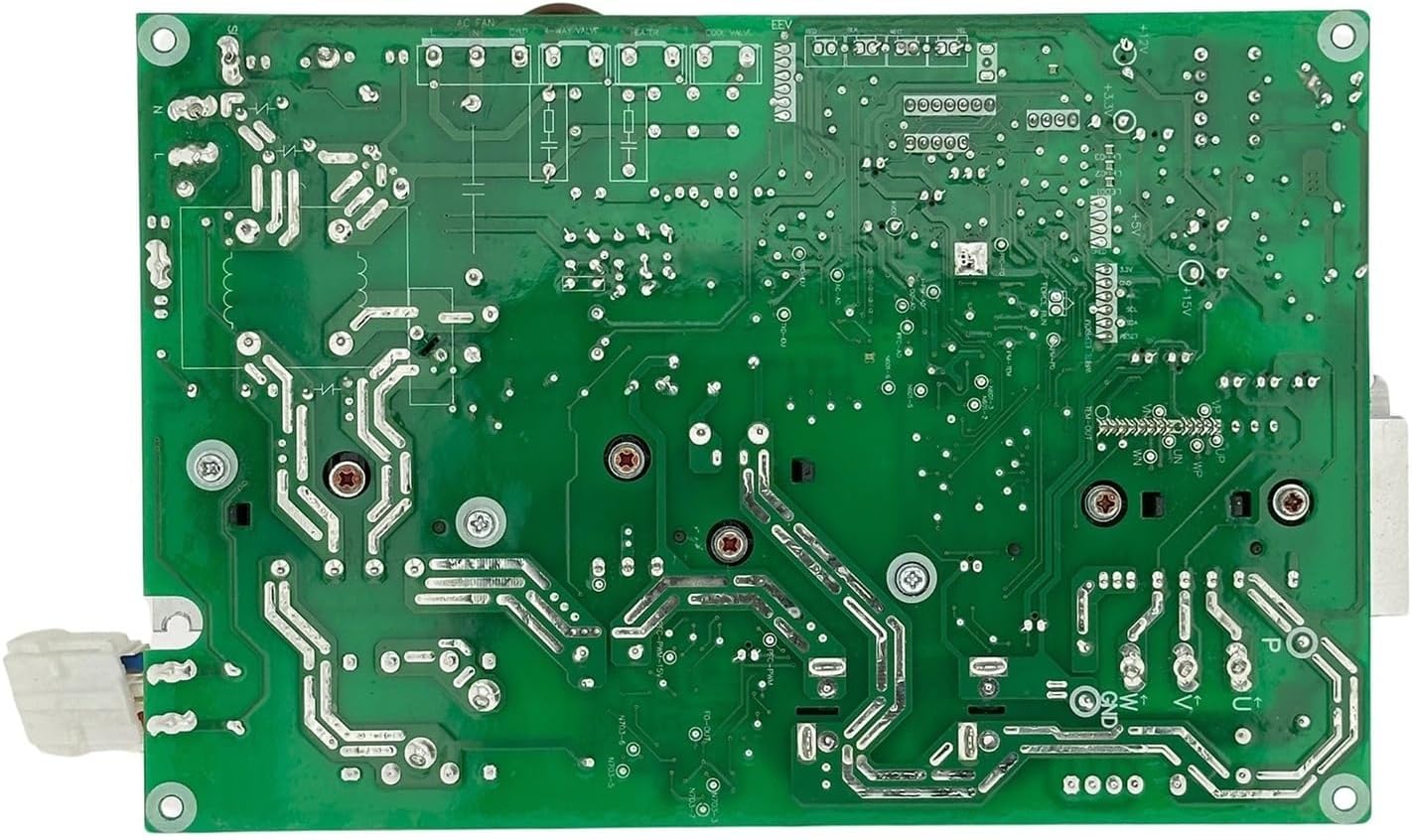

This image displays the reverse side of the PCB05-510-V04 inverter drive control board. It features a green printed circuit board with numerous silver solder points, intricate copper traces, and various electronic components. Connectors are visible on the edges, and mounting screw holes are present. The layout indicates the complex circuitry required for inverter control in an air conditioning outdoor unit.

4. Setup and Installation

Note: Professional installation is highly recommended for this component. Incorrect installation can lead to damage to the unit or personal injury.

1. Power Disconnection: Ensure the main power supply to the air conditioning outdoor unit is completely disconnected at the circuit breaker. Verify with a voltage tester.
2. Access the Unit: Carefully open the outdoor unit's casing to access the existing control board.
3. Document Connections: Before disconnecting anything, take clear photographs or make detailed diagrams of all wiring connections to the old control board. Pay close attention to wire colors and terminal labels.
4. Remove Old Board: Disconnect all wires and mounting screws securing the old control board. Carefully remove it from the unit.
5. Install New Board: Position the new FKFGBB PCB05-510-V04 board in the same location as the old one. Secure it with the appropriate mounting screws.
6. Reconnect Wiring: Using your documented connections, carefully reconnect all wires to the corresponding terminals on the new control board. Double-check each connection for accuracy and tightness.
7. Close Unit: Once all connections are verified, close and secure the outdoor unit's casing.
8. Restore Power: Restore power to the air conditioning unit at the circuit breaker.
9. Test Operation: Initiate a test run of the air conditioner to ensure proper functionality of the outdoor unit and the new control board.

5. Operating Principles

The PCB05-510-V04 inverter drive control board functions as the central processing unit for the outdoor air conditioning unit's inverter system. It receives commands from the indoor unit and various sensors, then precisely controls the compressor speed and other components (like fans and valves) using frequency conversion technology. This allows for variable refrigerant flow and optimized energy consumption, maintaining desired indoor temperatures efficiently. The board's intelligent algorithms ensure stable operation, rapid temperature adjustments, and protection against operational stresses.

6. Maintenance

Regular maintenance helps ensure the longevity and optimal performance of your control board and air conditioning unit.

• Annual Inspection: Have a qualified technician inspect the outdoor unit and control board annually.
• Cleanliness: Ensure the outdoor unit's compartment remains clean and free of dust, debris, and pests. Dust accumulation can hinder heat dissipation and affect electronic components.
• Moisture Protection: Verify that the outdoor unit's casing is intact and provides adequate protection against rain and moisture.
• Connection Checks: During inspections, ensure all electrical connections to the control board are tight and free from corrosion.
• Environmental Factors: Protect the outdoor unit from extreme environmental conditions where possible, such as direct prolonged sunlight or excessive vibration.

7. Troubleshooting

This section provides guidance for common issues. For complex problems, contact a qualified technician.

8. Specifications

9. Warranty and Support

For warranty information or technical support regarding the FKFGBB PCB05-510-V04 2033233.D Inverter Drive Control Board, please contact your original point of purchase or the manufacturer directly. Ensure you have your purchase details and model number available when seeking support.
