1. Introduction and Overview
Thank you for choosing the Honeywell 18 Inch Dishwasher. This compact appliance is designed to provide efficient and convenient dishwashing for your home. Its space-saving design allows for more cabinet space in your kitchen while offering robust cleaning capabilities.
This manual provides essential information for the safe and effective installation, operation, and maintenance of your new dishwasher. Please read it thoroughly before using the appliance and keep it for future reference.
Image: Front view of the Honeywell 18 Inch Dishwasher, showcasing its compact and sleek white design.
2. Safety Information
Always adhere to basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury. This dishwasher is intended for household use only.
- Read all instructions before using the dishwasher.
- Ensure the dishwasher is properly grounded according to local codes and ordinances.
- Do not operate the dishwasher if it has a damaged power cord or plug, or if it is not working properly.
- Keep children away from the dishwasher, especially when it is in operation.
- Use only detergents and rinse aids specifically designed for automatic dishwashers.
- Do not touch the heating element during or immediately after use.
- Exercise caution when opening the door during or after a wash cycle, as hot steam may escape.
- Sharp items should be loaded with handles up to reduce the risk of cuts.
3. Product Features
The Honeywell 18 Inch Dishwasher is equipped with several features designed for optimal cleaning performance and user convenience:
- 8 Place Settings: Racks are suitable to fit 8 place settings of dishes. Includes a top cutlery rack and two other racks with a large removable cutlery basket.
- Multiple Functions: Offers 6 washing programs: Pots & Pans, Normal Wash, China, Quick Wash, Rinse Only, and Energy Saver.
- Delay Start: Up to 24-hour delay start option for added convenience.
- Durable Tub: The interior tub is made of stainless steel for enhanced efficiency and performance.
- Energy Star Certified: Designed for low energy consumption, meeting Energy Star standards.
- Built-In Style: Compact dimensions (22.6"D x 18"W x 32.4"H) for seamless integration into kitchen cabinetry. ADA-compliant.
Image: Close-up of the Honeywell 18 Inch Dishwasher's front panel, showing the control buttons and display.
4. Setup and Installation
The Honeywell 18 Inch Dishwasher is designed for built-in, under-counter installation. Due to the nature of plumbing and electrical connections, professional installation is highly recommended to ensure proper setup and compliance with local building codes.
Dimensions:
- Depth: 22.6 inches (57.4 cm)
- Width: 18 inches (45.7 cm)
- Height: 32.4 inches (82.3 cm)
Installation Considerations:
- Ensure adequate space for the dishwasher within your cabinetry, adhering to the specified dimensions.
- Verify that necessary electrical and water supply connections are available and meet local regulations.
- The dishwasher requires a 115V electrical connection.
- Proper leveling of the unit is crucial for optimal performance and to prevent leaks.

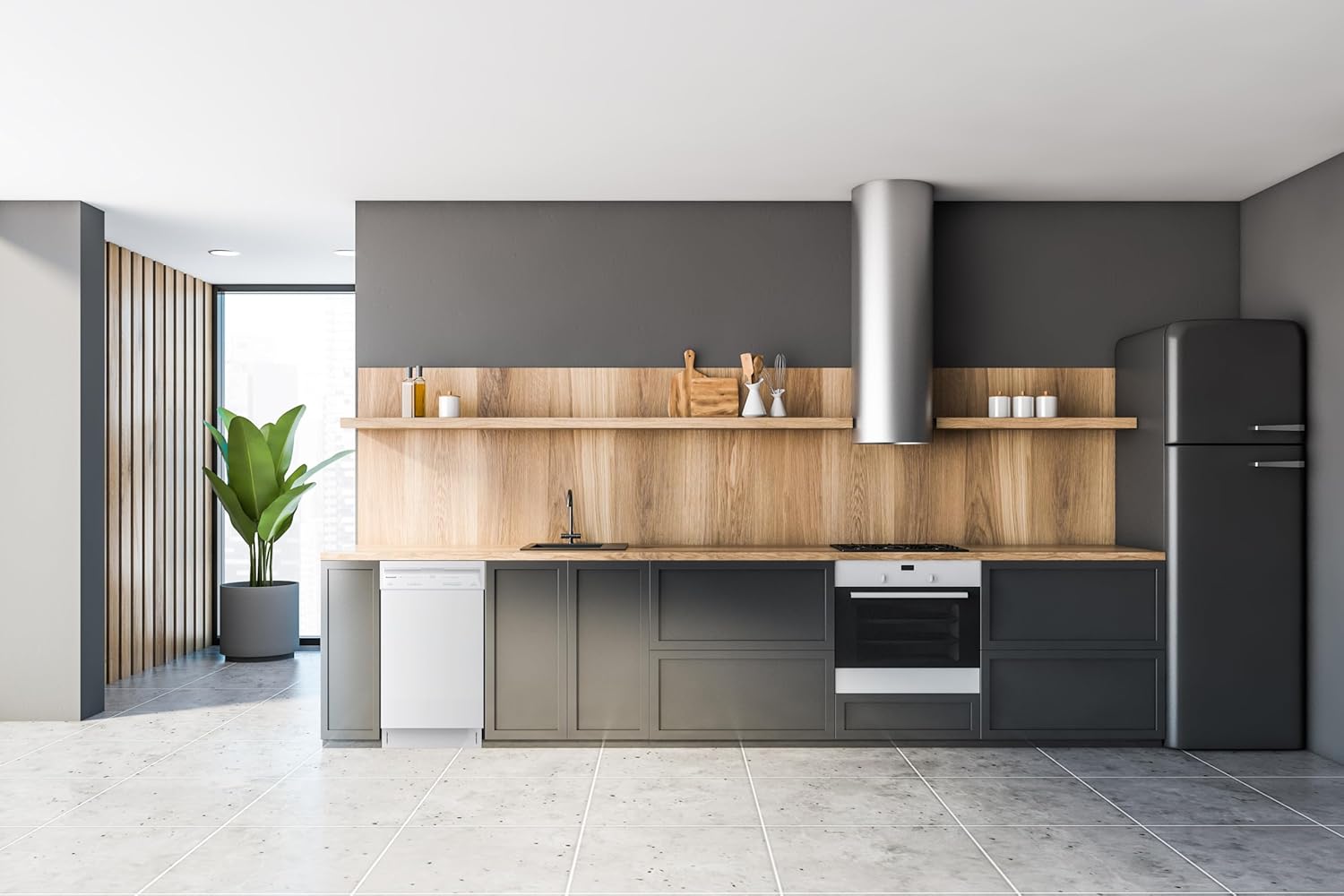

Image: The Honeywell 18 Inch Dishwasher seamlessly integrated into a modern kitchen setting, demonstrating its compact size.
Image: Another view of the dishwasher installed in a kitchen, highlighting its built-in appearance.
5. Operating Instructions
The dishwasher features push-button controls for easy program selection and operation.
Washing Programs:
Select the appropriate program based on the soil level and type of dishes:
- Pots & Pans: For heavily soiled dishes, pots, and pans.
- Normal Wash: Standard program for daily use with normally soiled dishes.
- China: Gentle wash for delicate china and glassware.
- Quick Wash: A shorter cycle for lightly soiled dishes that do not require drying.
- Rinse Only: For rinsing dishes that will be washed later, preventing food from drying on.
- Energy Saver: An optimized cycle for energy efficiency, suitable for normally soiled dishes.
Delay Start Function:
The delay start feature allows you to postpone the start of a wash cycle for up to 24 hours. This is useful for running the dishwasher during off-peak electricity hours or when you are away from home.
- Load the dishwasher and add detergent.
- Select your desired wash program.
- Press the 'Delay' button repeatedly to set the desired delay time (e.g., 3h, 6h, 9h, etc.).
- Press 'Start' to activate the delay timer. The dishwasher will begin the cycle after the set time has elapsed.
6. Loading the Dishwasher
Proper loading ensures optimal cleaning performance and prevents damage to dishes. The dishwasher accommodates 8 place settings.
Rack Configuration:
- Upper Rack: Ideal for glasses, cups, small bowls, and delicate items.
- Lower Rack: Best for plates, larger bowls, serving dishes, and pots/pans.
- Cutlery Basket: A removable basket for forks, spoons, and knives. Place knives with handles up for safety.
- Top Cutlery Rack: A dedicated rack for flatware, providing more space in the lower basket.
Loading Tips:
- Scrape off large food particles before loading.
- Do not overcrowd the racks; allow water to circulate freely.
- Ensure that no items block the spray arms.
- Place bowls and cups face down to prevent water from pooling.
Image: The interior of the dishwasher, showing the upper and lower racks filled with various dishes, demonstrating loading capacity.
Image: A different angle of the dishwasher's interior, providing a clearer view of the removable cutlery basket and dish arrangement.
7. Maintenance and Care
Regular maintenance helps ensure the longevity and optimal performance of your dishwasher.
Cleaning the Interior:
- The dishwasher features a durable stainless steel tub, which is resistant to stains and odors.
- Periodically clean the filter system at the bottom of the dishwasher to remove food debris. Refer to the filter cleaning instructions in your full product manual.
- Run a dishwasher cleaner or a cycle with white vinegar occasionally to remove mineral buildup and odors.
Cleaning the Exterior:
- Wipe the exterior surfaces with a soft, damp cloth and mild detergent.
- For the glossy finish, avoid abrasive cleaners or scouring pads that could scratch the surface.
8. Troubleshooting
Before contacting customer support, try these common troubleshooting steps:
| Problem | Possible Cause / Solution |
|---|---|
| Dishwasher does not start | Check if the power cord is securely plugged in. Ensure the circuit breaker has not tripped. Make sure the door is fully latched. |
| Dishes are not clean | Check if spray arms are blocked. Ensure proper detergent amount and type. Load dishes correctly to avoid overcrowding. Clean the filter. |
| Dishwasher is noisy | Ensure dishes are not rattling against each other or the spray arms. Check for foreign objects in the pump area. |
| Water not draining | Check for clogs in the drain hose or air gap. Ensure the drain hose is properly installed. |
| Controls unresponsive after installation | Unplug the unit or turn off the circuit breaker for 10 minutes, then restore power and try again. |
If the issue persists after attempting these solutions, please contact Honeywell customer support.
9. Specifications
| Specification | Detail |
|---|---|
| Model Name | HDS18W |
| Form Factor | Built-In |
| Product Dimensions (D x W x H) | 22.6" x 18" x 32.4" |
| Item Weight | 70 Pounds |
| Capacity | 8 Place Settings (Note: Product description states 14, but feature bullets and other specs state 8. Following feature bullets for consistency.) |
| Number of Programs | 6 (Pots & Pans, Normal Wash, China, Quick Wash, Rinse Only, Energy Saver) |
| Inner Material | Stainless Steel |
| Controls Type | Push Button |
| Voltage | 115V |
| Annual Energy Consumption | 234 Kilowatt Hours Per Year |
| Noise Level | 42 dB |
| Special Features | Quick Wash, Space Saver, Timer Delay |
| Energy Certification | UL, Energy Star |
| Included Components | Cutlery Basket |
| UPC | 811691028163 |
10. Warranty and Support
The Honeywell 18 Inch Dishwasher typically comes with a limited manufacturer's warranty. Please refer to the warranty card included with your product for specific terms, conditions, and duration. It is advisable to register your product upon purchase to facilitate any future warranty claims.
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Honeywell customer support. Contact information can usually be found on the Honeywell website or on the product packaging.
