Introduction
Thank you for choosing the ML Lighting Moven 3-Light Vanity Light. This manual provides detailed instructions for the safe installation, operation, and maintenance of your new lighting fixture. Please read all instructions carefully before beginning installation and retain this manual for future reference.

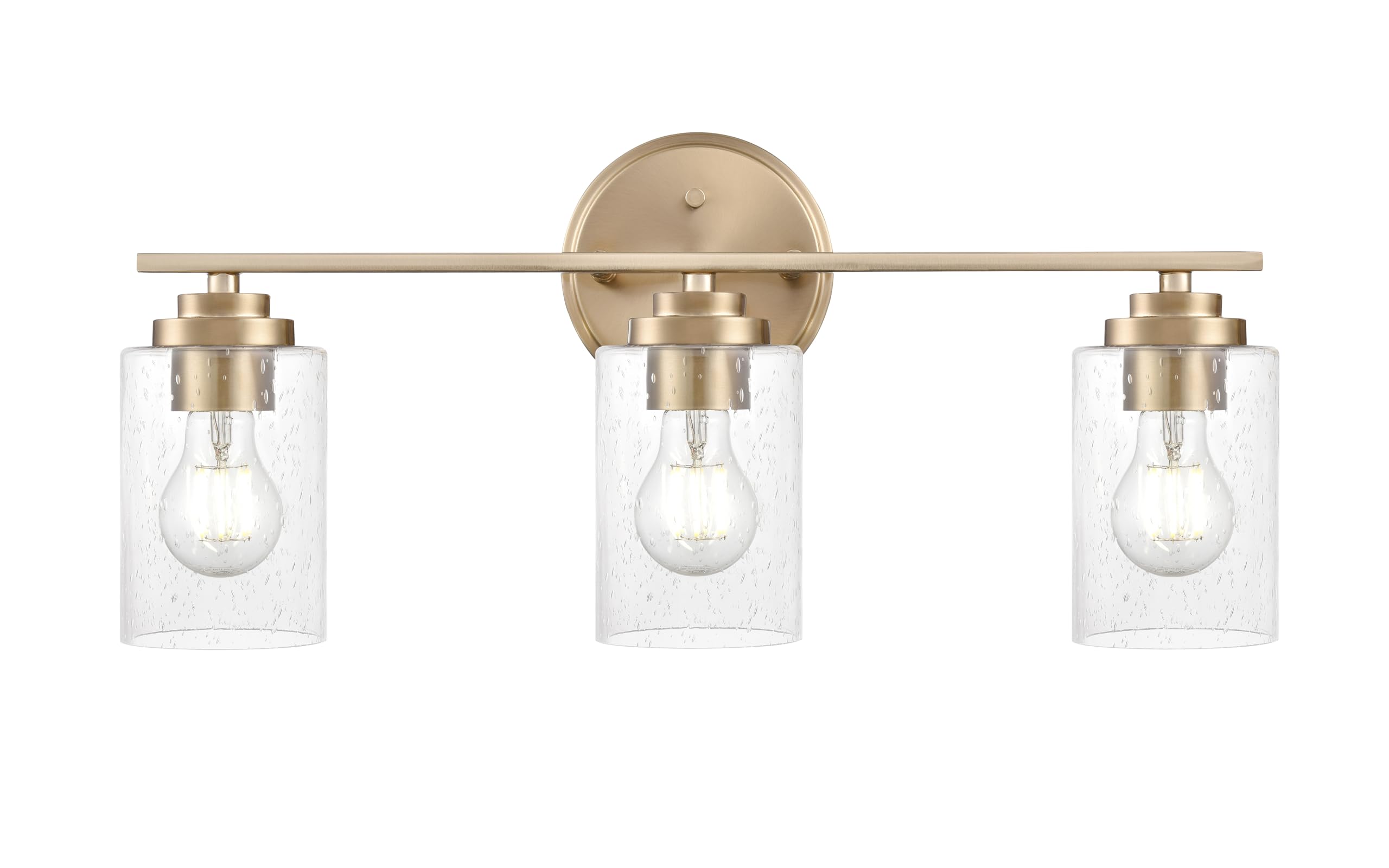

Image: The ML Lighting Moven 3-Light Vanity Light, showcasing its modern gold finish and clear seeded glass shades.
The Moven 3-Light Vanity Light features a modern gold finish and clear seeded glass, designed to complement various interior styles from modern farmhouse to industrial loft. This fixture is intended for indoor use in bathrooms and similar environments.
Safety Information
WARNING: Risk of electric shock. Disconnect power at the fuse box or circuit breaker before installation or servicing.
- All electrical connections must be in accordance with local codes, ordinances, or the National Electric Code (NEC). Contact a qualified electrician if you are unfamiliar with proper electrical wiring connections.
- Use only UL/cUL listed wire connectors.
- This fixture is designed for 120V, 60Hz power supply.
- Do not exceed the maximum wattage specified for the bulbs.
- Handle glass components with care to prevent breakage.
- Ensure the fixture is securely mounted to a structural element of the building.
Package Contents
Verify that all components are present before beginning installation:
- Vanity Light Fixture (1)
- Glass Shades (3)
- Mounting Hardware Kit (includes mounting strap, outlet box screws, wire connectors, ground screw, decorative nuts)
Setup and Installation
Follow these steps for proper installation of your vanity light. Professional installation is recommended if you are not comfortable with electrical wiring.
Tools Required (Not Included):
- Phillips head screwdriver
- Flathead screwdriver
- Wire strippers
- Electrical tape
- Pliers
Installation Steps:
- Turn off Power: Before starting, ensure the power to the circuit is turned off at the main fuse box or circuit breaker to prevent electrical shock.
- Prepare Mounting Surface: Remove the old fixture from the wall. Ensure the electrical junction box is securely mounted and capable of supporting the fixture's weight.
- Attach Mounting Strap: Secure the mounting strap to the outlet box using the provided outlet box screws. Ensure the strap is oriented correctly for the fixture.
- Wire Connections: Carefully connect the fixture's wires to the house wires.
- Connect the black (hot) wire from the fixture to the black (hot) wire from the outlet box using a wire connector.
- Connect the white (neutral) wire from the fixture to the white (neutral) wire from the outlet box using a wire connector.
- Connect the ground wire (bare copper or green) from the fixture to the ground wire from the outlet box (or to the ground screw on the mounting strap) using a wire connector.
- Ensure all connections are secure and covered with wire connectors. Wrap electrical tape around the wire connectors for added security.
- Mount Fixture: Carefully tuck all wires into the outlet box. Align the fixture's backplate with the mounting strap and secure it with the decorative nuts.
- Install Glass Shades: Carefully attach the clear seeded glass shades to the fixture. Ensure they are securely fastened.
- Install Bulbs: Screw in three E26 base bulbs (not included). Do not exceed the maximum recommended wattage of 60 watts per bulb (180 watts total).
- Restore Power: Once installation is complete, restore power at the circuit breaker.
Image: Close-up view of the fixture's backplate, showing mounting holes and electrical connections.
Image: A diagram illustrating the dimensions of the ML Lighting Moven 3-Light Vanity Light, including height, width, and depth.
Operating Instructions
The ML Lighting Moven 3-Light Vanity Light operates via a standard wall switch (not included). Once installed and wired correctly, simply toggle the wall switch to turn the light fixture on or off.
Image: The ML Lighting Moven 3-Light Vanity Light illuminating a bathroom vanity area.
Maintenance
Cleaning:
- Always disconnect power before cleaning.
- Wipe the fixture with a soft, dry cloth.
- Do not use abrasive cleaners, polishes, or solvents as they may damage the finish or glass.
- Clean glass shades with a mild glass cleaner and a soft cloth.
Bulb Replacement:
- Ensure the fixture is turned off and bulbs have cooled completely before attempting to replace them.
- Unscrew the old bulb counter-clockwise.
- Screw in a new E26 base bulb clockwise. Ensure the new bulb does not exceed 60 watts.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power to the fixture. | Check circuit breaker or fuse. Ensure wall switch is in the 'ON' position. |
| Loose wire connections. | Turn off power at the breaker. Check all wire connections and tighten if necessary. | |
| Faulty bulb. | Replace bulb with a new one. | |
| Light flickers. | Loose bulb or wiring. | Tighten bulb. Turn off power and check wire connections. |
| Incompatible dimmer switch. | Ensure dimmer switch is compatible with incandescent/LED bulbs (if using LED bulbs). | |
| Glass shade is loose. | Shade not tightened properly. | Gently tighten the retaining ring or screws holding the shade. |
Specifications
| Brand | ML Lighting |
| Model Number | 3683-MG |
| Color | Modern Gold |
| Material | Alloy Steel, Glass |
| Style | Modern |
| Light Fixture Form | Vanity |
| Room Type | Bathroom |
| Indoor/Outdoor Usage | Indoor |
| Power Source | Corded Electric |
| Light Source | Incandescent (compatible with LED) |
| Number of Light Sources | 3 |
| Voltage | 120 volts |
| Wattage (Max) | 180 watts (60W per bulb) |
| Bulb Base | E26 |
| Switch Type | Toggle (wall switch) |
| Water Resistance Level | Water Resistant |
| Brightness | 1800 lm (total) |
| Mounting Type | Wall Mount |
| Installation Type | Semi Flush Mount |
| Item Dimensions (L x W x H) | 6"L x 22"W x 9.75"H |
| UPC | 842639051325 |
Warranty and Support
Warranty Information:
This ML Lighting product is covered under a 1-year limited manufacturer warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
Customer Support:
If you experience any problems with this product, require further support, or have questions regarding returns, replacements, shipment tracking, or product information, please contact ML Lighting customer service. We are committed to resolving your issue within 24 hours.
For support, please visit the ML Lighting Store on Amazon or refer to the contact information provided with your purchase.
