1. Introduction
Thank you for choosing the Generic S1201 Capsule Coffee Maker. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your new coffee machine. Please read it thoroughly before first use and keep it for future reference.
2. Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:
- Read all instructions.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against fire, electric shock, and injury to persons, do not immerse cord, plugs, or appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
- The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use appliance for other than intended use.
- Scalding may occur if the lid is removed during the brewing cycle.
3. Product Overview
Familiarize yourself with the components of your Generic S1201 Capsule Coffee Maker.
Figure 3.1: Side view of the Generic S1201 Capsule Coffee Maker, showing the water tank on the right, the capsule insertion area, and the coffee spout with drip tray.
Figure 3.2: Top-down view of the coffee maker, highlighting the control buttons and the capsule loading mechanism. Several coffee capsules are visible next to the machine.
Key Components:
- Water Tank: Removable tank for fresh water.
- Capsule Insertion Handle: Mechanism to open and close the capsule chamber.
- Capsule Chamber: Where the coffee capsule is placed.
- Coffee Spout: Where brewed coffee dispenses.
- Drip Tray: Removable tray to catch drips and spills.
- Control Buttons: Buttons for power and coffee volume selection (small cup, big cup).
- Used Capsule Container: Located beneath the capsule chamber, collects used capsules.
4. Setup
Follow these steps for initial setup before first use:
- Unpacking: Carefully remove all packaging materials and place the coffee maker on a stable, flat surface.
- Cleaning: Wash the water tank, drip tray, and used capsule container with warm, soapy water. Rinse thoroughly and dry.
- Fill Water Tank: Fill the water tank with fresh, cold drinking water up to the MAX level indicator. Place the tank back onto the machine securely.
- Power Connection: Plug the power cord into a grounded electrical outlet.
- First Rinse Cycle: Before brewing coffee, perform a rinse cycle without a capsule.
- Place an empty cup under the coffee spout.
- Press any coffee volume button (e.g., big cup button) to start the rinse.
- Allow the machine to run until the water tank is empty or the cycle completes. This primes the pump and cleans internal components.
- Repeat if desired.
5. Operating Instructions
Your S1201 coffee maker is designed for simple, automatic operation.

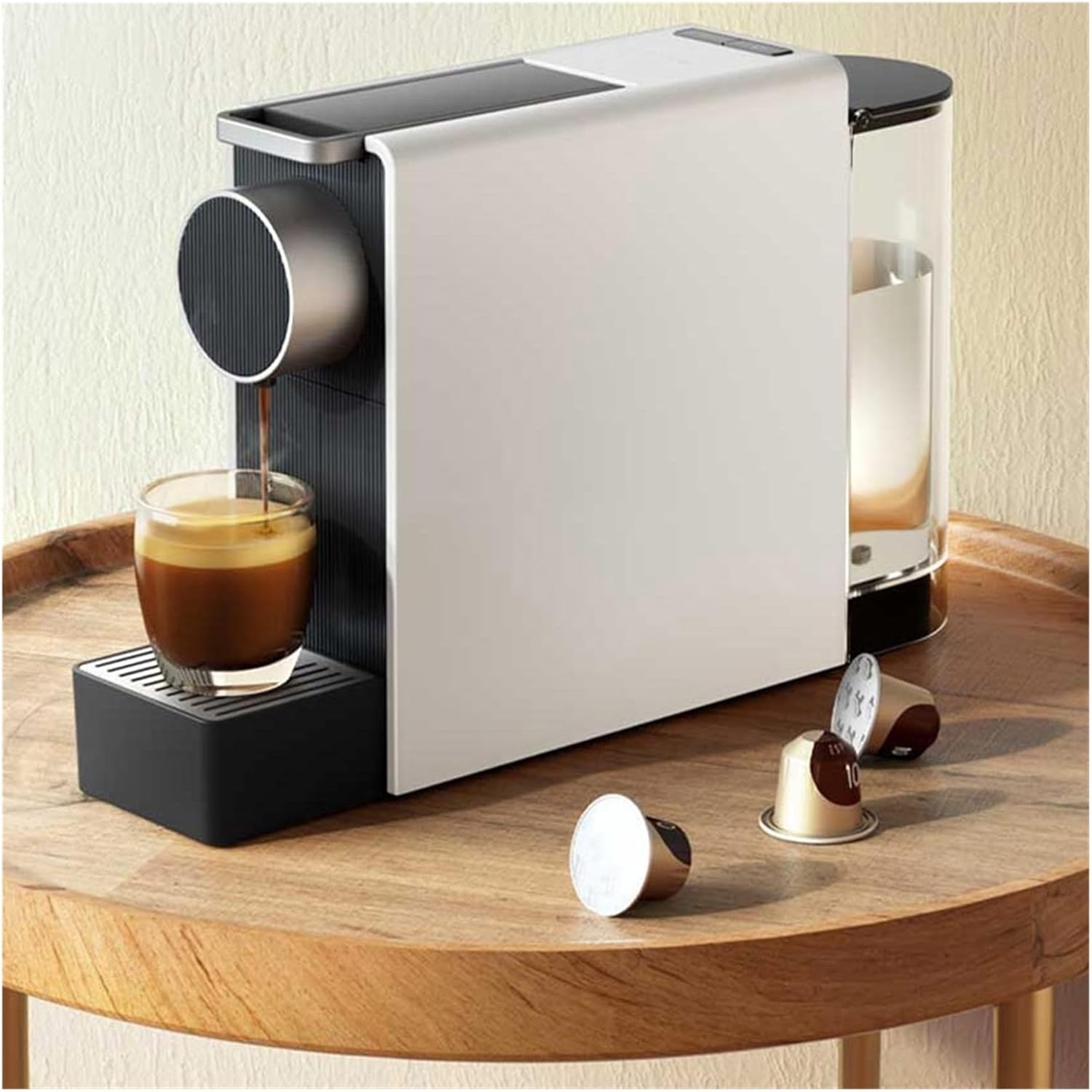

Figure 5.1: The coffee maker actively brewing espresso into a clear glass cup, demonstrating its function.
- Power On: Ensure the water tank is filled and the machine is plugged in. Press the power button (if available, otherwise the machine may power on automatically when plugged in or by pressing a coffee button). The indicator light will illuminate.
- Insert Capsule: Lift the capsule insertion handle. Place a coffee capsule into the capsule chamber. Close the handle firmly.
- Place Cup: Place your desired cup under the coffee spout. Adjust the drip tray height if necessary.
- Select Coffee Volume:
- Press the Small Cup button for approximately 40ml of coffee.
- Press the Big Cup button for approximately 110ml of coffee.
The machine will begin brewing. The 19BAR pump ensures optimal extraction for rich espresso.
- Brewing Complete: The machine will automatically stop once the selected volume is dispensed.
- Remove Used Capsule: Lift the capsule insertion handle again. The used capsule will automatically drop into the used capsule container. Close the handle.
- Automatic Shutdown: The machine will automatically shut down after 10 minutes of inactivity to save energy.
6. Maintenance and Cleaning
Regular cleaning ensures optimal performance and longevity of your coffee maker.
- Daily Cleaning:
- Empty and rinse the drip tray and used capsule container after each use or daily.
- Wipe the exterior of the machine with a soft, damp cloth.
- Empty and rinse the water tank. Refill with fresh water.
- Descaling: Depending on water hardness, descaling should be performed every 2-3 months. Refer to a suitable descaling solution's instructions for use with coffee machines.
- Do Not Immerse: Never immerse the main body of the coffee maker in water or any other liquid.
7. Troubleshooting
If you encounter issues with your coffee maker, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not turn on. | Not plugged in; power outlet issue. | Ensure power cord is securely plugged into a working outlet. |
| No coffee dispenses. | Water tank empty; capsule not inserted correctly; machine needs priming. | Fill water tank. Ensure capsule is correctly seated and handle is closed. Perform a rinse cycle without a capsule. |
| Coffee is cold or not hot enough. | Machine not preheated; cold cup. | Allow machine to preheat fully (indicator light stable). Preheat cup with hot water. |
| Water leaks from machine. | Water tank not seated correctly; drip tray full. | Ensure water tank is properly installed. Empty and re-seat drip tray. |
If the problem persists, please contact customer support.
8. Specifications
- Model: S1201
- Brand: Generic
- Pressure: 19 BAR Pump
- Preset Coffee Volumes: Small Cup (approx. 40ml), Big Cup (approx. 110ml)
- Automatic Shutdown: After 10 minutes of inactivity
- Manufacturer: Generic
- ASIN: B0F99RK5ZS
- Batteries Required: No
9. Warranty and Support
Your Generic S1201 Capsule Coffee Maker comes with a 3-month warranty from the date of purchase.
This warranty covers manufacturing defects under normal use. It does not cover damage resulting from misuse, accident, alteration, neglect, or unauthorized repair.
For warranty claims or technical support, please contact your retailer or the manufacturer directly, providing your purchase details and the product model number (S1201).
