1. Introduction

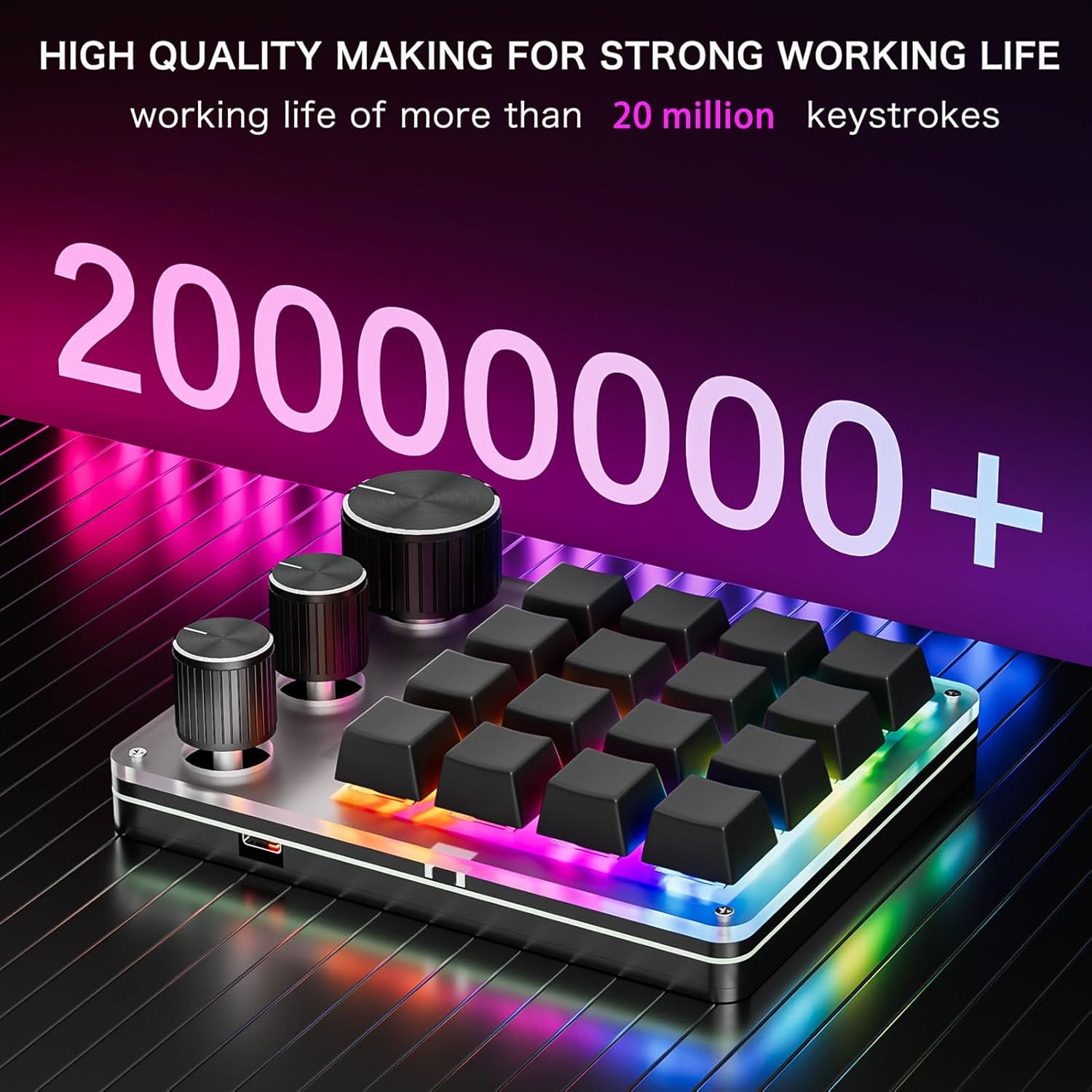

This manual provides detailed instructions for setting up, operating, and maintaining your Vbestlife Mini Macro Keypad Vb1pfxvb7guz-11. This compact, 16-key mechanical keypad features three customizable knobs, hot-swappable switches, and wired USB connectivity, designed to enhance efficiency for gaming, office tasks, and media control.
2. Package Contents
Please verify that all items listed below are included in your package:
- 1 x Mini Macro Keypad
- 1 x User Manual
- 1 x USB Supply Cord (Type-C)
3. Specifications
| Brand | Vbestlife |
| Model Name | Vb1pfxvb7guz-11 |
| Keyboard Description | Mechanical |
| Special Feature | LED Backlight |
| Color | Black |
| Product Dimensions (L x W x H) | 13.2 x 13.2 x 3.5 cm (Approx. 5.2 x 4.13 x 1.36 inches) |
| Switch Type | Red Switch (Mechanical) |
| Number of Keys | 16 |
| Knob Material | Aluminum Alloy |
| Connection Type | Wired (Type-C USB) |
| Number of Layers | 3 customizable layers |
| Minimum OS Version Required | Mac OS X 10.0 Cheetah (and later) |
4. Setup
4.1. Hardware Connection
Connect the provided USB Type-C cable to the keypad's port and then to an available USB port on your computer. The keypad will light up, indicating a successful connection.
The keypad is designed for plug-and-play functionality for basic use. For advanced customization, driver software is required.
4.2. Driver Software Installation
To unlock the full customization potential of your keypad, you need to install the dedicated driver software. The current driver requires a browser that supports WebHID (e.g., Google Chrome, Microsoft Edge). If you encounter issues, ensure your browser is updated or use an offline version of the driver if available. The driver interface shown in the video is for Windows, but the product is compatible with Mac OS for basic functions.
- Open your web browser and navigate to the driver website: https://www.sdcx-tech.com
- On the website, click "Initialize device".
- Select your "SIDE-KEYBOARD" device from the list and click "Connect".
- Once connected, you will enter the driver interface for customization.
5. Operating Instructions
5.1. Key and Knob Customization
The Vbestlife Mini Macro Keypad allows extensive customization of its 16 keys and 3 knobs across three distinct layers. Use the driver software to assign various functions, including single keys, key combinations (shortcuts), multimedia controls, and mouse actions.
- In the driver interface, select the desired key or knob you wish to customize.
- Choose the function from the available options (e.g., Basic, Ctrl+Shift+Alt, Multimedia, Mouse).
- Assign the specific key, combination, or action.
- Click "Download" to save the configuration to your keypad.
5.2. Layer Switching
The keypad supports 3 layers of customization. You can switch between these layers using a designated key or knob function assigned in the driver software. This allows for multiple sets of commands for different applications or workflows.
5.3. LED Lighting Modes
The keypad features LED backlighting with multiple modes. These modes can be configured and switched via the driver software. The LED lights indicate the keypad's status and can be customized for visual preference.
- In the driver interface, navigate to the "LED" section.
- Select your preferred LED mode (e.g., Mode 0: Light off, Mode 1: All keys lit, Mode 2: Sequential lighting, Mode 3: Reverse sequential lighting, Mode 4: Pressed key lit, Mode 5: White constant light).
- Click "Download" to apply the selected LED mode to your keypad.
5.4. Hot-Swappable Switches
The keypad features hot-swappable mechanical switches, allowing you to easily change the key switches without soldering. This enables customization of typing feel and sound to suit your preference.
6. Maintenance
6.1. Cleaning
- Disconnect the keypad from your computer before cleaning.
- Use a soft, dry cloth to wipe the surface of the keypad.
- For stubborn dirt, lightly dampen the cloth with water or a mild cleaning solution. Avoid excessive moisture.
- Use compressed air to remove dust and debris from between the keys.
6.2. Storage
Store the keypad in a cool, dry place away from direct sunlight and extreme temperatures. When not in use for extended periods, disconnect it from your computer.
7. Troubleshooting
- Keypad Not Responding:
- Ensure the USB cable is securely connected to both the keypad and your computer.
- Try connecting the keypad to a different USB port on your computer.
- Restart your computer.
- Verify that the driver software is correctly installed and the device is recognized.
- Keys Not Performing Assigned Functions:
- Open the driver software and re-check the key assignments for the active layer.
- Ensure the configuration has been successfully "Downloaded" to the keypad.
- Confirm that you are on the correct layer if you have multiple layers configured.
- LED Lights Not Working or Incorrect:
- Check the LED settings in the driver software.
- Ensure the keypad is properly connected via USB.
- Driver Software Not Recognizing Keypad:
- Ensure your web browser (e.g., Chrome, Edge) is up to date and supports WebHID.
- Try a different USB cable or port.
- Temporarily disable any antivirus or firewall software that might be interfering with the connection.
8. Warranty and Support
For warranty information, technical support, or further assistance, please refer to the contact details provided with your purchase or visit the official Vbestlife website. Keep your purchase receipt as proof of purchase for warranty claims.
