CAROMIO Heated Blanket Queen Size with LCD Dual Controller

1. Introduction and Overview

Thank you for choosing the CAROMIO Heated Blanket. This queen-sized electric blanket features a comfortable waffle weave design, a soft sherpa reverse, and an LCD dual controller for personalized warmth. It offers 10 heat levels and a 1-12 hour timer setting, designed to provide a cozy and safe heating experience. This manual provides essential information for the proper setup, operation, and maintenance of your heated blanket.

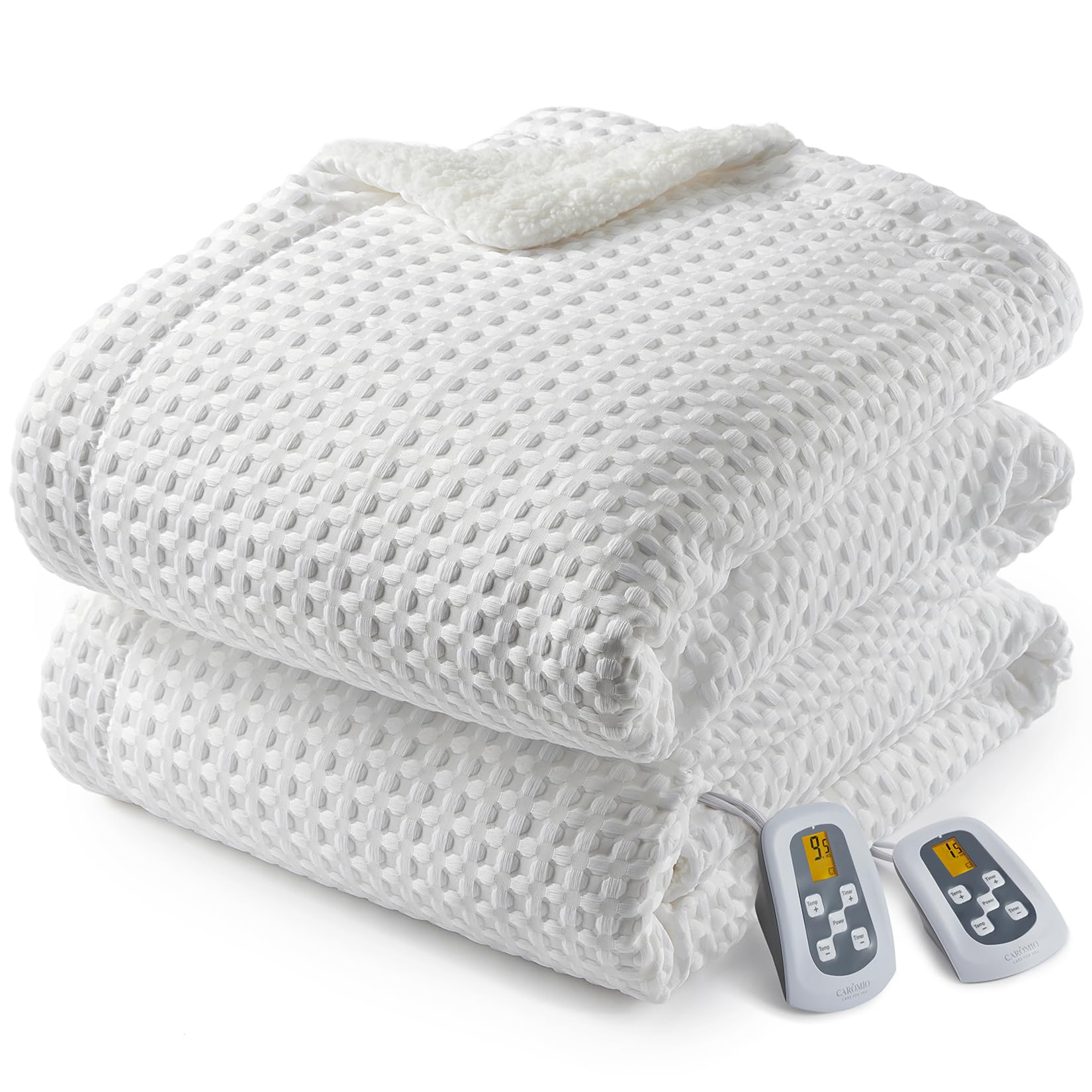

Image: The CAROMIO Queen Size Heated Blanket in off-white, laid out on a bed, highlighting its safety features like overheat and warm protection.

2. Safety Information

Your safety is paramount. Please read and follow all instructions carefully before using your heated blanket. This product is ETL certified, ensuring it meets recognized safety standards.

• Do not use this product with infants, immobile persons, or anyone insensitive to heat, such as people with poor blood circulation.
• Do not tuck this product in the wired area.
• Do not wrap or pinch electrical cords in any way.
• Do not use pins.
• If improper operation of this product happens, please stop its use immediately and consult the manufacturer or the dealer regarding its repair.
• Never use this product with an air mattress.
• This product should never be folded, balled up, or bunched during use, as this may result in overheating.
• Wrapping of the cord around the controller may damage the cord. Loop loosely when storing.
• The blanket is equipped with intelligent NTC&PTC heating wires that continuously monitor and regulate temperature in real-time to prevent overheating.
• The polarized plug blade (one that is wider than the other) is a safety feature. This plug will fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, spin the plug. If it still does not fit, contact a qualified electrician. Do not try to defeat this safety feature.

3. Product Features

• Premium Waffle Weave Design: Crafted with thickened 240GSM velvet on one side and 200GSM sherpa on the other for exceptional softness and comfort.
• Fast Heating System: Upgraded heating wires provide soothing warmth in approximately 15 minutes.
• 10 Heat Settings: Easily adjust the temperature to your preference, with a maximum temperature of 115°F.
• LCD Dual Controller: Allows easy monitoring and adjustment of temperature and timer settings for individual sides of the blanket.
• 1-12 Hour Auto Shut-off: Offers flexible timer settings for energy saving and safety.
• ETL Certified: Ensures product safety and reliability.
• Machine Washable: Designed for easy cleaning after disconnecting the controllers.

Image: The LCD dual controllers for the CAROMIO heated blanket, illustrating the 10 temperature modes and 1-12 hour timer settings.

Image: A visual representation of the dual-zone heating capability of the blanket, showing independent temperature control for each side.

4. Setup Instructions

1. Unpack the Blanket: Carefully remove the heated blanket from its packaging. It may be tightly compressed; allow it to expand naturally.
2. Position the Blanket: Lay the heated blanket flat on your bed, ensuring it is evenly spread without any folds or bunches. The side with the waffle weave is typically the top, and the sherpa side faces down for added warmth.
3. Connect the Controllers: Locate the connection ports on the blanket. Plug the dual controllers securely into these ports. Ensure a firm connection.
4. Plug into Power: Plug the power cord(s) from the controllers into a standard 120V AC electrical outlet. Ensure the outlet is easily accessible and not obstructed.
5. Arrange Cords: Position the cords so they do not become tangled or pinched between the bed and the wall or furniture.

Image: A person arranging the CAROMIO heated blanket on a bed, preparing it for use.

5. Operating Instructions

Each side of the queen-sized blanket has its own controller for independent temperature and timer settings.

1. Power On/Off: Press the 'Power' button on the controller to turn the blanket on or off. The LCD screen will illuminate.
2. Adjust Heat Level: Use the 'Temp +' or 'Temp -' buttons to select your desired heat level from 1 to 10. Level 1 is the lowest, and Level 10 is the highest (up to 115°F).
3. Set Timer: Use the 'Timer +' or 'Timer -' buttons to set the automatic shut-off time. You can choose settings from 1 to 12 hours. The blanket will automatically turn off after the selected time has elapsed.
4. Dual Control: If using the dual controller model, each person can adjust their side of the blanket independently.
5. Pre-heating: For optimal warmth, it is recommended to turn on the blanket 15-30 minutes before use to allow it to pre-heat.

6. Maintenance and Care

Keeping your CAROMIO Heated Blanket clean is simple. Always follow these instructions to ensure longevity and safe operation.

Washing Instructions:

1. Disconnect Power: Always unplug the blanket from the wall outlet and disconnect the controllers from the blanket before washing.
2. Machine Wash: Wash by hand or as follows in an automatic washing machine using slow agitation and normal spin speed.
3. Water Temperature: Fill washing machine with warm water.
4. Detergent: Add a minimum amount of all-purpose detergent, agitate to dissolve, and measure this product before washing.
5. Soak: Add the blanket and soak for five minutes.
6. Agitate: Agitate for two minutes. Spin. Fill for cool rinse, agitate for one minute, then spin.
7. Hand Washing: For hand washing, wash with a small amount of mild laundry soap or detergent. Never rub or scrub. Rinse thoroughly in cold water until all traces of soap or detergent are gone. Squeeze extra water out by hand.
8. Do not iron this product.
9. Do not dry clean.
10. Never bleach.

Drying Instructions:

• Tumble Dry: Dry in an automatic dryer on low heat for five minutes only, or line dry.
• Ensure that your product has enough room to tumble freely.
• Remove damp product from dryer, block to original size, and drape to finish drying.
• If using a commercial dryer, use air dry or low setting.
• Important: Never plug in this product while damp.

Image: A woman preparing to machine wash the CAROMIO heated blanket, emphasizing the need to unplug the power connection first.

7. Specifications

Image: A sizing reference chart detailing the dimensions and cord lengths for various CAROMIO heated blanket sizes.

8. Troubleshooting

• Blanket not heating: Ensure the power cord is securely plugged into a working electrical outlet and the controller is firmly connected to the blanket. Check if the power button on the controller is pressed and a heat level is selected.
• Blanket stops working: If the heated blanket stops working, it might be due to the automatic shut-off timer or a safety feature activation. Unplug the blanket, wait a few minutes, and then plug it back in and restart. If the issue persists, please refer to the warranty and support section.
• Uneven heating: Ensure the blanket is spread flat on the bed without any folds, bunches, or items placed on top that could obstruct heat distribution.
• Controller display not working: Check the power connection. If the display remains off after ensuring proper connection, contact customer support.

9. Warranty and Support

CAROMIO provides a 1-year protection plan for this heated blanket. If there are any quality issues with the product, please reach out to us via email. We will provide a solution for your order within one year of purchase.

For further assistance or inquiries, please contact CAROMIO customer support.
