Fruhdi Power Recliner Motor Actuator R811A02380183 Instruction Manual

Introduction

This manual provides instructions for the installation, operation, and maintenance of the Fruhdi Power Recliner Motor Actuator, Model R811A02380183. This actuator is designed for use in electric sofas, massage chairs, and similar applications. Please read this manual thoroughly before installation and use to ensure proper function and safety.

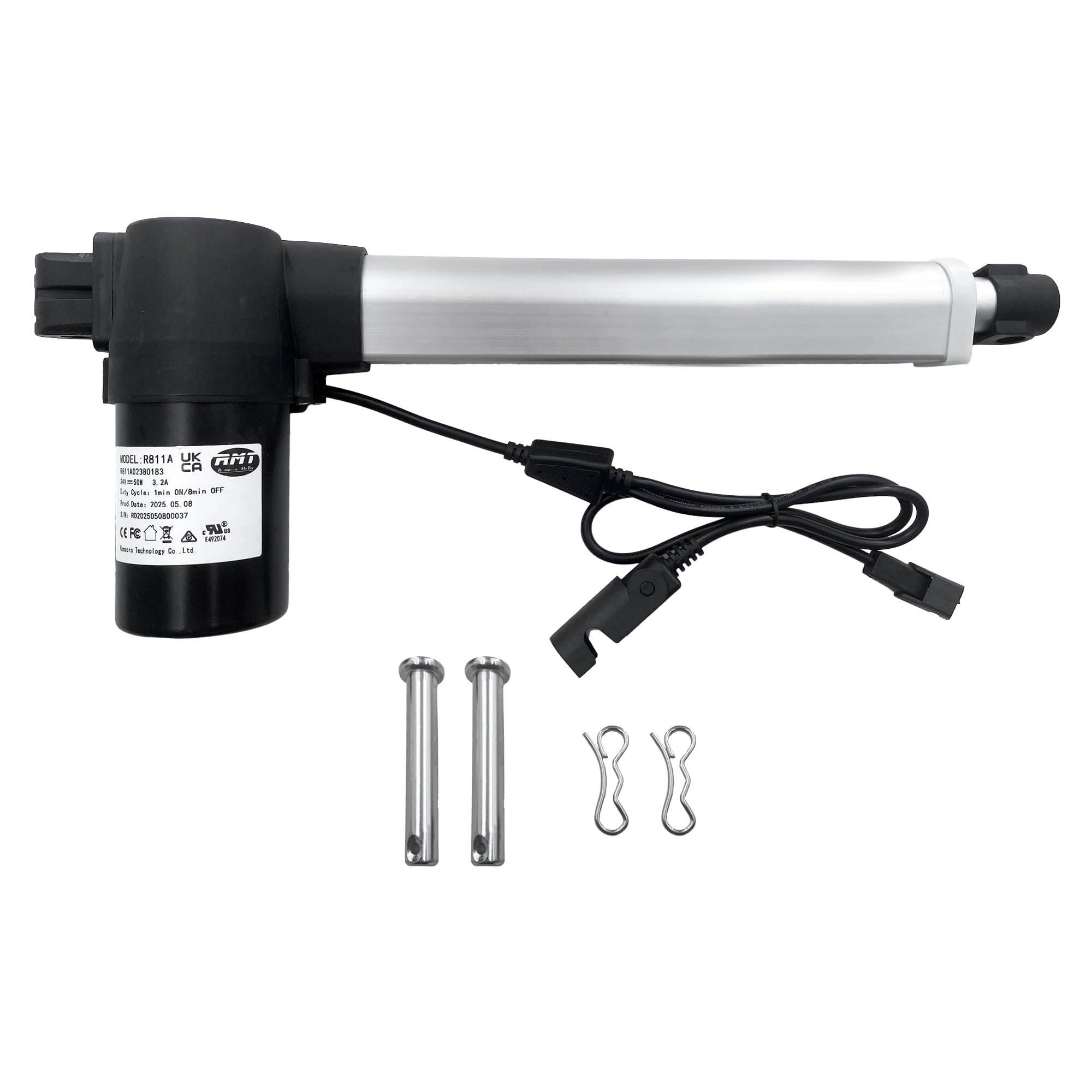

Image: Fruhdi Power Recliner Motor Actuator R811A02380183, showing the complete unit with wiring.

Important Safety Information

WARNING:

• Always turn off and unplug the power source before installing, servicing, or troubleshooting the motor.
• Be cautious of electrical hazards. Ensure all connections are secure and properly insulated.
• Do not exceed the motor's specified weight capacity. Overloading can cause damage or injury.
• Keep hands and loose clothing clear of moving parts during operation.
• This product is intended for indoor use only unless otherwise specified by the furniture manufacturer.

Compatibility

This Fruhdi motor actuator (Model R811A02380183) is designed as a direct replacement for RMT Motor Model R811A/R811A02380183.

IMPORTANT:

This actuator is not compatible with RMT motor models R811A32375198 and R811242375198. Verify your existing motor's model number before purchasing and installation.

Image: Close-up view of the motor's label, clearly displaying the model number R811A02380183 and other technical data.

Ensure the minimum install size and stroke length match your existing unit. This model features a minimum install size of 380 mm (14.90 inches) and a stroke of 183 mm (7.20 inches).

Image: Diagram illustrating the minimum installation size (14.90 inches) and stroke length (7.20 inches) of the actuator.

Setup and Installation

Before beginning installation, ensure the power to the furniture is completely disconnected.

1. Disconnect Power: Unplug the recliner or lift chair from the wall outlet.
2. Access Existing Motor: Carefully turn the furniture over or access the underside to locate the existing motor actuator.
3. Disconnect Wiring: Disconnect the power transformer connection (typically a 2-pin flat round connector) and the hand control plug connection (typically a 5-pin connector) from the old motor.
4. Remove Old Motor: Detach the old motor from its mounting points. This usually involves removing clevis pins or bolts. Keep these for reuse if they are in good condition, or use the new ones provided with the replacement motor.
5. Install New Motor: Position the new Fruhdi R811A02380183 actuator in the same location as the old one. Secure it using the appropriate clevis pins or bolts. Ensure it is firmly attached and aligned.
6. Connect Wiring:
   • Connect the 2-pin flat round power transformer connection to the new motor.
   • Connect the 5-pin hand control plug connection to the new motor.


   Image: Detailed view of the 2-pin flat round power transformer connector and the 5-pin hand control plug connector for proper identification during installation.

7. Test Functionality: Once all connections are secure, plug the furniture back into the wall outlet. Carefully test the recliner's functions using the hand control.
8. Final Inspection: Ensure there are no obstructions to the motor's movement and that all wiring is safely routed and not pinched.

Operation

The Fruhdi R811A02380183 motor actuator operates in conjunction with your recliner's existing hand control unit. Refer to your furniture's original instruction manual for specific operating procedures of the hand control.

• Reclining: Press and hold the appropriate button on your hand control to extend the footrest and recline the backrest.
• Returning to Upright: Press and hold the opposite button to retract the footrest and return the backrest to the upright position.
• Stopping Movement: Release the button at any desired position to stop the motor's movement.

Note: The motor has a duty cycle of 1 minute ON / 8 minutes OFF. Avoid continuous operation for extended periods to prevent overheating.

Maintenance

Regular maintenance helps ensure the longevity and smooth operation of your recliner motor actuator.

• Cleaning: Keep the motor and surrounding areas free from dust and debris. Use a dry cloth for cleaning. Do not use liquid cleaners directly on the motor.
• Lubrication: The motor is generally maintenance-free regarding internal lubrication. However, periodically check the pivot points and moving parts of the recliner mechanism itself and lubricate them according to your furniture manufacturer's recommendations.
• Cable Inspection: Periodically inspect all power and control cables for signs of wear, fraying, or damage. Replace any damaged cables immediately.
• Mounting Hardware: Check that all mounting bolts and pins are secure. Tighten if necessary.

Troubleshooting

If your recliner is not functioning correctly, perform the following checks before contacting support:

If troubleshooting steps do not resolve the issue, contact Fruhdi customer support or a qualified technician.

Technical Specifications

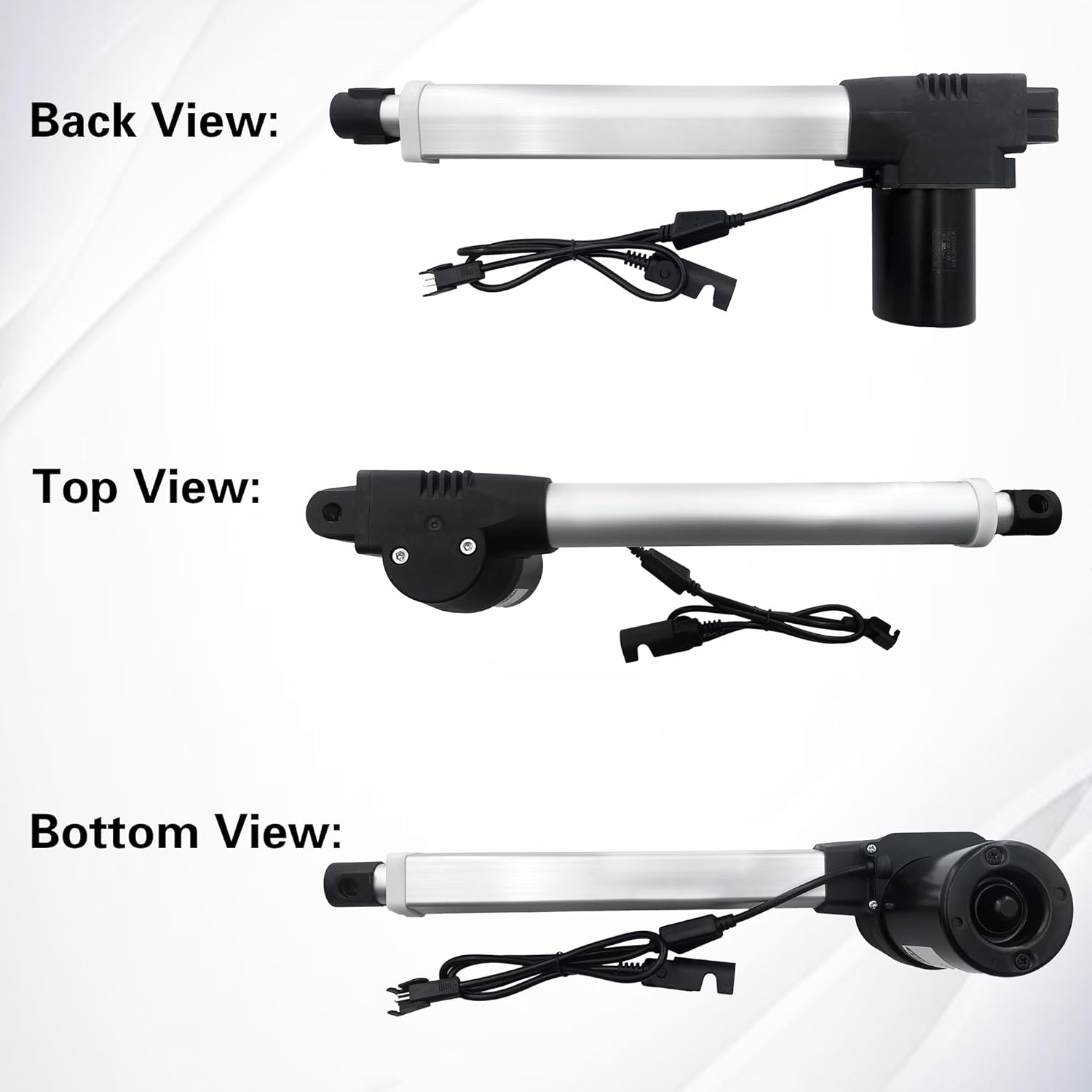

Image: Various views (Back, Top, Bottom) of the Fruhdi R811A02380183 motor actuator, showing its physical dimensions and mounting points.

Warranty and Support

For warranty information or technical support, please contact Fruhdi customer service. Keep your purchase receipt as proof of purchase.

For further assistance, you may visit the Fruhdi store on Amazon: Fruhdi Amazon Store
