Carburetor Instruction Manual

1. Introduction

This manual provides essential information for the installation, operation, and maintenance of your new FTYHFEFH Carburetor, designed for Briggs & Stratton 4hp - 7hp engines. Please read this manual thoroughly before installation to ensure proper function and longevity of the product.

Image 1.1: Overview of the FTYHFEFH Carburetor and included gaskets.

2. Safety Information

• Always disconnect the spark plug wire and fuel line before working on the engine to prevent accidental starting and fuel spills.
• Work in a well-ventilated area to avoid inhaling fuel fumes.
• Wear appropriate personal protective equipment (PPE), such as gloves and eye protection.
• Ensure the engine is cool before beginning any work to prevent burns.
• Keep fuel away from open flames, sparks, and heat sources.

3. Package Contents

Your package should contain the following items:

• 1 x FTYHFEFH Carburetor
• 1 x Mounting Gasket (as pictured)
• 1 x O-ring (as pictured)

Note: Package includes item identical to product images.

4. Setup and Installation

This carburetor is designed for direct replacement and matches factory specifications. No special tools are required for replacement.

4.1. Preparation

1. Ensure the engine is off and cool.
2. Disconnect the spark plug wire.
3. Turn off the fuel supply and disconnect the fuel line from the old carburetor. Drain any remaining fuel from the tank if necessary.
4. Remove the air filter assembly.

4.2. Removal of Old Carburetor

1. Carefully disconnect any linkages (throttle, choke) attached to the old carburetor. Take note of their positions or take a photo for reference.
2. Unbolt the old carburetor from the engine manifold. There are typically two nuts holding it in place.
3. Remove the old carburetor and any old gaskets. Dispose of old gaskets properly.

Image 4.1: View of the carburetor's mounting flange, where it connects to the engine.

4.3. Installation of New Carburetor

1. Place the new gasket(s) in their correct positions on the engine manifold and/or carburetor. Ensure they are clean and undamaged.
2. Position the new FTYHFEFH Carburetor onto the mounting studs.
3. Secure the carburetor with the nuts, tightening them evenly to prevent leaks. Do not overtighten.
4. Reconnect all linkages (throttle, choke) to their correct positions on the new carburetor.
5. Reconnect the fuel line to the carburetor's fuel inlet. Ensure a secure connection to prevent leaks.
6. Reinstall the air filter assembly.

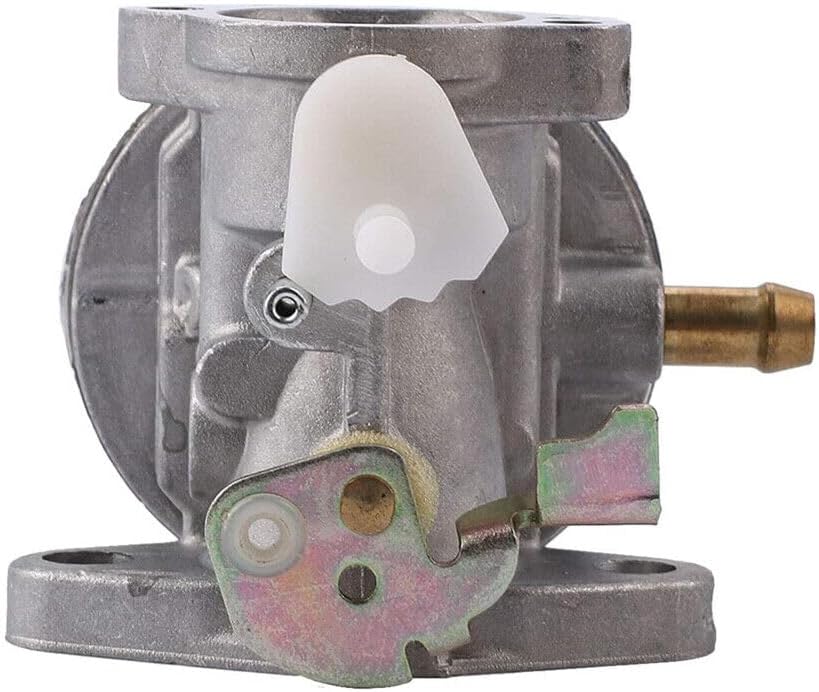

Image 4.2: Side view of the carburetor, showing the throttle linkage connection point.

Image 4.3: Another view of the carburetor, highlighting the fuel inlet barb.

5. Operating Instructions

After successful installation, the engine should be ready for operation. This carburetor is designed to provide optimal performance for Briggs & Stratton 4hp - 7hp engines.

1. Reconnect the spark plug wire.
2. Turn on the fuel supply.
3. Follow your engine's manufacturer instructions for starting procedures (e.g., choke setting, primer bulb usage).
4. Allow the engine to warm up for a few minutes before putting it under load.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your carburetor.

• Fuel Quality: Always use fresh, clean fuel. Stale or contaminated fuel is a primary cause of carburetor issues. Consider using a fuel stabilizer if the engine will be stored for extended periods.
• Fuel Filter: Regularly check and replace the fuel filter (if equipped on your engine) to prevent debris from entering the carburetor.
• Air Filter: Ensure the air filter is clean and properly installed. A dirty air filter can cause the engine to run rich and affect carburetor performance.
• Cleaning: If the carburetor becomes clogged, it may require cleaning. This typically involves disassembling the carburetor and cleaning jets and passages with carburetor cleaner. Consult a professional if unsure.

7. Troubleshooting

Here are some common issues and their potential solutions:

If problems persist after following these steps, it is recommended to consult a qualified small engine mechanic.

8. Specifications

9. Warranty and Support

For any questions regarding installation, troubleshooting, or product information, please refer to the seller's contact information on the original purchase platform.

This product is manufactured to OEM standards for optimal performance and durability. Please retain your proof of purchase for any warranty claims, if applicable, as per the seller's policy.
