Generic Replacement Ice Maker Instruction Manual

1. Product Overview

This document provides instructions for the installation, operation, maintenance, and troubleshooting of the Generic replacement ice maker, part number DA97-13415B. This component is designed to replace the original ice maker in compatible Samsung refrigerator models.

1.1. Compatibility

This replacement ice maker (Part Number DA97-13415B) is compatible with the following Samsung refrigerator models:

• Samsung RS25H5111WW/AA
• Samsung RS25H5111SR/AA
• Samsung RS25H5111BC/AA

Note: Appliance parts can appear similar. Always verify the part number and compatibility with your specific refrigerator model before installation.

2. Safety Information

Read all safety instructions before attempting installation or maintenance. Failure to follow these instructions may result in electric shock, fire, or property damage.

• Disconnect Power: Always unplug the refrigerator from the power outlet before performing any installation, maintenance, or repair.
• Water Supply: Turn off the water supply to the refrigerator before disconnecting any water lines.
• Professional Installation: If you are unsure about any step, it is recommended to consult a qualified appliance technician.
• Sharp Edges: Be aware of potentially sharp edges inside the refrigerator or on the ice maker component. Wear protective gloves if necessary.
• Electrical Components: Handle electrical connections with care. Ensure all connections are secure and dry before restoring power.

3. Package Contents

Verify that all components are present and undamaged upon opening the package.

• 1 x Generic Replacement Ice Maker (Part Number DA97-13415B)

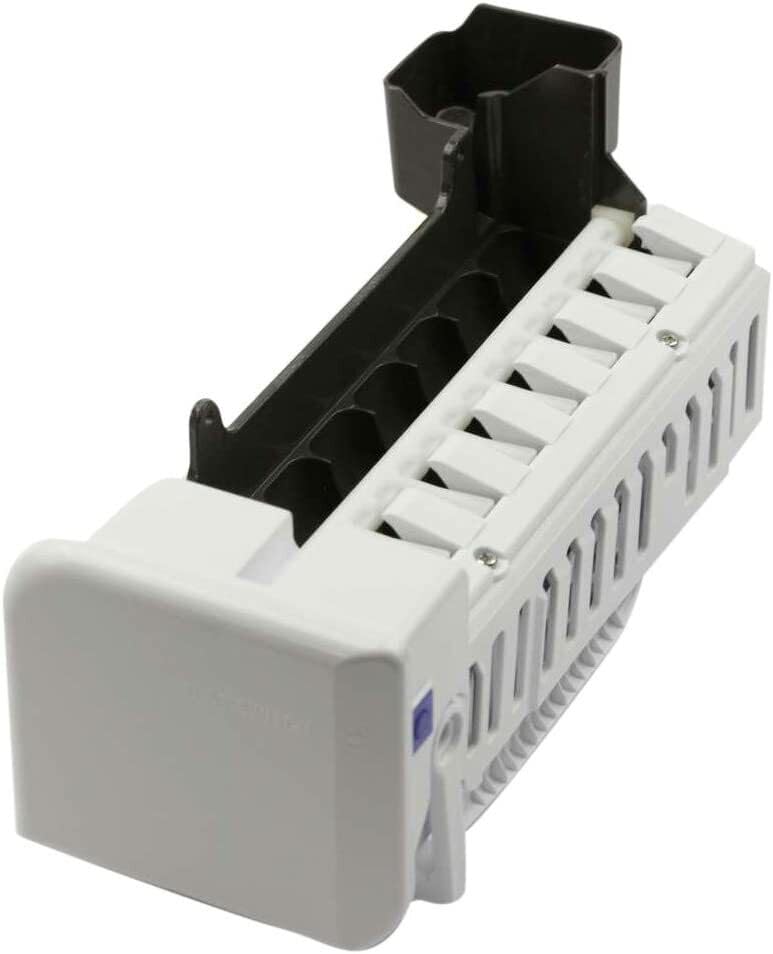

Image 1: The Generic replacement ice maker, part number DA97-13415B. This image shows the complete ice maker unit, primarily white with black components, designed to fit into compatible Samsung refrigerators. It features the ice mold tray and the motor assembly.

4. Installation

This section outlines the general steps for replacing the ice maker. Refer to your refrigerator's original service manual for model-specific instructions if available.

1. Prepare the Refrigerator:
   • Unplug the refrigerator from the electrical outlet.
   • Turn off the water supply valve to the refrigerator.
   • Empty the ice bucket and any contents that might obstruct access to the ice maker.
2. Access the Old Ice Maker:
   • Locate the existing ice maker inside the freezer compartment. It is typically mounted on the left wall.
   • Depending on your model, you may need to remove a cover or trim piece to access the mounting screws.
3. Disconnect the Old Ice Maker:
   • Carefully disconnect the electrical wire harness from the old ice maker. There may be a locking tab that needs to be pressed.
   • Remove any mounting screws or clips securing the old ice maker to the freezer wall.
   • Gently pull the old ice maker out of its position.
4. Install the New Ice Maker:
   • Align the new ice maker (Part DA97-13415B) with the mounting points in the freezer.
   • Secure the new ice maker with the mounting screws or clips previously removed. Ensure it is firmly in place.
   • Connect the electrical wire harness to the new ice maker. Ensure it clicks securely into place.
5. Restore Power and Water:
   • Turn on the water supply valve to the refrigerator. Check for any leaks around the water inlet.
   • Plug the refrigerator back into the electrical outlet.
6. Test Operation:
   • Allow several hours for the freezer to reach its operating temperature and for the ice maker to cycle.
   • The first few batches of ice may be smaller or have an unusual taste; discard them.

Image 2: An angled view of the Generic replacement ice maker, part number DA97-13415B. This perspective highlights the internal ice mold and the general shape of the unit, which aids in proper alignment during installation.

5. Operating Instructions

Once properly installed and connected, the ice maker operates automatically. It will fill with water, freeze the water into ice cubes, and then eject the cubes into the ice bucket.

• Initial Ice Production: It may take 12 to 24 hours for the ice maker to produce its first full batch of ice after installation or after being turned off.
• Ice Level Sensor: The ice maker typically has a sensor (often a wire arm or optical sensor) that detects when the ice bucket is full and automatically stops production.
• Turning Off the Ice Maker: If you need to stop ice production, locate the ON/OFF switch on the ice maker unit or consult your refrigerator's user manual for specific instructions.

6. Maintenance

Regular maintenance helps ensure optimal performance and longevity of your ice maker.

• Cleaning the Ice Bucket: Periodically remove and wash the ice bucket with mild soap and warm water. Rinse thoroughly and dry completely before returning it to the freezer.
• Cleaning the Ice Maker: If mineral deposits or debris accumulate on the ice maker, disconnect power and gently wipe the surfaces with a damp cloth. Avoid using harsh chemicals or abrasive cleaners.
• Water Filter: Ensure your refrigerator's water filter (if applicable) is replaced regularly according to the manufacturer's recommendations to maintain water quality and prevent mineral buildup in the ice maker.

7. Troubleshooting

If you experience issues with your ice maker, refer to the following common problems and solutions. Always disconnect power before inspecting the unit.

If these steps do not resolve the issue, it is recommended to contact a qualified appliance technician or the seller for further assistance.

8. Specifications

9. Warranty and Support

As this is a generic replacement part, warranty coverage is typically provided by the seller or manufacturer of the replacement part, Evanstone-Parts. Please retain your proof of purchase for any warranty claims.

For technical support, troubleshooting assistance beyond this manual, or warranty inquiries, please contact the seller or manufacturer directly through your purchase platform.
