1. Introduction
This document serves as the instruction manual for the EMCONRTOL Schumann Resonance External Antenna, specifically focusing on the ANTSA01 model. This antenna is designed to work in conjunction with a compatible Schumann wave signal generator to produce Schumann resonance signals within a specified frequency range.
Important Note: This external antenna is an accessory and cannot function independently. It requires a separate Schumann wave signal generator to operate. This manual provides guidance for the antenna itself; for instructions on the signal generator, please refer to its dedicated manual.
2. Product Overview
The EMCONRTOL Schumann Resonance External Antenna series includes three models: ANTSA01 (Small), ANTSB02 (Medium), and ANTSC03 (Large). This manual primarily details the ANTSA01 model, but the general principles apply to all variants. These antennas are designed to receive input from a signal generator via a 3.5MM audio interface and radiate Schumann resonance frequencies.
Figure 2.1: The EMCONRTOL ANTSA01 Schumann Resonance External Antenna. This image displays the compact, square-shaped antenna board with a spiral trace pattern and a 3.5mm audio input jack at the bottom right corner. The model number ANTSA01 and "7.83HZ Schumann Resonance Antenna" text are visible on the board.
2.1. Antenna Models and Specifications
| Model | Input Signal Amplitude | Frequency Range | Input Interface | Size (L*W*H) | Weight |
|---|---|---|---|---|---|
| ANTSA01 (Small) | 1-12V | 0.01-300KHz | 3.5MM Audio | 51*50*8MM | 9 grams |
| ANTSB02 (Medium) | 1-12V | 0.01-300KHz | 3.5MM Audio | 100*100*8MM | 34 grams |
| ANTSC03 (Large) | 1-12V | 0.01-300KHz | 3.5MM Audio | 150*150*8MM | 75 grams |

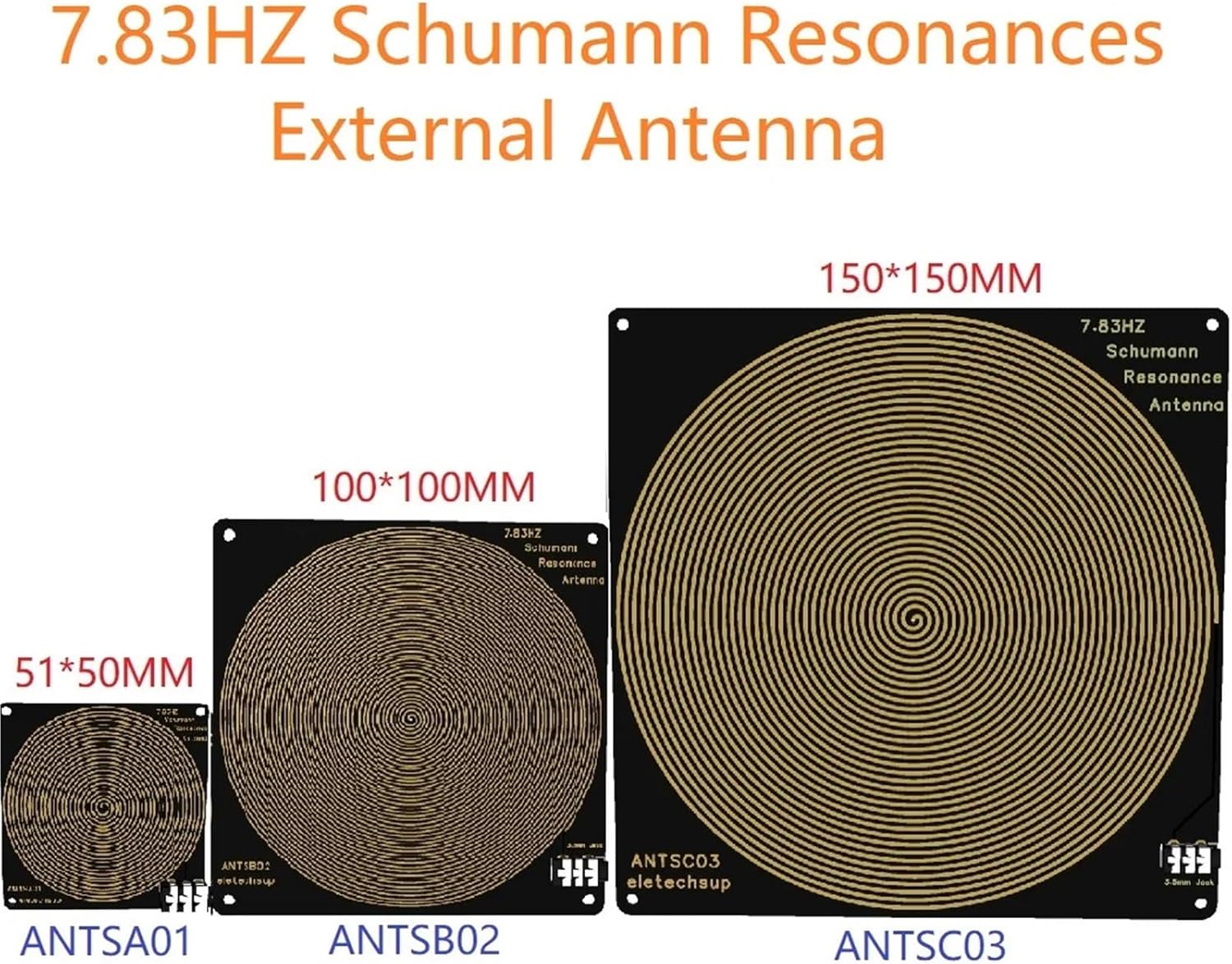

Figure 2.2: Visual comparison of the three antenna sizes: ANTSA01 (51x50mm), ANTSB02 (100x100mm), and ANTSC03 (150x150mm). Each antenna features the characteristic spiral trace and a 3.5mm audio input jack.
Figure 2.3: An overlaid view demonstrating the relative sizes of the ANTSA01, ANTSB02, and ANTSC03 antennas. The smallest ANTSA01 is shown within the ANTSB02, which is in turn shown within the largest ANTSC03, highlighting their proportional differences.
3. Setup
Setting up the EMCONRTOL Schumann Resonance External Antenna is a straightforward process, primarily involving connection to a compatible signal generator.
- Identify Compatible Signal Generator: Ensure you have a Schumann wave signal generator that is compatible with the antenna. Recommended models include SMLDA01, SMJAC03, SMECN04, SMECL04, SMSPN06, and SMLDB11.
- Connect Audio Cable: Use a standard 3.5MM audio cable (not included with the antenna) to connect the antenna's 3.5MM audio input interface to the audio output of your signal generator.
- Position the Antenna: Place the antenna in a suitable location, ensuring it is stable and free from obstructions that might interfere with signal propagation.
- Power On Signal Generator: Once the antenna is securely connected, power on your Schumann wave signal generator according to its specific instructions.
Figure 3.1: The ANTSA01 antenna shown alongside a 3.5mm audio cable, illustrating the connection method. The image highlights the compact size of the ANTSA01 (50mm) and its audio input jack.
Figure 3.2: This image displays the ANTSA01, ANTSB02, and ANTSC03 antennas on the left, with an arrow pointing to various compatible Schumann wave signal generators on the right (SMLDA01, SMJAC03, SMECN04, SMECL04, SMSPN06). This illustrates the antenna's role as an accessory to these generators.
4. Operating Instructions
Once the EMCONRTOL Schumann Resonance External Antenna is connected to a compatible signal generator, its operation is controlled entirely by the signal generator.
- Signal Generation: The antenna will begin to radiate Schumann resonance signals as soon as the connected signal generator is activated and configured to output the desired frequency (e.g., 7.83Hz).
- Frequency Adjustment: Any adjustments to the frequency (within the 0.01-300KHz range) or signal amplitude (1-12V) are made directly on the signal generator. The antenna passively transmits the signal it receives.
- Monitoring: Refer to your signal generator's manual for instructions on how to monitor its output and ensure proper operation.
The antenna itself does not have any controls or indicators. Its function is to convert the electrical signal from the generator into electromagnetic waves.
5. Maintenance
The EMCONRTOL Schumann Resonance External Antenna is a low-maintenance device. Follow these guidelines to ensure its longevity:
- Cleaning: Gently wipe the antenna surface with a soft, dry cloth to remove dust. Avoid using liquid cleaners or abrasive materials.
- Storage: When not in use, store the antenna in a dry, cool place, away from direct sunlight and extreme temperatures.
- Handling: Handle the antenna with care to avoid physical damage to the board or the 3.5MM audio jack.
- Environmental Conditions: Avoid exposing the antenna to moisture, humidity, or corrosive environments.
6. Troubleshooting
If you encounter issues with the EMCONRTOL Schumann Resonance External Antenna, consider the following:
- No Signal Output:
- Ensure the antenna is correctly connected to a compatible Schumann wave signal generator using a functional 3.5MM audio cable.
- Verify that the signal generator is powered on and configured to output a signal. Refer to the signal generator's manual.
- Check the signal generator's output settings (amplitude, frequency) to ensure they are within the antenna's operational range (1-12V amplitude, 0.01-300KHz frequency).
- Antenna Not Working Alone:
As stated in the introduction, this antenna is an accessory and requires a separate Schumann wave signal generator to function. It does not generate signals on its own.
- Physical Damage:
Inspect the antenna for any visible physical damage to the board or the audio jack. If damaged, replacement may be necessary.
For issues related to the signal generator, please consult its specific instruction manual or contact the manufacturer of the signal generator.
7. Specifications
Detailed specifications for the EMCONRTOL ANTSA01 Schumann Resonance External Antenna:
- Model: ANTSA01
- Brand: EMCONRTOL
- Input Signal Amplitude: 1-12V
- Frequency Range: 0.01-300KHz
- Input Interface: 3.5MM Audio Jack
- Dimensions (L x W x H): 51mm x 50mm x 8mm
- Weight: 9 grams
- Package Dimensions: 5.12 x 5.12 x 1.97 inches
- Item Weight (packaged): 14.1 ounces
- ASIN: B0F94163LX
- Date First Available: November 29, 2024
8. Warranty and Support
Information regarding product warranty and customer support for the EMCONRTOL Schumann Resonance External Antenna is not provided in the available product description. For specific warranty details or support inquiries, please contact the seller or manufacturer directly.
If you require an instruction manual for a compatible signal generator, please reach out to the respective manufacturer of that device.
