OYUMOENTS W2593P190150

OYUMOENTS Full Size Kids Bed Frame Instruction Manual

Model: W2593P190150

1. Introduction

Thank you for choosing the OYUMOENTS Full Size Low Profile Montessori Bed Frame. This manual provides essential information for the safe assembly, operation, and maintenance of your new bed frame. Designed with your child's growth and safety in mind, this bed offers a low-profile design for easy access and a sturdy construction for lasting use.

OYUMOENTS Full Size Low Profile Montessori Bed Frame in a child's room

This bed frame is designed to create a cozy and safe sleeping environment, promoting independence for your child while ensuring peace of mind for parents. It is kids-friendly, quality guaranteed, and features easy assembly.

Image showing a baby sleeping in the OYUMOENTS bed, highlighting kids friendly, quality guaranteed, fresh and unsmelly, and easy assembly features.

2. Safety Information

Your child's safety is our top priority. Please adhere to the following safety guidelines:

  • Ensure all components are securely fastened before use. Regularly check all bolts and screws and tighten as necessary.
  • The bed frame features rounded corners and recessed legs to minimize the risk of bumps and injuries.
  • The protective fence (rails) includes thoughtfully designed 2.8-inch gaps to prevent pinch hazards.
  • Do not allow children to jump on the bed.
  • Keep small parts away from young children during assembly.
  • Only use a mattress that fits the bed frame dimensions (Full, 74 × 54 inch) to prevent gaps that could trap a child.
Close-up images illustrating the curved corners and high guardrail design for enhanced safety of the bed frame.

3. Parts List

Please verify that all parts are present before beginning assembly. If any parts are missing or damaged, please contact customer support.

  • Headboard and Footboard panels
  • Side Rails (with pre-drilled holes for attachment)
  • Support Slats (Plywood)
  • Legs/Support Posts
  • Hardware Pack (screws, bolts, nuts, Allen wrench)
  • Instruction Manual

4. Setup and Assembly

Assembly is required for this bed frame. It is recommended to have two adults for assembly. Please follow these steps carefully:

  1. Unpack all components and lay them out on a clean, soft surface to prevent scratching.
  2. Identify the Headboard, Footboard, and Side Rails.
  3. Attach the side rails to the headboard and footboard using the provided hardware. Ensure all connections are snug but do not overtighten until all parts are aligned.
  4. Insert the plywood slats into the designated slots or attach them to the support beams on the side rails. Ensure even spacing for optimal mattress support.
  5. Once all components are assembled, fully tighten all hardware.
  6. Place your mattress on the assembled bed frame.

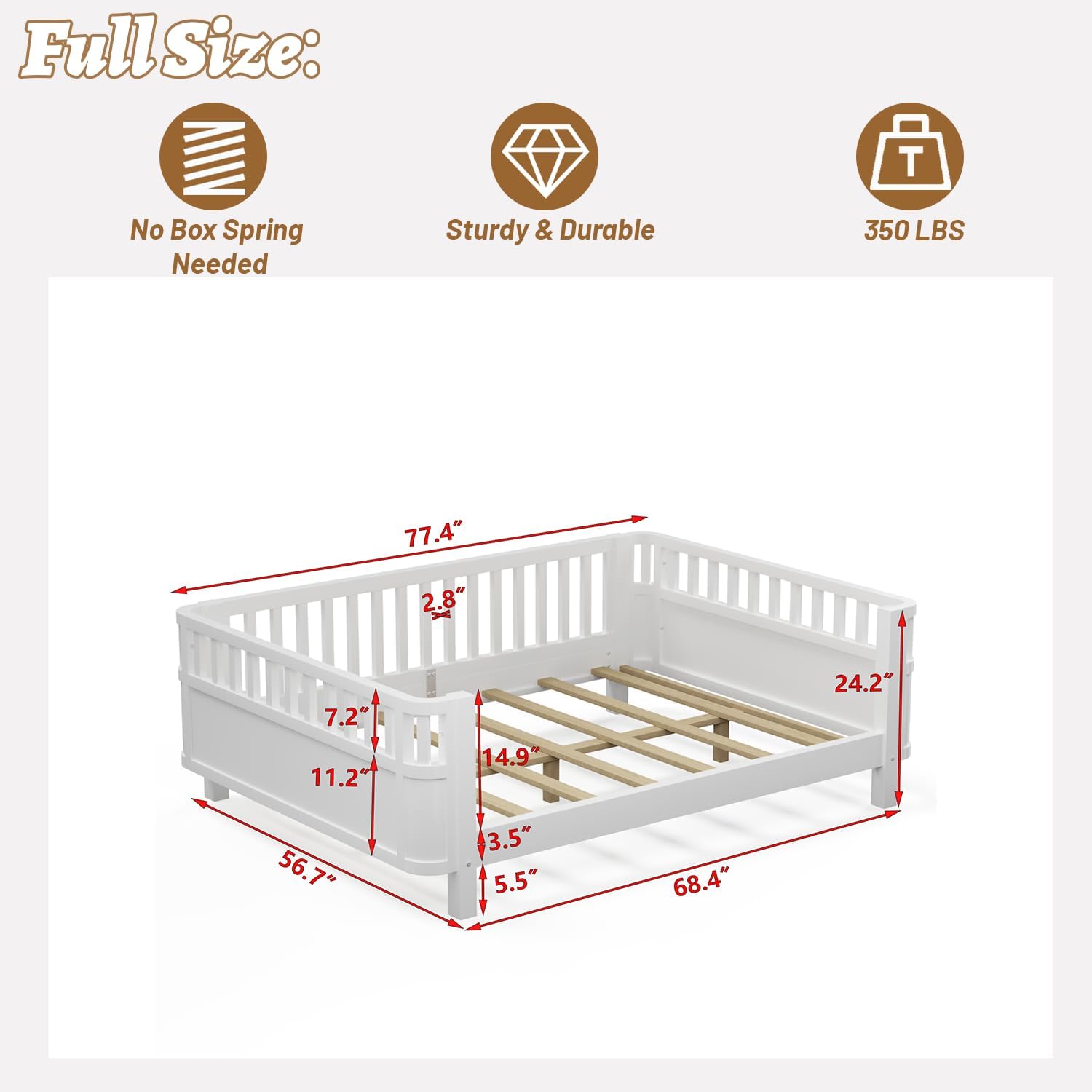

Diagram showing the dimensions of the OYUMOENTS Full Size bed frame, including length, width, and height measurements.

The bed frame is constructed from premium pine wood and plywood slats, ensuring stability and durability for long-term use.

Image showing close-ups of premium pine wood and plywood slats, emphasizing the stable and durable construction of the bed frame.

Assembly Video Guide

This video provides a visual guide to the assembly process for the Montessori Bed Full with Rails, demonstrating key steps and features.

5. Operating and Usage

The OYUMOENTS bed frame is designed for versatile use and ease of access for children.

Low Profile Design

With a floor clearance of just 5.5 inches, this Montessori bed allows for easy access, making it simple for your child to get in and out of bed safely and independently.

Image highlighting the low-profile design of the bed, showing a child easily accessing it.

Versatile Configurations

This bed can be configured in multiple ways to suit your needs:

  • As a Mate Bed: Positioned next to a parent's bed for easy accessibility.
  • As a Platform Bed with Headboard/Footboard: Provides a secure sleeping area with protective rails.
  • Against a Wall: Can be placed without side rails for smaller children or to save space.

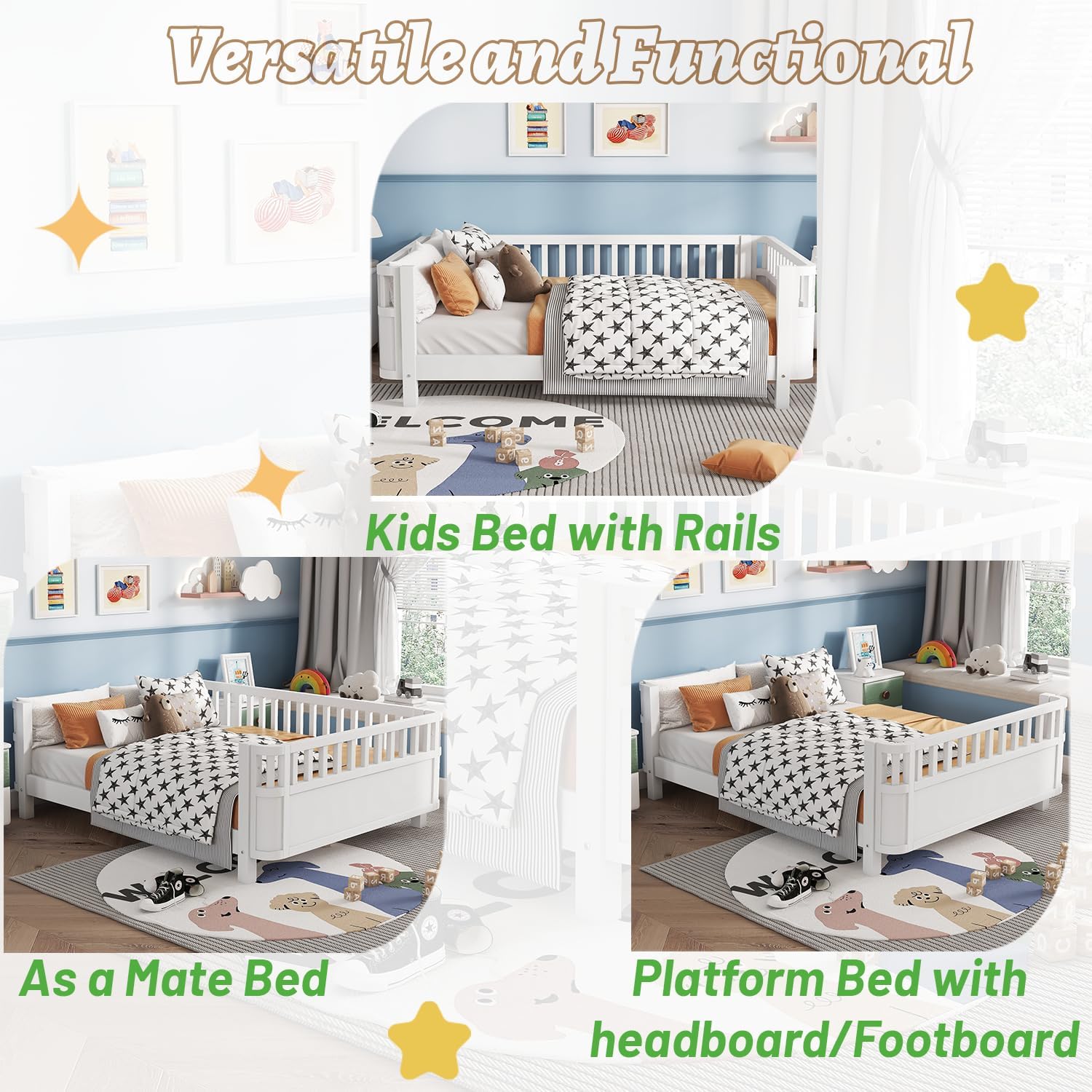

Composite image demonstrating the bed's versatility as a mate bed or a platform bed with headboard and footboard.

Detachable Rails

The side rails are removable, allowing the bed to adapt to your child's needs as they grow and transition to a more open sleeping environment.

Image demonstrating the detachable rails feature, showing how the bed can adapt as a child grows.

6. Maintenance

To ensure the longevity and appearance of your OYUMOENTS bed frame, please follow these simple maintenance instructions:

  • Cleaning: Wipe the bed frame with a dry cloth to remove dust and dirt. Avoid using harsh chemicals or abrasive cleaners, as they may damage the painted finish.
  • Hardware Check: Periodically check all screws, bolts, and connections to ensure they remain tight. Retighten if necessary to maintain stability and prevent squeaks.
  • Avoid Moisture: Keep the bed frame away from excessive moisture or direct sunlight to prevent warping or discoloration of the wood.

7. Troubleshooting

If you encounter any issues with your bed frame, please refer to the following common troubleshooting tips:

  • Squeaking Noises: Squeaking often indicates loose hardware. Re-tighten all bolts and screws on the frame. Ensure the mattress is properly seated on the slats.
  • Instability/Wobbling: Check that all connections are fully tightened. Ensure the bed frame is on a flat, level surface.
  • Missing Parts: If you find any parts missing upon unboxing, please refer to the
