1. Important Safety Information
Before assembling or using your Sportneer 40-inch Rebounder Trampoline, please read and understand all instructions and safety warnings. Failure to follow these instructions may result in injury or damage to the product.
- Maximum Weight Capacity: Do not exceed the maximum weight capacity of 330 pounds (approximately 149 kg).
- Adult Supervision: Children should only use the trampoline under direct adult supervision.
- Clearance: Ensure adequate overhead and surrounding clearance from walls, furniture, and other objects.
- Stable Surface: Always place the trampoline on a flat, stable, and non-slip surface.
- Inspection: Before each use, inspect the trampoline for any damaged or worn parts, including the mat, springs, frame, and handle. Do not use if any damage is found.
- Unfolding Caution: The trampoline has tension when folded. Handle with extreme care during unfolding and folding to prevent injury. Keep hands and face clear of pinch points.
- Footwear: Use appropriate athletic footwear or go barefoot. Avoid socks as they can be slippery.
- One User: Only one person should use the trampoline at a time.
- No Stunts: Avoid somersaults, flips, or other dangerous maneuvers.
2. Product Overview
The Sportneer 40-inch Rebounder Trampoline is designed for fitness and exercise, suitable for both adults and children. It features a robust construction and an adjustable handle for versatile use.
Key Features:
- Heavy-Duty Construction: Features a sturdy steel frame, wear-resistant bounce mat, thick steel springs, and an enclosed design to prevent exposed sharp parts. Includes 2 extra replacement leg tubes.
- 4-Level Adjustable Handrail: Foam-covered handle with 4 adjustable heights ranging from 30 to 37 inches for comfortable grip and added safety.
- Conveniently Foldable: Reduces size by 75% when folded for easy storage.
- Versatile Use: Ideal for indoor and outdoor use, suitable for various fitness activities and recreational bouncing.
- Enhanced Durability: Bouncing surface reinforced with 8 stitches.
- Resistance Bands: Includes additional resistance bands for enhanced workouts.
Figure 2.1: Overview of the Sportneer 40-inch Rebounder Trampoline.
Figure 2.2: Detailed view of trampoline construction features, including springs and mat.
Figure 2.3: Illustration of the trampoline's 330 lbs weight capacity and structural stability features.
3. Assembly Instructions
Follow these steps to assemble your Sportneer Rebounder Trampoline. It is recommended to have two people for assembly, especially during unfolding.
- Unfold the Trampoline: Carefully remove the trampoline from its packaging. Place it on a flat surface. With assistance, slowly unfold the trampoline, ensuring hands and fingers are clear of the hinges and springs. The trampoline is under tension, so proceed with caution.
- Attach the Legs: Screw each leg firmly into the designated sockets on the trampoline frame. Ensure all legs are securely tightened before proceeding.
- Install the Handlebar Base: Insert the lower sections of the adjustable handle into the frame's designated slots. Secure them with the provided knobs or pins.
- Attach the Upper Handlebar: Connect the upper handlebar section to the lower sections. Ensure the foam grip is correctly oriented.
- Adjust Handlebar Height: Use the adjustment knobs on the side of the handle to set the desired height. There are 4 levels ranging from 30 to 37 inches. Ensure both sides are adjusted to the same height and securely locked in place.
- Attach Resistance Bands (Optional): If desired, attach the included resistance bands to the designated loops on the trampoline frame or handle.
Figure 3.1: Removable handle for diverse workout needs, showing attachment points.
4. Operating Instructions
The Sportneer Rebounder Trampoline can be used for various exercises and activities. Always prioritize safety during use.
General Usage:
- Step onto the trampoline carefully, holding the handle for balance if needed.
- Begin with gentle bounces to get accustomed to the rebound.
- Maintain control of your body at all times.
- Keep your eyes focused on the mat or a fixed point to maintain balance.
- To stop, gradually reduce your bounce height until you are standing still.
Adjusting the Handle:
The handle can be adjusted to 4 different heights (30", 32.3", 34.6", 37") to accommodate users of various heights and exercise preferences.
- Loosen the adjustment knobs on both sides of the handle.
- Slide the upper handle section up or down to the desired height.
- Ensure the locking pins engage in the corresponding holes for the chosen height.
- Tighten both adjustment knobs securely.
Figure 4.1: Handlebar height adjustment and various usage scenarios.
Folding and Storage:
The trampoline can be folded for compact storage. Always exercise caution due to spring tension.
- Remove the adjustable handle by reversing the assembly steps.
- To reduce effort when folding, place both feet on one end of the trampoline frame.
- With both hands, pull up the opposite end of the frame and carefully fold it in half.
- Secure the folded trampoline with any provided straps or clips.
- Store in a safe, dry place such as under a bed, in a closet, or in a car trunk.

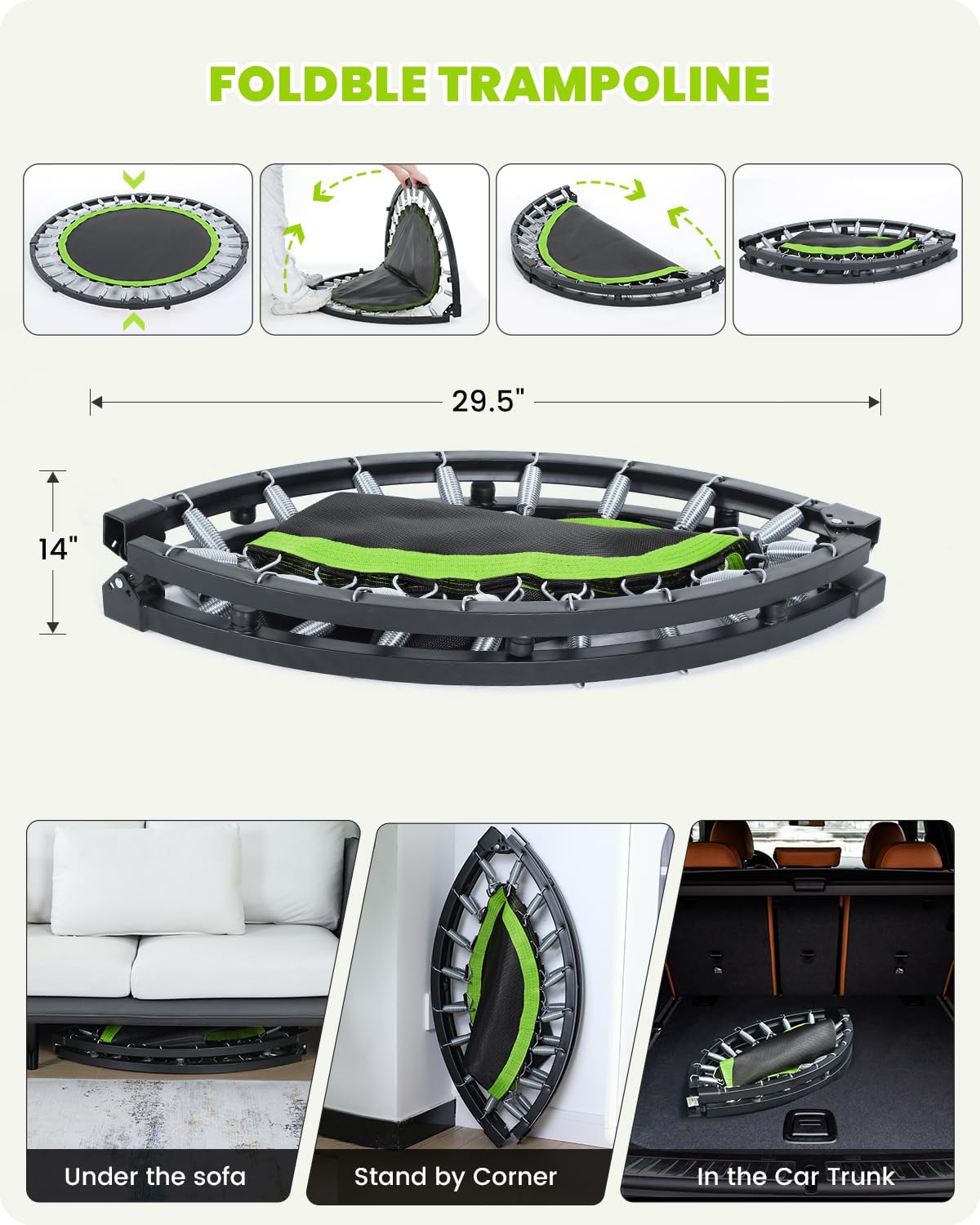

Figure 4.2: Folding process and storage options for the trampoline.
5. Maintenance
Regular maintenance ensures the longevity and safe operation of your trampoline.
- Cleaning: Wipe down the frame and mat with a damp cloth and mild soap. Avoid harsh chemicals. Ensure the trampoline is completely dry before storage or next use.
- Springs and Mat: Periodically check all springs for rust, damage, or detachment. Inspect the mat for tears, holes, or excessive wear. The bouncing surface is reinforced with 8 stitches for enhanced durability.
- Frame and Legs: Ensure all frame connections and leg attachments are tight. Replace any worn or damaged leg tubes using the provided extra replacement tubes.
- Handlebar: Check the handlebar for stability and ensure the foam grip is intact. Tighten adjustment knobs as needed.
- Storage: When not in use, especially outdoors, store the trampoline in a dry, protected area to prevent weather damage.
6. Troubleshooting
If you encounter any issues with your Sportneer Rebounder Trampoline, refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Trampoline feels unstable or wobbly. | Legs not fully tightened; uneven surface. | Ensure all legs are securely screwed in. Move the trampoline to a flat, even surface. |
| Handlebar is loose or wobbly. | Adjustment knobs not tightened; handlebar not fully inserted. | Tighten both adjustment knobs firmly. Ensure the handlebar sections are fully engaged and locking pins are in place. |
| Reduced bounce or unusual noise from springs. | Damaged or stretched springs; mat wear. | Inspect all springs for damage or stretching. Replace any faulty springs. Check the mat for wear and tear. |
| Difficulty folding the trampoline. | Incorrect technique; resistance from springs. | Refer to the folding instructions in Section 4. Ensure you apply pressure with your feet on one side while lifting the other. Seek assistance if needed. |
7. Specifications
| Feature | Detail |
|---|---|
| Product Dimensions | 101L x 101W x 116H Centimetres (40" diameter) |
| Item Weight | 10.9 kg (24 lbs) |
| Maximum Weight Capacity | 149.69 kg (330 Pounds) |
| Frame Material | Alloy Steel |
| Mat Material | Polypropylene (PP) |
| Shape | Round |
| Handlebar Adjustable Height | 30" to 37" (4 levels) |
| Number of Springs | 32 |
| Color | Green (Accent) |
Figure 7.1: Product dimensions overview.
8. Warranty and Customer Support
Sportneer is committed to providing high-quality products and excellent customer service. Your rebounder trampoline is manufactured to high standards of quality and workmanship.
If you have any questions, concerns, or require assistance with your Sportneer 40-inch Rebounder Trampoline, please do not hesitate to contact our customer support team. Refer to your purchase documentation or the Sportneer official website for contact information.
