YYTDNGW X99 Gaming Motherboard Kit User Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your YYTDNGW X99 Gaming Motherboard Kit. This kit includes an X99 motherboard with a C612 chipset, an Intel Xeon E5 2650 V3 CPU, and a 16GB DDR4 2133MHz memory module. Please read this manual thoroughly before proceeding with installation to ensure proper setup and optimal performance.

2. Safety Information

• Always disconnect the power supply from your computer before installing or removing any components.
• Wear an anti-static wrist strap or frequently touch a grounded metal object to discharge static electricity, which can damage electronic components.
• Handle components by their edges to avoid touching sensitive circuits.
• Ensure proper ventilation within your computer case to prevent overheating.
• Keep components away from moisture and extreme temperatures.

3. Package Contents

Verify that all items are present and in good condition:

• YYTDNGW X99 Motherboard (LGA 2011-3 Socket, C612 Chipset)
• Intel Xeon E5 2650 V3 CPU
• DDR4 16GB 2133MHz Memory Module
• SATA Data Cables (quantity may vary)
• I/O Shield
• User Manual (this document)

4. Product Overview

The YYTDNGW X99 Gaming Motherboard Kit provides a robust foundation for high-performance desktop systems, featuring support for Intel Xeon E5 V3/V4 processors and DDR4 ECC memory.

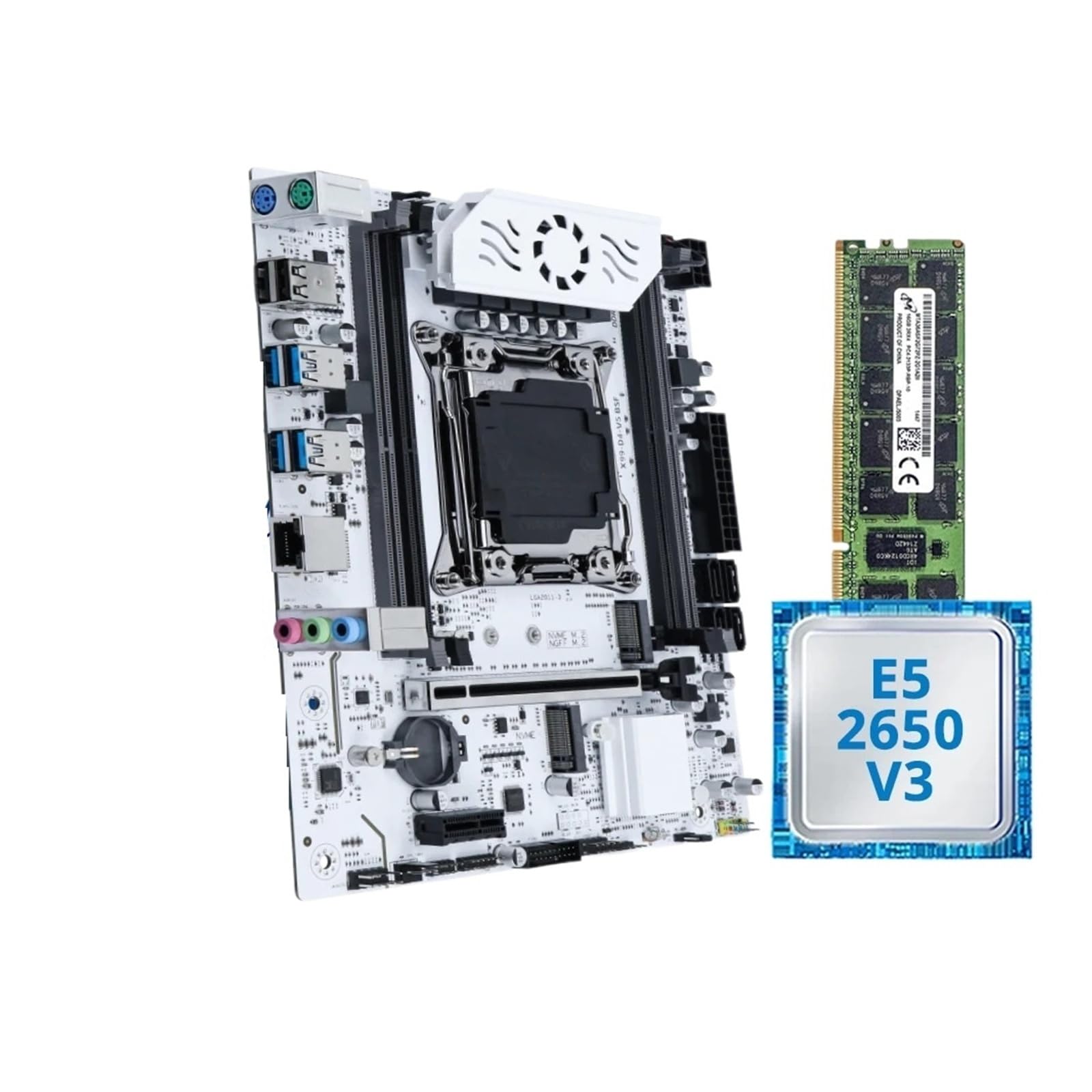

Image 1: Overview of the YYTDNGW X99 Gaming Motherboard Kit, showing the white X99 motherboard with its LGA 2011-3 CPU socket, four DDR4 memory slots, multiple PCIe slots, and various I/O ports. The image also displays the Intel Xeon E5 2650 V3 CPU and a single 16GB DDR4 2133MHz memory module.

Key Components:

• CPU Socket: LGA 2011-3, compatible with Intel Xeon E5 V3/V4 series processors.
• Memory Slots: 4 x DDR4 slots, supporting up to 128GB of DDR4 ECC memory in dual-channel configuration.
• Expansion Slots: Includes PCI-Express X1, PCIe x4, and PCIe x16 slots for graphics cards and other expansion cards.
• Storage Interfaces: 4 x SATA ports (SATA 2, SATA 3) and 2 x M.2 slots (NVMe, supporting 2242, 2280 form factors).
• Rear I/O Ports: Features USB 2.0, USB 3.0, RJ45 LAN, PS/2 Combo, and audio jacks.
• Onboard Connectors: 24-pin main power, 8-pin +12V CPU power, CPU fan, chassis fan, RGB header, USB 2.0/3.0 headers.

5. Setup and Installation

5.1 Motherboard Installation

1. Install the I/O shield into the rear opening of your computer case.
2. Align the motherboard with the standoffs inside the case.
3. Secure the motherboard with screws, ensuring it is firmly seated.

5.2 CPU Installation (Intel Xeon E5 2650 V3)

1. Locate the LGA 2011-3 socket on the motherboard.
2. Open the CPU socket retention levers.
3. Carefully place the E5 2650 V3 CPU into the socket, aligning the gold triangle on the CPU with the triangle on the socket. Do not force the CPU.
4. Close the retention levers to secure the CPU.
5. Apply a thin, even layer of thermal paste to the CPU's heat spreader.
6. Install the CPU cooler according to its manufacturer's instructions, ensuring proper contact and secure mounting. Connect the CPU fan cable to the 'CPU_FAN' header on the motherboard.

5.3 Memory Installation (DDR4 16GB 2133MHz)

1. Open the clips at both ends of the DDR4 memory slot.
2. Align the notch on the DDR4 memory module with the key in the memory slot.
3. Press down firmly on both ends of the memory module until the clips snap into place.
4. For optimal performance, refer to the motherboard's manual for recommended dual-channel memory configurations.

5.4 Storage Device Installation

• NVMe M.2 SSD: Insert the M.2 SSD into the M.2 slot at an angle, then push it down and secure it with the provided screw.
• SATA Drives (HDD/SSD): Connect one end of a SATA data cable to a SATA port on the motherboard and the other end to your SATA drive. Connect a SATA power cable from your power supply to the drive.

5.5 Power Connections

1. Connect the 24-pin ATX main power connector from your power supply to the corresponding header on the motherboard.
2. Connect the 8-pin +12V CPU power connector from your power supply to the CPU power header near the CPU socket.

5.6 Peripheral Connections

• Connect your graphics card to the PCIe x16 slot.
• Connect front panel cables (power switch, reset switch, HDD LED, power LED, front USB, front audio) to their respective headers on the motherboard. Refer to the motherboard's silkscreen labels for correct orientation.
• Connect USB devices, keyboard, mouse, and network cables to the rear I/O ports.

6. Operating Instructions

6.1 Initial Power On

1. After all components are installed and connected, ensure all power cables are securely plugged in.
2. Connect your monitor, keyboard, and mouse.
3. Turn on the power supply and then press the power button on your computer case.

6.2 BIOS/UEFI Setup

Upon initial boot, press the designated key (usually DEL or F2) repeatedly to enter the BIOS/UEFI setup utility. Here you can configure system settings such as boot order, date/time, and enable/disable various features.

6.3 Operating System Installation

Insert your operating system installation media (USB drive or DVD) and configure the boot order in BIOS/UEFI to boot from the installation media. Follow the on-screen instructions to install your preferred operating system.

7. Maintenance

• Dust Removal: Regularly clean dust from inside your computer case, especially from fans and heatsinks, using compressed air. Ensure the system is powered off and unplugged before cleaning.
• BIOS Updates: Check the manufacturer's website for BIOS updates. Updating the BIOS can improve system stability, compatibility, and performance. Follow the update instructions carefully to avoid damaging the motherboard.
• Driver Updates: Keep your device drivers (chipset, graphics, network, audio) updated to ensure optimal performance and compatibility.

8. Troubleshooting

• No Power: Ensure all power cables (24-pin ATX, 8-pin CPU, GPU) are securely connected. Check the power supply switch and wall outlet.
• No Display/No POST: Verify that the monitor is connected and powered on. Reseat the graphics card, memory modules, and CPU. Check for any diagnostic LEDs or beep codes on the motherboard.
• System Instability/Crashes: This can be caused by overheating, faulty memory, or an unstable power supply. Check CPU and GPU temperatures. Run memory diagnostic tools.
• Boot Device Not Found: Check SATA/M.2 cable connections. Verify boot order in BIOS/UEFI. Ensure the operating system is correctly installed on the drive.
• Peripheral Issues: If a USB device or other peripheral is not working, try connecting it to a different port. Ensure necessary drivers are installed.

9. Specifications

10. Warranty and Support

For warranty information and technical support, please refer to the documentation provided with your purchase or contact your retailer. Keep your proof of purchase for warranty claims.
