MaNzzo DC64-03235A Door Seal Ring Instruction Manual

1. Introduction

This manual provides detailed instructions for the installation, maintenance, and troubleshooting of the MaNzzo DC64-03235A door seal ring. This component is designed to create a watertight seal between the washing machine drum and the door, ensuring efficient operation and preventing leaks. Proper installation and care are essential for optimal performance and longevity of your washing machine's door seal.

2. Safety Information

• Disconnect Power: Always ensure the washing machine is unplugged from the power outlet before attempting any installation, removal, or maintenance procedures. Failure to do so can result in electric shock or injury.
• Wear Protective Gear: It is recommended to wear appropriate personal protective equipment (PPE), such as work gloves and eye protection, to prevent injury during handling and installation.
• Professional Assistance: If you are unsure about any step or encounter difficulties, consult a qualified appliance technician.
• Sharp Edges: Be aware of potentially sharp edges or components inside the washing machine during the installation process.

3. Package Contents

Verify that all components are present and undamaged upon opening the package.

• 1 x MaNzzo DC64-03235A Door Seal Ring

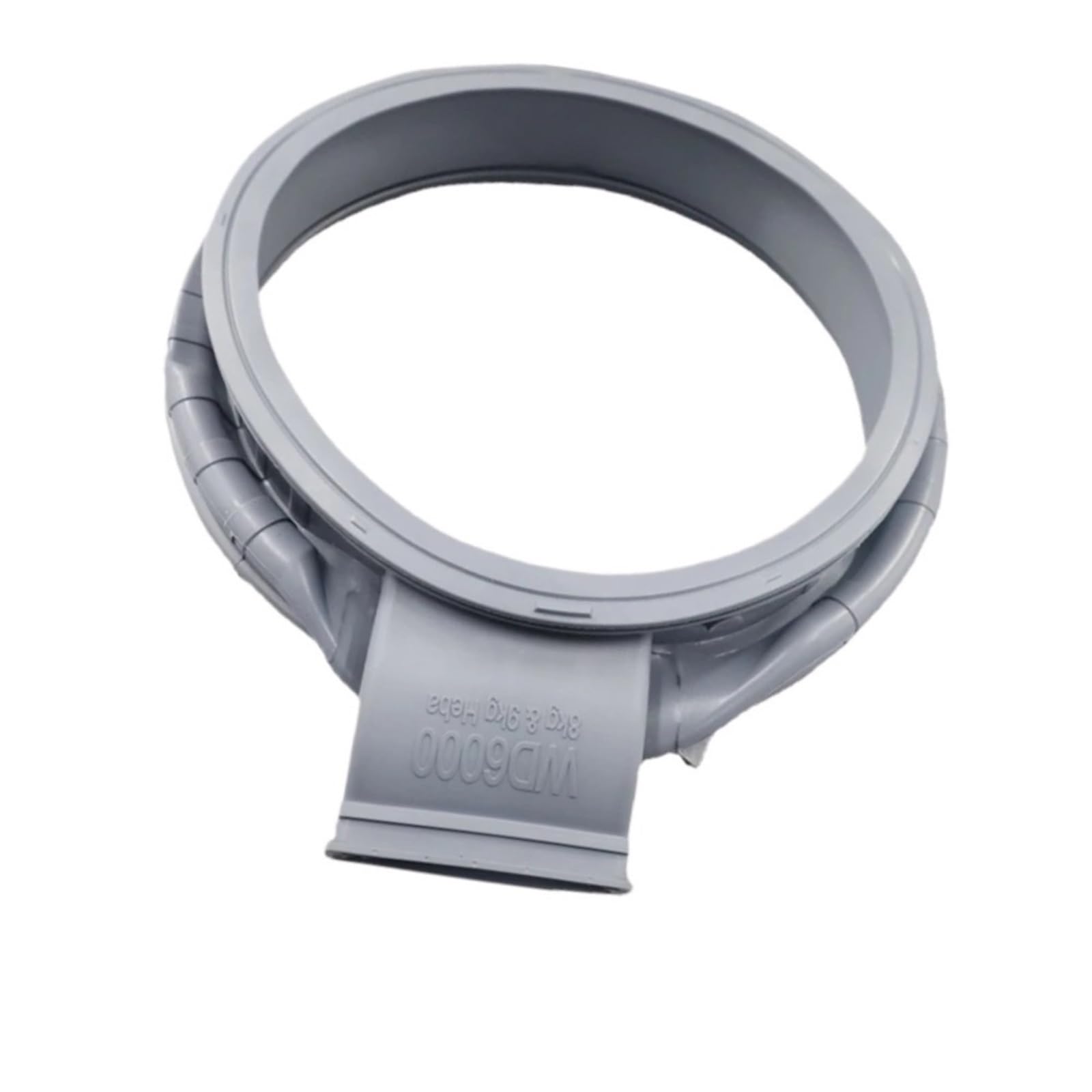

This image displays the MaNzzo DC64-03235A door seal ring, a grey rubber component designed to create a watertight seal between the washing machine drum and the door. The part number DC64-03235A is visible at the bottom.

4. Installation Instructions

Follow these steps carefully to replace the washing machine door seal ring. These are general instructions; specific washing machine models may have slight variations.

1. Disconnect Power: Unplug the washing machine from the electrical outlet.
2. Access the Seal: Open the washing machine door. Locate the outer spring clamp or wire retaining ring that secures the door seal to the front panel of the washing machine. Carefully pry it off using a flat-head screwdriver or a specialized tool.
3. Remove Outer Edge: Gently pull the outer edge of the old door seal away from the front panel.
4. Access Inner Clamp: Depending on your model, you may need to remove the top panel or front panel of the washing machine to access the inner clamp that secures the seal to the wash tub. Remove any screws or clips holding these panels.
5. Remove Inner Clamp: Locate and remove the inner spring clamp or wire retaining ring that holds the seal to the wash tub.
6. Remove Old Seal: Carefully pull the old door seal completely out of the washing machine.
7. Clean Area: Thoroughly clean the area where the old seal was seated, both on the front panel and around the wash tub. Remove any detergent residue, mold, or debris.
8. Install New Seal: Position the new MaNzzo DC64-03235A door seal ring. Ensure the drain holes (if present) at the bottom of the seal align with the corresponding drain channels on the washing machine. Carefully work the inner lip of the new seal onto the wash tub flange.
9. Secure Inner Clamp: Reinstall the inner spring clamp or wire retaining ring, ensuring it is securely seated around the seal and tub.
10. Secure Outer Edge: Work the outer lip of the new seal onto the front panel opening. Ensure it is evenly seated all around.
11. Reinstall Outer Clamp: Reinstall the outer spring clamp or wire retaining ring, ensuring it firmly holds the seal to the front panel.
12. Reassemble Panels: Reattach any panels that were removed (e.g., top or front panel).
13. Test: Plug the washing machine back into the power outlet. Run a short cycle with no laundry to check for leaks and proper operation.

5. Maintenance

Regular maintenance helps extend the life of your door seal and prevents common issues.

• Regular Cleaning: After each wash cycle, wipe down the inside of the door seal with a clean cloth to remove any moisture, lint, or detergent residue.
• Deep Cleaning: Periodically clean the door seal thoroughly with a mild detergent and warm water to prevent mold and mildew buildup. For stubborn stains, a solution of white vinegar and water can be used, followed by rinsing.
• Air Circulation: Leave the washing machine door slightly ajar after use to allow air to circulate and dry out the seal, preventing moisture-related issues.
• Inspect for Damage: Regularly inspect the seal for any signs of wear, cracks, tears, or foreign objects trapped within its folds. Promptly replace the seal if significant damage is observed.

6. Troubleshooting

This section addresses common issues related to the door seal.

• Leakage from Door:
  • Cause: Improper installation, damaged seal, foreign objects trapped, or loose clamps.
  • Solution: Recheck installation steps, inspect the seal for tears, remove any obstructions, and ensure both inner and outer clamps are securely fastened.
• Mold or Mildew Buildup:
  • Cause: Moisture trapped in the seal, lack of cleaning.
  • Solution: Clean the seal regularly as described in the Maintenance section. Leave the washing machine door ajar after use to promote drying.
• Door Not Sealing Properly:
  • Cause: Seal not correctly seated, twisted, or obstructed.
  • Solution: Verify the seal is evenly and correctly positioned around both the tub and the front panel. Ensure no part of the seal is twisted or folded.

7. Specifications

8. Warranty and Support

For specific warranty information regarding your MaNzzo DC64-03235A door seal ring, please refer to the documentation provided at the time of purchase or contact your retailer directly. For technical support or further assistance, please reach out to the product manufacturer, MaNzzo, through their official support channels.
