Introduction
Thank you for choosing the MYHXQ 15-inch Motion Sensor Outdoor Pendant Light. This fixture is designed to provide reliable and efficient outdoor lighting with advanced motion sensing and dusk-to-dawn capabilities. Please read this manual thoroughly before installation and operation to ensure proper use and safety.

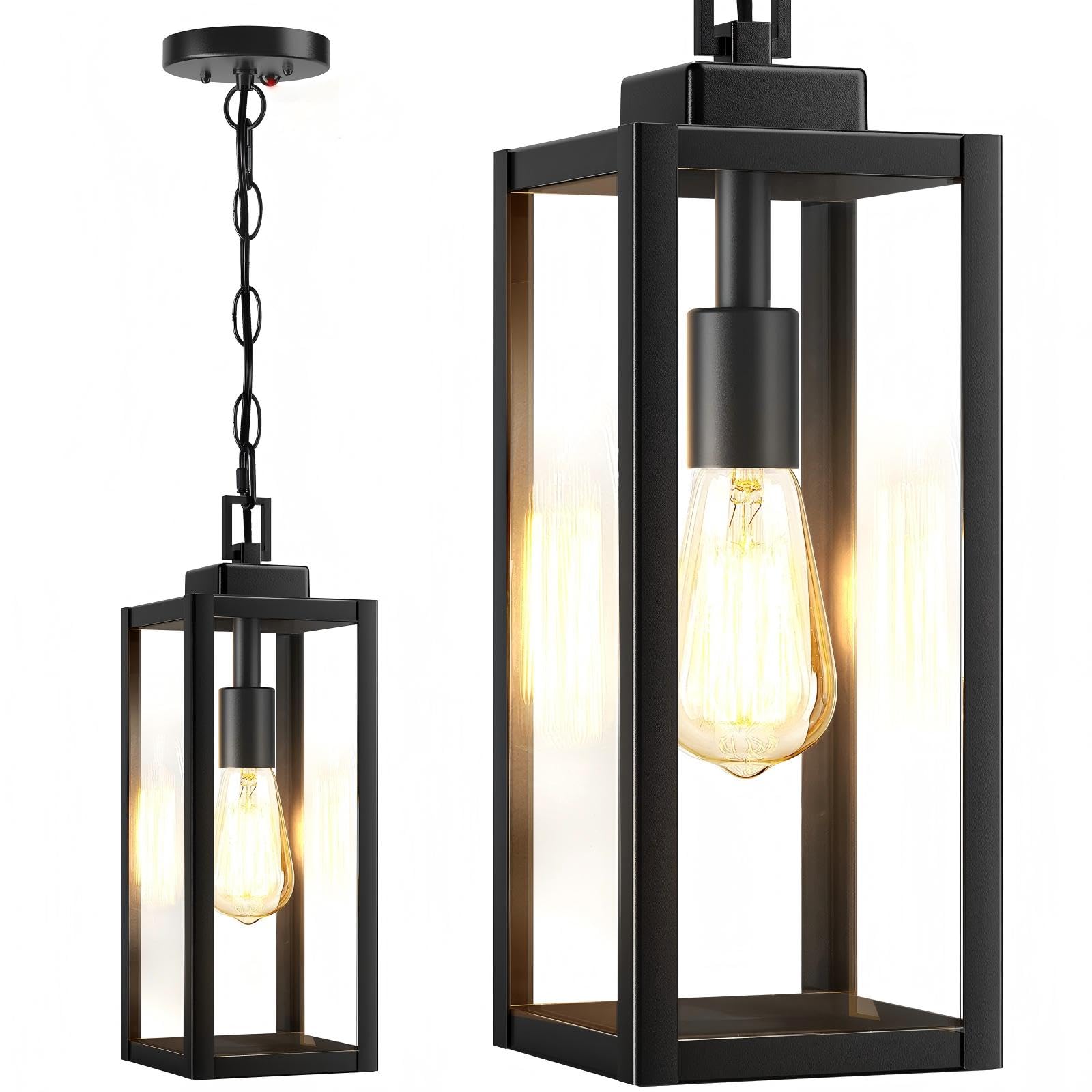

Image: The MYHXQ 15-inch Motion Sensor Outdoor Pendant Light, showcasing its modern design and clear glass panels, installed on a residential porch.
Safety Information
- WARNING: Risk of electric shock. Disconnect power at the fuse box or circuit breaker before installation or servicing.
- All electrical connections must be in accordance with local codes, ordinances, or the National Electric Code (NEC). Consult a qualified electrician if you are unfamiliar with proper electrical wiring connections.
- This fixture is intended for outdoor use only.
- Ensure the mounting surface is structurally sound and can support the weight of the fixture.
- Do not exceed the maximum wattage specified for the bulb (100W).
- Use only dimmable LED bulbs for optimal performance with motion sensor modes.
Package Contents
Verify that all components are present before beginning installation:
- 1 x Outdoor Pendant Light Fixture
- Mounting Hardware (including chain, canopy, screws, wire nuts)
- Instruction Manual
Specifications
| Feature | Detail |
|---|---|
| Brand | MYHXQ |
| Model Number | MY-CL216A-BK |
| Dimensions (L x W x H) | 5" x 5" x 15" |
| Material | Die-cast Aluminum, Tempered Water Glass |
| Finish | Painted Black |
| Input Voltage | 110-120V |
| Max Wattage | 100W |
| Bulb Base | E26 (Bulb not included) |
| Switch Type | Motion Sensor, Dusk to Dawn |
| Water Resistance Level | Waterproof (Rainproof, Sunproof, Snowproof, Windproof) |
| Adjustable Chain Length | Max 60 inches |
Image: A diagram illustrating the dimensions (15" H x 5" L x 5" W) and key specifications of the pendant light, including adjustable wire length up to 63.5 inches and E26 bulb base.
Installation Instructions
- Prepare for Installation:
- Turn off power at the circuit breaker or fuse box.
- Carefully unpack the fixture and components.
- Review all instructions and diagrams before proceeding.
- Mounting the Canopy:
- Attach the mounting bracket to the junction box using the provided screws.
- Ensure the bracket is securely fastened to a structural element.
- The fixture is compatible with sloping ceilings.
- Adjusting the Chain Length:
- The chain length is adjustable up to a maximum of 60 inches.
- Determine the desired hanging height and remove excess chain links if necessary.
- Securely attach the chain to the fixture and the canopy.
- Wiring Connections:
The fixture comes with pre-installed electrical wire combinations. Do not remove these pre-installed sets. If removed, reassemble according to the instructions below:
- Connect the fixture's black wire to the household live wire.
- Connect the fixture's white wire to the household neutral wire.
- Connect the fixture's ground wire to the household ground wire.
- Secure all connections with wire nuts.
Image: A diagram showing the pre-installed electrical wire combinations and how to connect them to household neutral and live wires.
- Securing the Fixture:
- Tuck all wires neatly into the junction box.
- Attach the canopy to the mounting bracket, securing it with the provided screws or nuts.
- Installing the Bulb:
- Insert an E26 base, dimmable LED bulb (not included) into the socket.
- The bottom opening design allows for easy bulb replacement without tools.
Image: Close-up views of the tempered glass, premium metal construction, easy bulb replacement access, and the standard E26 socket.
- Restore Power:
- Turn the power back on at the circuit breaker or fuse box.
- Test the light fixture.
Operating Instructions: Lighting Modes
This outdoor pendant light features three distinct lighting modes, selectable via a switch on the fixture. Ensure you use dimmable LED bulbs for proper function of all modes.
Image: Visual representation of the three lighting modes, showing how the light behaves during day, at night with no motion, and at night with motion detected.
1. DIM Mode (Motion Activated Dusk to Dawn)
- Daytime: Light remains off.
- Dusk: Light automatically turns on at 15-50% brightness.
- Motion Detected: Brightness increases to 100% for approximately 120 seconds.
- No Motion: After 120 seconds without motion, the light returns to 15-50% brightness.
- Dawn: Light automatically turns off.
Image: A sequence of images demonstrating the DIM Mode: off during the day, dim at night, full brightness with motion, and dim again after motion ceases.
2. ECO Mode (Motion Activated Only)
- Daytime: Light remains off.
- Dusk: Light remains off until motion is detected.
- Motion Detected: Light turns on at 100% brightness for approximately 5 seconds.
- No Motion: Light turns off after 5 seconds without motion.
- Dawn: Light remains off.
Image: A sequence of images demonstrating the ECO Mode: off during the day, off at night until motion, full brightness with motion, and off again after motion ceases.
3. PC Mode (Dusk to Dawn / Manual Override)
- Dusk: Light automatically turns on at 100% brightness.
- Throughout Night: Maintains 100% brightness.
- Dawn: Light automatically turns off.
- This mode provides continuous illumination from dusk till dawn.
Image: An outdoor scene at dusk with the pendant lights illuminated at 100% brightness, demonstrating the PC Mode (Manual Override) for continuous night lighting.
Maintenance
- Cleaning: To clean the fixture, ensure power is off. Wipe with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these may damage the finish or glass.
- Bulb Replacement: Ensure power is off. The bottom opening design allows for easy bulb replacement. Simply unscrew the old bulb and screw in a new E26 base, dimmable LED bulb.
- Weather Resistance: The fixture is constructed from die-cast aluminum and tempered glass, providing waterproof, anti-rust, anti-corrosion, sun-proof, snow-proof, and wind-proof properties. Regular inspection for any damage is recommended, especially after severe weather.
Image: An illustration detailing the weather-resistant properties of the light, including rainproof, sunproof, snowproof, and windproof capabilities, alongside its anti-rust die-cast aluminum construction.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. |
|
|
| Light stays on during the day. |
|
|
| Motion sensor not detecting movement. |
|
|
| Light flickers or dims unexpectedly. |
|
|
Warranty and Support
The MYHXQ 15-inch Motion Sensor Outdoor Pendant Light (Model MY-CL216A-BK) comes with a 3-year manufacturer's warranty.
For technical support, warranty claims, or any questions regarding your product, please contact MYHXQ customer service through the retailer's platform or visit the official MYHXQ store page.
Online Store: MYHXQ Amazon Store
