Instruction Manual: Robot Vacuum Cleaner Wheel Part with Motor (Right)

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your new Robot Vacuum Cleaner Wheel Part with Motor. This accessory is specifically designed for compatibility with SilverCrest and SSRA1 robot vacuum cleaner models, ensuring optimal performance and extending the lifespan of your device. Please read this manual thoroughly before installation and use.

2. Safety Information

• Always disconnect the robot vacuum cleaner from its power source before attempting any installation, removal, or maintenance.
• Handle the wheel part carefully to avoid damage to the motor or electrical connections.
• Keep small parts away from children and pets.
• If you encounter any difficulties or are unsure about a step, consult a qualified technician or contact customer support.
• Ensure the replacement part is the correct one (Right 'R' wheel) for the intended side of your vacuum cleaner.

3. Product Overview

The UCVJXDEM Robot Vacuum Cleaner Wheel Part with Motor is a high-quality replacement component designed to restore the mobility and efficiency of your compatible robot vacuum cleaner. This specific part is the Right ('R') wheel assembly.

Key Features:

• Color-Coded for Easy Matching: Clearly marked 'R' for right-side installation.
• Tool-Free Installation: Designed for quick and easy snap-on replacement.
• Shock-Absorbing Tires: Cushions vibrations for smoother movement and extended vacuum lifespan.
• Non-Marking Wheels: Safe for use on various floor types including hardwood, tile, laminate, and carpets.
• Dustproof & Water-Resistant Construction: Enhanced durability, suitable for environments with moisture.
• Oil-Resistant & Easy to Clean: Simple maintenance with a damp cloth.

Figure 3.1: Right (R) Wheel Part with Motor Assembly.

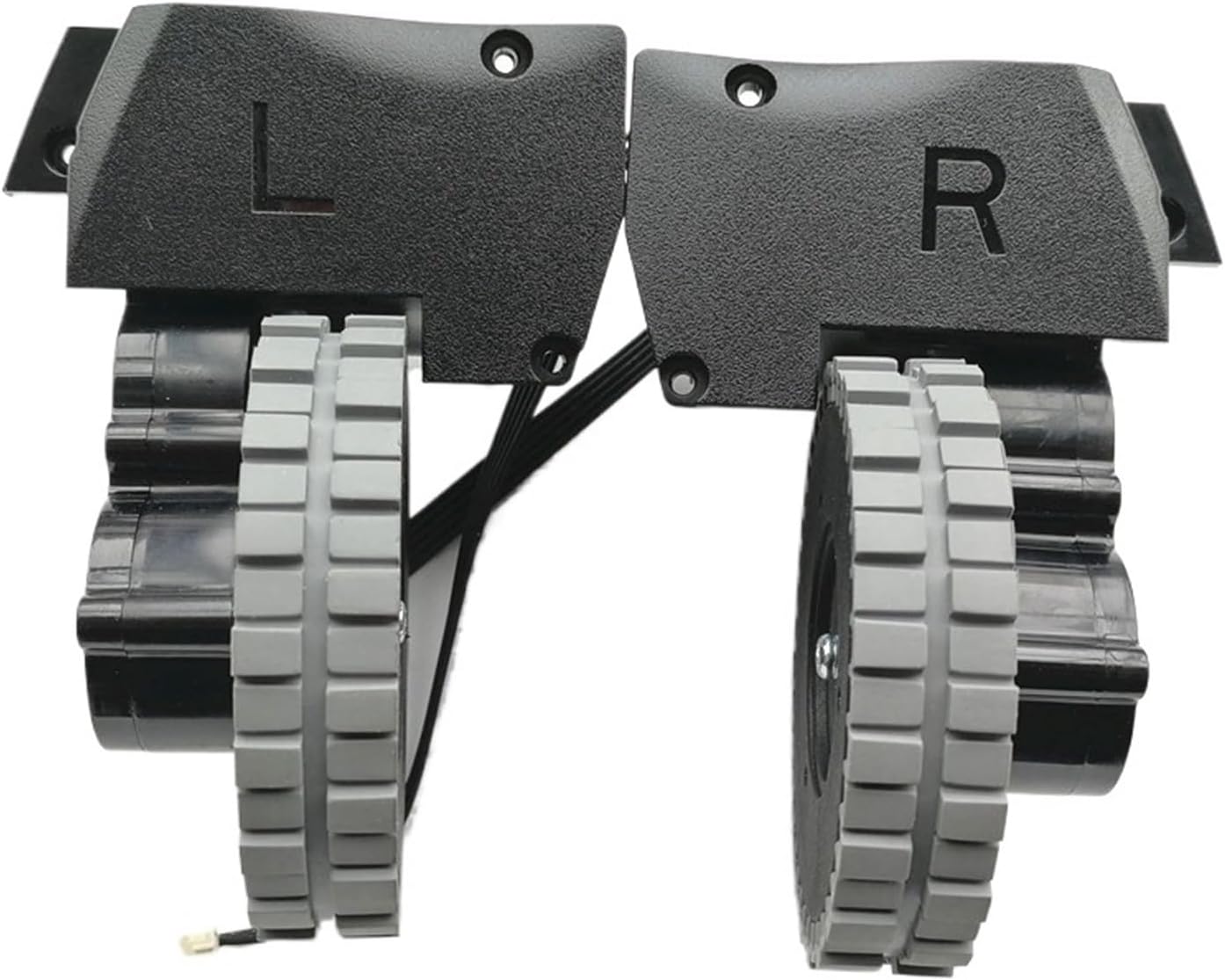

Figure 3.2: Both Left (L) and Right (R) Wheel Assemblies for comparison.

4. Setup and Installation

This wheel part is designed for tool-free installation. Follow these steps to replace the wheel assembly on your compatible robot vacuum cleaner.

1. Prepare the Vacuum Cleaner:

   Turn off your robot vacuum cleaner and disconnect it from its charging base or power outlet. Place it upside down on a clean, flat surface to access the wheel compartments.
2. Identify the Wheel to Replace:

   Locate the wheel assembly that needs replacement. Ensure you are replacing the Right ('R') wheel with the corresponding new 'R' part.



   Figure 4.1: Example of a Left (L) Wheel Assembly. Ensure you are replacing the correct side.

3. Remove the Old Wheel Assembly:

   Gently unclip or unscrew the old wheel assembly from its housing. Most compatible models feature a snap-on design. Disconnect any electrical connectors carefully.



   Figure 4.2: Underside view of the wheel assembly, showing attachment points.

4. Install the New Wheel Assembly:

   Align the new Right ('R') wheel part with the corresponding slot in the vacuum cleaner's chassis. Connect the electrical wire harness if present, ensuring a secure connection. Press firmly until it snaps into place. Verify that the wheel can rotate freely.



   Figure 4.3: Side view of the new wheel assembly, highlighting the motor and wire connection.


   Figure 4.4: Detailed view of the wheel's motor and internal components.



   Figure 4.5: Top view of the wheel, showing the durable tire tread.

5. Test the Installation:

   Flip the vacuum cleaner back over, reconnect it to power, and perform a short test run to ensure the new wheel functions correctly and the vacuum moves smoothly.

5. Operating

Once the new wheel part is correctly installed, your robot vacuum cleaner should operate as normal. The wheel assembly is designed to integrate seamlessly with your existing system.

• Ensure the wheel rotates freely and does not get stuck on debris.
• Observe the vacuum cleaner's movement after replacement to confirm proper navigation.
• The shock-absorbing tires contribute to smoother movement across various floor types.

6. Maintenance

Regular maintenance of your robot vacuum cleaner's wheels will ensure longevity and optimal performance.

• Cleaning: Due to its oil-resistant and water-resistant construction, the wheel can be easily wiped clean with a damp cloth. Avoid harsh chemicals or abrasive cleaners.
• Debris Removal: Periodically check the wheel and its axle for tangled hair, threads, or other debris that might impede its rotation. Carefully remove any obstructions.
• Inspection: Regularly inspect the wheel for signs of wear or damage. Replace if significant wear is observed to maintain cleaning efficiency.

7. Troubleshooting

If you experience issues after replacing the wheel, consider the following:

8. Specifications

• Brand: UCVJXDEM
• Model Number: wymlsh
• Compatible Models: SilverCrest, SSRA1 Robot Vacuum Cleaners
• Part Type: Robot Vacuum Cleaner Wheel Part with Motor (Right)
• Item Weight: 1.76 ounces
• Package Dimensions: 0.39 x 0.39 x 0.39 inches
• Country of Origin: China
• ASIN: B0F8VPMR5T

9. Warranty and Support

For any questions regarding the installation, operation, or performance of your UCVJXDEM Robot Vacuum Cleaner Wheel Part, please contact the seller or manufacturer directly. Refer to your purchase documentation for specific warranty details.

Seller: wymlsh

For further assistance, please visit the product page on Amazon.com or contact the seller through the Amazon platform.
