vidaXL TV Cabinet 862136 User Manual

Introduction

This manual provides comprehensive instructions for the assembly, operation, and maintenance of your vidaXL TV Cabinet, model 862136. Please read these instructions carefully before beginning assembly and retain them for future reference.

The vidaXL TV Cabinet is designed to provide a stylish and practical storage solution for your entertainment devices. It features a matte black finish, three drawers, and three open shelves, supported by sturdy hairpin legs.

Safety Information

• Always assemble the product on a soft, clean surface to prevent scratches.
• Ensure all components are present before starting assembly.
• Do not overtighten screws, as this may damage the engineered wood.
• Keep small parts away from children during assembly.
• For stability, place the TV cabinet on a level surface.
• Consider using wall anchor straps (not included) to prevent tipping, especially in households with children or pets.

Setup and Assembly

Assembly of the vidaXL TV Cabinet requires two people. Please follow the steps below carefully.

Components Overview

Before starting, unpack all components and verify against the included parts list (refer to the separate assembly diagram provided in the packaging). Ensure all panels, hardware, and legs are accounted for.

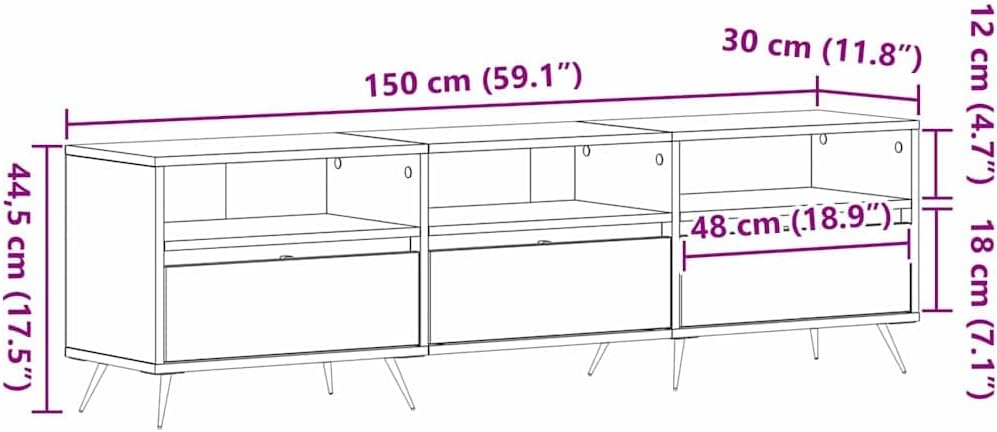

Image: Dimensional diagram of the TV cabinet, illustrating overall length (150 cm / 59.1"), depth (30 cm / 11.8"), and height (44.5 cm / 17.5"), along with internal shelf and drawer dimensions.

Assembly Steps

1. Prepare the Panels: Lay out all engineered wood panels on a soft, clean surface. Identify the top, bottom, side, and internal divider panels.
2. Assemble the Frame: Attach the side panels to the bottom panel using the provided hardware (dowels and cam locks/screws). Ensure the correct orientation for all pre-drilled holes.
3. Install Internal Dividers and Shelves: Insert the internal divider panels and fixed shelves into their designated slots or attach them with hardware.
4. Attach the Top Panel: Secure the top panel to the assembled frame using the appropriate hardware.
5. Assemble Drawers: Follow the specific instructions for assembling the three drawers. This typically involves attaching side panels to front/back panels, inserting the bottom, and securing with hardware.
6. Install Drawer Slides: Attach the drawer slides to both the cabinet interior and the assembled drawers. Carefully insert the drawers into the cabinet.
7. Attach Hairpin Legs: Turn the cabinet upside down (with assistance) and securely attach the metal hairpin legs to the pre-drilled holes on the bottom panel using the provided screws. Ensure all legs are tightened evenly for stability.
8. Final Inspection: Carefully turn the cabinet upright. Check all connections to ensure they are tight and secure. Verify that drawers slide smoothly.

Image: Front view of the fully assembled vidaXL TV cabinet, showcasing its three open shelves and three closed drawers, supported by black hairpin legs.

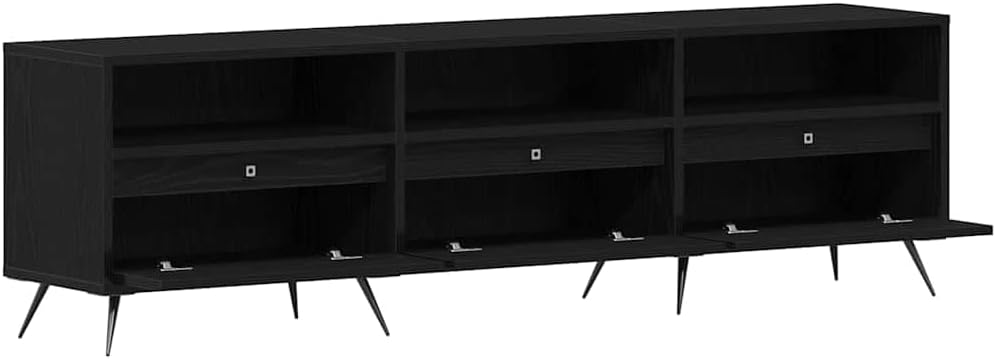

Image: Front view of the vidaXL TV cabinet with its three bottom drawers partially open, revealing the internal storage space.

Operation

The vidaXL TV Cabinet is designed for convenient storage and display of your media equipment and other items.

• Placement: Position the cabinet on a flat, stable surface. Ensure there is adequate space around it for ventilation of electronic devices.
• Weight Capacity: The top surface is suitable for TVs up to 55 inches. Distribute weight evenly across the top and shelves. Avoid placing excessively heavy items on any single shelf or drawer.
• Drawer Use: The three drawers provide enclosed storage for accessories, remotes, or other items. Open and close drawers gently to ensure longevity of the slides.
• Shelf Use: The open shelves are ideal for media players, gaming consoles, soundbars, or decorative items.

Image: The vidaXL TV cabinet positioned in a modern living room, with a television mounted on the wall above it, demonstrating its intended use.

Maintenance

Proper care will ensure the longevity and appearance of your vidaXL TV Cabinet.

• Cleaning: Dust regularly with a soft, dry cloth. For spills, wipe immediately with a slightly damp cloth and then dry thoroughly. Avoid abrasive cleaners or harsh chemicals, as these can damage the finish.
• Avoid Moisture: Do not place hot or wet items directly on the surface. Use coasters or protective pads when necessary.
• Sunlight Exposure: Prolonged exposure to direct sunlight may cause fading or discoloration.
• Hardware Check: Periodically check all screws and fasteners to ensure they remain tight. Retighten if necessary, but do not overtighten.

Troubleshooting

If you encounter any issues with your TV cabinet, refer to the following common solutions:

• Cabinet is Wobbly:
  • Ensure the cabinet is placed on a level surface.
  • Check that all hairpin legs are securely attached and tightened evenly.
  • Verify all internal assembly hardware is tight.
• Drawers Do Not Slide Smoothly:
  • Ensure the drawer slides are correctly aligned and installed on both the drawer and the cabinet.
  • Check for any obstructions in the drawer tracks.
  • Verify that the drawer itself is assembled squarely.
• Missing or Damaged Parts:
  • If you find any parts missing or damaged upon unpacking, do not proceed with assembly. Contact vidaXL customer support immediately for assistance.

Specifications

Warranty and Support

For warranty information, please refer to the documentation included with your purchase or visit the official vidaXL website. If you require further assistance, have questions about assembly, or need to report missing/damaged parts, please contact vidaXL customer support.

You can typically find contact information on the vidaXL website or through your purchase platform.
