Generic Portable Power Station Fixed Mounting Bracket for Ecoflow Delta 2 MAX

1. Product Overview

This manual provides instructions for the Generic Fixed Mounting Bracket, designed to securely hold your Ecoflow Delta 2 MAX 1600/2000 portable power station. This product includes two (2) mounting brackets, suitable for installation in caravans, motorhomes, boats, and residential settings, ensuring stability during travel or stationary use.

The curved design and multiple pre-drilled holes facilitate versatile and reliable fixation, helping to organize your power setup and maximize available space.

2. Package Contents

• 2 x Fixed Mounting Brackets
• Note: Mounting hardware (screws, bolts, etc.) is not included and must be sourced separately based on your installation surface.

3. Safety Information

• Read Instructions: Always read and understand all instructions before installation and use.
• Proper Tools: Use appropriate tools for installation to prevent damage to the bracket or mounting surface.
• Secure Surface: Ensure the mounting surface is structurally sound and capable of supporting the combined weight of the power station and brackets.
• Do Not Overtighten: Avoid overtightening screws, which can strip threads or crack the bracket material.
• Regular Inspection: Periodically check the brackets and fasteners for tightness and signs of wear or damage.
• Ventilation: Ensure the power station's ventilation ports are not obstructed after installation.

4. Setup and Installation

The mounting brackets are designed for secure fixation to various surfaces. For optimal stability, it is recommended to use four brackets (two packs) to secure all four corners of the power station.

1. Identify Mounting Location: Choose a flat, stable, and rigid surface capable of supporting the Ecoflow Delta 2 MAX power station. Ensure adequate space for ventilation and access to ports.
2. Position Brackets: Place the brackets around the base of your Ecoflow Delta 2 MAX power station to determine the optimal spacing. Then, position each bracket on the chosen mounting surface and mark the drilling points through the pre-drilled holes.
3. Prepare Surface: Drill pilot holes at the marked points using an appropriate drill bit for your mounting surface material.
4. Secure Brackets: Fasten each bracket to the surface using suitable screws and washers (not included). Ensure they are tightened securely but do not overtighten.

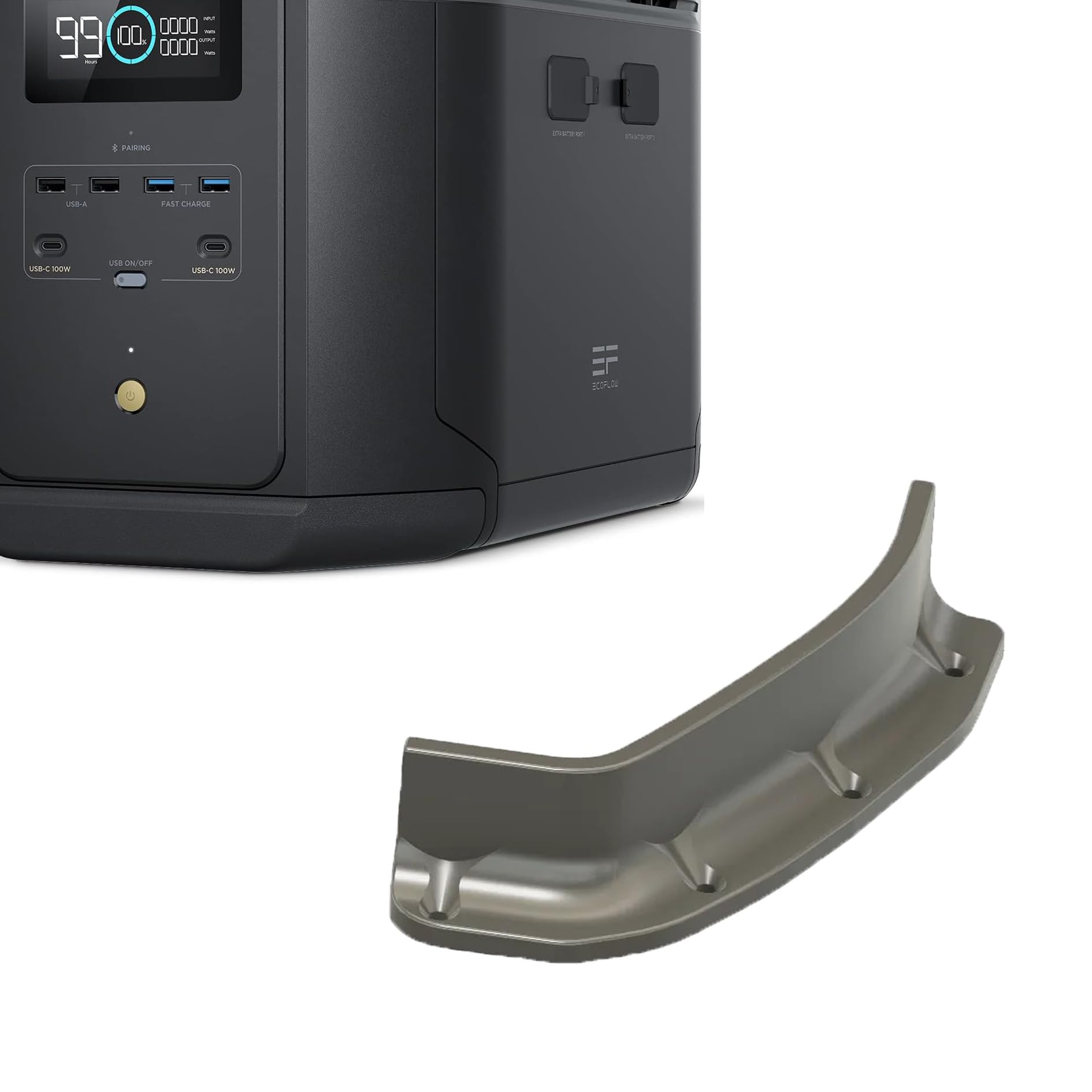

Image 1: Render of a single mounting bracket, illustrating its curved profile and pre-drilled attachment points.

Image 2: Top-down view of the mounting bracket, highlighting the precise location of the pre-drilled holes for installation.

5. Operating the Mounting System

Once the brackets are securely installed, you can place your Ecoflow Delta 2 MAX power station into position.

1. Position Power Station: Align your Ecoflow Delta 2 MAX power station with the installed brackets.
2. Secure Power Station: Gently lower the power station into the brackets until it clicks firmly into place. The design ensures a snug fit.
3. Verify Stability: Confirm that the power station is stable and does not wobble. If necessary, adjust the power station's position or re-check bracket installation.

Image 3: Ecoflow Delta 2 MAX power station secured in a vehicle, demonstrating the bracket's function.

6. Maintenance

• Regular Inspection: Periodically inspect the mounting brackets and all fasteners for any signs of wear, loosening, or damage.
• Tighten Fasteners: Ensure all mounting screws remain tight to maintain secure fixation.
• Cleaning: Clean the brackets with a damp cloth as needed. Avoid harsh chemicals that may degrade the material.

7. Troubleshooting

• Issue: Power station is not secure or wobbles after installation.
  Solution: Ensure all mounting screws are tightened. Verify that the mounting surface is stable and rigid. If using only two brackets, consider installing additional brackets for enhanced stability, as four corners are typically recommended for optimal security.
• Issue: Bracket appears damaged or material is not as expected.
  Solution: The product specifications indicate the material is "Steel Or Aluminum". If you receive a product that appears to be made of a different material (e.g., plastic) and it does not meet your expectations for durability, please contact customer support or the retailer for assistance.

8. Specifications

9. Warranty Information

Warranty information for this product is not provided in this manual. Please refer to the retailer or manufacturer's official website for detailed warranty terms and conditions.

10. Customer Support

For technical assistance, product inquiries, or customer service, please contact the retailer from whom you purchased this product or visit the manufacturer's website for support options.
