Crypticorps Replacement Grass Bag Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your Crypticorps replacement grass bag. Please read these instructions carefully before use to ensure safe and efficient performance. Retain this manual for future reference.

Important Safety Notice: Regularly inspect the grass bag for signs of wear, damage, or deterioration. A deteriorated grass bag can pose a risk during operation. If any damage or significant wear is observed, replace the grass bag immediately with a new, compatible part to maintain safety and performance.

2. Product Overview

The Crypticorps replacement grass bag (part number 970698001) is designed as a direct replacement component for specific Ryobi 20-inch 40V cordless lawnmower models. This product includes the grass bag with its integrated clips only. The mower frame or any other associated components are not included.

Compatibility: This grass bag is compatible with Ryobi 20-inch 40-volt cordless lawnmower models RY40108 and RY40109.

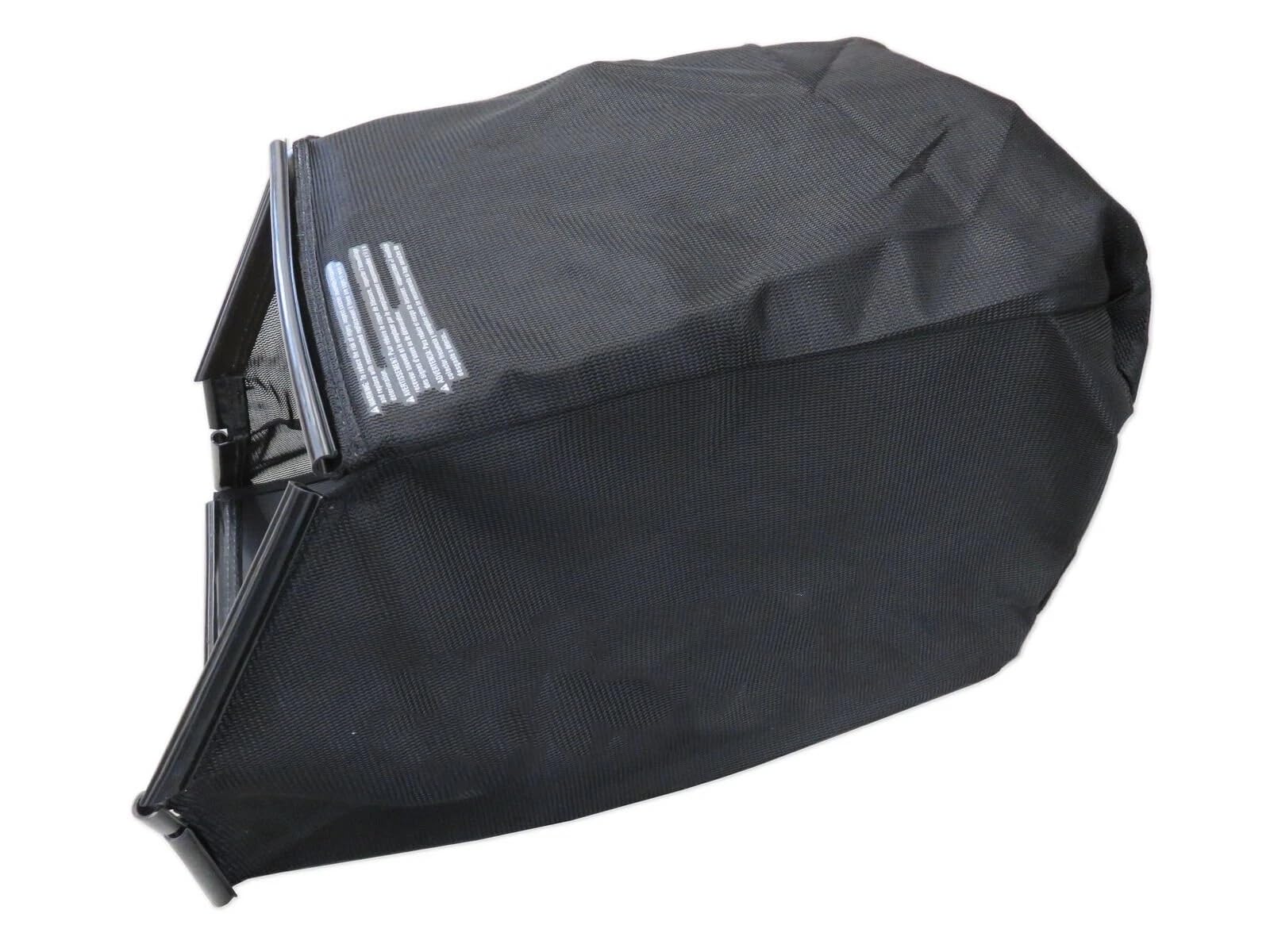

Figure 1: Crypticorps Replacement Grass Bag. This image shows the black fabric replacement grass bag, designed for Ryobi 20-inch 40V cordless lawnmowers. It features a sturdy mesh construction with integrated clips for attachment to the mower frame. A warning label is visible on the top surface.

3. Setup and Installation

Before installing the new grass bag, ensure the lawnmower is turned off, the battery is removed, and all moving parts have come to a complete stop. Wear appropriate safety gloves.

1. Remove Old Grass Bag (if applicable): If replacing an existing grass bag, carefully detach it from the mower's discharge chute. Note how the clips are secured.
2. Inspect Mower Discharge Chute: Clean any grass clippings or debris from the mower's discharge chute area to ensure a clear attachment point for the new bag.
3. Attach New Grass Bag: Align the clips on the new Crypticorps grass bag with the corresponding attachment points on your Ryobi lawnmower's discharge chute. Securely fasten all clips until they are firmly seated.
4. Verify Fit: Gently tug on the grass bag to ensure it is securely attached and will not dislodge during operation. The bag should sit flush against the mower's opening.

Note: It is crucial to double-check the part's appearance and cross-reference it with the provided dimensions to ensure a perfect fit for your specific Ryobi mower model.

4. Operating Instructions

Once the grass bag is securely installed, you can operate your lawnmower as usual. The grass bag is designed to collect clippings during mowing, providing a clean finish and preventing grass from scattering across your lawn.

• Monitoring Fill Level: Periodically check the grass bag's fill level. Most grass bags have a visual indicator or become noticeably heavier and less efficient at collecting clippings when full.
• Emptying the Grass Bag: When the bag is full, turn off the lawnmower, remove the battery, and wait for all moving parts to stop. Carefully detach the grass bag from the mower, empty the clippings into a compost pile or waste bin, and then reattach the bag following the installation steps.

5. Maintenance

Regular maintenance of your grass bag will extend its lifespan and ensure optimal performance.

• Cleaning: After each use, or as needed, empty the grass bag completely. You can shake out loose debris or use a soft brush to remove stubborn clippings. For a more thorough cleaning, the bag can be rinsed with water and mild soap. Ensure the bag is completely dry before reattaching it to the mower or storing it, to prevent mold or mildew growth.
• Inspection: Periodically inspect the grass bag for any signs of wear, tears, holes, or damage to the fabric and attachment clips. Pay close attention to seams and areas where the bag connects to the frame.
• Replacement: If the grass bag shows significant wear, tears, or damage that could compromise its function or safety, it must be replaced. Refer to the
