1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of the Generic brand replacement filters compatible with DAEWOO DOOSAN DH 55V 55-5-7 series hydraulic pilot excavators. These filters are designed to ensure optimal performance and longevity of your equipment by effectively filtering oil, diesel, water, and air.
Please read this manual thoroughly before attempting any installation or maintenance procedures. Retain this manual for future reference.
2. Product Overview
The product is a set of compatible filters for DAEWOO DOOSAN DH 55V 55-5-7 excavators, specifically designed for various filtration needs including oil, diesel, water, and air. The specific variant covered by this manual is Model A10.

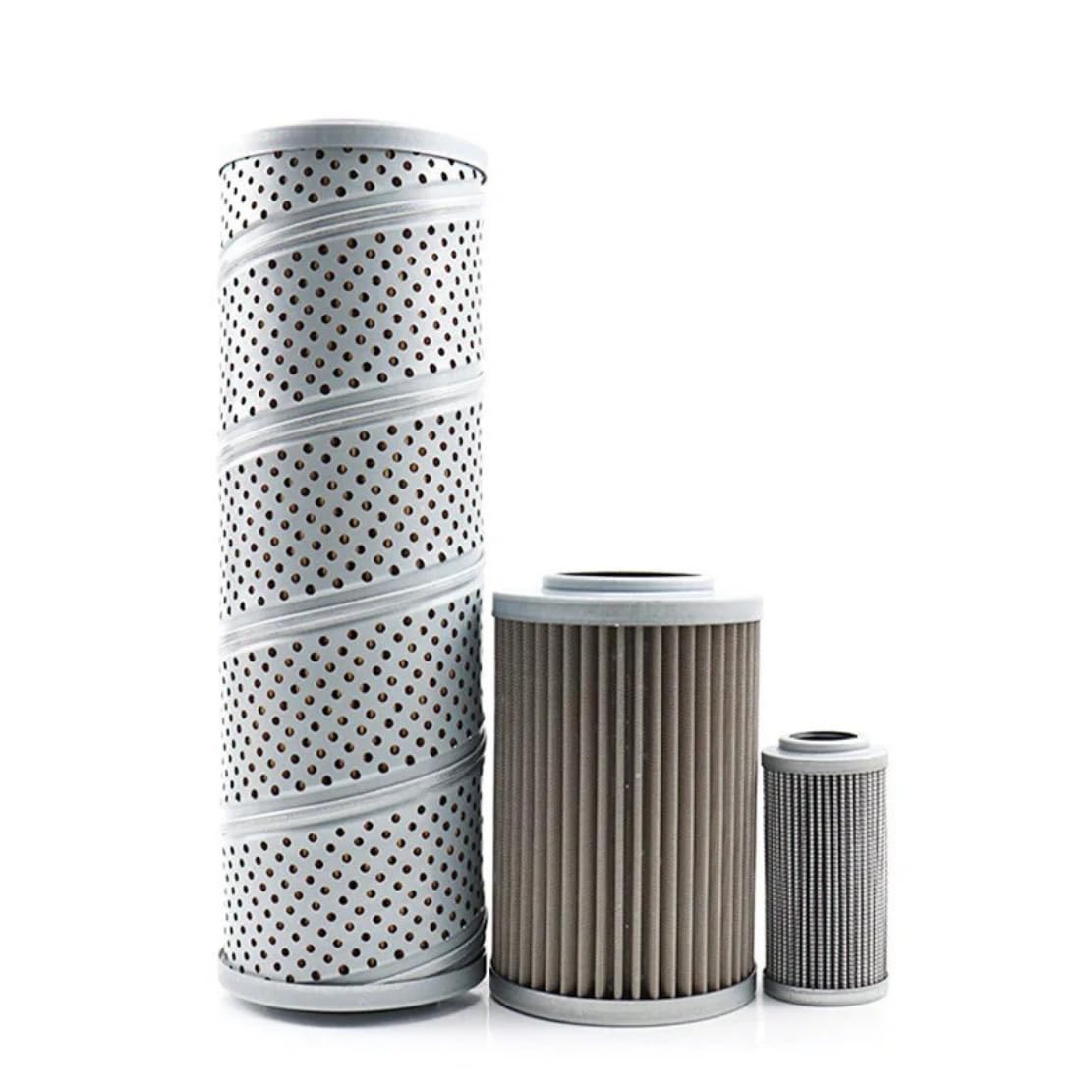

Figure 2.1: Assortment of compatible filters for DAEWOO DOOSAN excavators. The image displays three distinct filter types: a large, perforated cylindrical filter, a medium-sized filter with vertical pleats, and a smaller filter also featuring vertical pleats. These filters are essential components for maintaining the purity of various fluids and air within the excavator system.
2.1 Key Features
- Compatibility: Specifically designed for DAEWOO DOOSAN DH 55V 55-5-7 series hydraulic pilot excavators.
- Multi-purpose Filtration: Includes filters for oil, diesel, water, and air systems.
- Durable Construction: Manufactured to meet or exceed OEM specifications for reliable performance.
- Easy Replacement: Designed for straightforward installation and removal.
3. Setup and Installation
Proper installation is crucial for the effective operation of these filters. Always refer to your excavator's specific service manual for detailed instructions on filter replacement for your model.
3.1 Safety Precautions
- Ensure the excavator is turned off and cooled down before beginning any work.
- Wear appropriate personal protective equipment (PPE), including gloves and eye protection.
- Be prepared for fluid spills when replacing oil, diesel, or water filters. Have absorbent materials and proper disposal containers ready.
- Do not smoke or use open flames near fuel filters.
3.2 Installation Steps (General)
- Identify the Correct Filter: Match the new filter with the old one to ensure it is the correct type (oil, diesel, water, or air).
- Locate the Filter Housing: Refer to your excavator's manual for the exact location of each filter.
- Remove the Old Filter: Carefully unscrew or unclip the old filter. Be mindful of any fluid leakage.
- Clean the Housing: Wipe down the filter housing and sealing surfaces to remove any debris or old gasket material.
- Prepare the New Filter: For oil and diesel filters, apply a thin film of clean oil to the new filter's gasket.
- Install the New Filter: Screw or clip the new filter into place. Tighten according to manufacturer specifications (usually hand-tight plus a quarter or half turn). Do not overtighten.
- Check for Leaks: After installation, start the excavator and check for any leaks around the newly installed filter.
4. Operating Considerations
These filters are passive components designed to function continuously during excavator operation. No specific operational steps are required for the filters themselves beyond ensuring they are correctly installed.
- Regularly monitor your excavator's dashboard indicators for any warnings related to fluid pressure or air intake, which could indicate a clogged filter.
- Ensure the excavator is operated within its recommended environmental conditions to prevent premature filter clogging.
5. Maintenance
Regular maintenance of your filters is essential for the longevity and efficiency of your DAEWOO DOOSAN excavator.
5.1 Recommended Replacement Intervals
Filter replacement intervals vary depending on the type of filter, operating conditions, and the excavator manufacturer's recommendations. Always consult your excavator's service manual for precise schedules.
| Filter Type | Typical Interval | Notes |
|---|---|---|
| Engine Oil Filter | Every 250-500 operating hours or annually | Replace with engine oil change. |
| Fuel Filter (Diesel) | Every 500-1000 operating hours or annually | More frequent replacement in dusty or poor fuel quality conditions. |
| Hydraulic Filter | Every 1000-2000 operating hours or annually | Crucial for hydraulic system health. |
| Air Filter | Inspect daily, replace every 500-1000 operating hours or as needed | More frequent replacement in dusty environments. Do not clean with compressed air. |
5.2 Post-Maintenance Checks
- Verify all connections are secure and leak-free.
- Ensure proper fluid levels are restored after fluid filter changes.
- Dispose of old filters and fluids according to local environmental regulations.
6. Troubleshooting
While these filters are designed for reliable performance, issues can arise if they are not installed correctly or if they become excessively clogged.
| Problem | Possible Cause | Solution |
|---|---|---|
| Fluid Leakage around Filter | Improperly tightened filter, damaged gasket, incorrect filter size. | Ensure filter is tightened correctly. Check gasket for damage and replace if necessary. Verify correct filter model. |
| Reduced Engine Performance (e.g., loss of power, rough idling) | Clogged fuel filter, clogged air filter. | Inspect and replace fuel and/or air filters as needed. |
| Hydraulic System Malfunction (e.g., slow operation, erratic movement) | Clogged hydraulic filter. | Replace hydraulic filter. Check hydraulic fluid level and quality. |
| Excessive Exhaust Smoke | Clogged air filter, issues with fuel delivery due to clogged fuel filter. | Inspect and replace air and fuel filters. |
If troubleshooting steps do not resolve the issue, consult a qualified technician or your excavator's service center.
7. Specifications
The following specifications apply to the Generic brand compatible filters for DAEWOO DOOSAN DH 55V 55-5-7 excavators (Model A10).
- Brand: Generic
- Compatibility: DAEWOO DOOSAN DH 55V 55-5-7 Hydraulic Pilot Excavator
- Part Number (Manufacturer): 55V 55-5-7
- Item Model Number: 210B (Specific to this filter type)
- Product Variant: A10
- Filter Types Included: Oil, Diesel, Water, Air
- Country of Origin: China
- Item Weight: Approximately 300 pounds (Note: This weight seems unusually high for filters and may refer to a shipping weight or an error in source data. Please verify with supplier if critical.)
- Package Dimensions: 1.5 x 1.5 x 1.5 inches (Note: This dimension seems unusually small for filters and may refer to a single small component or an error in source data. Please verify with supplier if critical.)
- Fit Type: Universal Fit (for specified excavator models)
8. Warranty and Support
8.1 Warranty Information
This product is typically covered by a 30-day easy returns policy for refund or replacement. For specific warranty details, please refer to the seller's policy at the time of purchase. Keep your proof of purchase for any warranty claims.
8.2 Customer Support
For technical assistance, installation queries, or support regarding this product, please contact the seller directly through the platform where the purchase was made. The seller for this product is "guangzhoushiyilindianzishangwuyouxiangongsi".
You can typically find seller contact information on your order details page or by visiting the seller's storefront on the e-commerce platform.
