Introduction
The LOLSSA 5614-Pro Max is a versatile and portable tire inflator designed for various inflation needs, including car, motorcycle, bicycle tires, and sports balls. It features a powerful motor, precise PSI control, and multiple lighting modes for convenience and safety. This manual provides detailed instructions for the proper setup, operation, and maintenance of your device.

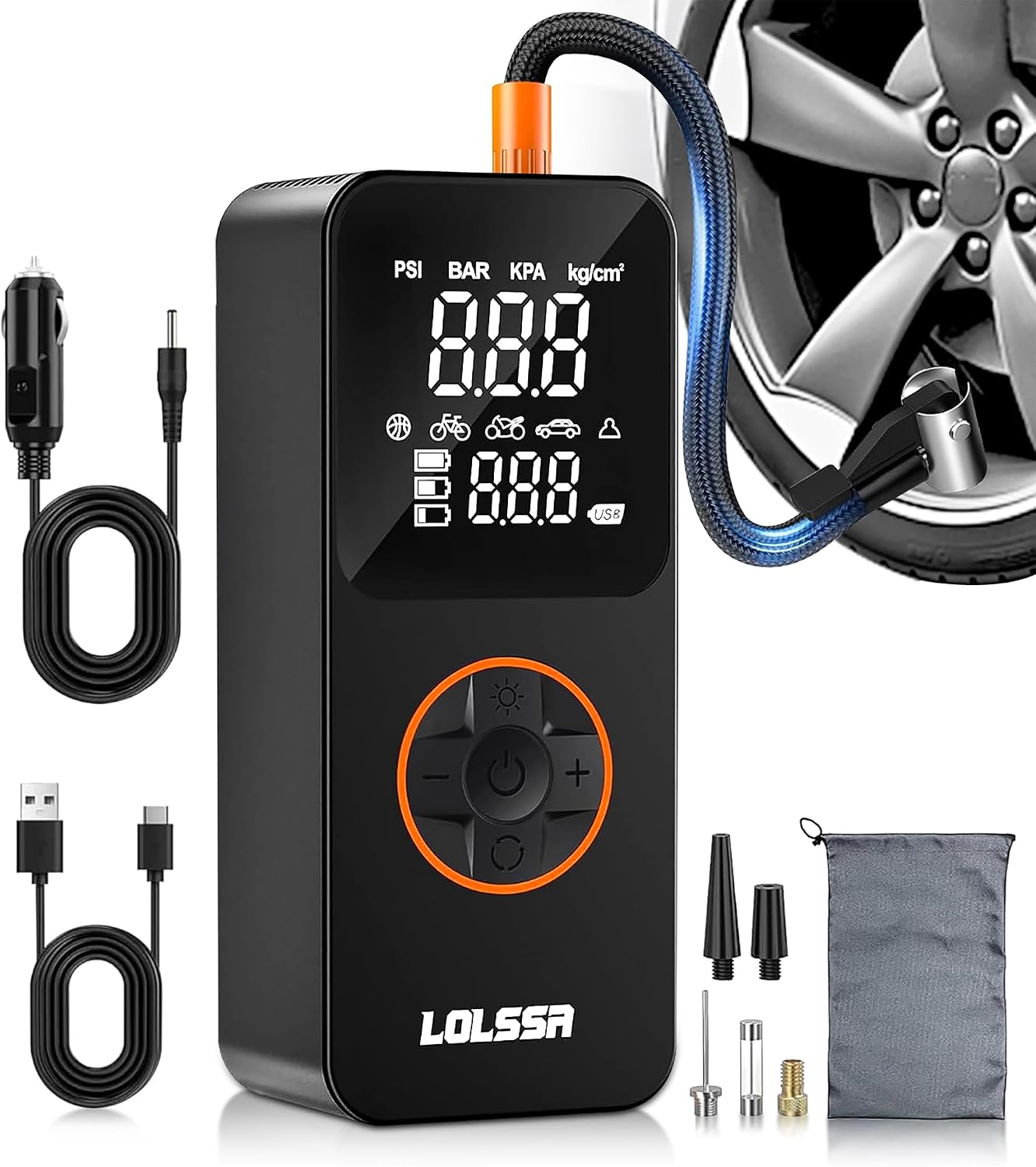

Figure 1: LOLSSA 5614-Pro Max Tire Inflator and included accessories.
Package Contents
Upon unboxing, please ensure all the following items are present:
- LOLSSA 5614-Pro Max Tire Inflator Unit
- Air Hose with Presta Valve Adapter
- USB-C to USB-A Charging Cable
- 12V DC Car Power Cable (Cigarette Lighter Adapter)
- Storage Bag
- Various Nozzle Adapters (for balls, inflatables, etc.)
- Spare Fuse
Figure 2: Complete package contents of the tire inflator.
Setup
Charging the Device
The LOLSSA 5614-Pro Max features a 20000mAh battery and can be charged using the provided USB-C cable. A full charge typically takes 3-4 hours. The device can also function as a power bank for other electronic devices via its USB-A output port.
Figure 3: The device offers two charging options: charging itself via USB-C input or acting as a power bank via USB-A output.
Attaching the Air Hose
Screw the air hose securely into the designated port on the top of the inflator unit. The orange rubber grip provides a better hold for tightening. Ensure it is firmly attached to prevent air leakage during inflation.
Figure 4: The air hose connects to the top of the inflator unit.
Operating Instructions
Wireless Inflation
- Connect the air hose to the valve of the tire or inflatable item.
- Press and hold the power button (center button) to activate the screen.
- Press the mode button (bottom button) to switch between preset modes: Bicycle, Motorcycle, Car, and Ball. Each mode has a default PSI setting.
- Use the '+' and '-' buttons to adjust the desired PSI value. The device supports up to 150 PSI.
- Press the power button again to start the inflation. The device will automatically shut off when the preset value is reached.
Figure 5: Step-by-step guide for wireless inflation using the device.
Corded Inflation (Using Car Power)
In situations where the internal battery is low or depleted, you can power the inflator directly from your vehicle's 12V cigarette lighter socket.
- Start your car engine.
- Insert the car charging cable into the cigarette lighter socket.
- Connect the air hose to the tire valve.
- Press the mode button to switch between inflation modes.
- Press the power button to start the pump.
Fuse Replacement Tip:
If the 12V car power cable is not working, the fuse might need replacement. Unscrew the nut on the car charging cable head to access and replace the fuse with the provided spare.
Figure 6: Detailed steps for operating the inflator using the car's 12V power and fuse replacement.
Features
- Fast Inflation: Equipped with a powerful motor providing 36 L/Min airflow, capable of inflating a small car tire (28-35 PSI) in approximately 55 seconds.
- Dual Value Display: The clear digital screen shows both the preset pressure value and the real-time tire pressure, with a measurement accuracy of ±1 PSI for safer inflation.
- Preset Modes & Auto Shut-off: Features 4 preset modes for bicycle, motorcycle, car, and ball. The device automatically stops inflation once the preset pressure is reached. Custom pressure values up to 150 PSI can also be set.
- Multiple Lighting Modes: Includes 3 types of lights: a standard LED light for illumination, an SOS mode, and flashing lights for dark night or emergency situations.
- Power Bank Functionality: With a USB-C input and USB-A output port, the inflator can be used to charge cell phones and other electronic devices.
- Compact & Portable: Lightweight and mini-sized, making it easy to carry and store in a glove box or backpack.
Figure 7: The inflator provides 3X faster inflation, capable of refilling a 205/55/R16 tire in under 55 seconds.
Figure 8: The clear digital display shows both real-time and preset pressure values, ensuring accurate inflation.
Figure 9: The inflator comes with a wide range of accessories and preset modes for various inflation needs, including cars, motorcycles, bicycles, and balls.
Maintenance
- Keep the device clean and free from dust and debris.
- Store in a cool, dry place away from direct sunlight and extreme temperatures.
- Ensure the air hose and adapters are clean before and after use to prevent blockages.
- Regularly check the battery level and recharge as needed to maintain optimal performance.
Troubleshooting
- Device not turning on: Ensure the battery is charged. If using the car power cable, check the fuse in the adapter.
- Inflation is slow or not working: Check that the air hose is securely attached to both the inflator and the tire valve. Ensure the correct PSI mode is selected for the item being inflated.
- Inaccurate pressure reading: Ensure the hose is properly connected and there are no leaks. The device has a ±1 PSI accuracy.
Specifications
| Brand | LOLSSA |
| Model Name | 5614-Pro Max |
| Power Source | Battery Powered (Lithium Ion) / 12V DC Car Power |
| Maximum Operating Pressure | 150 PSI |
| Air Flow Capacity | 36 LPM |
| Item Weight | 1.79 pounds |
| Package Dimensions | 7.83 x 5.31 x 2.64 inches |
| Material | Metal |
| Color | Orange |
Warranty & Support
The LOLSSA 5614-Pro Max Tire Inflator comes with a 1-year warranty from the manufacturer. For any support inquiries, troubleshooting assistance, or warranty claims, please contact LOLSSA customer service through the Amazon platform or visit the official LOLSSA store page.
You may also consider purchasing extended protection plans for additional coverage:
- 3-Year Protection Plan
- 4-Year Protection Plan
- Complete Protect: One plan covers all eligible past and future purchases
