1. Introduction
Welcome to your new KeeGone Kitchen Faucet. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your faucet. Please read these instructions carefully before installation and retain them for future reference.
2. Safety Information
Always observe the following safety precautions to prevent injury or damage:
- Ensure the main water supply is turned off before beginning any installation or maintenance.
- Wear appropriate personal protective equipment, such as safety glasses and gloves.
- If you are unsure about any part of the installation process, consult a qualified plumber.
- Do not use harsh chemicals or abrasive cleaners on the faucet's finish.
- Keep small parts out of reach of children.
3. Package Contents
Please verify that all components listed below are present and undamaged before proceeding with installation.

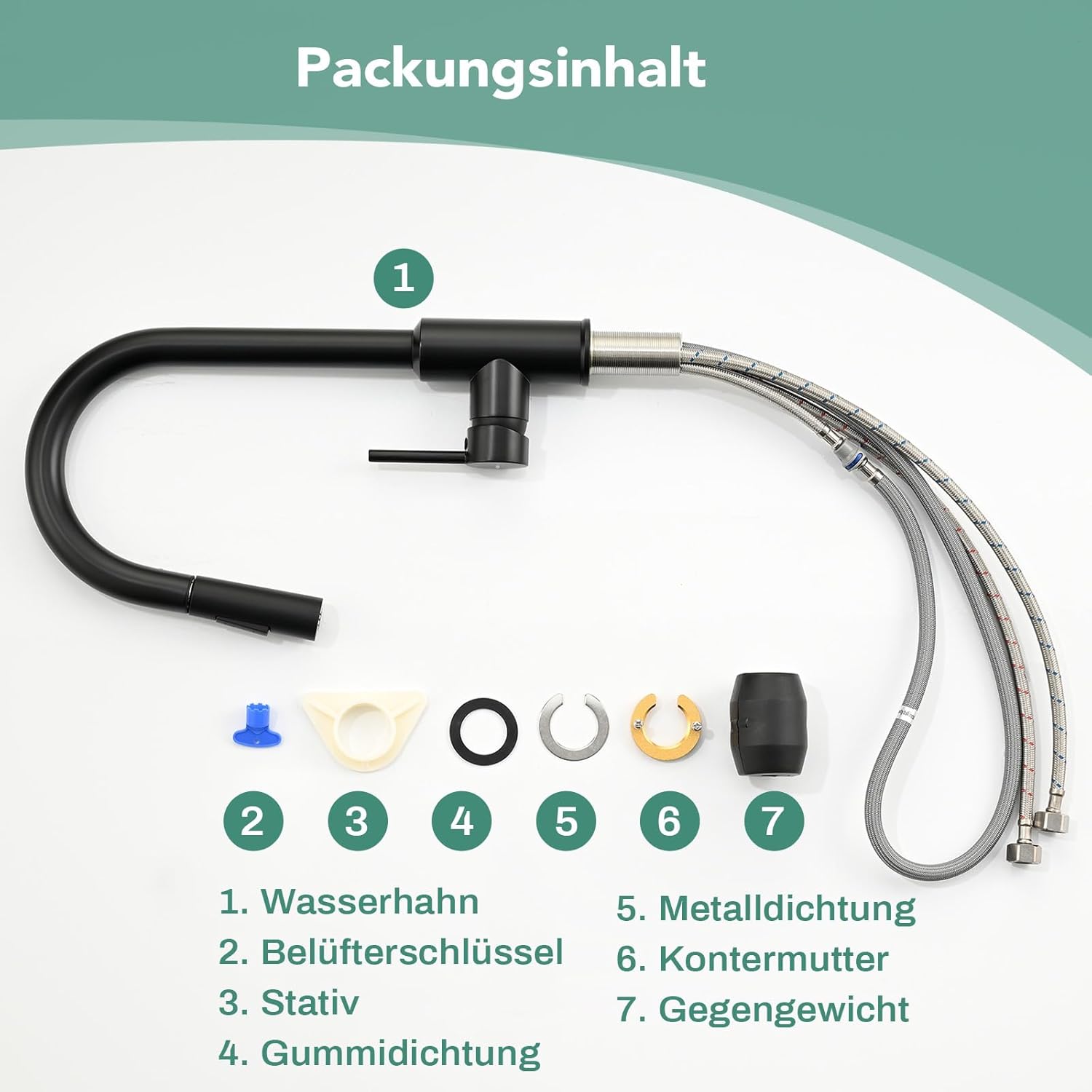

Figure 3.1: An exploded view showing all components included in the package: faucet, aerator key, mounting base, rubber gasket, metal gasket, lock nut, and counterweight.
| Item No. | Component | Quantity |
|---|---|---|
| 1 | Faucet | 1 |
| 2 | Aerator Key | 1 |
| 3 | Mounting Base | 1 |
| 4 | Rubber Gasket | 1 |
| 5 | Metal Gasket | 1 |
| 6 | Lock Nut | 1 |
| 7 | Counterweight | 1 |
| - | Hot & Cold Water Hoses (60 cm) | 2 |
4. Specifications
Key technical details for your KeeGone Kitchen Faucet:
Figure 4.1: Detailed product dimensions, including faucet height (397mm), spout reach (210.3mm), and required installation hole diameter (32-38mm) and maximum plate thickness (40mm).
| Feature | Detail |
|---|---|
| Model Number | KSKF005AB1-EU |
| Color | Black |
| Material | Stainless Steel |
| Installation Method | Single Hole (Deck Mounted) |
| Required Hole Diameter | 32-38 mm |
| Max. Plate Thickness | 1-40 mm |
| Flow Rate | 1.5 Gallons per minute |
| Pull-Out Hose Length | 45 cm |
| Spout Height | 18 cm |
| Spout Reach | 25 cm |
| Number of Handles | 1 |
| Special Features | 360° Swivel, Two Spray Functions |
| Product Weight | 1.6 kg |
5. Installation Guide
This faucet is designed for easy single-hole installation. Follow these steps carefully:
5.1. Pre-Installation
- Turn off the main water supply to your kitchen.
- Clear the area under the sink and remove any old faucet if applicable.
- Ensure your sink has a single mounting hole with a diameter between 32mm and 38mm, and a plate thickness between 1mm and 40mm.
5.2. Mount the Faucet
- Insert the hot and cold water hoses (G3/8 universal fitting) through the faucet body.
- Place the rubber gasket (4) and metal gasket (5) over the faucet's threaded shank.
- Insert the faucet into the mounting hole on your sink or countertop.
- From underneath the sink, slide the mounting base (3) over the threaded shank, followed by the lock nut (6).
- Tighten the lock nut securely to fasten the faucet to the sink. Do not overtighten.
5.3. Connect Water Hoses
- Connect the hot water hose to the hot water supply valve and the cold water hose to the cold water supply valve. Ensure connections are tight to prevent leaks.
5.4. Install Counterweight
Figure 5.1: This diagram shows the gravity-based pull-out system, which includes a counterweight to ensure the spray head retracts smoothly and securely.
- Locate the pull-out hose underneath the sink.
- Attach the counterweight (7) to the pull-out hose at a point that allows the spray head to retract fully into the spout when released. Typically, this is about 15-20 cm from the connection point of the spray head.
5.5. Test for Leaks
Figure 5.2: A sleek black KeeGone kitchen faucet installed in a sink, showcasing its modern design.
- Slowly turn on the main water supply.
- Check all connections for leaks. If leaks are present, tighten the connections as needed.
- Run water through the faucet for a few minutes to flush out any debris.
6. Operating Instructions
Your KeeGone Kitchen Faucet is designed for ease of use and versatility.
6.1. Water Flow and Temperature Control
Figure 6.1: The single lever handle allows for precise control of both water temperature (hot and cold) and flow. An industrial ceramic cartridge ensures leak-free performance.
The single lever handle controls both water flow and temperature:
- Lift the handle to increase water flow.
- Move the handle to the left for hot water and to the right for cold water.
6.2. Spray Functions
Figure 6.2: The faucet offers two distinct spray modes: a steady stream for filling and a powerful spray for rinsing. The 360-degree swivel provides full sink coverage.
The pull-out spray head features two distinct spray modes:
- Stream Mode: Ideal for filling pots and general washing.
- Spray Mode: Provides a powerful rinse for cleaning dishes and the sink.
Press the button on the spray head to switch between these modes.
6.3. Pull-Out Spray and 360° Swivel
Figure 6.3: This image illustrates the pull-out spray feature of the faucet, showing the spray head extended by 45cm for versatile cleaning.
The faucet's pull-out spray head extends up to 45 cm, allowing you to reach all corners of your sink and fill containers outside the sink. The faucet also features a 360° swivel function, providing complete flexibility and coverage for single or double sinks.
7. Maintenance and Care
Proper care will ensure the longevity and appearance of your KeeGone faucet.
- Cleaning: Clean the faucet regularly with a soft cloth and mild soap. Rinse thoroughly with water and dry with a soft cloth to prevent water spots.
- Avoid Harsh Cleaners: Do not use abrasive cleaners, scouring pads, ammonia, bleach, or other harsh chemicals, as these can damage the finish.
- Aerator Maintenance: If water flow decreases, the aerator may be clogged. Unscrew the aerator from the spout (using the provided aerator key if necessary), clean any debris, and rinse before reattaching.
- Hose Inspection: Periodically check the water supply hoses and pull-out hose for any signs of wear, kinks, or leaks.
8. Troubleshooting
Refer to the table below for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Low water flow | Clogged aerator; partially closed shut-off valve; kinked hose | Clean or replace aerator; ensure shut-off valves are fully open; straighten hoses. |
| Leaks at connections | Loose connections; damaged washers/gaskets | Tighten connections; replace faulty washers/gaskets. |
| Spray head does not retract fully | Counterweight improperly positioned or obstructed; hose obstructed | Adjust counterweight position; clear any obstructions around the hose. |
| Water temperature issues | Hot/cold water supply issues; faulty cartridge | Check water heater and supply lines; if problem persists, contact support for cartridge replacement. |
If you encounter a problem not listed here or if the suggested solutions do not resolve the issue, please contact customer support.
9. Warranty and Customer Support
Your KeeGone Kitchen Faucet is backed by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions.
For technical assistance, replacement parts, or warranty claims, please contact KeeGone customer support through the retailer where you purchased the product or visit the official KeeGone website for contact information.
