Instruction Manual: Carburetor for Cub Cadet ZT1 50

Introduction

This manual provides essential information for the installation, operation, and maintenance of your new FTYHFEFH Carburetor, designed specifically for the Cub Cadet ZT1 50 17AIEACZ010 with Kawasaki FR691V Engine. Please read these instructions carefully before proceeding with installation to ensure proper function and longevity of the product.

Product Overview

The carburetor is a crucial component of your engine's fuel system, responsible for mixing air and fuel in the correct ratio for combustion. This replacement carburetor is engineered to meet original equipment specifications, ensuring reliable performance.

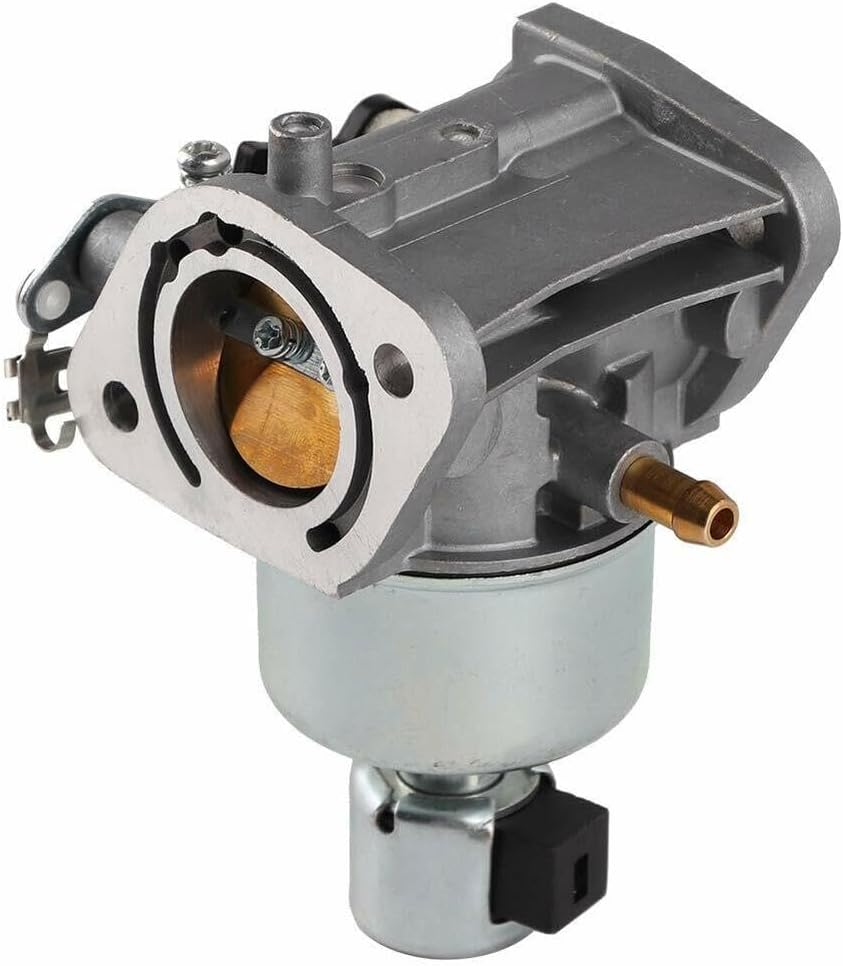

The package includes the carburetor unit and necessary gaskets for installation, as shown in Figure 1.

Setup and Installation

This carburetor is designed for straightforward, direct replacement. While special tools are generally not required, basic mechanical tools will be needed. Always ensure the engine is cool and disconnected from its power source (e.g., battery) before beginning any work.

Safety Precautions:

• Ensure the engine is off and cool.
• Disconnect the spark plug wire to prevent accidental starting.
• Work in a well-ventilated area.
• Have a fire extinguisher nearby when working with fuel.
• Wear appropriate personal protective equipment (PPE), such as gloves and eye protection.

Installation Steps:

1. Preparation: Locate the existing carburetor on your Cub Cadet ZT1 50 with Kawasaki FR691V Engine. Take photos of the existing connections for reference.
2. Fuel System Disconnection: Turn off the fuel supply. Disconnect the fuel line from the old carburetor. Be prepared for minor fuel spills and have rags ready.
3. Linkage and Electrical Disconnection: Carefully disconnect the throttle linkage, choke linkage, and any electrical connections (e.g., fuel shut-off solenoid wire) from the old carburetor.
4. Removal of Old Carburetor: Unbolt the old carburetor from the engine manifold and air filter housing. Remove any old gaskets.
5. Gasket Placement: Clean the mounting surfaces thoroughly. Place the new gaskets (included) in their correct positions between the engine manifold, carburetor, and air filter housing.
6. New Carburetor Installation: Mount the new FTYHFEFH carburetor, ensuring it is seated correctly with the new gaskets. Secure it with the bolts, tightening them evenly.
7. Reconnect Connections: Reconnect the throttle linkage, choke linkage, and electrical connections to the new carburetor. Refer to your earlier photos if needed.
8. Fuel Line Reconnection: Reconnect the fuel line to the new carburetor and turn on the fuel supply. Check for any leaks.
9. Final Checks: Ensure all connections are secure and there are no loose parts. Reconnect the spark plug wire.
10. Initial Start-up: Start the engine and allow it to warm up. Check for smooth operation and proper idle. Minor adjustments may be needed, though this carburetor is factory-set for optimal performance.

Operating Principles

The carburetor's primary function is to atomize fuel and mix it with air in precise proportions before it enters the engine's combustion chamber. When the engine is running, air is drawn through the carburetor's venturi, creating a low-pressure area that pulls fuel from the float bowl through jets. The throttle plate controls the amount of air-fuel mixture entering the engine, thereby regulating engine speed. The choke plate assists in starting a cold engine by enriching the fuel mixture.

Maintenance

Regular maintenance of your carburetor and associated fuel system components is essential for optimal engine performance and longevity.

• Fuel Quality: Always use fresh, clean fuel. Stale or contaminated fuel is a leading cause of carburetor issues. Consider using a fuel stabilizer if the equipment will be stored for extended periods.
• Fuel Filter: Regularly inspect and replace the fuel filter according to your engine's maintenance schedule. A clogged fuel filter can restrict fuel flow to the carburetor.
• Air Filter: Ensure the air filter is clean and free of debris. A dirty air filter can restrict airflow, leading to a rich fuel mixture and poor engine performance.
• Carburetor Cleaning: If performance issues arise due to fuel contamination, the carburetor may need cleaning. This typically involves disassembling the fuel bowl and jets, cleaning them with carburetor cleaner, and reassembling. This task should be performed by individuals with mechanical experience.
• Idle Adjustment: If the engine idle speed is incorrect, consult your engine's service manual for specific idle adjustment procedures.

Troubleshooting

Below are common issues related to carburetors and potential solutions. Always ensure basic engine components (spark plug, ignition, compression) are in good working order before troubleshooting the carburetor.

Specifications

Warranty and Support

For information regarding product warranty, returns, or technical support, please contact the manufacturer, FTYHFEFH, or the seller from whom you purchased this carburetor. Please retain your proof of purchase for any warranty claims.

For additional resources, you may refer to the official Cub Cadet or Kawasaki engine service manuals for your specific equipment model.
