1. Introduction
Thank you for purchasing the Generic 4.6L Digital Electric Air Fryer. This appliance uses advanced hot air circulation technology to cook a variety of foods with little to no oil, offering a healthier alternative to traditional frying. This manual provides essential information for safe operation, maintenance, and optimal use of your air fryer. Please read it thoroughly before first use and keep it for future reference.
2. Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed:
- Read all instructions before use.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electric shock, do not immerse cord, plugs, or the appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to 'off', then remove plug from wall outlet.
- Do not use appliance for other than intended use.
- Ensure the appliance is placed on a stable, heat-resistant surface.
- Do not block any ventilation openings.
3. Product Overview
The Generic 4.6L Digital Electric Air Fryer features a user-friendly digital touch control panel and a spacious cooking basket for various culinary tasks.

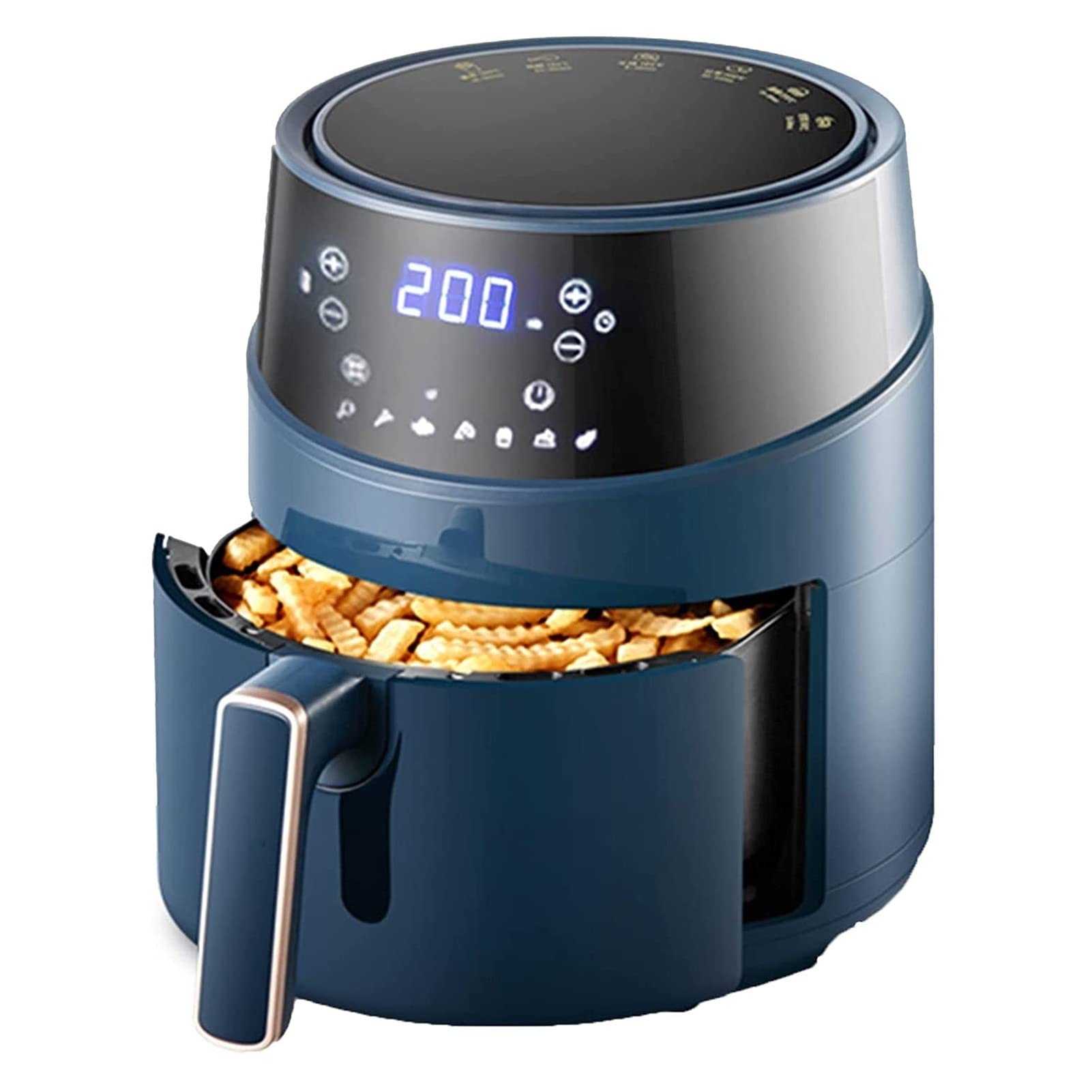

This image displays the Generic 4.6L Digital Electric Air Fryer in a dark blue finish, with the cooking basket partially extended, revealing a batch of golden-brown fries. The digital control panel is visible on the top front.
Components:
- Main Unit: Houses the heating element and fan.
- Digital Touch Control Panel: For setting time, temperature, and selecting presets.
- Cooking Basket: Non-stick coated basket for holding food.
- Basket Handle: For safe removal and insertion of the cooking basket.
- Air Inlet/Outlet: For proper air circulation during cooking.
An internal view diagram of the air fryer, showing circular arrows representing the 360-degree hot air circulation. This visual explains how the appliance cooks food evenly by distributing heat.
4. Setup and First Use
Unpacking:
- Remove all packaging materials from the air fryer.
- Check that all parts are present and undamaged.
Before First Use:
- Wipe the exterior of the air fryer with a damp cloth.
- Clean the cooking basket and any accessories with hot water, dish soap, and a non-abrasive sponge. Rinse thoroughly and dry completely.
- Place the air fryer on a stable, level, and heat-resistant surface, ensuring adequate space (at least 10 cm) around the appliance for proper ventilation.
- Plug the power cord into a grounded wall outlet.
- It is recommended to run the air fryer empty for about 10-15 minutes at 180°C (350°F) during its first use to eliminate any manufacturing odors. A slight smell or smoke is normal during this process. Ensure the area is well-ventilated.
5. Operating Instructions
Power On:
Plug the air fryer into a power outlet. The digital display will illuminate briefly, then enter standby mode.
Using the Digital Touch Control Panel:
The air fryer features a sensitive holographic touch panel. Touch the power icon to activate the display and access cooking functions.
- Preset Functions: The panel offers 8 commonly used cooking presets. Touch the corresponding icon to select a preset. The air fryer will automatically set the optimal time and temperature for that food type.
- Manual Adjustment: Use the temperature (℃/℉) and time (minutes) icons with the '+' and '-' buttons to manually adjust cooking settings.
- Start/Pause: Press the start/pause icon to begin or temporarily stop the cooking process.
Cooking Process:
- Place food into the cooking basket. Do not overfill the basket to ensure even cooking.
- Slide the cooking basket back into the main unit until it clicks into place.
- Select a preset or manually set the desired temperature (80-200°C) and time (0-60 minutes).
- Press the start icon to begin cooking.
- During cooking, you may pull out the basket to shake or turn food for even results. The air fryer will pause automatically and resume when the basket is reinserted.
- Once the cooking time is complete, the air fryer will beep and automatically shut off.
- Carefully pull out the basket using the handle. Use heat-resistant tongs to remove food.
The air fryer is shown with its basket open, filled with several baked cupcakes, demonstrating its baking capability. The digital display shows '05', likely indicating remaining cooking time.
A top-down perspective of the air fryer, with the cooking basket pulled out to reveal a perfectly roasted whole chicken, garnished with lemon and herbs. This demonstrates the appliance's capacity and roasting capabilities.
6. Maintenance and Cleaning
Regular cleaning ensures optimal performance and extends the lifespan of your air fryer.
Before Cleaning:
- Unplug the air fryer from the power outlet.
- Allow the appliance to cool down completely before handling any parts.
Cleaning the Cooking Basket and Accessories:
- Remove the cooking basket from the air fryer.
- Wash the basket and any removable accessories with hot water, dish soap, and a non-abrasive sponge. The non-stick coating allows for easy cleaning.
- For stubborn food residue, soak the basket in warm, soapy water for about 10 minutes before cleaning.
- Rinse thoroughly and dry all parts completely before reassembling or storing.
This image shows the non-stick cooking basket being rinsed under a stream of water, highlighting the ease of cleaning. The basket's design allows for simple washing.
Cleaning the Exterior:
Wipe the exterior of the air fryer with a damp cloth. Do not use abrasive cleaners or immerse the main unit in water.
Cleaning the Interior (Heating Element):
After the appliance has cooled, gently wipe the interior with a damp cloth. For any food residue on the heating element, use a soft brush to remove it. Do not use harsh chemicals.
7. Troubleshooting
If you encounter any issues with your air fryer, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Air fryer does not turn on. | Appliance is not plugged in. Power outlet is not working. | Ensure the power cord is securely plugged into a working outlet. Check the circuit breaker. |
| Food is not cooked evenly. | Basket is overfilled. Food pieces are too large. | Do not overfill the basket. Cook in smaller batches. Shake or turn food halfway through cooking. |
| White smoke comes from the appliance. | Grease from previous use. Fatty food being cooked. | Clean the basket and interior thoroughly. For fatty foods, drain excess oil during cooking. |
| Food is not crispy. | Not enough oil (if applicable). Temperature too low or time too short. | Lightly brush food with oil. Increase temperature or cooking time. Ensure food is dry before cooking. |
8. Specifications
Technical details for the Generic 4.6L Digital Electric Air Fryer, Model ZG-B36FH852:
- Product Name: Air Fryer
- Voltage/Frequency: 220V—50Hz
- Rated Power: 1500W
- Product Capacity: 4.6L
- Heating Tube Material: 304 Stainless Steel
- Free Time Setting: 0-60 minutes
- Temperature Regulation: 80-200°C (constant temperature)
- Product Size: 330mm (Width) x 280mm (Depth) x 351mm (Height)
- Control Type: Microcomputer Touch
- Model Number: ZG-B36FH852
A diagram illustrating the physical dimensions of the air fryer. The width is 330mm, depth is 280mm, and height is 351mm, providing a clear understanding of its size.
9. Warranty Information
This Generic 4.6L Digital Electric Air Fryer comes with a 3-month warranty from the date of purchase. This warranty covers manufacturing defects under normal household use. It does not cover damage resulting from misuse, accident, alteration, neglect, or unauthorized repair. Please retain your proof of purchase for warranty claims.
10. Customer Support
For any questions, concerns, or assistance regarding your Generic 4.6L Digital Electric Air Fryer, please contact our customer support team. Refer to your purchase documentation for specific contact details or visit the retailer's website where the product was purchased.
