1. Introduction and Overview
This instruction manual provides essential information for the installation, operation, and maintenance of your new Generic Carburetor Assembly. This product is a high-quality aftermarket replacement designed for Cub Cadet Lawn Mower model 12ABB2M5709. It is engineered to restore optimal engine performance by ensuring proper fuel-air mixture delivery.
Please read this manual thoroughly before attempting any installation or maintenance procedures. Proper installation and care are crucial for the longevity and efficient operation of your lawn mower.
2. Safety Information
Always prioritize safety when working with fuel systems and power equipment. Failure to follow safety instructions can result in serious injury or property damage.
- Disconnect Spark Plug: Before beginning any work, always disconnect the spark plug wire to prevent accidental engine starting.
- Fuel Handling: Gasoline is highly flammable. Work in a well-ventilated area, away from open flames or sparks. Drain fuel into an approved container.
- Eye Protection: Wear safety glasses or goggles to protect your eyes from debris and fuel splashes.
- Gloves: Wear appropriate gloves to protect your hands.
- Hot Surfaces: Engine components can be hot. Allow the engine to cool completely before servicing.
- Professional Assistance: If you are unsure about any step, consult a qualified service technician or refer to your lawn mower's official service manual.
3. Package Contents
Your package should contain the following items:
- 1 x Generic Carburetor Assembly (as pictured)
Inspect all components for any signs of damage upon receipt. If any parts are missing or damaged, contact your supplier immediately.

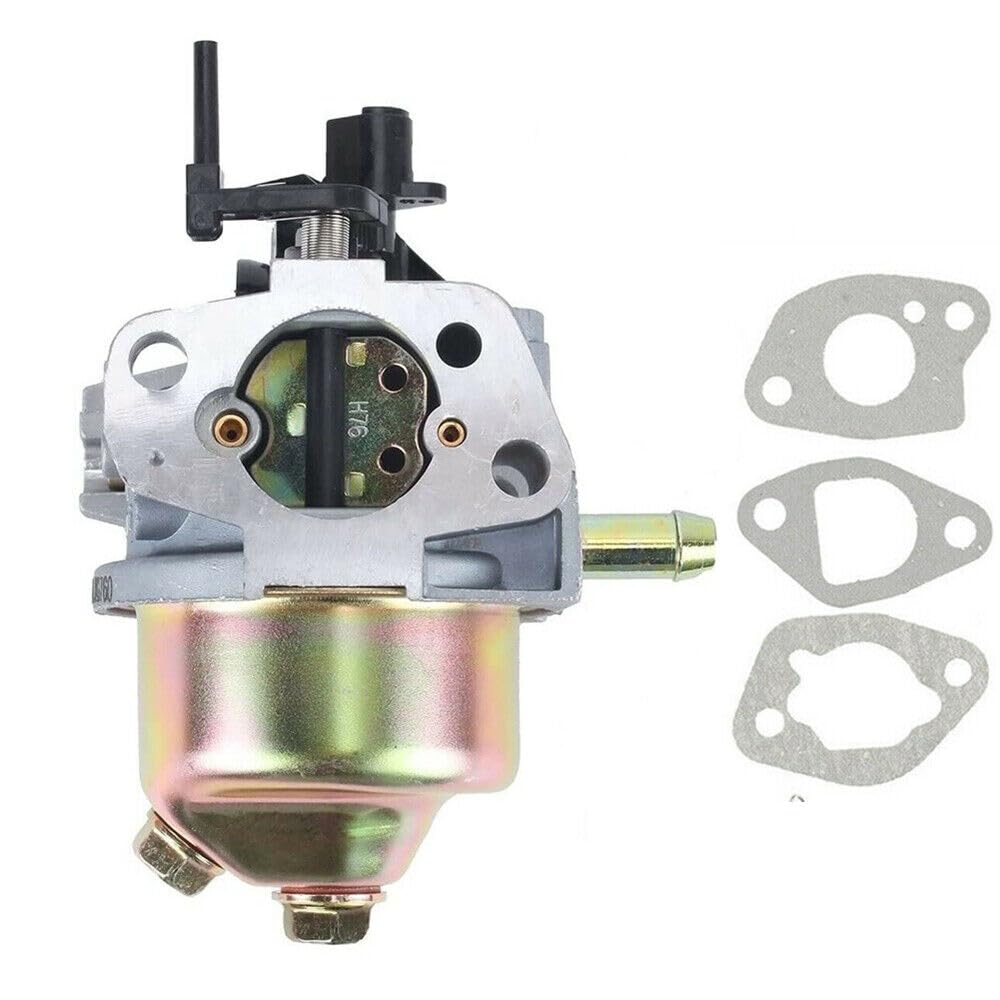

Figure 3.1: Front view of the Generic Carburetor Assembly.
4. Setup (Installation)
This section outlines the general steps for replacing the carburetor. Always refer to your specific Cub Cadet Lawn Mower 12ABB2M5709 service manual for detailed, model-specific instructions and torque specifications.
Required Tools:
- Socket wrench set
- Screwdriver set
- Pliers
- Fuel line clamp
- New gaskets (if not included with carburetor)
- Clean rags
- Approved fuel container
Installation Steps:
- Prepare the Mower: Ensure the engine is cool. Disconnect the spark plug wire. Place the mower on a stable, level surface.
- Drain Fuel: Close the fuel shut-off valve (if present) and drain the fuel tank into an approved container.
- Remove Air Filter Assembly: Carefully remove the air filter housing and air filter to gain access to the carburetor.
- Disconnect Linkages and Hoses: Note the routing and connection points of all fuel lines, throttle linkages, and choke linkages. Take photos if necessary. Disconnect them from the old carburetor. Use a fuel line clamp to prevent fuel leakage from the main fuel line.
- Remove Old Carburetor: Unbolt the old carburetor from the engine manifold. Be careful not to damage the mounting studs. Remove any old gaskets.
- Clean Mounting Surface: Thoroughly clean the engine manifold mounting surface to ensure a proper seal with the new gasket.
- Install New Gaskets: Place new gaskets in their correct positions between the engine, insulator (if applicable), and the new carburetor.
- Mount New Carburetor: Carefully position the new carburetor assembly and secure it with the mounting bolts. Do not overtighten; refer to your mower's manual for torque specifications.
- Reconnect Linkages and Hoses: Reattach all fuel lines, throttle linkages, and choke linkages to their correct positions on the new carburetor. Ensure all connections are secure and free of kinks.
- Reinstall Air Filter Assembly: Reattach the air filter and air filter housing.
- Refill Fuel and Reconnect Spark Plug: Refill the fuel tank with fresh, clean gasoline. Reconnect the spark plug wire.
Figure 4.1: Side view of the carburetor, showing the fuel inlet and mounting points.
Figure 4.2: View illustrating the throttle and choke linkage connection points.
5. Operating
After installation, perform the following checks before starting the engine:
- Check for Leaks: Inspect all fuel line connections for any signs of fuel leakage. Tighten connections if necessary.
- Linkage Movement: Ensure the throttle and choke linkages move freely and return to their correct positions.
- First Start: Start the engine according to your Cub Cadet Lawn Mower's operating instructions. The engine may require a few extra pulls or cranks to prime the new carburetor with fuel.
- Idle Adjustment: If the engine idles too high or too low, consult your mower's service manual for instructions on adjusting the idle speed screw (if present and adjustable on this model).
For detailed operating procedures, always refer to your Cub Cadet Lawn Mower's owner's manual.
6. Maintenance
Regular maintenance helps ensure the longevity and reliable performance of your carburetor and lawn mower.
- Fuel Quality: Always use fresh, clean, and appropriate octane gasoline. Stale or contaminated fuel is a primary cause of carburetor issues. Consider using a fuel stabilizer, especially during storage.
- Fuel Filter: Regularly inspect and replace the fuel filter according to your mower's maintenance schedule. A clogged fuel filter can restrict fuel flow to the carburetor.
- Air Filter: Keep the air filter clean and replace it as recommended. A dirty air filter can cause a rich fuel mixture, leading to poor engine performance.
- Carburetor Cleaning: If performance issues arise due to fuel contamination, the carburetor may need cleaning. This typically involves disassembling the carburetor, cleaning jets and passages with carburetor cleaner, and replacing gaskets. This procedure should only be performed by individuals with appropriate mechanical knowledge.
- Seasonal Storage: Before long-term storage, either run the engine until it runs out of fuel or drain the fuel system completely to prevent fuel degradation and gumming in the carburetor.
7. Troubleshooting
This section addresses common issues you might encounter. For complex problems, consult a professional service technician.
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine will not start | No fuel, stale fuel, clogged fuel filter, spark plug issue, incorrect choke setting. | Check fuel level and quality. Replace fuel filter. Check spark plug. Ensure choke is set correctly for starting. |
| Engine runs rough or stalls | Dirty carburetor, clogged air filter, stale fuel, incorrect idle adjustment. | Clean or replace air filter. Use fresh fuel. Clean carburetor (professional recommended). Adjust idle if necessary. |
| Fuel leaks from carburetor | Loose connections, damaged gasket, stuck float, damaged fuel line. | Check and tighten all fuel line connections. Inspect and replace gaskets. Inspect float and needle valve for proper operation. Replace damaged fuel lines. |
| Loss of power | Clogged fuel filter, dirty air filter, dirty carburetor, incorrect engine speed. | Replace fuel filter. Clean or replace air filter. Clean carburetor. Ensure engine speed is set correctly. |
8. Specifications
This carburetor assembly is designed as a direct replacement for the original part on Cub Cadet Lawn Mower model 12ABB2M5709.
- Product Type: Carburetor Assembly
- Brand: Generic
- Compatibility: Cub Cadet Lawn Mower 12ABB2M5709
- Condition: Brand New Aftermarket Part
Figure 8.1: Bottom view of the carburetor, showing the fuel bowl and drain screw.
9. Warranty Information
Specific warranty details for this Generic Carburetor Assembly are not provided within this manual. Please refer to the product listing or contact your seller directly for information regarding warranty coverage and terms.
10. Customer Support
For technical assistance or inquiries regarding this product, please refer to the contact information provided by your original point of purchase or the seller. This manual does not contain specific customer support contact details.
