KAIFAM Bunk Bed Twin Over Twin Instruction Manual

Important Safety Information

Please read all instructions carefully before assembly and use of the KAIFAM Bunk Bed. Failure to follow these instructions may result in injury or damage to the product.

• Always use the safety guardrails and ladder carefully to prevent falls.
• Assemble the bed frame according to the instructions to ensure stability.
• Be cautious around sharp edges to avoid injury during assembly and use.
• The top bunk is intended for use by children 6 years of age and older.
• Ensure the maximum weight capacity of approximately 500 lbs is not exceeded.
• Only use mattresses that comply with the recommended dimensions for twin size beds. No box spring is needed.
• Regularly check all connections and bolts to ensure they remain tight and secure.

Product Overview

The KAIFAM Bunk Bed Twin Over Twin is a durable metal bed frame designed to maximize space and provide comfortable sleeping arrangements. Its robust construction and thoughtful design ensure safety and longevity.

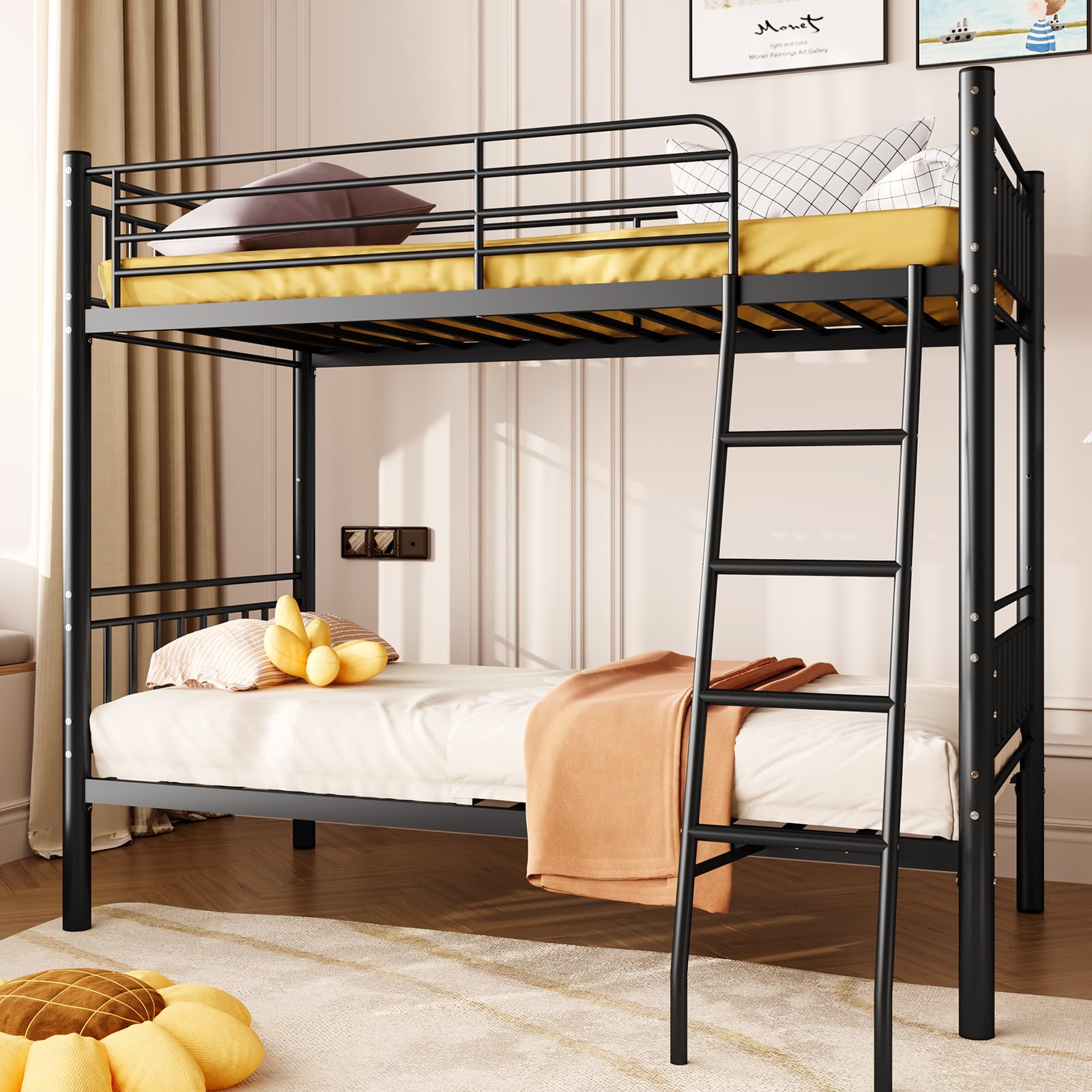

Image: The KAIFAM Bunk Bed Twin Over Twin, showcasing its black metal frame and space-saving design.

• Space-Saving 2-in-1 Bunk Design: Twin over twin configuration ideal for maximizing bedroom space.
• High Quality Material: Constructed from thicker metal for enhanced stability and a weight capacity of approximately 500 lbs.
• Safety Features: Equipped with sturdy safety guardrails and a secure ladder.
• Easy Assembly & Noise-Free: Designed for hassle-free assembly with clear instructions and a sturdy metal frame that minimizes noise.
• No Box Spring Needed: Innovative design allows for direct mattress placement on slats.
• Under-bed Space: Offers 13 inches of under-bed clearance for convenient storage.

Parts List

Before beginning assembly, please ensure all components listed below are present and undamaged. Refer to the assembly video for visual identification of each part.

Image: All components and hardware for the KAIFAM Bunk Bed laid out for inspection before assembly.

Main Components:

• Headboards/Footboards (various sections)
• Side Rails (for both upper and lower bunks)
• Bed Slats (for both upper and lower bunks)
• Ladder
• Support Legs
• Guardrails

Hardware & Accessories:

• Bolts, Screws, Washers (various sizes, typically labeled A, B, C, D, E, F, G, H, I, P)
• Allen Wrench
• Plastic Caps (K, M, N, O)
• Anti-tipping device

Assembly Instructions

Follow these step-by-step instructions for proper assembly. It is recommended to have two people for assembly.

Assembly Video Guide:

Step-by-Step Assembly:

1. Assemble the Bed Ends: Attach the horizontal bars to the vertical posts of the headboards and footboards using the designated bolts and an Allen wrench. Ensure all connections are finger-tight initially.
2. Attach Side Rails to Lower Bunk: Connect the lower side rails to the assembled headboard and footboard sections. Secure with bolts, ensuring a snug fit.
3. Install Lower Bunk Slats: Place the bed slats for the lower bunk into the designated slots on the side rails. Secure them with the provided plastic clips (N) to prevent movement and noise.
4. Attach Side Rails to Upper Bunk: Connect the upper side rails to the headboard and footboard sections. Secure with bolts.
5. Install Upper Bunk Slats: Place the bed slats for the upper bunk into the designated slots on the side rails. Secure them with the provided plastic clips (N).
6. Assemble the Ladder: Attach the ladder steps to the ladder side rails using the appropriate hardware. Ensure steps are securely fastened.
7. Attach the Ladder to the Upper Bunk: Hook the assembled ladder onto the designated attachment points on the upper bunk's side rail. Secure with bolts (D+H) as shown in the video.
8. Install Guardrails: Attach the guardrails to the upper bunk frame. Secure them using the provided bolts (C) and ensure they are firmly in place.
9. Install Anti-Tipping Device: Secure the anti-tipping device to the wall and the bunk bed frame as instructed to enhance stability.
10. Final Tightening: Once all components are in place, go back and fully tighten all bolts and connections using the Allen wrench. Do not overtighten.

Additional Assembly Tips:

• Use the provided plastic caps (K, M, O) to cover exposed bolt heads and tube ends for a finished look and added safety.
• The anti-noise design features special silent clasps (N) to prevent noise from slat movement. Ensure these are correctly installed.

Operating Instructions

• Weight Capacity: The bunk bed has a maximum weight capacity of approximately 500 lbs. Do not exceed this limit.
• Mattress Requirements: Use only twin-size mattresses. A box spring is not required as the bed frame is designed with supportive slats.
• Ladder Use: Always use the provided ladder for safe access to and from the top bunk. Do not jump on or off the bunk bed.
• Guardrails: Ensure all guardrails are properly installed and secured at all times, especially for the top bunk.
• Top Bunk Age Restriction: The top bunk is not suitable for children under 6 years of age.

Maintenance

• Cleaning: Wipe the metal frame with a damp cloth and mild soap. Avoid using harsh chemicals or abrasive cleaners that could damage the finish.
• Regular Inspection: Periodically check all bolts, screws, and connections to ensure they are tight. Re-tighten if necessary to maintain stability and safety.
• Avoid Excessive Moisture: Keep the bed frame dry to prevent rust or damage to the metal.

Troubleshooting

Product Specifications

• Model Number: SQ-GDC2C-B-2
• Brand: KAIFAM
• Size: Twin Over Twin

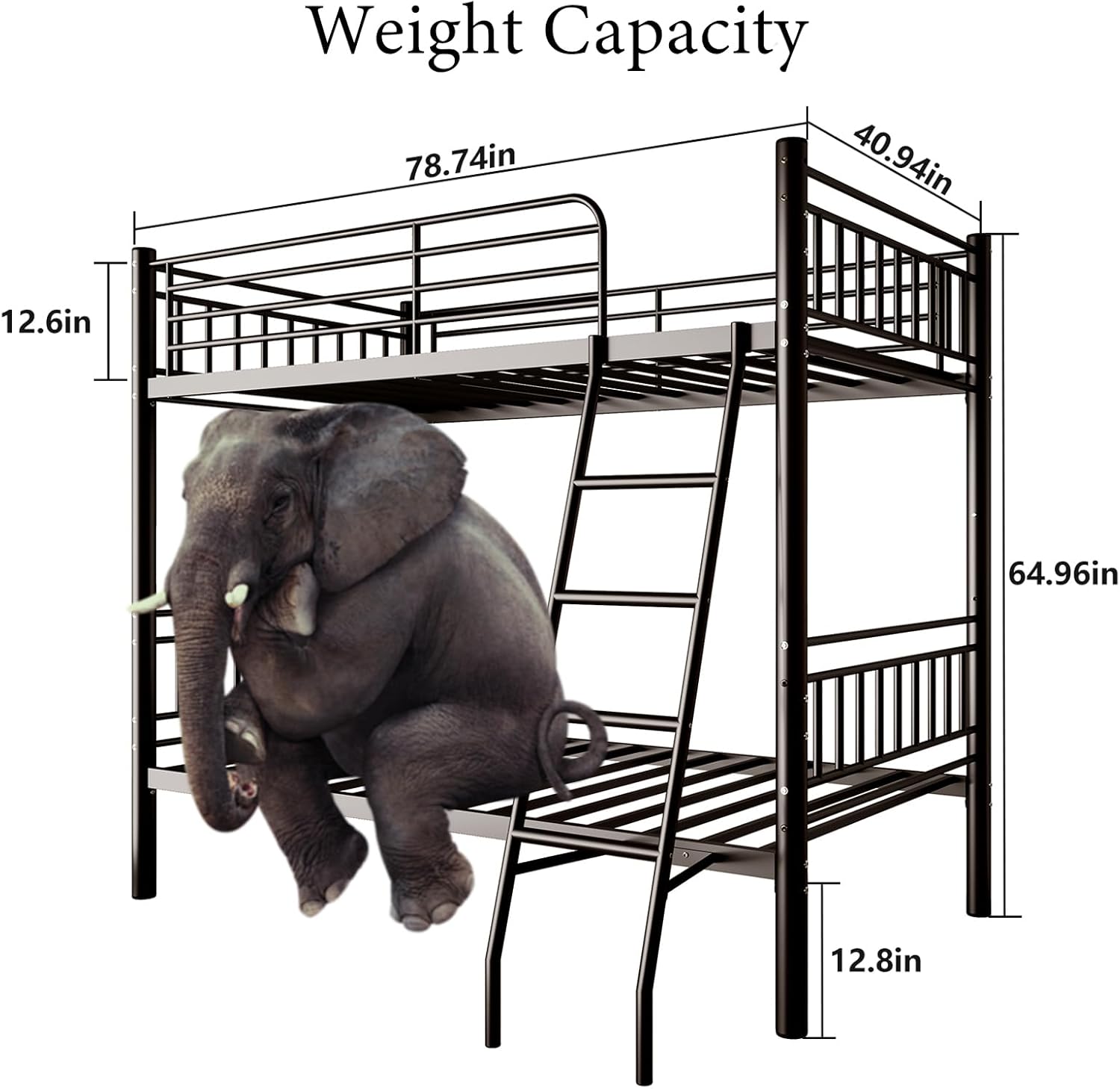

• Product Dimensions: 77"L x 38.12"W x 65.16"H
• Material: Metal
• Color: Black
• Item Weight: 102 pounds
• Weight Capacity: Approximately 500 lbs
• Ground To Item Distance: 13 Inches (under-bed storage space)
• Special Feature: No Box Spring Needed
• Assembly Required: Yes

Warranty and Customer Support

This KAIFAM product comes with a standard manufacturer's warranty. For specific warranty details, including coverage and duration, please refer to the documentation included in your product packaging. Keep your proof of purchase for warranty claims.

For any questions regarding assembly, missing parts, product functionality, or to report any issues, please contact KAIFAM customer support. Contact information can typically be found on the product packaging or the official KAIFAM website.
