Introduction
Thank you for choosing the Havato 5-Cup Programmable Coffee Maker. This manual provides essential information for the safe and efficient operation of your new appliance. Please read all instructions carefully before first use and retain this manual for future reference.
Important Safeguards
- Read all instructions before using the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against fire, electric shock, and injury to persons, do not immerse cord, plugs, or appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
- The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to “off,” then remove plug from wall outlet.
- Do not use appliance for other than intended use.
- Do not open the lid while brewing is in process. Hot steam may escape.
- This coffee maker is equipped with overheat protection, automatically triggering if the temperature exceeds 293°F to prevent dry boiling.
Product Components
Familiarize yourself with the parts of your Havato coffee maker:
- Carafe: 5-cup capacity, made of BPA-free, food-grade borosilicate glass.
- Reusable Filter: For ground coffee, eliminates the need for paper filters.
- Detachable Funnel: Holds the reusable filter.
- Detachable Water Tank (25.36oz): Clear viewing window for water level.
- Warming Plate: Keeps coffee hot after brewing.
- Coffee Spoon: For accurate measurement of coffee grounds.
- Control Panel: Features digital display for time and programming buttons.

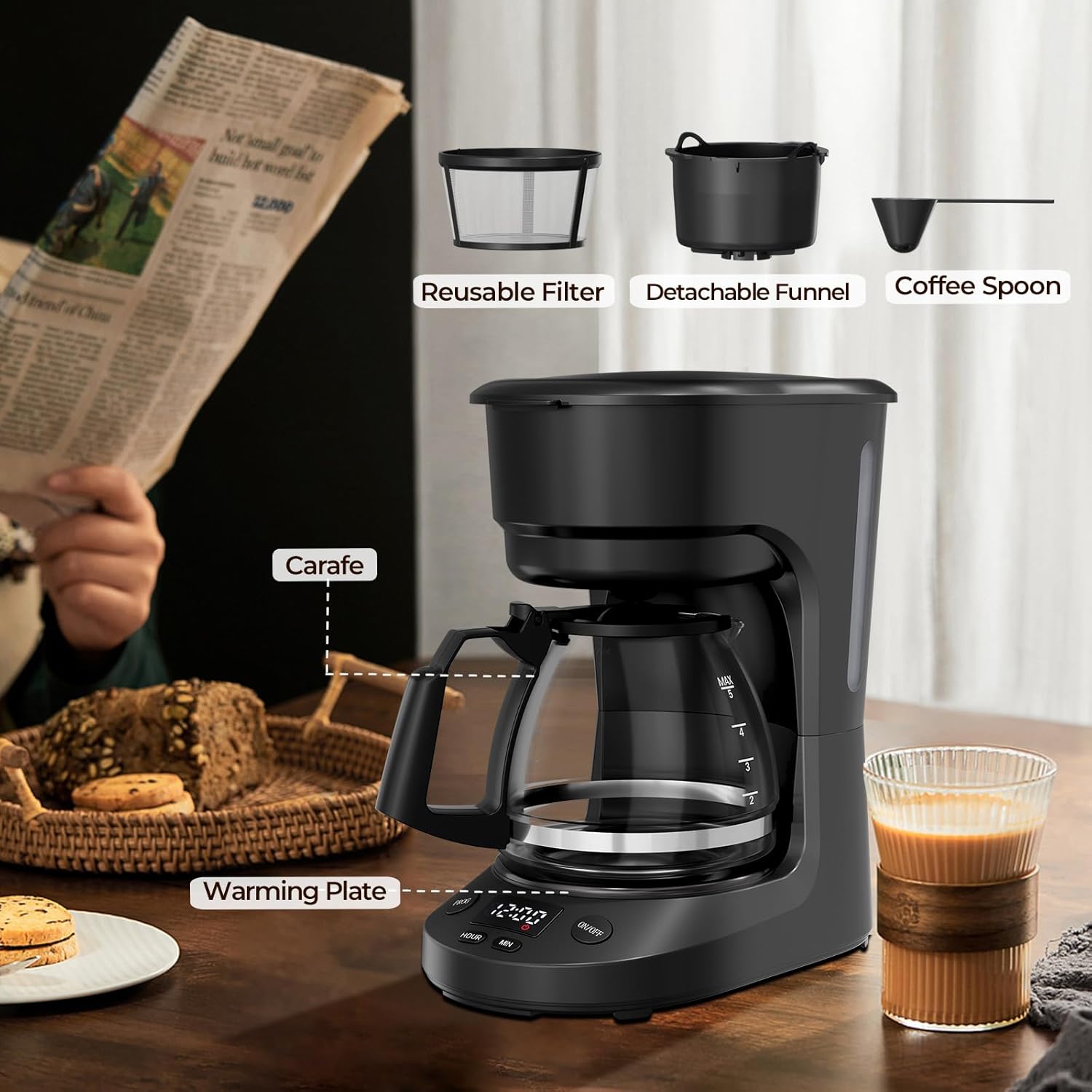

Image: Detailed view of the Havato coffee maker with labels pointing to each component, such as the carafe, warming plate, water tank, filter, and spoon.
Setup
Before First Use
- Remove all packaging materials and labels from the coffee maker.
- Wash the carafe, reusable filter, and detachable funnel with mild soap and warm water. Rinse thoroughly and dry. Wipe the exterior of the appliance with a damp cloth.
- Run a brew cycle with only water (no coffee) several times to clean the internal system. Discard the water after each cycle.
Setting the Clock
To set the current time:
- Press the 'HR' button to set the hour. The time will increase by one-hour increments.
- Press the 'MIN' button to set the minute. The time will increase by one-minute increments.
- Hold down 'HR' or 'MIN' to adjust the time rapidly.
Video: Preparation Before Using
Video: This video demonstrates the initial preparation steps for the Havato coffee maker, including unpacking, cleaning, and running initial water cycles before first use.
Operating Instructions
Brewing Coffee
- Open the top cover and fill the water tank with fresh, cold water up to the desired level, not exceeding the 'MAX' mark on the water gauge.
- Place the reusable filter into the detachable funnel, then add your desired amount of ground coffee. For optimal taste, use one scoop (provided) per cup.
- Close the top cover securely and ensure the carafe is placed correctly on the warming plate.
- Press the 'ON/OFF' button to start brewing immediately. The indicator light will illuminate.
- The coffee maker will automatically brew and keep the coffee warm for 2 hours before automatically shutting off.
Image: The Havato coffee maker ready for brewing, with coffee grounds and a cup of coffee, highlighting its sleek design.
24h Programmable Timer (Delay Brew)
To enjoy fresh coffee at a specific time:
- Prepare the coffee maker for brewing as described in 'Brewing Coffee' steps 1-2.
- Set the desired brew time using the 'HR' and 'MIN' buttons.
- Press the 'BREW LATER' button. The indicator light will illuminate, confirming the delay brew is set.
- The coffee maker will automatically start brewing at the programmed time.
Image: Visual representation of the 24-hour programmable timer, allowing users to schedule coffee brewing in advance.
2h Keep Warm & Auto Shut-Off
The coffee maker automatically keeps your coffee hot for 2 hours after brewing is complete. After 2 hours, the appliance will automatically shut off for safety and energy saving.

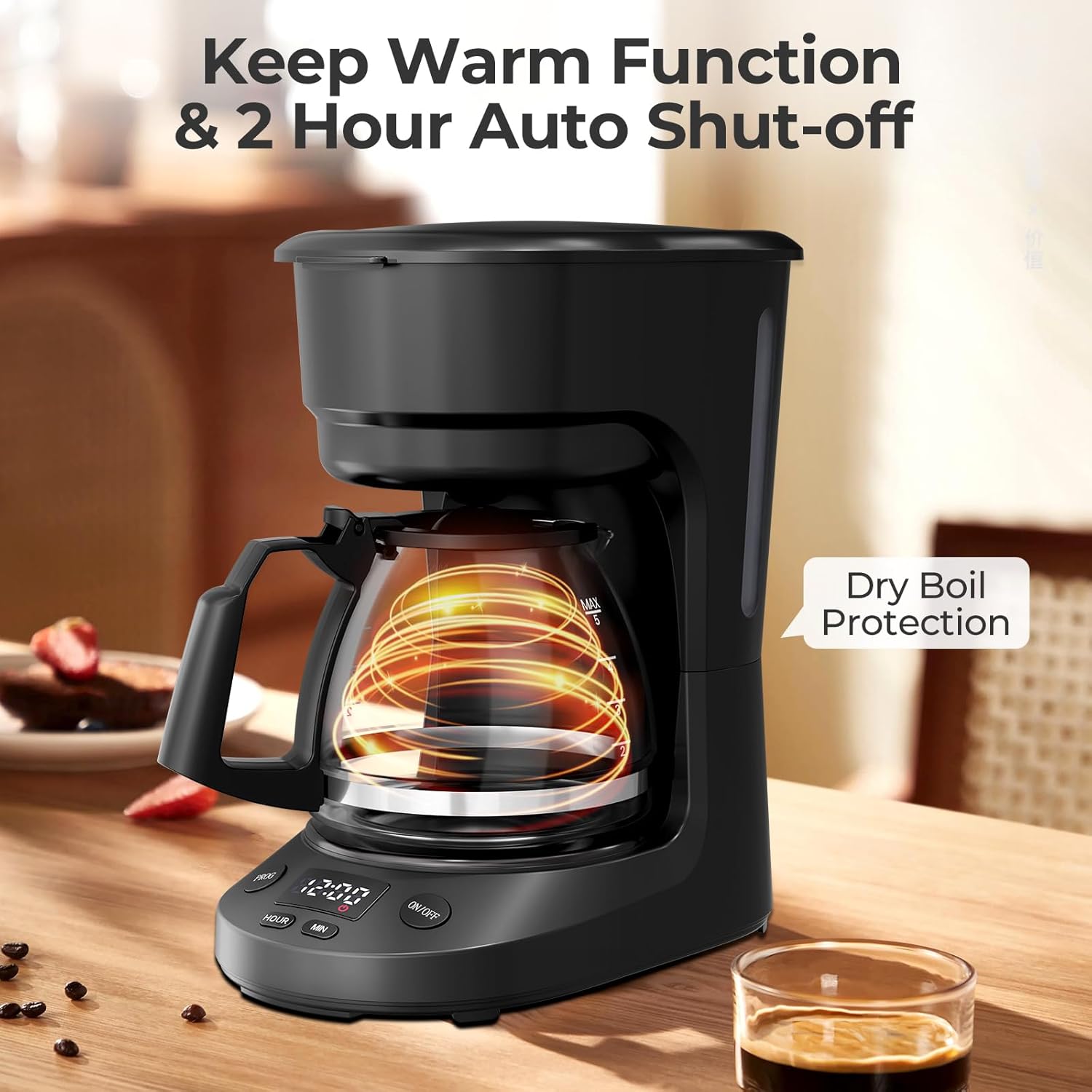

Image: The coffee maker's warming plate in action, keeping coffee hot, with an emphasis on dry boil protection.
30s Mid-Brew Pause (Grab & Go)
During the brewing cycle, you can temporarily remove the carafe to pour a cup of coffee. The drip function will pause for approximately 30 seconds. Ensure to return the carafe to the warming plate within this timeframe to prevent overflow and continue brewing.
Image: A user utilizing the mid-brew pause feature to quickly pour a cup of coffee without mess.
Maintenance
Cleaning
- Always unplug the coffee maker before cleaning.
- Wash the carafe, reusable filter, and detachable funnel after each use with mild soap and warm water. These parts are not dishwasher safe.
- Wipe the exterior of the coffee maker with a soft, damp cloth. Do not use abrasive cleaners or scouring pads.
Descaling
Mineral deposits can build up in your coffee maker over time, affecting performance. Descale your coffee maker every 2-4 weeks, or more frequently if you use hard water.
- Fill the water tank with a mixture of white vinegar and water (1:2 ratio).
- Place an empty paper filter (or the reusable filter) in the funnel.
- Place the empty carafe on the warming plate.
- Press the 'ON/OFF' button to start the descaling cycle.
- After the cycle is complete, discard the vinegar-water solution.
- Run 2-3 cycles with fresh, clean water to rinse the system thoroughly.
Video: How to Remove Scale
Video: This video provides a visual guide on the process of descaling your coffee maker to remove mineral buildup and maintain optimal performance.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Coffee does not brew. | No power, water tank empty, or carafe not in place. | Check power connection, fill water tank, ensure carafe is correctly positioned. |
| Coffee tastes weak. | Not enough coffee grounds, or grounds too coarse. | Add more coffee grounds, use finer grind. |
| Coffee overflows. | Too much water, too many coffee grounds, or filter clogged. | Do not exceed MAX water level, reduce coffee grounds, clean filter. |
| Coffee is not hot enough. | Warming plate not active, or descaling needed. | Ensure warming plate is on, descale the coffee maker. |
Specifications
- Brand: Havato
- Model Number: 4e5e17c0-70d7-438a-8d74-8555f00a4c25
- Capacity: 5-Cup (25oz)
- Color: Black
- Product Dimensions: 9.92"D x 6.3"W x 10.28"H
- Special Features: Auto Shut-Off, Lightweight, Permanent Filter, Programmable, Timer, 2h Keep Warm, Overheat Protection
- Coffee Maker Type: Drip Coffee Machine
- Operation Mode: Fully Automatic
- Voltage: 120 Volts
- Power Source: AC
- Item Weight: 2.27 pounds
- Coffee Input Type: Ground
- Is Dishwasher Safe: No (for removable parts)
Image: The Havato coffee maker displayed with its compact dimensions, illustrating its suitability for small spaces.
Warranty and Support
Your Havato 5-Cup Programmable Coffee Maker is covered by a manufacturer's warranty against defects in materials and workmanship under normal use. Please refer to the product packaging or contact the seller for specific warranty terms and conditions.
For any questions, concerns, or technical support, please contact the seller, Onepee, through your purchase platform or refer to the contact information provided with your product documentation.
