Turnwin Smartwatch Charging Cable User Manual

1. Introduction and Compatibility

This manual provides instructions for using the Turnwin USB Magnetic Charging Cable. This cable is designed to charge various smartwatch models, ensuring a secure and efficient power supply.

1.1. Compatible Smartwatch Models

• SENBONO IDW25 Smartwatch
• VRPEFIT IDW25 Smartwatch
• Motivaris IDW25 Smartwatch
• Konitee IDW25 Smartwatch
• SAIKATI IDW25 Smartwatch
• FAWEIO IDW26 Smartwatch
• TMHAI IDW26 Smartwatch
• AITAFY IDW26 Smartwatch
• MILOUZ IDW26 Smartwatch
• SOUYIE IDW26 Smartwatch
• IDW21, IDW23, IDW17 Smartwatches

Important Note: This charging cable set is not an original accessory. The package contains two cables with reversed polarity. Only one of these cables will function correctly with your specific device. Please confirm this detail before use.

2. Setup and Connection

To begin charging your smartwatch, follow these steps:

1. Identify the correct charging cable from the set. Due to reversed polarity, only one cable will magnetically attach and charge your smartwatch correctly.
2. Connect the USB-A end of the charging cable to a compatible power source. This can be a USB port on a power adapter (5V 1A or lower recommended), car charger, power bank, laptop, or PC.

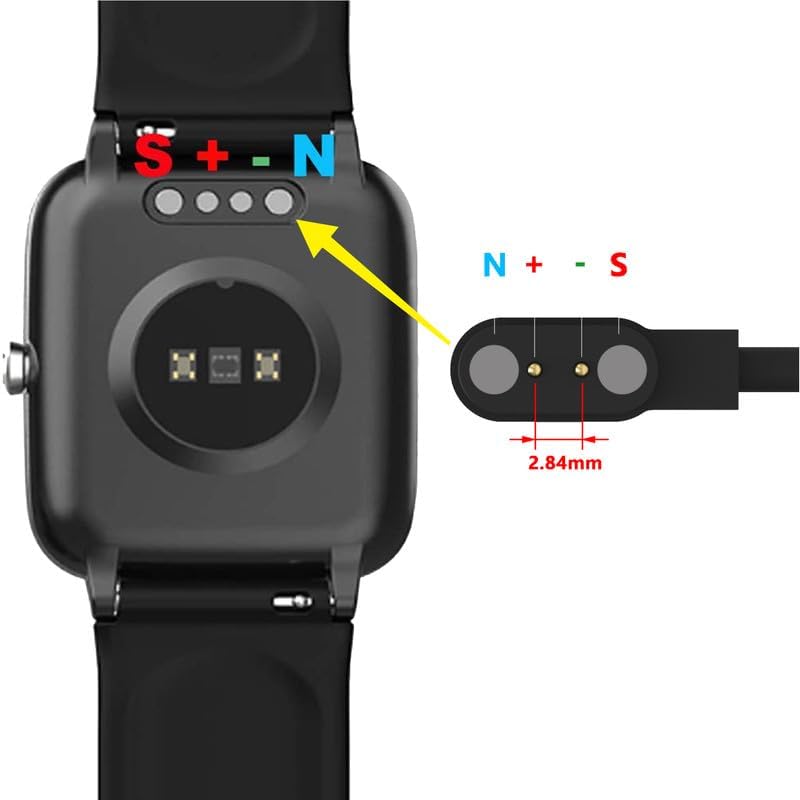

3. Align the magnetic charging pins of the cable with the charging contacts on the back of your smartwatch. The magnetic core in the groove ensures a strong adhesion.
4. Ensure the cable is firmly attached and the smartwatch indicates it is charging.

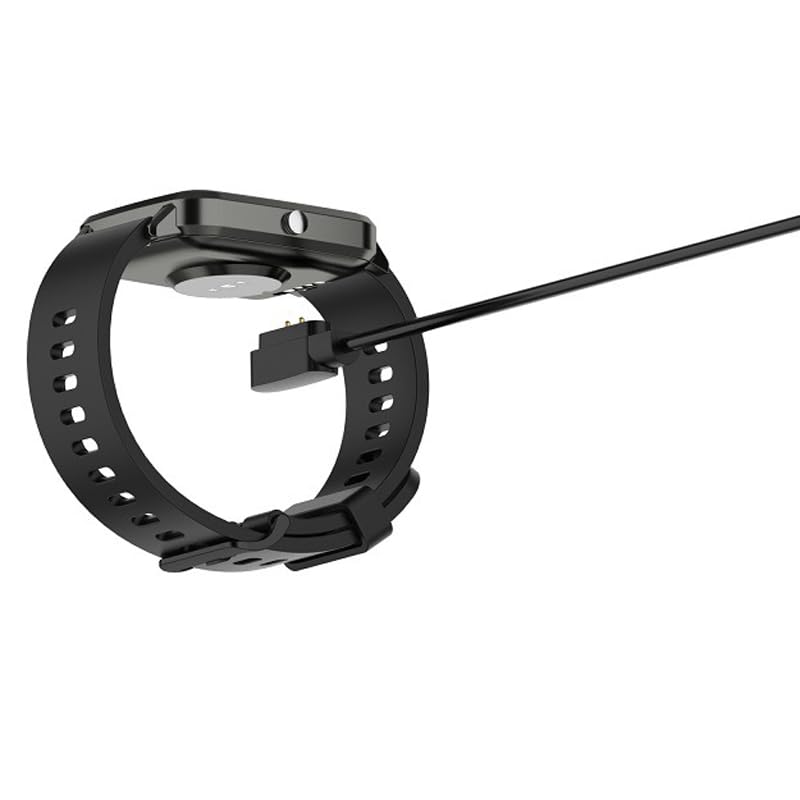

Image: Smartwatch charging cable magnetically connected to the back of a smartwatch, showing the secure attachment.

3. Operating Instructions

3.1. Charging Process

Once connected, your smartwatch should display a charging indicator. The cable is designed for stable current flow and features built-in voltage regulation and PTC protection to prevent overcurrent damage.

• Charging typically takes approximately 2.5 hours for a full charge with a 1A output current.
• You do not need to remove the watch case or band for charging.

Image: A smartwatch showing a charging icon, indicating successful power transfer from the magnetic charger.

3.2. Power Source Flexibility

The USB-A connector allows for versatile charging options:

• USB ports on power adapters (ensure 5V 1A or lower output).
• Car chargers.
• Power banks.
• Laptops or desktop PCs.

Image: A set of black and white magnetic charging cables, highlighting their USB-A connectors for various power sources.

4. Maintenance

To ensure the longevity and optimal performance of your charging cable:

• Keep the magnetic charging pins clean and free from dust or debris.
• Store the cable in a dry environment when not in use.
• Avoid excessive bending or twisting of the cable, although it is designed with durable PC + ABS material and copper-core wiring for resilience.

5. Troubleshooting

5.1. Charging Not Initiating

If your smartwatch is not charging, consider the following:

• Polarity Check: The package includes two cables with opposite electrical polarity. If one cable does not work, try the other. Only one will be compatible with your specific smartwatch.
• Secure Connection: Ensure the magnetic pins are correctly aligned and firmly attached to the smartwatch's charging contacts.
• Power Source: Verify that the USB power source is active and providing power. Try a different USB port or adapter.
• Power Adapter Output: Use a 5V 1A or lower adapter. Higher voltage/amperage adapters can potentially damage your device.
• Clean Contacts: Inspect the charging pins on both the cable and the smartwatch for any dirt or obstruction.

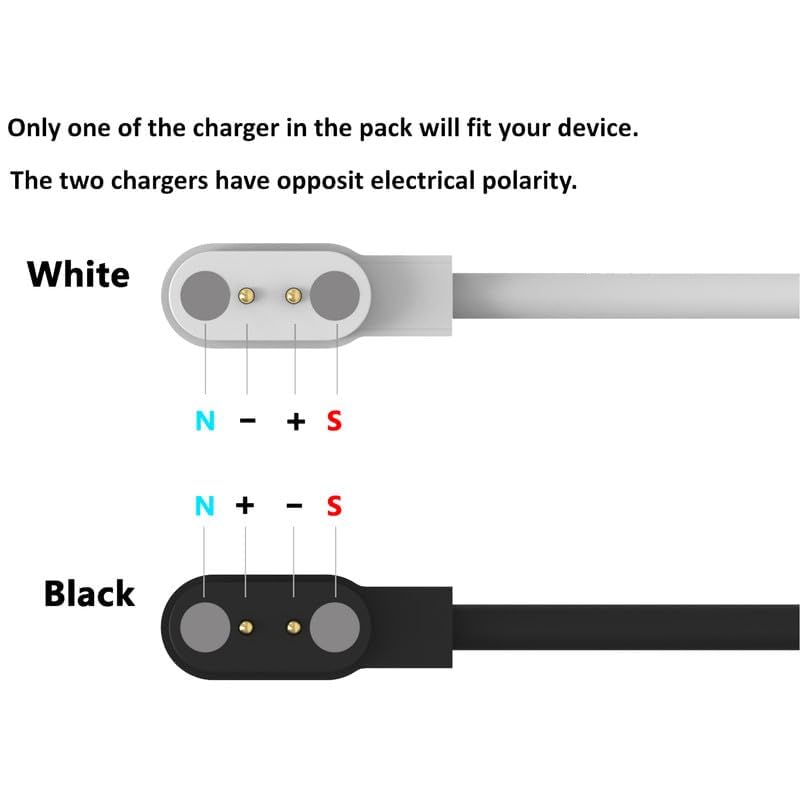

Image: Illustration of the two charging cables with opposite electrical polarity (N-+S for white, N+-S for black), clarifying why only one will work for a specific device.

6. Specifications

7. Warranty and Support

For warranty information or technical support, please refer to the product packaging or contact the retailer where the product was purchased. Keep your proof of purchase for any warranty claims.
