LINKHOO Twin Over Full Bunk Bed with Trundle User Manual

1. Introduction

Thank you for choosing the LINKHOO Twin Over Full Bunk Bed with Trundle. This manual provides essential information for the safe assembly, operation, maintenance, and care of your new bunk bed. Please read all instructions carefully before assembly and retain this manual for future reference.

Image 1: The LINKHOO Twin Over Full Bunk Bed with Trundle, fully assembled in a grey finish, featuring a top twin bed, a bottom full bed, and a pull-out trundle bed. The bed includes a ladder and safety guardrails on the top bunk.

2. Safety Guidelines

Your safety is paramount. Adhere to the following guidelines to prevent injury and ensure proper use of the bunk bed:

• Maximum Weight Capacity: The top bunk is designed for a twin-size mattress and has a maximum weight capacity. The bottom bunk is designed for a full-size mattress and has a maximum weight capacity. The trundle bed is designed for a twin-size mattress and has a maximum weight capacity. Do not exceed these limits.
• Age Restriction: The top bunk is not suitable for children under 6 years of age.
• Guardrails: Always use the guardrails on the top bunk. Ensure they are properly installed and secured.
• Ladder Safety: Use the ladder for entry and exit from the top bunk. Do not use the bed as a climbing frame. Ensure the ladder is securely attached before use.
• Mattress Requirements: Use only mattresses that comply with the recommended dimensions and thickness to ensure proper guardrail height.
• Ventilation: Ensure adequate ventilation around the bed.
• No Horseplay: Prohibit horseplay on or under the bed.
• Assembly: Assemble the bed strictly according to the instructions. Do not modify the bed structure.
• Regular Checks: Periodically check all bolts, screws, and fasteners to ensure they are tight and secure. Tighten as necessary.
• Lighting: Position the bed away from windows where cords or blinds could pose a strangulation hazard.

3. Package Contents and Pre-Assembly

Before beginning assembly, ensure all parts and hardware are present. The product is shipped in two clearly labeled packages. If any parts are missing or damaged, do not proceed with assembly and contact customer support.

3.1 Unpacking

• Carefully open all packages and lay out the components on a soft, clean surface to prevent scratches.
• Identify all parts against the provided parts list (not included in this manual, refer to your package insert).
• Keep all small parts and hardware out of reach of children.

4. Setup and Assembly Instructions

Assembly requires at least two adults. Follow the step-by-step instructions provided in your product packaging. The general process involves:

1. Assemble the Lower Bed Frame: Connect the headboard, footboard, and side rails for the full-size bed.
2. Install Lower Bed Slats: Secure the wooden slats onto the lower bed frame.
3. Assemble the Upper Bed Frame: Connect the headboard, footboard, and side rails for the twin-size bed.
4. Install Upper Bed Slats: Secure the wooden slats onto the upper bed frame.
5. Attach Guardrails: Secure the full-length guardrails to the upper bunk.
6. Attach Ladder: The ladder is reversible and can be attached to either side of the bunk bed. Secure it firmly.
7. Assemble Trundle Bed: Assemble the trundle frame and install its slats.
8. Insert Trundle: Slide the assembled trundle bed under the lower bunk.
9. Final Checks: Ensure all connections are tight and the bed is stable.

4.1 Converting to Two Separate Beds

This bunk bed can be converted into a standalone twin bed and a standalone full bed. To convert:

1. Carefully remove the upper bunk from the lower bunk by detaching the connecting hardware.
2. Remove the ladder and guardrails from the upper bunk.
3. Reconfigure the upper bunk's headboard and footboard to form a standalone twin bed.
4. The lower bunk remains as a standalone full bed.
5. Ensure all components are securely fastened in their new configuration.

Image 2: The LINKHOO bunk bed disassembled and configured as two separate beds: a full-size bed and a twin-size bed, both in grey finish, with the trundle bed still present under the full bed.

5. Operating Instructions

5.1 Using the Trundle Bed

The trundle bed provides an additional sleeping surface and is designed for easy access.

• To deploy the trundle, gently pull the front panel of the trundle unit outwards from under the lower bunk.
• The trundle is equipped with wheels for smooth movement.
• To store the trundle, push it back under the lower bunk until it is fully recessed.

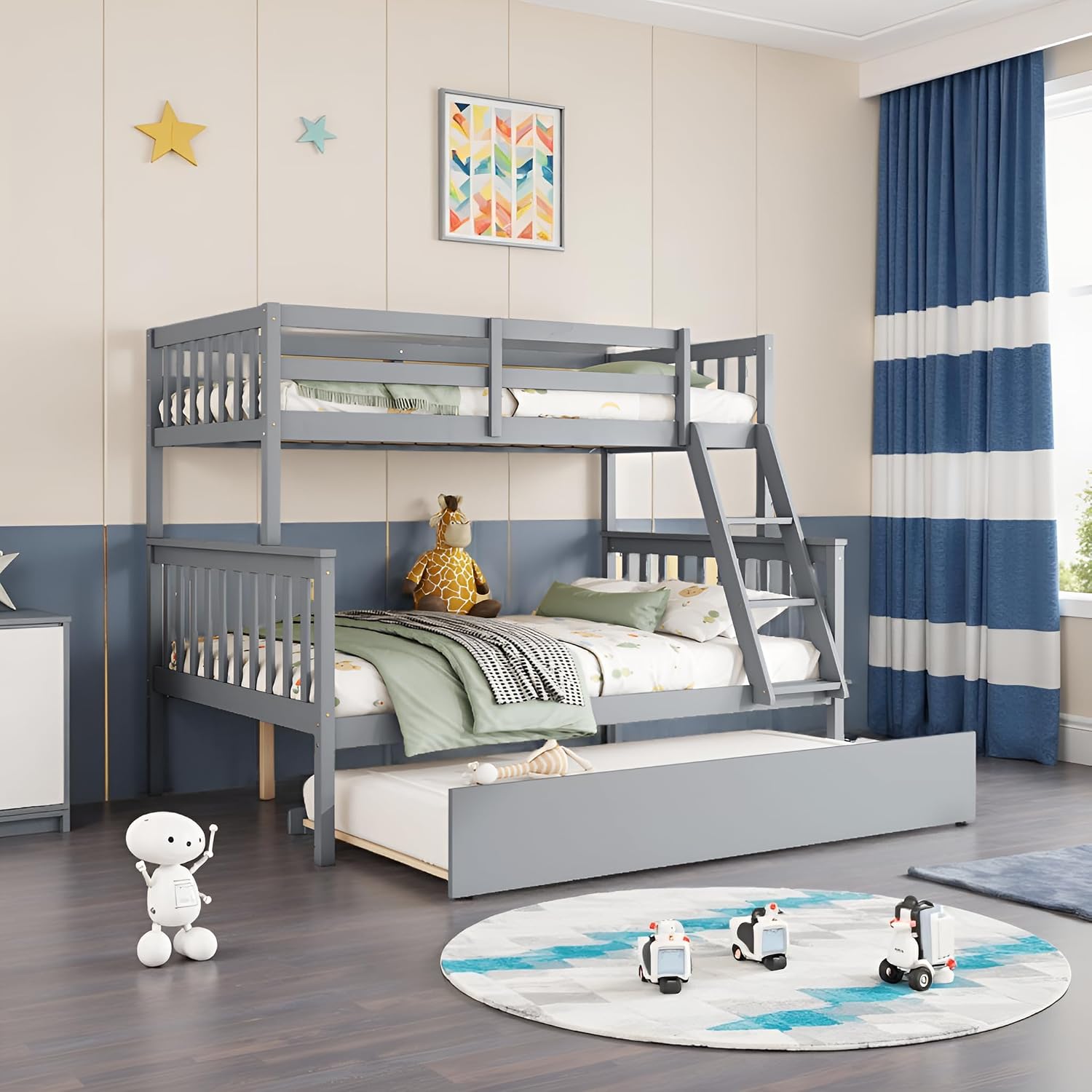

Image 3: The LINKHOO Twin Over Full Bunk Bed with the trundle bed fully extended from beneath the lower full-size bunk, ready for use.

5.2 Using the Ladder

The ladder provides safe access to the top bunk.

• Always face the ladder when climbing up or down.
• Use both hands to grip the ladder rungs.
• Ensure the ladder is stable and securely attached before each use.

Image 4: A close-up view of the sturdy wooden ladder attached to the side of the LINKHOO bunk bed, showing the rungs and secure attachment points.

6. Maintenance and Care

Proper maintenance will extend the life and appearance of your bunk bed.

• Cleaning: Wipe the bed frame with a dry cloth to remove dust and dirt. Avoid using harsh chemicals or abrasive cleaners, as they may damage the finish.
• Tighten Fasteners: Periodically (e.g., every 3-6 months) check all bolts, screws, and connections. Tighten any that have become loose to maintain structural integrity and safety.
• Avoid Moisture: Keep the bed in a dry environment. Prolonged exposure to moisture can damage the wood.
• Protect from Sunlight: Direct sunlight can cause fading or discoloration over time.
• Moving the Bed: When moving the bed, lift it rather than dragging it to prevent damage to the frame and floor.

7. Troubleshooting

If you encounter any issues with your bunk bed, refer to the following common problems and solutions:

• Squeaking Noises: Squeaking often indicates loose connections. Re-tighten all bolts and screws. Ensure slats are properly seated.
• Bed Feels Unstable/Wobbly: This is typically due to incomplete or loose assembly. Double-check that all fasteners are fully tightened and that the bed is assembled on a flat, level surface.
• Trundle Not Sliding Smoothly: Check for any obstructions under the bed or in the trundle's path. Ensure the wheels are clean and free of debris.
• Missing Parts: If you discover missing parts during assembly, do not attempt to substitute them. Contact LINKHOO customer support immediately for replacements.

8. Specifications

Detailed specifications for the LINKHOO Twin Over Full Bunk Bed with Trundle:

Image 5: A detailed diagram illustrating the dimensions of the LINKHOO Twin Over Full Bunk Bed, including length, width, height, and specific measurements for each bunk and the trundle unit.

9. Warranty and Support

For information regarding product warranty, returns, or technical support, please refer to the documentation included with your purchase or contact the seller/manufacturer directly. Contact details are typically found on the product packaging or the retailer's website where the purchase was made.

Manufacturer: LINKHOO
