RL LIVE YOUR LIGHT LED Ceiling Light Instruction Manual
Model: R67873131
Introduction
Thank you for choosing the RL LIVE YOUR LIGHT LED Ceiling Light. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. Please read these instructions carefully before installation and retain them for future reference.
Safety Instructions
WARNING: Risk of electric shock. Installation should only be performed by a qualified electrician.
- Always switch off the main power supply at the circuit breaker before commencing any installation, maintenance, or cleaning work.
- Ensure that the voltage indicated on the product label matches your local power supply.
- Do not modify the product in any way. Unauthorized modifications may lead to electric shock, fire, or injury.
- Keep packaging materials out of reach of children.
- This product is designed for indoor use only. Do not expose to water or high humidity.
- Ensure all connections are secure and properly insulated.
Package Contents
Carefully unpack the product and check that all items are present and undamaged. If any parts are missing or damaged, do not proceed with installation and contact your retailer.
- 1 x RL LIVE YOUR LIGHT LED Ceiling Light (Model: R67873131)
Product Overview

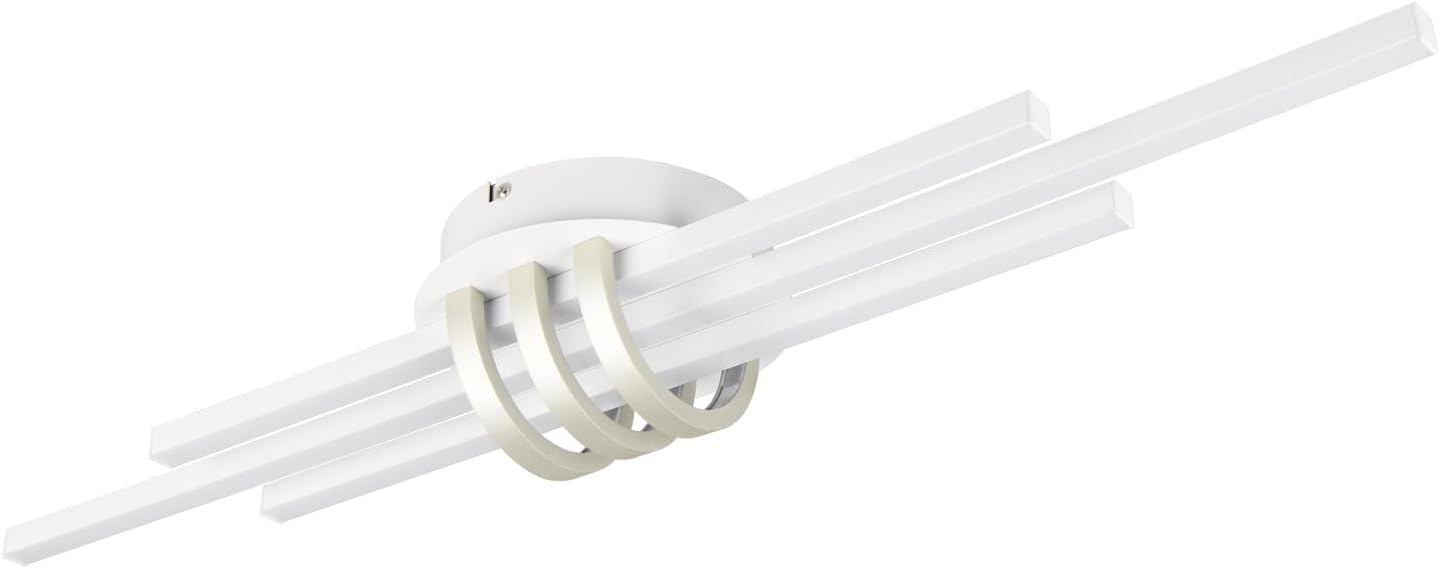

The RL LIVE YOUR LIGHT LED Ceiling Light (Model R67873131) is a modern and functional lighting fixture featuring integrated LED technology. Its flat, large design with a width of 81 cm makes it suitable for various indoor environments. The light is dimmable and includes a switch for convenient operation.
Setup and Installation
Before You Begin
- Ensure the power supply to the installation area is switched off at the main circuit breaker.
- Gather necessary tools: screwdriver, wire strippers, drill, pencil, measuring tape.
- Consult a qualified electrician if you are unsure about any part of the installation process.
Mounting the Fixture
- Mark the drilling points on the ceiling using the mounting bracket as a template. Ensure the location is suitable for the fixture's dimensions.
- Drill holes at the marked points and insert appropriate wall plugs (not included, choose based on ceiling material).
- Secure the mounting bracket to the ceiling using screws.
- Connect the electrical wires from the ceiling to the terminal block on the fixture. Ensure correct polarity (Live, Neutral, Earth).
- Carefully attach the ceiling light fixture to the mounting bracket, ensuring all wires are tucked away safely and not pinched. Secure the fixture with the provided screws.
- Restore power at the circuit breaker and test the light.
Operating Instructions
This LED ceiling light is designed for ease of use and features both dimmable functionality and an integrated switch.
- Switch On/Off: Use the wall switch connected to the fixture to turn the light on or off.
- Dimming: The light is dimmable. If connected to a compatible dimmer switch (not included), you can adjust the light intensity to your preference. Refer to your dimmer switch's instructions for specific operation.
Maintenance
To ensure the longevity and optimal performance of your LED ceiling light, follow these simple maintenance guidelines:
- Cleaning: Always disconnect power before cleaning. Use a soft, dry, or slightly damp cloth to wipe the surface of the fixture. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or electrical components.
- Bulb Replacement: This fixture uses integrated LED technology. The LEDs are not user-replaceable. If the light source fails, the entire fixture may need to be replaced.
- Inspection: Periodically check the fixture for any signs of damage or loose connections. If any issues are found, disconnect power and consult a qualified electrician.
Troubleshooting
If you encounter any issues with your LED ceiling light, refer to the following table for common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power supply.Loose wiring connection.Faulty wall switch. | Check circuit breaker.Ensure all wires are securely connected.Test or replace the wall switch. |
| Light flickers or dims unexpectedly. | Incompatible dimmer switch.Loose wiring.Power fluctuations. | Ensure dimmer switch is LED compatible.Check wiring connections.Consult an electrician for power supply issues. |
| Light is not as bright as expected. | Dimmer setting too low.Dust accumulation on light source. | Adjust dimmer to maximum brightness.Clean the light fixture. |
Specifications
| Feature | Detail |
|---|---|
| Brand | RL LIVE YOUR LIGHT |
| Manufacturer | RL LIVE YOUR LIGHT |
| Item Model Number | R67873131 |
| Product Dimensions | 81 x 18 x 10.5 cm (Length x Width x Height) |
| Color | White |
| Material | Metal |
| Number of Items | 1 |
| Power Source Type | Electric |
| Bulb Type | LED (Integrated) |
| Luminous Flux | 2500 lm |
| Color Temperature | 4000 Kelvin (Neutral White) |
| Wattage | 20 Watt |
| Energy Consumption Class (EU) | Not rated |
| Room Type | Living Room (and other indoor spaces) |
Warranty and Support
This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. Please retain your proof of purchase for warranty claims.
For technical support, warranty inquiries, or replacement parts, please contact your retailer or the manufacturer directly. Contact information can typically be found on the product packaging or the retailer's website.
