GrfceVue 43CC 2-Stroke Gas Pole Saw Model kkuli User Manual

1. Important Safety Information

Read and understand all safety warnings and instructions before operating this gas pole saw. Failure to follow these instructions may result in electric shock, fire, and/or serious injury. Keep this manual for future reference.

General Safety Warnings

• Personal Protective Equipment (PPE): Always wear appropriate PPE, including safety glasses or goggles, hearing protection, heavy-duty gloves, and a hard hat. Wear sturdy, non-slip footwear.
• Work Area Safety: Keep the work area clean and well-lit. Do not operate the pole saw in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Keep bystanders, children, and pets at least 50 feet (15 meters) away from the operating area.
• Electrical Safety: Avoid contact with power lines. Maintain a safe distance from all electrical wires.
• Fuel Safety: Handle fuel with extreme care. Fuel is highly flammable. Always refuel outdoors and away from ignition sources. Do not smoke while refueling.
• Operator Safety: Do not operate the pole saw when tired, under the influence of drugs, alcohol, or medication. Maintain proper footing and balance at all times. Do not overreach.
• Tool Inspection: Before each use, inspect the pole saw for damaged parts, loose fasteners, or any other condition that may affect its safe operation. Replace damaged parts immediately.
• Kickback: Be aware of kickback. Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut.

2. Product Overview

The GrfceVue 43CC 2-Stroke Gas Pole Saw is designed for efficient pruning and tree care. It features a powerful 43cc engine and an extendable pole for reaching high branches.

Components Included

The package includes the following components:

• Long Pruning Chain Saw (Engine unit, pole sections, saw head)
• 12-inch Cutting Bar
• Saw Chain
• Shoulder Strap
• Fuel Mixing Bottle
• Goggles
• Tool Kit for Assembly
• English Manual

Image 2.1: All components of the GrfceVue 43CC 2-Stroke Gas Pole Saw laid out, including the engine unit, pole sections, saw head, chain, shoulder strap, fuel bottle, goggles, and tools. The pole sections are shown with a length of 109cm/42.91inch, and the cutting bar is 30.48cm/12inch.

Key Features

• Durable Construction: Made from manganese steel chain, aluminum operating bar, and nylon hood for longevity.
• High Efficiency Engine: 1.25kw (1.7HP) 2-stroke gasoline engine with 43cc displacement, reaching 6,500-8,500 RPM.
• Retractable Long Pole: Extends from 7.87 to 11.5 feet (2.4-3.5 meters) for extended reach.
• Generous Fuel Tank: 33.81oz (1000ml) fuel tank capacity for longer operation times.
• User Comfort: Includes a shoulder strap to reduce fatigue during prolonged use.

3. Setup and Assembly

Follow these steps to assemble and prepare your GrfceVue gas pole saw for operation.

3.1 Assembly Instructions

1. Attach the Saw Head: Connect the saw head unit (with the cutting bar and chain) to one of the pole sections. Ensure it is securely fastened according to the manual's diagrams.
2. Connect Pole Sections: Join the pole sections together. The pole is designed to be telescopic, allowing adjustment of length. Ensure all connections are tight and secure.
3. Install Engine Unit: Attach the engine unit to the other end of the pole assembly. Secure all clamps and bolts.
4. Mount Handle and Controls: Position the auxiliary handle and control grips on the pole for comfortable operation. Tighten them firmly.
5. Attach Shoulder Strap: Connect the shoulder strap to the designated attachment points on the pole saw. Adjust the strap for balanced weight distribution and comfort.

Image 3.1: The GrfceVue 43CC 2-Stroke Gas Pole Saw fully assembled, showing the engine, pole, and saw head. The total adjustable length is indicated as 240-350cm (94.49-137.8 inches).

Image 3.2: A close-up view of the handle and control trigger assembly on the pole saw, showing the ergonomic design for user comfort and control.

3.2 Fuel Preparation

This pole saw uses a 2-stroke gasoline engine and requires a specific fuel mixture.

• Fuel Type: Use unleaded gasoline with an octane rating of 89 or higher.
• Oil Type: Use high-quality 2-stroke engine oil specifically designed for air-cooled engines.
• Mixing Ratio: The recommended gasoline/oil mixing ratio is 20-25:1. For example, for 1 liter of gasoline, mix 40-50 ml of 2-stroke oil. Use the provided mixing bottle for accurate measurement.
• Mixing Procedure:
  1. Pour half the required amount of gasoline into the mixing bottle.
  2. Add the entire amount of 2-stroke oil.
  3. Shake the bottle thoroughly to mix.
  4. Add the remaining gasoline and shake again.
• Refueling: Always refuel in a well-ventilated area, away from open flames or sparks. Ensure the engine is off and cool before refueling. Do not overfill the fuel tank (capacity: 1000ml/33.81oz).

Image 3.3: A detailed view of the 2-stroke engine unit, showing the fuel tank and engine components. This highlights the area for refueling and engine inspection.

4. Operating Instructions

Follow these steps for safe and effective operation of your pole saw.

4.1 Starting the Engine (Manual Start)

1. Prime the Carburetor: Press the primer bulb several times until fuel is visible in the return line.
2. Set Choke: Move the choke lever to the "FULL CHOKE" position (cold start). For a warm engine, set to "HALF CHOKE" or "RUN".
3. Ignition Switch: Ensure the ignition switch is in the "ON" position.
4. Pull Starter Cord: Place the pole saw on a firm, flat surface. Hold the unit firmly with one hand and pull the starter cord slowly until resistance is felt, then pull sharply and quickly. Repeat until the engine attempts to start or fires once.
5. Adjust Choke: Once the engine fires or attempts to start, move the choke lever to the "HALF CHOKE" position. Pull the starter cord again until the engine starts.
6. Warm-up: Allow the engine to run for a few moments to warm up. Move the choke lever to the "RUN" position.

4.2 Cutting Techniques

Always maintain a safe distance from the cutting area and ensure stable footing.

• Pre-Inspection: Before cutting, inspect the branch for stability, direction of fall, and potential hazards. Clear the area below the branch.
• Proper Stance: Stand with your feet shoulder-width apart, maintaining balance. Use the shoulder strap to support the weight of the pole saw.
• Extend Pole: Adjust the telescopic pole to the desired length, ensuring all locking mechanisms are secure. Do not overextend beyond the recommended limits.
• Cutting Position: Position the saw head below the branch you intend to cut. Avoid cutting directly overhead. Always cut from the underside first to prevent pinching, then finish from the top.
• Maintain Chain Speed: Engage the throttle fully before making contact with the branch to ensure the chain is at full speed.
• Avoid Kickback: Be aware of the kickback zone (the tip of the guide bar). Avoid contact with this area.
• Clear Debris: After each cut, clear fallen branches and debris from the work area before proceeding.

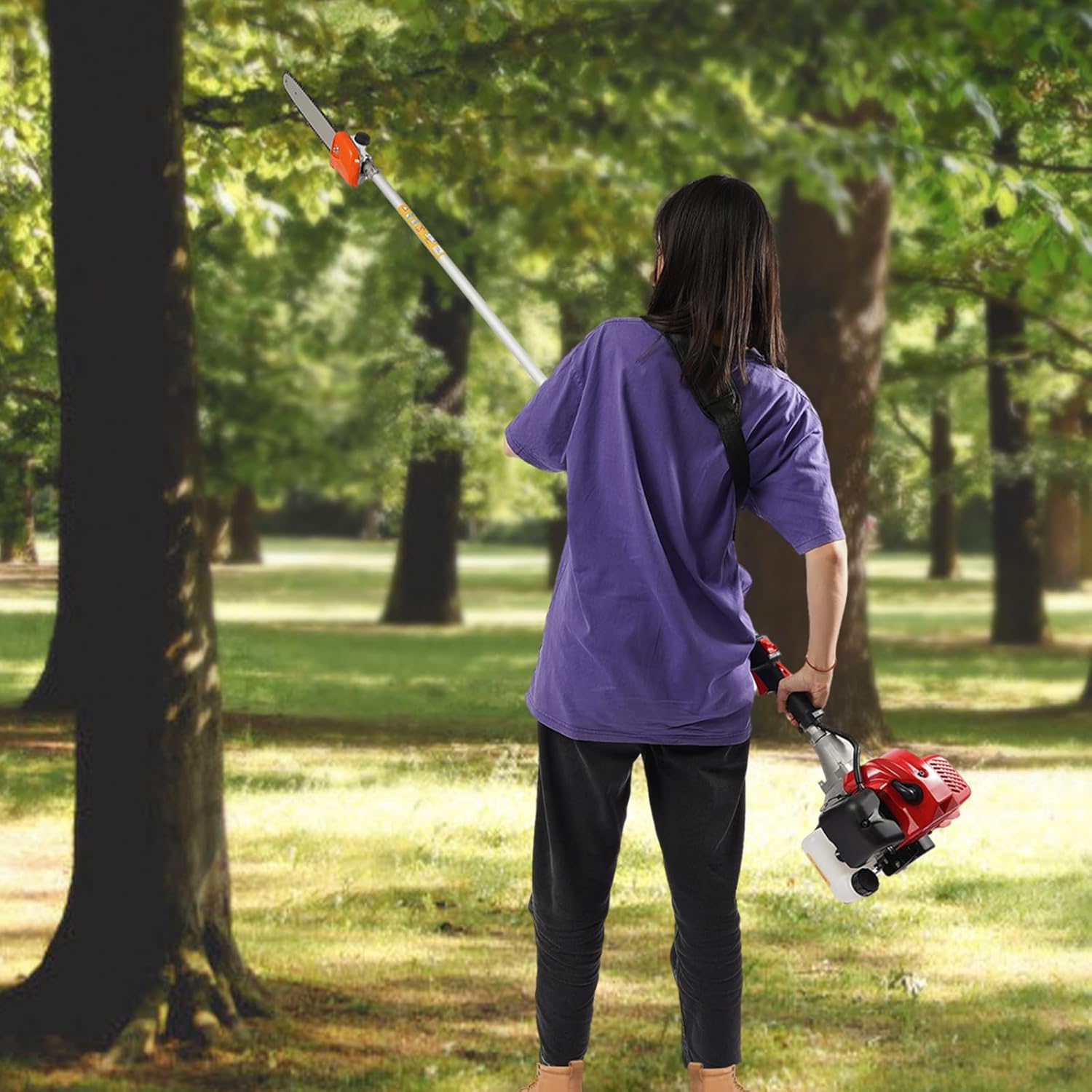

Image 4.1: A user operating the GrfceVue gas pole saw to trim a high branch, demonstrating the extended reach and proper handling with a shoulder strap.

5. Maintenance

Regular maintenance ensures the longevity and safe operation of your pole saw.

5.1 Daily Maintenance

• Clean Air Filter: Remove and clean the air filter. A dirty air filter can reduce engine performance.
• Inspect Chain: Check the saw chain for sharpness, tension, and damage. Sharpen or replace as needed. Ensure proper chain lubrication.
• Check Guide Bar: Inspect the guide bar for wear or damage. Ensure the oil hole is clear.
• Tighten Fasteners: Check all nuts, bolts, and screws for tightness. Tighten any loose fasteners.
• Clean Unit: Wipe down the entire unit to remove sawdust, sap, and debris.

Image 5.1: A close-up view of the saw head, cutting bar, and chain. This area requires regular inspection for sharpness, tension, and lubrication.

5.2 Periodic Maintenance

• Spark Plug: Inspect and clean the spark plug every 25 hours of operation. Replace if electrodes are worn or fouled.
• Fuel Filter: Replace the fuel filter annually or if fuel delivery issues occur.
• Carburetor Adjustment: If the engine runs poorly, the carburetor may need adjustment. This should ideally be performed by a qualified service technician.
• Storage: For long-term storage, drain the fuel tank and run the engine until it stops to clear the carburetor. Clean the unit thoroughly and store in a dry, secure location.

6. Troubleshooting

This section provides solutions to common operational issues.

7. Specifications

8. Warranty and Support

For warranty information or technical support regarding your GrfceVue 43CC 2-Stroke Gas Pole Saw Model kkuli, please contact the manufacturer directly. Refer to the contact details provided with your purchase documentation or visit the official GrfceVue website.

Always provide your model number (kkuli) and purchase date when contacting support to ensure efficient service.
