Introduction
Thank you for choosing the Arebos Double Induction Cooktop. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before first use and keep it for future reference.
The Arebos Double Induction Cooktop is a powerful and energy-efficient appliance designed for versatile cooking. With two independent cooking zones, touch controls, and a robust crystal glass surface, it is suitable for home kitchens, camping, caravans, or as a mobile cooking solution.
Important Safety Instructions
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury.
- Do not immerse the appliance, cord, or plug in water or other liquids.
- Ensure the voltage indicated on the appliance matches your local mains voltage before connecting.
- Do not operate the appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- Keep the appliance out of reach of children.
- Do not place the appliance on or near a hot gas or electric burner, or in a heated oven.
- Ensure adequate ventilation around the appliance during use.
- Use only compatible magnetic cookware with a diameter between 12 cm and 25 cm.
- The surface will be hot after use. Allow it to cool down before cleaning or storing.
- Do not place metallic objects such as knives, forks, spoons, lids, keys, or watches on the cooktop surface as they can become hot.
- The appliance features an automatic shut-off function if no suitable cookware is detected or if it overheats.
- The integrated child lock prevents accidental activation.
Setup
Unpacking
Carefully remove the cooktop from its packaging. Retain the packaging for future storage or transport. Inspect the appliance for any signs of damage. If damaged, do not use it and contact customer support.
Placement
Place the induction cooktop on a stable, flat, and heat-resistant surface. Ensure there is sufficient space around the appliance for proper ventilation, especially at the rear and sides. Do not block the ventilation openings.
Image: The Arebos Double Induction Cooktop, showcasing its compact and sleek design suitable for various placements.

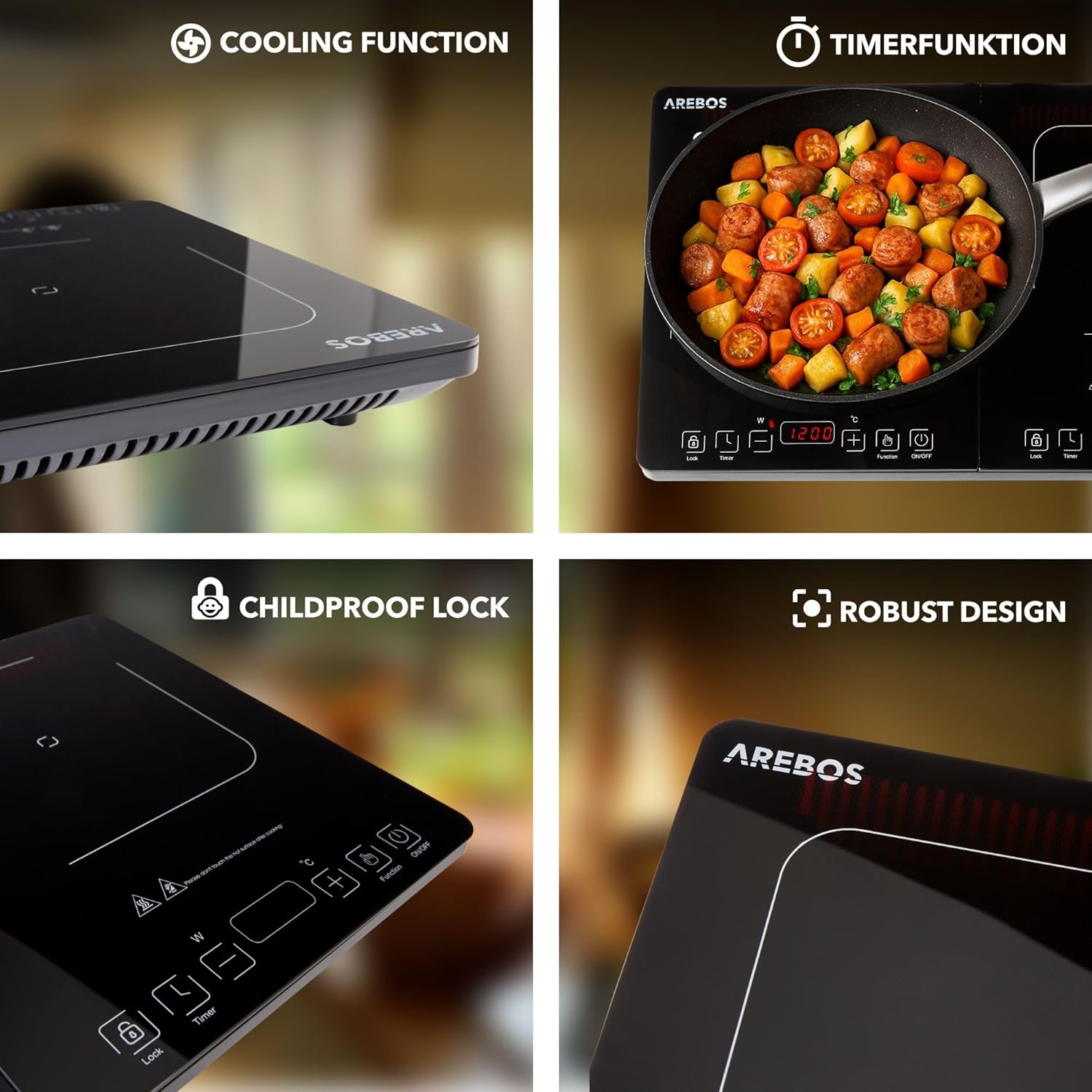

Image: Detailed view of the cooktop's cooling vents and robust construction, highlighting its durability and heat dissipation capabilities.
Power Connection
Plug the power cord into a grounded electrical outlet. The cooktop operates on 240 Volts and has a maximum power consumption of 3500 Watts.
Operating Instructions
Control Panel Overview
The cooktop features a touch display for easy operation. Each cooking zone has its own set of controls.
Image: An overview of the cooktop's main features, including safety, power, and convenience functions.
- On/Off Button: Powers the unit on or off.
- Function Button: Switches between power (W) and temperature (°C) modes.
- +/- Buttons: Adjust power/temperature levels or timer settings.
- Timer Button: Activates and sets the cooking timer.
- Lock Button: Engages or disengages the child safety lock.
Turning On and Adjusting Power/Temperature
- Place suitable magnetic cookware on the desired cooking zone.
- Press the On/Off button for the respective zone to turn it on. The display will light up.
- Use the +/- buttons to adjust the power level (W) or temperature (°C). The cooktop offers 9 temperature levels for precise control.
- Press the Function button to switch between power (Wattage) and temperature modes.
Image: The cooktop displaying its 9 temperature levels, demonstrating its versatility for various cooking tasks.
Using the Timer Function
The integrated timer allows you to set a specific cooking duration.
- With the cooktop on and a cooking zone active, press the Timer button.
- Use the +/- buttons to set the desired cooking time.
- The timer will count down, and the cooking zone will automatically switch off once the time expires.
Child Safety Lock
To prevent accidental operation, especially by children, activate the child safety lock.
- To activate: Press and hold the Lock button for a few seconds until the lock indicator appears on the display. All controls will be disabled.
- To deactivate: Press and hold the Lock button again for a few seconds until the lock indicator disappears.
Compatible Cookware
The Arebos induction cooktop is compatible with magnetic cookware, including cast aluminum, enameled iron, cast iron, and stainless steel. Ensure the cookware base has a diameter between 12 cm and 25 cm for optimal performance.

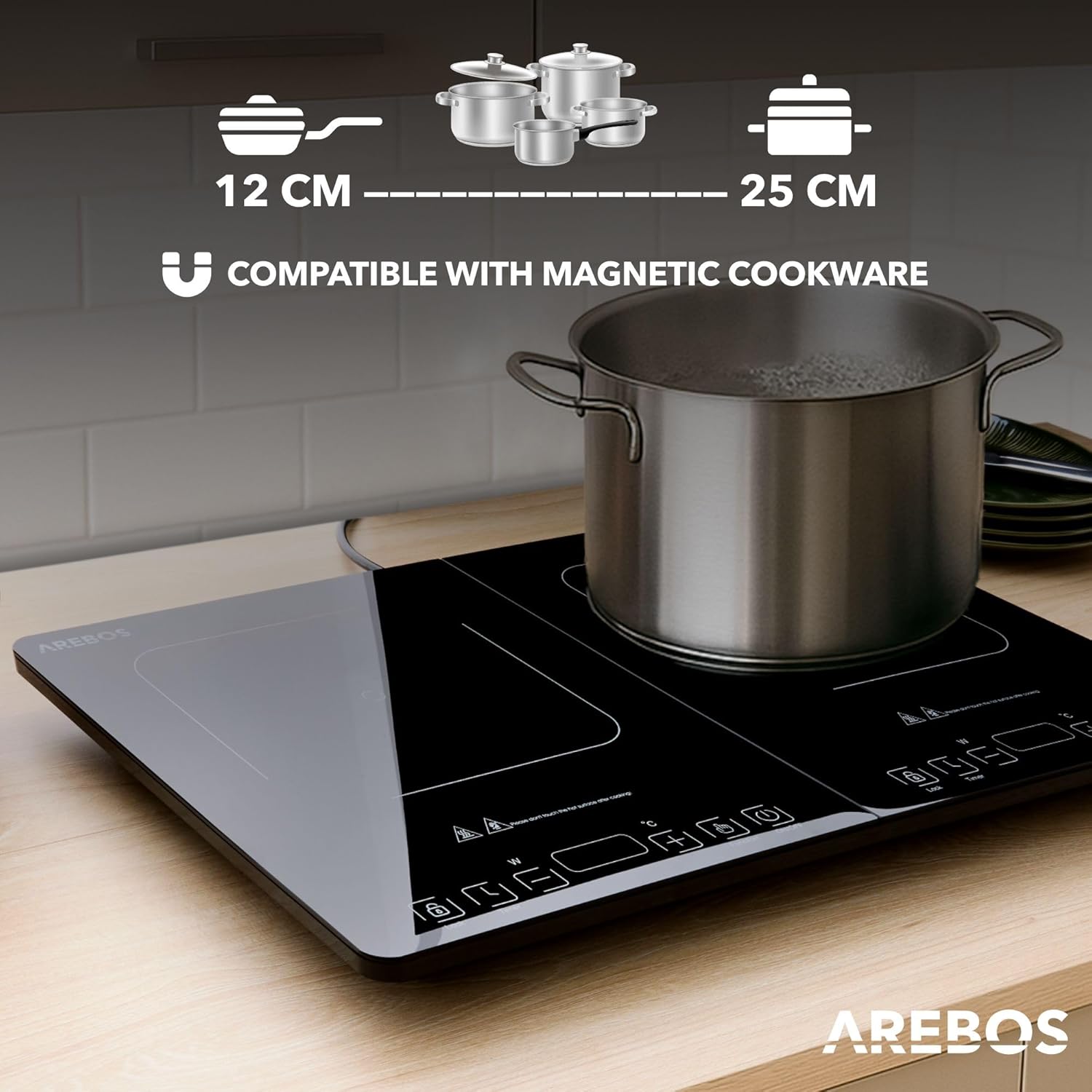

Image: Visual guide for compatible cookware, emphasizing the required magnetic properties and base diameter range.
Maintenance and Cleaning
Regular cleaning ensures the longevity and optimal performance of your cooktop. Always ensure the appliance is unplugged and completely cool before cleaning.
- Surface Cleaning: The hardened crystal glass surface is highly resistant to scratches and heat. Wipe the surface with a soft, damp cloth and mild detergent. For stubborn stains, use a non-abrasive cleaner specifically designed for ceramic or induction cooktops.
- Do Not Use: Abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the surface.
- Ventilation Openings: Keep the ventilation openings clear of dust and debris to ensure proper airflow.
- Storage: When not in use, store the cooktop in a dry place, away from direct sunlight and extreme temperatures.
Image: Demonstrating the ease of cleaning the cooktop's smooth crystal glass surface.
Troubleshooting
If you encounter issues with your Arebos Induction Cooktop, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Cooktop does not turn on. | Not plugged in; power outage; child lock activated. | Check power connection; verify power supply; deactivate child lock by pressing and holding the Lock button. |
| Cookware not detected / Error message. | Cookware is not magnetic; cookware diameter is too small/large; cookware not centered. | Use magnetic cookware; ensure diameter is between 12-25 cm; center the cookware on the zone. |
| Cooktop automatically shuts off during use. | Overheating protection activated; no cookware detected for too long. | Remove cookware, unplug, and allow to cool down; ensure cookware is present and compatible. |
| Unusual noise during operation. | Normal fan noise for cooling; resonance from cookware. | A slight humming sound from the cooling fan is normal. Some cookware may produce a slight buzzing sound due to vibration. This is not a defect. |
If the problem persists after trying these solutions, please contact customer support.
Specifications
| Feature | Detail |
|---|---|
| Brand | Arebos |
| Model Number | AR-HE-IK3500 (4252023126496) |
| Color | Black |
| Product Dimensions (L x W x H) | 56 x 35 x 4.5 cm |
| Weight | 4.2 kg |
| Power/Wattage | 3500 Watts |
| Voltage | 240 Volts |
| Material | Hardened Crystal Glass |
| Heating Elements | 2 |
| Control Type | Touch |
| Special Features | Sensor-touch, Automatic Shut-off, Child Lock, Overheat/Overflow Protection, Timer, Flexzone Function |
| Compatible Cookware Diameter | 12 cm to 25 cm |
Image: Detailed dimensions of the cooktop and its power cord for planning placement.
Warranty and Support
For warranty information, please refer to the terms and conditions provided at the time of purchase or contact your retailer. For technical support or service inquiries, please contact the manufacturer, Canbolat Vertriebs GmbH, or the seller, AREBOS, through their official channels.
This product is designed for long-lasting performance and comes with standard consumer guarantees.
