Introduction
This manual provides essential instructions for the safe and efficient use of your LPQVIATAS 52V 34Ah Battery and 3A Charger. Please read this manual thoroughly before operating the product to ensure proper function and longevity. Keep this manual for future reference.
Safety Instructions
WARNING: Failure to follow these safety instructions may result in fire, electric shock, injury, or property damage.
- Use only the provided 3A charger with this 52V 34Ah battery. Using an incompatible charger may damage the battery or cause fire.
- Do not expose the battery or charger to water, moisture, or extreme temperatures.
- Do not disassemble, puncture, or modify the battery pack or charger.
- Keep the battery and charger away from children and pets.
- Charge the battery in a well-ventilated area, away from flammable materials.
- If the battery shows signs of damage, swelling, or leakage, discontinue use immediately and contact support.
- Dispose of the battery according to local regulations for lithium-ion batteries. Do not dispose of in household waste.
Product Overview
The LPQVIATAS 52V 34Ah Battery is designed for use with 52V E-Bikes, providing reliable power for your cycling needs. The included 3A charger ensures efficient and safe recharging.

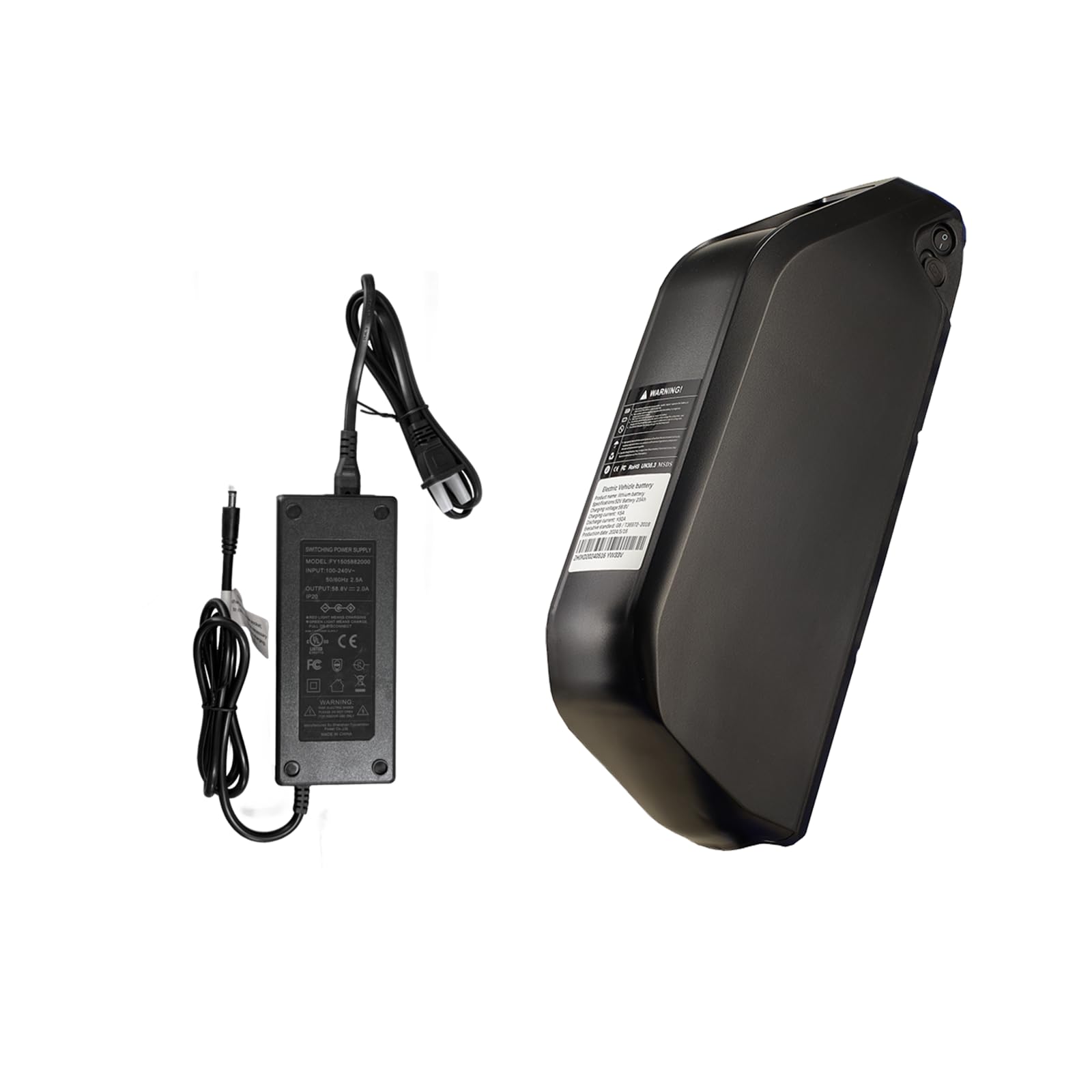

Image: LPQVIATAS 52V 34Ah E-Bike Battery and 3A Charger. This image displays the battery pack and its accompanying charger.
Setup
1. Unpacking
- Carefully remove the battery and charger from the packaging.
- Inspect both items for any visible damage. If damage is found, do not use and contact customer support.
- Ensure all components are present: 52V 34Ah Battery, 3A Charger, and this user manual.
2. Initial Charge
- Before first use, fully charge the battery. Connect the charger to a standard wall outlet, then connect the charger output to the battery's charging port.
- The charger indicator light will typically show red during charging and turn green when fully charged.
- Charging time may vary but typically takes several hours for a full charge.
3. Installation on E-Bike
Refer to your E-Bike's specific instruction manual for battery installation procedures. Generally, the battery slides into a mounting bracket on the bike frame and locks into place. Ensure the battery is securely fastened before riding.
Image: LPQVIATAS E-Bike with 52V 34Ah Battery installed. The battery pack is visible on the bike frame.
Operating
1. Charging the Battery
- Ensure the battery is turned off or disconnected from the E-Bike before charging.
- Connect the charger to a power outlet (AC 100-240V). The charger's LED will indicate its status.
- Connect the charger's output plug to the battery's charging port. The LED on the charger will turn red, indicating charging is in progress.
- Once fully charged, the charger's LED will turn green. Disconnect the charger from the battery first, then from the power outlet.
- Do not leave the battery charging unattended for extended periods.
2. Using the Battery on Your E-Bike
- After installation, ensure the battery is locked into place.
- Turn on the battery (if it has a power switch) and then turn on your E-Bike's power system.
- Monitor the battery level indicator on your E-Bike's display during use.
- Avoid completely draining the battery to prolong its lifespan. Recharge when the battery level is low.
Image: LPQVIATAS E-Bike with battery pack. This image shows an e-bike ready for operation with the battery installed.
Maintenance
- Cleaning: Wipe the battery and charger with a dry, soft cloth. Do not use water or cleaning agents directly on the electrical components.
- Storage: If storing the battery for an extended period, charge it to approximately 50-60% capacity. Store in a cool, dry place (ideally between 0°C and 20°C or 32°F and 68°F) away from direct sunlight and heat sources. Recharge every 2-3 months to maintain battery health.
- Regular Checks: Periodically inspect the battery casing and charger cable for any signs of wear or damage. Ensure all connections are clean and secure.
Image: LPQVIATAS E-Bike in outdoor setting. A well-maintained e-bike with its battery, ready for use.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Battery not charging | Charger not connected, power outlet issue, damaged charger/battery, battery too hot/cold. | Check connections, try a different outlet, inspect charger/battery for damage, allow battery to reach room temperature. |
| E-Bike not powering on with battery | Battery not fully charged, battery not properly installed, battery power switch off, E-Bike issue. | Ensure battery is fully charged, check installation and lock, turn on battery switch, consult E-Bike manual. |
| Charger LED not indicating status | Charger not plugged in, faulty charger, power outage. | Verify power connection, try another outlet. If issue persists, charger may be faulty. |
Specifications
- Brand: LPQVIATAS
- Model Name: 52V 34Ah Battery and Charger
- Battery Voltage: 52V
- Battery Capacity: 34Ah
- Charger Output: 3A
- Reusability: Rechargeable
- Recommended Uses: Cycling (E-Bike)
Warranty
This LPQVIATAS product comes with a 12-month warranty from the date of purchase. This warranty covers manufacturing defects. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear. Please retain your proof of purchase for warranty claims.
Support
For technical assistance, warranty claims, or any questions regarding your LPQVIATAS 52V 34Ah Battery and 3A Charger, please contact our customer support team:
- Email: lpqviatas123@gmail.com
- Operating Hours: Monday to Sunday, 10:00 AM - 11:00 PM PST
We aim to respond to all inquiries within 24 hours.
