Generic 285318 Carburetor and Air Filter Instruction Manual

1. Introduction

This manual provides essential information for the installation, operation, and maintenance of your new Generic 285318 Carburetor and Air Filter. This replacement part is designed for use with Craftsman M220 Model 12A-A26B793 Lawn Mowers. Please read these instructions carefully before proceeding with installation or use to ensure proper function and safety.

2. Safety Information

Always observe the following safety precautions when working with lawn mowers and fuel system components:

• Disconnect the spark plug wire before performing any maintenance or installation to prevent accidental engine starting.
• Work in a well-ventilated area when handling gasoline.
• Wear appropriate personal protective equipment, including gloves and eye protection.
• Ensure the engine is cool before working on the carburetor or fuel system.
• Keep flammable materials away from the work area.
• If you are unsure about any step, consult a qualified technician.

3. Package Contents

Your package should contain the following items:

• 1 x Generic 285318 Carburetor
• 1 x Air Filter (as pictured)
• Associated gaskets and small components for installation (as pictured)

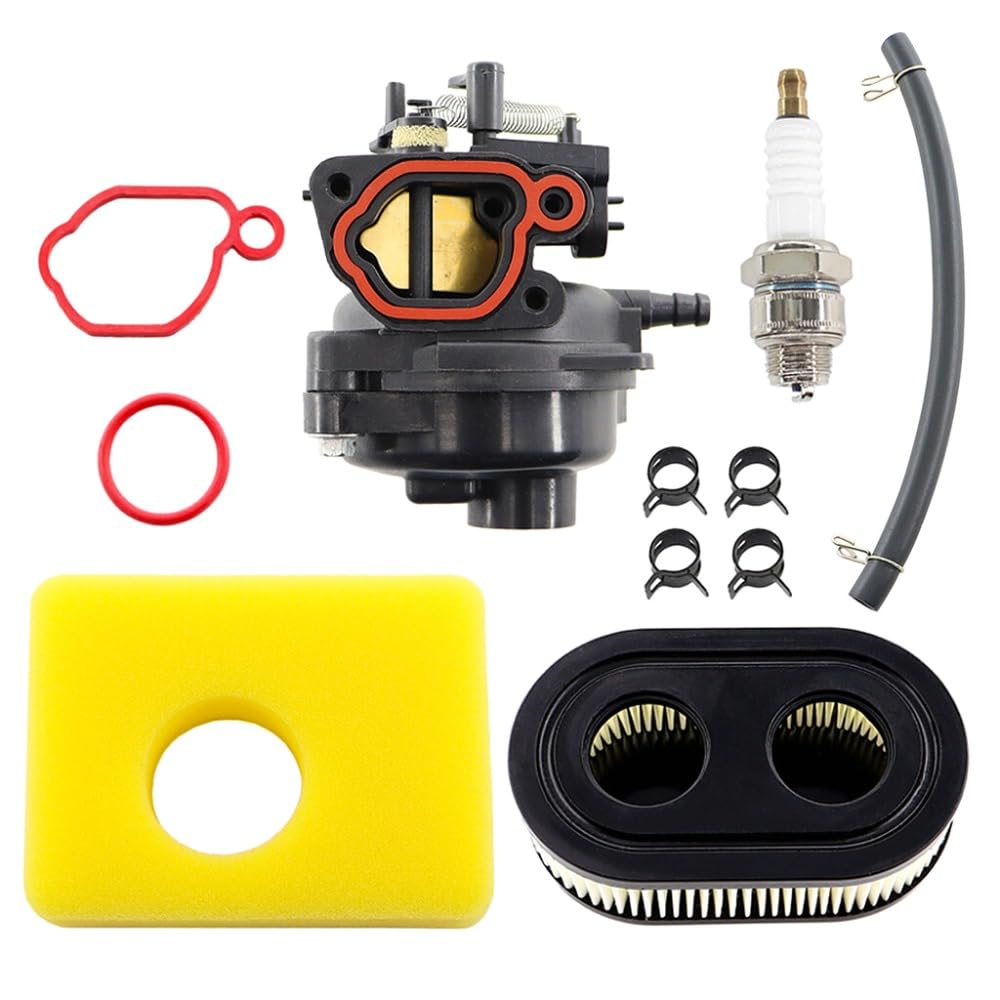

Figure 3.1: Complete Carburetor and Air Filter Assembly. This image shows the main carburetor unit with its integrated air filter housing and associated linkages.

4. Compatibility

This carburetor and air filter assembly is specifically designed for:

• Lawn Mower Model: Craftsman M220 Model 12A-A26B793

Please verify your lawn mower's model number before installation to ensure proper fit and function.

5. Setup and Installation

The following steps provide a general guide for carburetor replacement. Specific procedures may vary slightly depending on your lawn mower model. It is recommended to consult your lawn mower's service manual for detailed instructions or seek professional assistance.

5.1 Preparation

1. Ensure the lawn mower engine is cool.
2. Disconnect the spark plug wire to prevent accidental starting.
3. Drain the fuel tank or clamp the fuel line to prevent fuel leakage.
4. Remove any engine covers or shrouds that obstruct access to the carburetor.

5.2 Removing the Old Carburetor

1. Carefully disconnect the fuel line from the old carburetor. Be prepared for residual fuel.
2. Disconnect any linkages or springs attached to the carburetor (e.g., throttle, choke). Note their positions for reassembly.
3. Remove the mounting bolts or nuts that secure the carburetor to the engine.
4. Gently remove the old carburetor and any old gaskets.

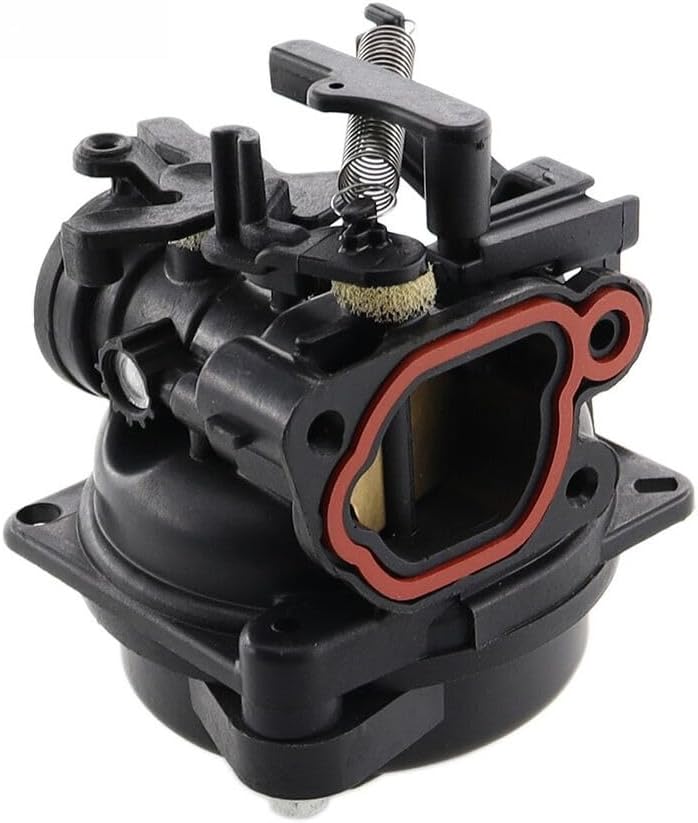

Figure 5.2.1: Top view of the carburetor, showing the throttle and choke linkages. Observe how these are connected before removal.

5.3 Installing the New Carburetor

1. Ensure the mounting surface on the engine is clean and free of debris.
2. Place new gaskets in their correct positions.
3. Position the new carburetor onto the engine and secure it with the mounting bolts/nuts. Do not overtighten.
4. Reconnect all linkages and springs to their original positions. Refer to any notes or photos taken during disassembly.
5. Reconnect the fuel line to the carburetor. Ensure a secure, leak-free connection.
6. Replace any engine covers or shrouds.
7. Reconnect the spark plug wire.

Figure 5.3.1: Side view of the carburetor, highlighting the fuel inlet port. Ensure the fuel line is securely attached here.

Figure 5.3.2: Front view of the carburetor, showing the air intake. The air filter housing connects to this section.

6. Operation

After installation, refill the fuel tank with fresh, appropriate fuel for your lawn mower. Start the engine according to your lawn mower's operating instructions. Allow the engine to warm up and check for smooth operation. The carburetor is pre-adjusted for optimal performance, so no further adjustments should be necessary.

7. Maintenance

Regular maintenance helps ensure the longevity and performance of your carburetor and lawn mower.

• Air Filter: Regularly inspect the air filter for dirt and debris. Clean or replace the air filter as recommended by your lawn mower's manufacturer. A clogged air filter can lead to poor engine performance.
• Fuel Quality: Always use fresh, clean gasoline. Stale or contaminated fuel can clog the carburetor.
• Fuel System Cleanliness: If the lawn mower is stored for extended periods, consider using a fuel stabilizer or draining the fuel system to prevent gum and varnish buildup in the carburetor.

Figure 7.1: Bottom view of the carburetor, showing the fuel bowl. This area can accumulate sediment if fuel is not clean.

8. Troubleshooting

If you encounter issues after installing the new carburetor, consider the following common troubleshooting steps:

• Engine Not Starting:
  • Check if the spark plug wire is securely connected.
  • Ensure there is fresh fuel in the tank.
  • Verify that the fuel line is not kinked or blocked.
  • Confirm all linkages (throttle, choke) are correctly attached and moving freely.
• Engine Runs Rough or Stalls:
  • Inspect the air filter for cleanliness. A dirty filter can restrict airflow.
  • Check for any air leaks around the carburetor mounting gaskets.
  • Ensure the fuel is fresh and not contaminated.
• Fuel Leaks:
  • Tighten all fuel line connections.
  • Inspect gaskets for proper seating and damage.

If problems persist, it is advisable to consult a professional small engine mechanic.

Figure 8.1: Angled view of the carburetor, showing various ports and mounting points. Ensure all connections are secure to prevent leaks or performance issues.

9. Specifications

10. Warranty and Support

For warranty information and customer support regarding this Generic replacement part, please refer to the seller or retailer from whom the product was purchased. Keep your proof of purchase for any warranty claims.
