User Manual: LHD Car Floor Mats

1. Introduction

This manual provides essential information for the installation, use, maintenance, and care of your LHD Car Floor Mats, designed for Hyundai i30 models FD GD from 2009 to 2015. These custom-fit floor liners are engineered to protect your vehicle's interior while enhancing comfort and safety.

The floor mats include front and rear rows, precisely designed using 3D scanning technology to ensure complete coverage of your car's floor. Special attention has been given to details around the throttle and brake pedals to ensure they do not interfere with driving.

2. Product Features

• Custom Fit: Designed with 3D scanning technology for precise fit in Hyundai i30 FD GD (2009-2015) models, covering both front and rear rows.
• Safety-Conscious Design: Engineered to avoid interference with throttle and brake pedals, ensuring safe driving.
• Durable TPE Material: Made from Thermoplastic Elastomer (TPE), offering excellent elasticity, recovery, wear resistance, and durability in various weather conditions.
• Easy to Clean: Can be easily removed and cleaned with a wet cloth or water, simplifying vehicle maintenance.
• Enhanced Friction: Features a textured surface or anti-slip design to increase grip between footwear and the mat, improving driving safety.
• Floor Protection: Protects the original car carpet from dirt, wear, scratches, and indentations, extending its lifespan and maintaining the car's interior integrity.
• Comfortable Feel: Soft and elastic material provides a comfortable underfoot feel, reducing driving fatigue.
• Odor and Bacteria Prevention: TPE material effectively helps prevent the growth of bacteria and odors.

3. Setup and Installation

Your car floor mats are designed for a custom fit. Follow these steps for proper installation:

1. Ensure the vehicle's original floor carpet is clean and free of debris before placing the new mats.
2. Carefully unroll and unfold the floor mats. Due to packaging and transportation, the mats may have creases. Refer to the "Maintenance" section for instructions on restoring their shape.
3. Begin with the front mats. Position the driver's side mat, ensuring it aligns perfectly with the contours of the floor and does not obstruct the accelerator or brake pedals.
4. Install the passenger side front mat, ensuring full coverage and proper alignment.
5. Proceed to the rear mats. Place them to cover the rear floor area, including the integrated molding for the rear axle crossing where applicable, ensuring a snug fit.
6. Verify that all mats are securely in place and do not shift during normal vehicle operation.

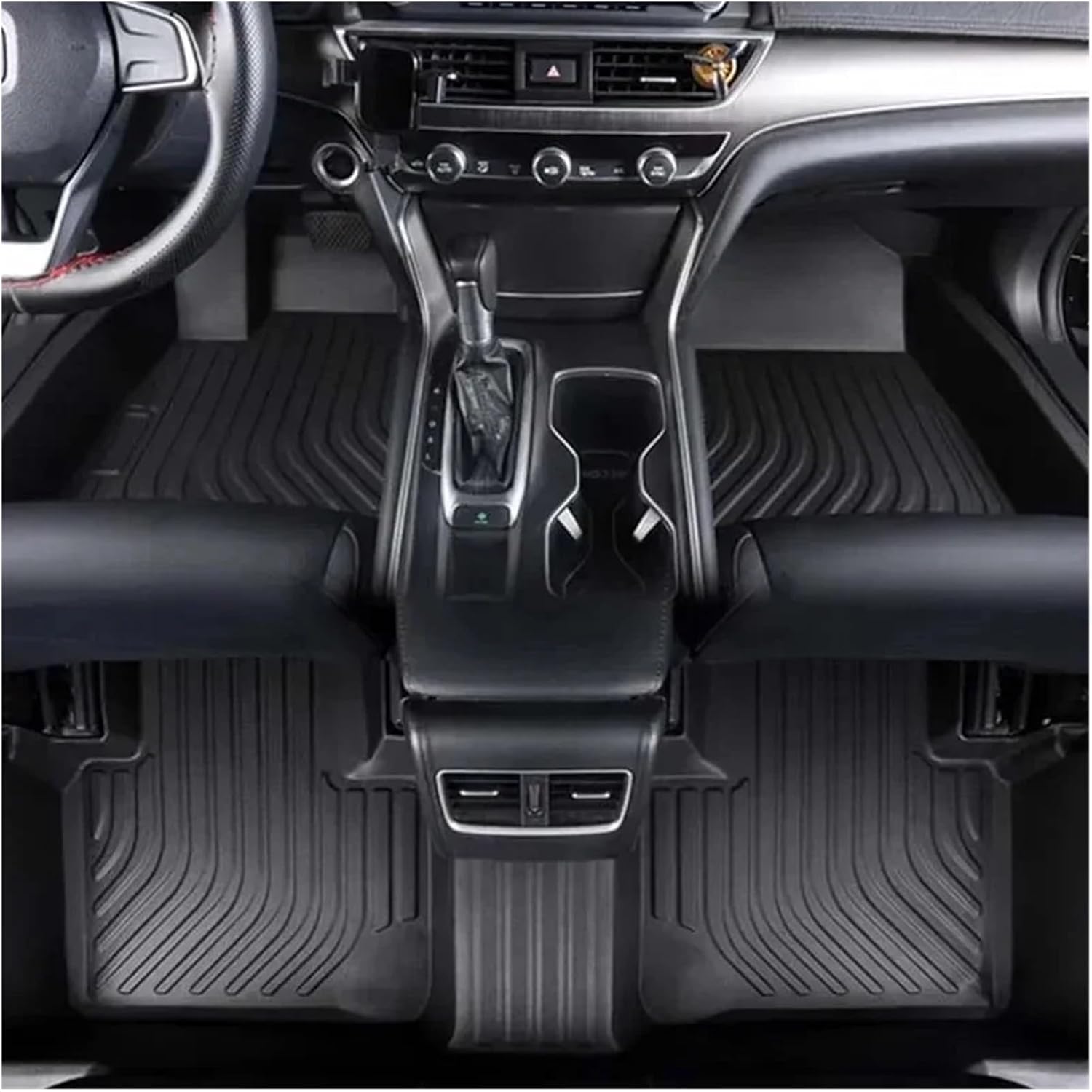

Image: Front and rear car floor mats properly installed in a vehicle, showing full coverage and precise fit around the center console.

Image: An illustration depicting a red car alongside the three distinct pieces of the floor mat set (driver, passenger, and rear), highlighting the TPE material, waterproof, and anti-scratch properties.

4. Operating and Usage

Once installed, your LHD Car Floor Mats require no special operation. They are designed to provide continuous protection and comfort during your drives.

• Ensure the mats remain securely in place and do not interfere with the operation of the accelerator, brake, or clutch pedals. The design accounts for these critical areas to prevent obstruction.
• The anti-slip surface of the mats is intended to increase friction with your footwear, reducing the risk of your feet slipping while driving.
• Regularly check the mats for any debris or objects that might accumulate and potentially interfere with pedal operation.

Image: A visual comparison demonstrating the integrated molding of the rear axle crossing non-slip mat, showing how it embeds into the original car floor for a neat edge fit and prevents getting stuck on the train track.

5. Maintenance and Care

Maintaining your car floor mats is simple and helps prolong their lifespan and keep your car's interior clean.

5.1 Cleaning Instructions

1. Remove the floor mats from your vehicle.
2. For light dirt, wipe the mats with a damp cloth.
3. For heavier dirt or spills, the mats can be rinsed directly with water. They are waterproof and designed for quick cleaning.
4. After washing, wipe the mats dry immediately or allow them to air dry completely before placing them back in the vehicle.

Image: A car floor mat submerged partially in water, illustrating its waterproof design and ease of cleaning by flushing. The image emphasizes quick cleanup and immediate drying.

5.2 Restoring Mat Shape

Due to the product's 3D model design and packaging for shipping, the mats may arrive with creases. These can be easily restored:

• Hot Water Method: Pour hot water over the creased areas of the mat. The heat will help the TPE material regain its original shape.
• Hot Air Blower Method: Use a hot air blower (like a hairdryer) on the creased sections. Apply heat evenly until the material softens and the creases disappear.
• Allow the mats to cool and set in their desired shape before re-installing them in your vehicle.

6. Troubleshooting

This section addresses common concerns you might encounter with your car floor mats.

6.1 Creases from Packaging

Issue: The floor mats have creases or are not perfectly flat upon arrival.

Solution: This is normal due to packaging for shipping. Refer to section 5.2 "Restoring Mat Shape" for detailed instructions on how to use hot water or a hot air blower to restore the mats to their intended form.

6.2 Mat Shifting or Improper Fit

Issue: The mats do not seem to fit correctly or shift during use.

Solution: Ensure the mats are correctly positioned according to the vehicle's floor contours. The mats are custom-scanned for Hyundai i30 FD GD (2009-2015) models. If creases are present, address them first as they can affect fit. Verify that no obstructions (like old mats or large debris) are preventing a proper fit. If the issue persists, double-check your vehicle's model and year compatibility.

Image: A side-by-side comparison illustrating the durability of TPE foot pads. On the left, an ordinary mat is damaged by a high heel, while on the right, the TPE mat shows resistance to wear and tear from a high heel.

6.3 Odor or Bacteria Buildup

Issue: The mats develop an unpleasant odor or show signs of bacterial growth.

Solution: The TPE material is designed to resist bacteria and odors. Ensure regular cleaning as described in section 5.1. If odors persist, a thorough cleaning with a mild automotive interior cleaner and complete drying in a well-ventilated area should resolve the issue.
