48V E-Bike Lithium Ion Battery Pack User Manual

1. Introduction

Thank you for choosing the Generic 48V 15Ah E-Bike Lithium Ion Battery Pack. This manual provides essential information for the safe and efficient use, setup, operation, and maintenance of your new battery. Please read this manual thoroughly before using the product and retain it for future reference.

2. Safety Information

Lithium-ion batteries require careful handling. Adhere to the following safety precautions to prevent injury or damage:

• Do not disassemble, puncture, or modify the battery pack.
• Avoid exposing the battery to extreme temperatures, direct sunlight, or fire.
• Use only the provided 54.6V 2A charger. Using an incompatible charger can cause damage or fire.
• Keep the battery away from water and moisture.
• Do not short-circuit the battery terminals.
• Store the battery in a cool, dry place when not in use.
• If the battery emits an unusual odor, heat, or changes shape, discontinue use immediately and contact support.
• Keep out of reach of children.

3. Package Contents

Verify that all items are present in the package:

• 1 x 48V 15Ah E-Bike Lithium Ion Battery Pack
• 1 x 54.6V 2A Charger

Image 1: The 48V 15Ah E-Bike Lithium Ion Battery Pack shown alongside its dedicated 54.6V 2A charger.

4. Setup

4.1 Initial Charging

1. Connect the charger to a standard AC power outlet. The charger's indicator light should illuminate.
2. Connect the charger's output plug to the charging port on the battery pack.
3. Allow the battery to charge completely. The charging time is approximately 4-6 hours. The charger indicator light will typically change color (e.g., from red to green) when fully charged.
4. Once fully charged, disconnect the charger from the battery, then from the AC outlet.

4.2 Installation on E-Bike

The battery pack is designed to be removable and fits most bicycle frames. Secure the battery pack firmly to your e-bike frame using appropriate mounting hardware (not included, as specific bike frames vary). Ensure the battery is stable and does not shift during operation.

4.3 Connecting to Motor

Connect the XT60 connector from the battery pack to the corresponding XT60 connector on your e-bike motor system. Ensure a secure and tight connection to prevent power interruptions.

5. Operating

5.1 Charging Procedures

Always use the provided 54.6V 2A charger. Charge the battery in a well-ventilated area, away from flammable materials. Do not leave the battery unattended during charging, especially for extended periods beyond the recommended charging time.

5.2 Discharging and Usage

The battery is compatible with motor kits under 500W. Exceeding this power rating may reduce battery life or cause damage. Monitor your e-bike's battery level indicator during use to avoid deep discharge, which can negatively impact battery longevity.

5.3 Smart BMS System

The integrated Smart Battery Management System (BMS) provides multiple layers of protection to ensure safe and reliable operation. These protections include:

• Balance Function: Ensures cells are charged and discharged evenly.
• Overvoltage Protection: Prevents overcharging beyond safe voltage levels.
• Overcharge Protection: Stops charging once the battery reaches full capacity.
• Over Discharge Protection: Prevents the battery from discharging below a safe minimum voltage.
• Overcurrent Protection: Safeguards against excessive current draw.
• Short Circuit Protection: Automatically cuts off power in case of a short circuit.
• Temperature Protection: Monitors and regulates battery temperature to prevent overheating.
• Anti-Reverse Charging: Prevents current from flowing in the wrong direction.

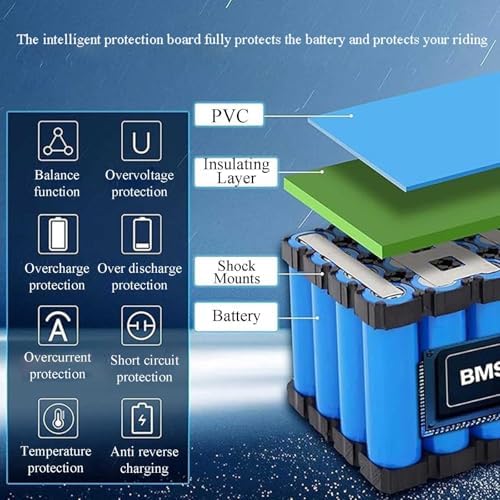

Image 2: An illustrative diagram detailing the internal structure of the battery pack, highlighting the PVC casing, insulating layer, shock mounts, individual battery cells, and the various protective functions provided by the integrated BMS.

Image 3: A visual representation of the Battery Management System (BMS) chip, emphasizing its role in intelligent battery protection.

6. Maintenance

6.1 Storage

For long-term storage, charge the battery to approximately 50-60% of its capacity. Store the battery in a cool, dry place with a temperature between -20℃ to 40℃ (-4℉ to 104℉). Avoid storing in direct sunlight or extreme heat/cold. Recharge the battery every 3 months to maintain its charge level and prevent deep discharge.

6.2 Cleaning

Wipe the battery pack with a dry or slightly damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure the charging port and connectors are clean and free of debris.

6.3 Lifespan

The battery is designed for a long lifespan, with an estimated service time of about 1100 charge cycles under optimal conditions. Proper charging, discharging, and storage practices contribute significantly to maximizing battery life.

7. Troubleshooting

• Battery not charging:
  • Ensure the charger is properly connected to both the power outlet and the battery.
  • Verify the power outlet is functional.
  • Check the charger's indicator light. If it does not illuminate, the charger may be faulty.
• Battery not powering e-bike:
  • Ensure the battery is fully charged.
  • Check that the XT60 connector is securely attached to the e-bike motor system.
  • Verify that the e-bike's power switch is in the 'ON' position.
  • If the BMS has activated a protection mode (e.g., due to over-discharge), the battery may need to be recharged to reset.
• Unusual heat or odor:
  • Immediately disconnect the battery from the e-bike and charger.
  • Move the battery to a safe, non-flammable area.
  • Do not attempt to use or charge the battery. Contact customer support.

If troubleshooting steps do not resolve the issue, please contact customer support for further assistance.

8. Specifications

9. Warranty and Support

For warranty information and customer support, please refer to the documentation provided at the time of purchase or contact the retailer/manufacturer directly. Ensure you have your purchase details and product model number (A-1) available when seeking support.
