Blue Star PC3060SS Water Cooler Instruction Manual

Introduction

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Blue Star PC3060SS Water Cooler. Please read these instructions carefully before using the appliance and retain them for future reference.

The Blue Star PC3060SS is a robust and efficient water cooler designed to provide both plain and cold drinking water. Constructed with a fully stainless steel body, it is suitable for various environments such as offices, schools, and healthcare facilities. This model features a 60-litre storage capacity and a cooling capacity of 30 litres per hour.

Safety Precautions

• Ensure the water cooler is installed on a stable, level surface.
• Do not operate the appliance with a damaged power cord or plug.
• Keep the appliance away from direct sunlight and heat sources.
• Ensure proper ventilation around the unit. Do not block air vents.
• Only use potable water with this appliance.
• Unplug the unit before cleaning or performing any maintenance.
• Do not allow children to operate the water cooler unsupervised.

Package Contents

Upon unpacking, verify that the following items are included:

• 1 x Blue Star PC3060SS Water Cooler Unit
• 1 x Instruction Manual

Setup and Installation

Professional installation is recommended for optimal performance and safety. Please note that installation charges may apply as per actuals on site.

1. Placement

• Choose a location with a firm, level surface capable of supporting the unit's weight (approximately 47 kg when empty, more when full).
• Ensure adequate clearance around the unit for ventilation, especially at the rear where the condenser coils are located.
• Avoid placing the unit in direct sunlight or near heat-emitting appliances.

2. Water Connection

• Connect the water inlet to a potable water supply. The operating range for inlet water pressure is 1.4 psi to 18 psi (0.01 bar to 1.25 bar).
• Connect the ½ BSP overflow connection to a suitable drainage system to prevent water accumulation.
• Ensure all connections are secure and leak-free.

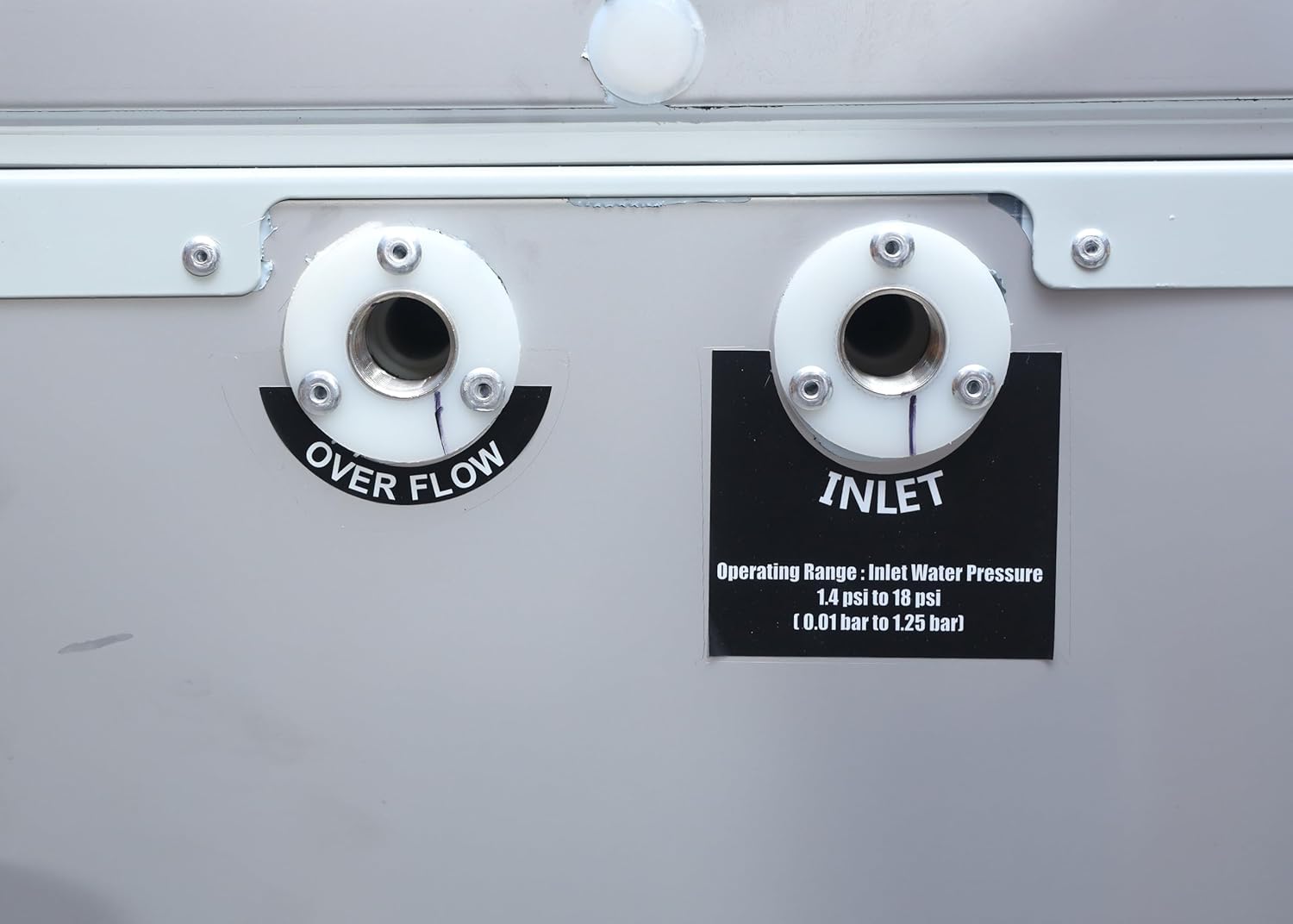

Image: Rear view showing the water inlet and overflow connections. The inlet specifies an operating water pressure range of 1.4 to 18 psi.

3. Power Connection

• Ensure the power supply matches the unit's requirements: 230V/50Hz/1Ph.
• Plug the power cord into a grounded electrical outlet.
• Do not use extension cords or adapters.

Image: Rear view of the water cooler, highlighting the power cord and plug for electrical connection.

Operating Instructions

1. Initial Start-up

• After connecting water and power, allow the unit to stand for at least 30 minutes before turning it on. This allows the refrigerant to settle.
• Turn on the main power switch, usually located at the back or side of the unit.
• Allow several hours for the water to cool to the desired temperature.

2. Dispensing Water

Image: Detail of the dual faucet system, showing the 'PLAIN WATER' tap on the left and the 'COLD WATER' tap on the right, above the drip tray.

• Place a glass or container under the desired tap.
• To dispense plain (uncooled) water, use the tap labeled "PLAIN WATER".
• To dispense cold water, use the tap labeled "COLD WATER".
• Push the tap lever to dispense water and release to stop.

Maintenance

Regular maintenance ensures the longevity and hygienic operation of your water cooler.

1. Cleaning the Exterior

• Unplug the unit from the power outlet before cleaning.
• Wipe the stainless steel exterior with a soft, damp cloth and a mild, non-abrasive cleaner.
• Dry thoroughly with a clean cloth.
• Do not use harsh chemicals, abrasive pads, or steel wool, as these can damage the finish.

2. Cleaning the Water Tank and Taps

Image: Front view of the water cooler with its top lid open, providing access to the internal water tank for cleaning and maintenance.

• The unit features an openable lid with a locking mechanism for easy access to the water tank for cleaning.
• Drain all water from the tank before cleaning.
• Clean the interior of the tank with a food-grade cleaning solution and a soft brush. Rinse thoroughly with clean water multiple times to remove all cleaning agent residue.
• Clean the taps and drip tray regularly to prevent bacterial growth and mineral buildup. The extra-large stainless steel water tray is designed for rapid drainage.
• It is recommended to clean the internal components at least once every 3-6 months, or more frequently depending on usage and water quality.

3. Condenser Coil Cleaning

• Periodically clean the condenser coils located at the rear of the unit.
• Use a soft brush or vacuum cleaner to remove dust and debris. This improves cooling efficiency and extends the life of the compressor.

Troubleshooting

Before contacting customer service, please refer to the following troubleshooting guide:

Specifications

Warranty Information

Your Blue Star PC3060SS Water Cooler comes with a 1-year comprehensive manufacturer warranty from the date of purchase. This warranty covers manufacturing defects and ensures reliable operation under normal use conditions.

For warranty claims or service, please retain your purchase receipt and contact Blue Star customer support.

Customer Support

If you encounter any issues not covered in the troubleshooting section or require further assistance, please contact Blue Star customer support.

For the most up-to-date contact information, please visit the official Blue Star website or refer to the contact details provided with your purchase documentation.

Note: Installation charges are separate and applied as per actuals on site.
