Ardaddyn 4-in-1 Multi-Port Card Reader Instruction Manual

1. Introduction

This manual provides comprehensive instructions for the Ardaddyn 4-in-1 Multi-Port Card Reader, Model AP555-C. This versatile device is designed to facilitate high-speed data transfer between various memory card types and a wide range of devices, including iPhones, iPads, PCs, and Android phones, utilizing Lightning, USB-C, and USB-A connections. Please read this manual carefully before using the product to ensure proper operation and to maximize its functionality.

2. Product Features

• 3-in-1 Multi-Port Design: Equipped with Lightning, USB-C, and USB-A ports for broad compatibility with various devices and operating systems, including iOS, Android, Windows, Mac OS, Chrome OS, and Linux.
• 4-in-1 Multi-Card Support: Features dedicated slots for SD, TF (MicroSD), MS (Memory Stick Pro Duo, Memory Stick Pro-HG, Memory Stick Duo), and XD (xD-Picture Card) memory card types.
• High-Speed Data Transfer: Supports data transfer speeds up to 480Mbps, ideal for handling large media files such as photos and videos. Note that actual speeds may vary depending on the connected device and card.
• Driver-Free Operation: Offers plug-and-play functionality, eliminating the need for additional driver installations for a seamless user experience.
• Compact and Portable: Designed for convenience, its lightweight and compact form factor makes it easy to carry for on-the-go file transfers and office use.

3. Package Contents

• 1 x Ardaddyn 4-in-1 Multi-Port Card Reader (Model AP555-C)

4. Setup

The Ardaddyn 4-in-1 Multi-Port Card Reader is designed for simple plug-and-play operation. No software or drivers are required for installation.

1. Identify the appropriate connector on the card reader for your device (Lightning for iPhones/iPads, USB-C for newer iPhones/iPads/Android/PC, or USB-A for PCs/Laptops).
2. Connect the chosen connector to your host device's port.
3. Insert your memory card into the corresponding slot on the card reader. Ensure the card is inserted correctly and fully seated.

Image: The card reader showing its Lightning, USB-C, and USB-A ports for connecting to various devices.

Image: Detailed view of the card reader's four slots, indicating compatibility with XD, MS, SD, and TF card types. Important: Only one card can be read at a time.

5. Operating Instructions

Once connected, your device should automatically recognize the card reader as external storage. You can then access and manage files on the inserted memory card.

5.1. General File Transfer

• After inserting a memory card and connecting the reader to your device, navigate to your device's file manager or photo application.
• Locate the external storage device (often labeled as "USB Storage" or similar).
• You can now copy, move, or delete files between your memory card and your device.

Image: The card reader connected to a laptop, demonstrating high-speed data transfer capabilities.

5.2. Using with iOS Devices (iPhone/iPad)

The functionality for iOS devices varies slightly depending on the iOS version:

• For iOS 9.2 - iOS 12.4: Supports one-way import of photos and videos to Apple mobile devices. It does not support reading office software files (e.g., Word, Excel) or USB mouse operations.
• For iOS 13 and later: Supports two-way import of photos and videos. It also supports reading office software files and full-featured OTG functions, including USB mouse operation.

Image: Step-by-step guide for transferring files on iOS devices, showing navigation through the Files app, selecting SD Card, using the Share button, and saving images.

Image: Visual representation of the different functionalities of the card reader with older (iOS 9.2-12.4) versus newer (iOS 13 and later) iOS versions.

5.3. Using with Android Devices

For Android devices, the card reader will appear as a USB storage device in your file manager.

Image: Step-by-step guide for transferring files on Android devices, showing navigation through the Files app, selecting USB storage, copying, and pasting files.

When some Android phones are connected for the first time, a format mismatch prompt may appear, requiring the "U disk" (card reader) to be formatted. After formatting, it can be used normally, and this operation will not be required again.

5.4. Using with Digital Cameras

The card reader allows you to directly transfer photos and videos from your digital camera's memory card to your smartphone, tablet, or computer.

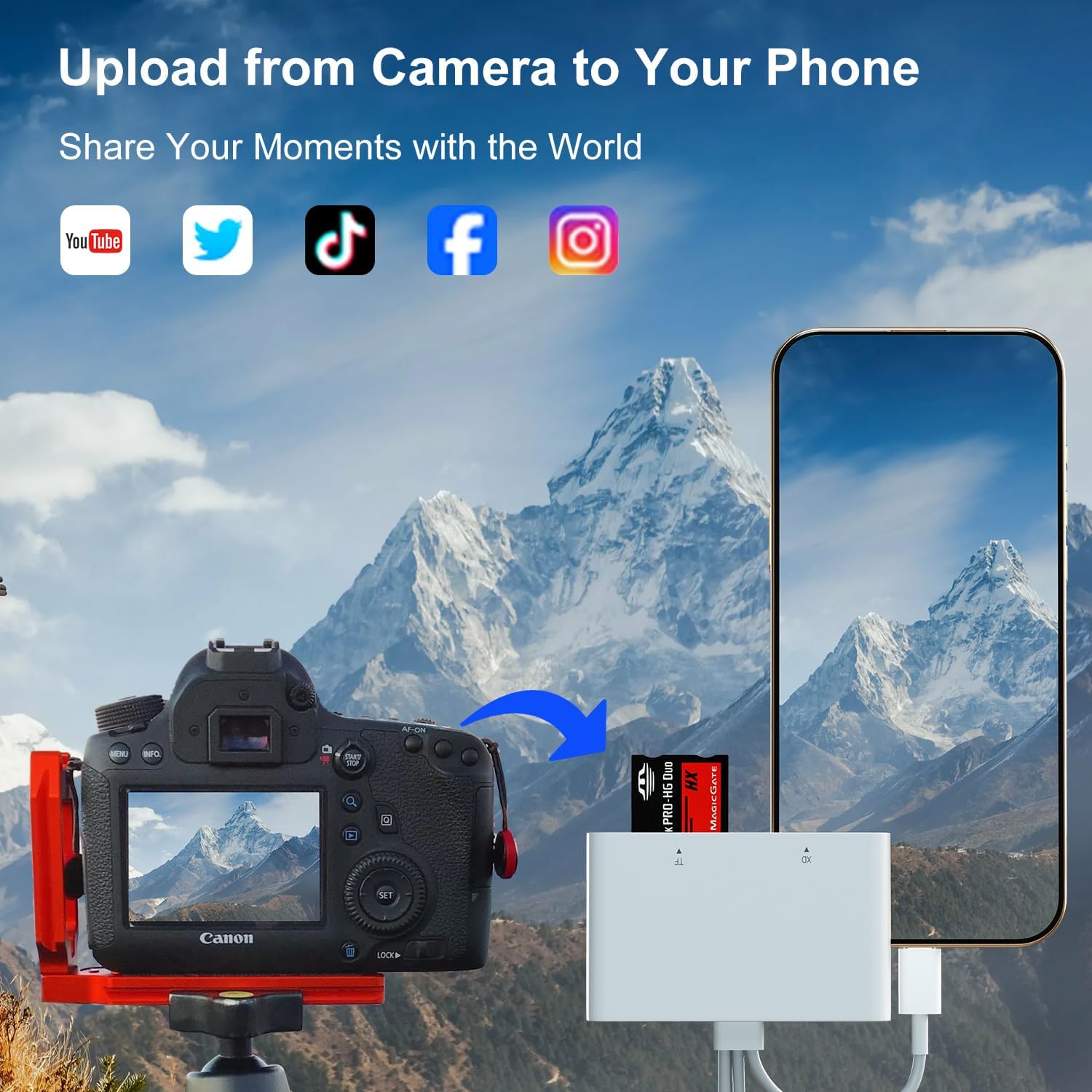

Image: A digital camera connected to a smartphone via the card reader, illustrating the process of uploading photos from the camera to the phone.

6. Maintenance

• Keep the card reader clean and free from dust and debris. Use a soft, dry cloth for cleaning.
• Avoid exposing the device to extreme temperatures, humidity, or direct sunlight.
• Do not attempt to disassemble or repair the device yourself. Contact support if issues arise.
• Ensure memory cards are inserted and removed carefully to prevent damage to the card slots.

7. Troubleshooting

• Card Not Recognized: Ensure the memory card is correctly inserted into its designated slot. If the issue persists, unplug the card reader and memory card, then reconnect them.
• Files Not Transferring: Verify that the card is properly inserted and the card reader is securely connected to your device. For Android devices, if a "format mismatch" prompt appears on first use, format the "U disk" as instructed. This is a one-time operation.
• Slow Transfer Speed: While the device supports up to 480Mbps, actual speeds can vary based on the memory card's speed, the host device's capabilities, and the file sizes. Ensure your memory card is not damaged.
• Device Not Detecting Reader: Try connecting the card reader to a different port or a different compatible device to rule out port or device-specific issues.

8. Specifications

9. Official Product Video

10. Warranty and Support

This Ardaddyn product comes with a 1-year warranty from the date of purchase.

For technical support, warranty claims, or any questions regarding the product, please contact Ardaddyn customer service through the retailer's platform or the manufacturer's official website. Please have your purchase receipt and product model number (AP555-C) ready when contacting support.
