Samoser Refrigerator Crisper Drawer Pan Instruction Manual

1. Introduction

This instruction manual provides essential information for the proper installation, usage, and maintenance of your Samoser Refrigerator Crisper Drawer Pan. Please read this manual thoroughly before use to ensure optimal performance and longevity of the product.

2. Product Overview

The Samoser Refrigerator Crisper Drawer Pan is a replacement component designed to fit specific Kenmore refrigerator models. It is constructed from clear, durable plastic, providing a dedicated space for storing fruits and vegetables to help maintain their freshness.

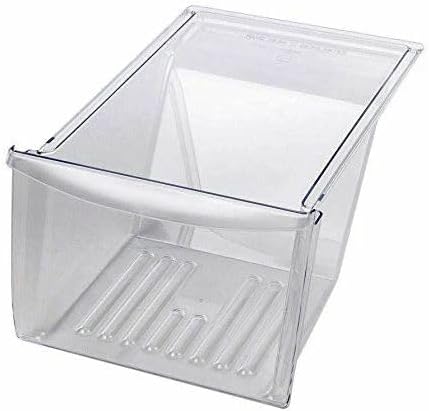

Figure 2.1: Main view of the Samoser Refrigerator Crisper Drawer Pan. This image shows the clear plastic construction and general shape of the drawer, designed to slide into a refrigerator compartment.

Figure 2.2: Front view of the crisper drawer pan. This perspective highlights the handle area and the overall width of the drawer.

Figure 2.3: Angled view of the crisper drawer pan. This image provides a perspective that illustrates the depth and side profile of the drawer.

3. Compatibility

This crisper drawer pan is an aftermarket replacement part compatible with various Kenmore, Frigidaire, Crosley, and Westinghouse refrigerator models. Please verify your refrigerator's model number to ensure proper fitment.

Compatible Kenmore Refrigerator Models:

• 253.60413715, 253.60413716, 253.60413717, 253.60419410, 253.60419411
• 253.60419412, 253.60419413, 253.60419414, 253.60419610, 253.60419611
• 253.60419612, 253.60419613, 253.60419614, 253.60419616, 253.60419617
• 253.60419619, 253.6041961A, 253.6041961C, 253.6041961D, 253.6041961E
• 253.60502410, 253.60502411, 253.60502412, 253.60502413, 253.60502414
• 253.60502610, 253.60502611, 253.60502612, 253.60502613, 253.60502614
• 253.60502616, 253.60502617, 253.60502619, 253.6050261A, 253.6050261B
• 253.6050261D, 253.60503410, 253.60503411, 253.60503412, 253.60503413
• 253.60504410, 253.60504411, 253.60504412, 253.60504413, 253.60504414
• 253.60504610, 253.60504611, 253.60504612, 253.60504613, 253.60504614
• 253.60504616, 253.60504617, 253.60505510, 253.60505511, 253.60505512
• 253.60505610, 253.60505611, 253.60505612, 253.60505613, 253.60505614
• 253.60505616, 253.60505617, 253.60505618, 253.60505619, 253.60509410
• 253.60509411, 253.60509412, 253.60509413, 253.60509414, 253.60509610
• 253.60509611, 253.60509612, 253.60509613, 253.60509614, 253.60509616
• 253.60509618, 253.60509619, 253.6050961A, 253.60602410, 253.60602411
• 253.60602412, 253.60602413, 253.60602414, 253.60602415, 253.60602416
• 253.60603410, 253.60603411, 253.60603412, 253.60603413, 253.60603414
• 253.60603415, 253.60603416, 253.60604410, 253.60604411, 253.60604412
• 253.60604413, 253.60604414, 253.60604415, 253.60604416, 253.60609410
• 253.60609411, 253.60609412, 253.60609413, 253.60609414, 253.60609415
• 253.60609416, 253.60812710, 253.60813710, 253.60819710, 253.61821010
• 253.61821011, 253.61821013, 253.61821014

To confirm compatibility, locate your refrigerator's model number, typically found on a label inside the refrigerator compartment. You can use the "Ctrl + F" (or "Command + F" on Mac) function on this page to search for your specific model number within the provided list.

4. Setup and Installation

Installing the crisper drawer pan is a straightforward process.

1. Remove Old Drawer (if applicable): If replacing an existing crisper drawer, gently pull the old drawer out until it stops, then lift the front slightly and pull it completely out of the refrigerator rails.
2. Clean Area: Wipe down the crisper drawer compartment and rails inside your refrigerator to ensure a clean installation.
3. Insert New Drawer: Align the new Samoser crisper drawer pan with the designated rails in your refrigerator.
4. Slide into Place: Gently push the drawer inward until it slides smoothly and securely into its position. Ensure it moves freely without obstruction.

5. Operating and Usage

The crisper drawer is designed to help preserve the freshness of your produce.

• Storage: Place fruits and vegetables directly into the crisper pan.
• Humidity Control (if applicable): If your refrigerator model includes a humidity control slider on the crisper compartment, adjust it according to the type of produce stored. Higher humidity is generally for leafy greens, while lower humidity is for fruits.
• Access: Pull the drawer out to access contents and push it back in to close.

6. Maintenance and Cleaning

Regular cleaning will help maintain hygiene and extend the life of your crisper drawer pan.

1. Removal: Gently pull the crisper drawer pan out of its compartment.
2. Washing: Wash the drawer with warm, soapy water. A mild dish soap is recommended.
3. Rinsing: Rinse thoroughly with clean water to remove all soap residue.
4. Drying: Dry the crisper pan completely with a soft cloth or allow it to air dry before returning it to the refrigerator.
5. Do Not Use: Avoid using abrasive cleaners, scouring pads, or harsh chemicals, as these can scratch or damage the plastic.

7. Troubleshooting

If you encounter issues with your crisper drawer pan, consider the following:

• Drawer Does Not Fit: Double-check your refrigerator's model number against the compatibility list in Section 3. Ensure the drawer is aligned correctly with the rails. If the model number matches and it still does not fit, contact customer support.
• Drawer Sticks or Is Difficult to Move: Ensure the rails are clean and free of debris. Check for any items obstructing the drawer's path.

8. Specifications

9. Support

If you have questions regarding product compatibility, installation, or any other concerns, please contact the seller for assistance. They are available to help resolve your problem within 24 hours.

For general inquiries or to report an issue, please refer to the contact information provided by your retailer or on the product packaging.
