ElfinAura 6x6 FT Outdoor Cycle Storage Shelter Instruction Manual

Introduction

Thank you for choosing the ElfinAura 6x6 FT Outdoor Cycle Storage Shelter. This manual provides essential information for the safe assembly, operation, and maintenance of your new storage shelter. Please read these instructions carefully before beginning assembly and retain them for future reference.

This portable storage shelter is designed to provide protection for motorcycles, ATVs, bicycles, firewood, and tools from various weather conditions. It features a robust, rust-resistant metal frame and a durable 220 gsm PE tarp that is waterproof, anti-UV, and anti-snow.

Safety Information

• Always assemble the shelter on a level, stable surface.
• Ensure all connections are securely fastened before use.
• Do not use the shelter in extreme wind conditions without additional anchoring.
• Keep children and pets away from the assembly area.
• Regularly inspect the shelter for any damage or wear, especially after severe weather.
• Do not hang heavy objects from the frame.

Package Contents

Before assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.

• Metal Frame Components (various pipes and connectors)
• PE Tarp Cover
• Bungee Balls
• Base Plates
• Roller Blind Buckles
• Assembly Instructions

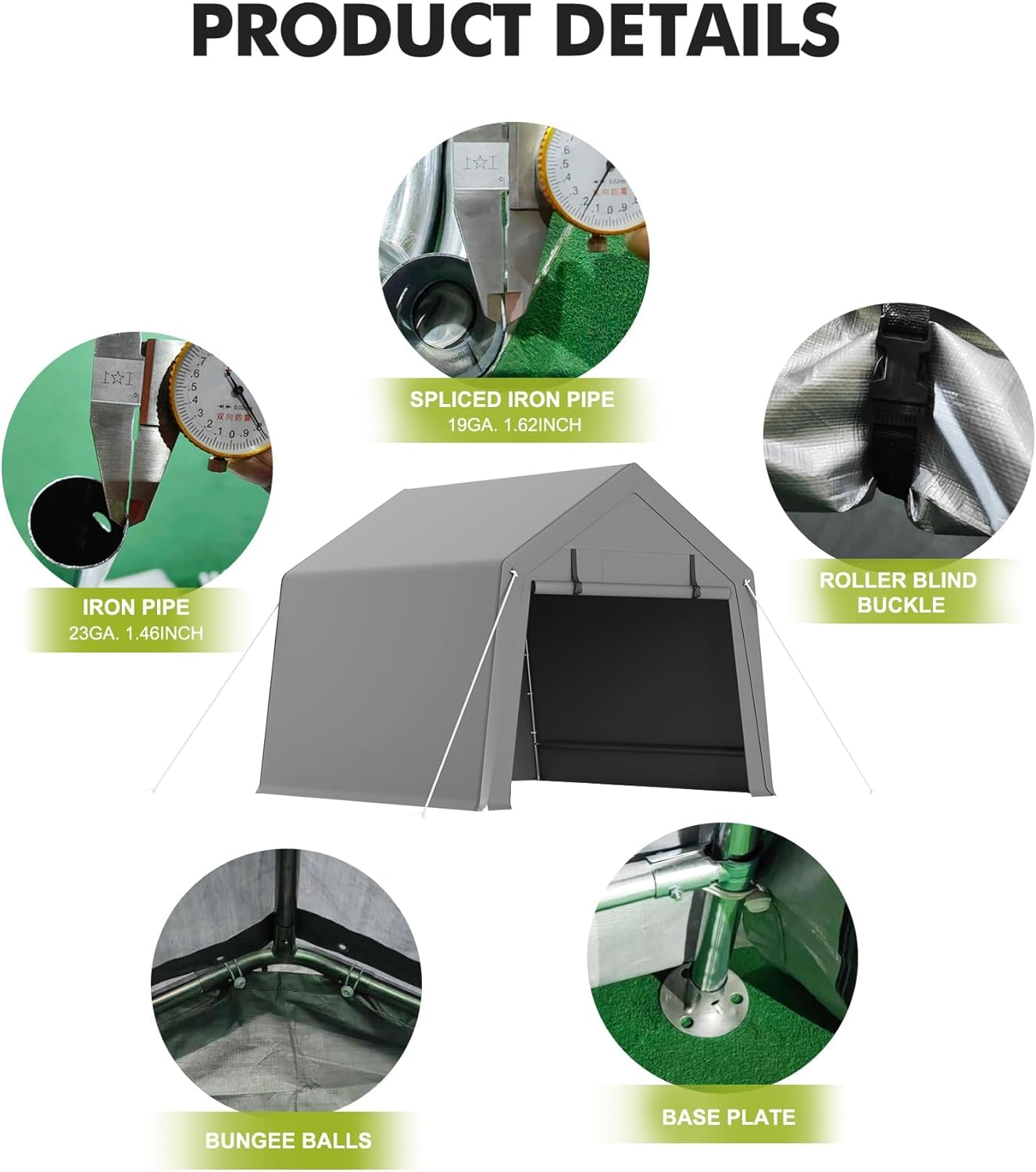

Image: Product Components. This image illustrates key components of the shelter, including the spliced iron pipes (19GA, 1.62 inch), iron pipes (23GA, 1.46 inch), roller blind buckles, bungee balls, and base plates, which are essential for assembly and securing the structure.

Setup and Assembly

Assembly of the ElfinAura storage shelter is designed to be straightforward and can typically be completed by one person in under an hour. No additional specialized tools are required beyond what may be included or commonly available.

1. Step 1: Assemble the Roof Frame. Begin by connecting the roof frame pipes according to the provided diagram. Ensure all connections are snug.
2. Step 2: Assemble the Side Frames. Attach the vertical support pipes to the roof frame, forming the basic structure of the shelter.
3. Step 3: Attach the Tarp Cover. Drape the PE tarp over the assembled frame. Ensure it is centered and aligned correctly.
4. Step 4: Secure the Tarp and Base. Use the bungee balls to secure the tarp to the frame. Attach the base plates to the bottom of the vertical supports for stability and anchoring.

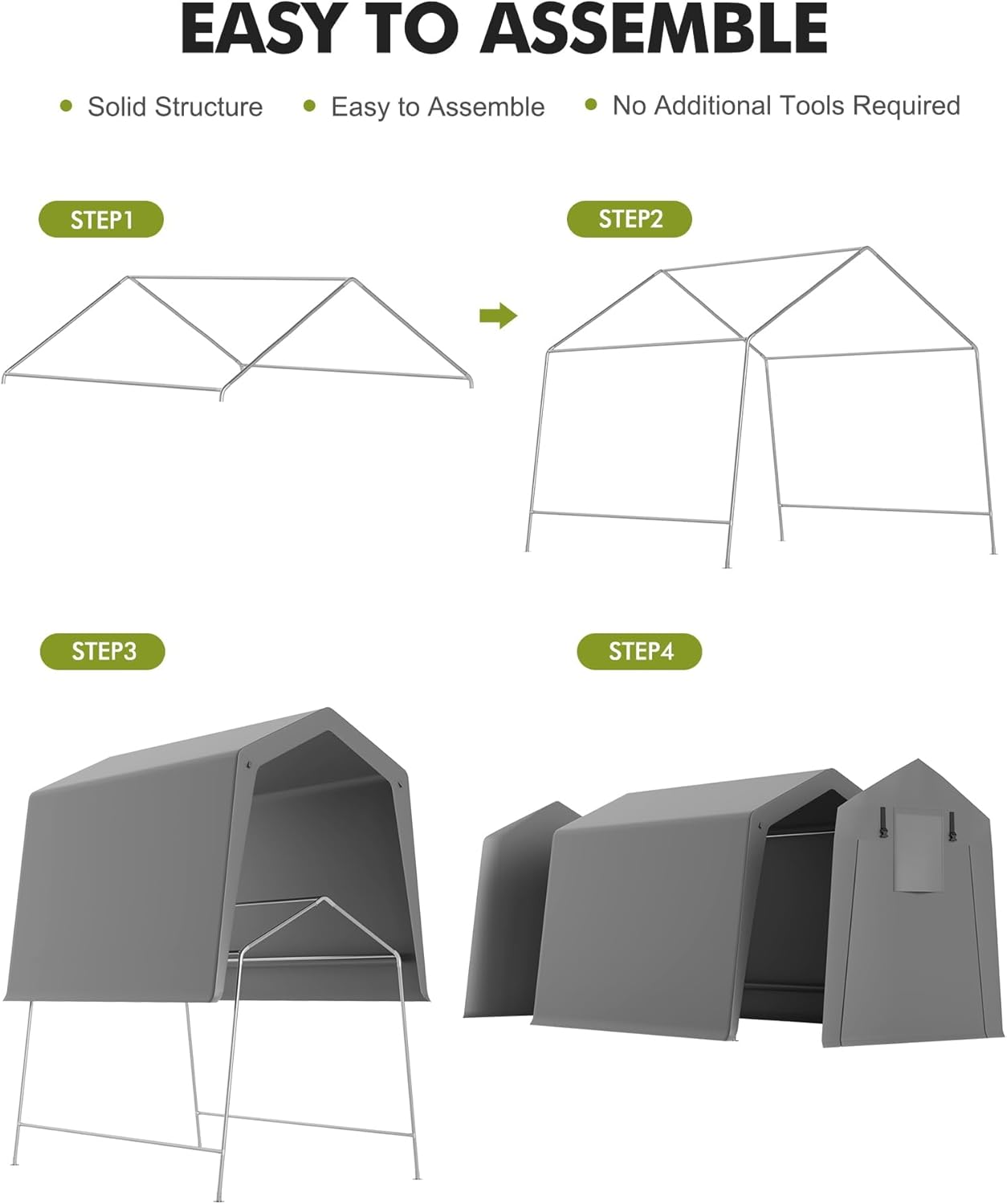

Image: Assembly Steps. This diagram illustrates the four main steps for assembling the shelter: first, constructing the roof frame; second, adding the vertical supports; third, placing the tarp over the frame; and fourth, securing the tarp and base.

For optimal stability, ensure the shelter is anchored to the ground using appropriate stakes or weights (not included) through the base plates, especially in windy conditions.

Operating Instructions

Roll-Up Door Operation

The shelter features a roll-up zipper door for easy access. To open, unzip the door completely. Use the integrated roller blind buckles and straps to secure the rolled-up door at the top, keeping the entrance clear. To close, unfasten the buckles, unroll the door, and zip it securely.

Ventilation

The shelter is designed with vents to help prevent moisture buildup and deter pests. Ensure these vents are not obstructed to maintain proper air circulation within the shelter.

Image: Shelter in Use. This image displays the fully assembled storage shelter with its roll-up door open, revealing a motorcycle stored inside. It highlights the functional design for vehicle access and protection.

Maintenance

• Cleaning: Clean the PE tarp with mild soap and water. Avoid harsh chemicals or abrasive cleaners that could damage the material. Rinse thoroughly and allow to air dry completely before closing the shelter for extended periods.
• Frame Inspection: Periodically check all frame connections and bolts to ensure they remain tight. Tighten any loose fasteners. Inspect the metal frame for any signs of rust or damage.
• Tarp Inspection: Regularly inspect the tarp for tears, punctures, or excessive wear. Small tears can often be repaired with a suitable tarp repair kit to prevent further damage and maintain waterproofing.
• Winter Care: In areas with heavy snowfall, regularly clear snow from the roof to prevent excessive weight buildup, which could damage the frame or tarp.

Troubleshooting

Specifications

Image: Product Dimensions. This image provides a visual representation of the shelter's dimensions, indicating a length of 6 feet, a width of 6 feet, and a peak height of 7 feet.

Warranty and Support

For warranty information, technical support, or to order replacement parts, please contact ElfinAura customer service directly. Refer to your purchase documentation for specific contact details or visit the official ElfinAura website.
