Cazeboo KIT-000585
Cazeboo PIANA 3x2m Bioclimatic Pergola Instruction Manual
Model: KIT-000585
1. Introduction
This manual provides essential information for the safe and correct assembly, operation, and maintenance of your Cazeboo PIANA 3x2m self-supporting bioclimatic pergola. Please read these instructions thoroughly before beginning assembly or use, and retain them for future reference.
The Cazeboo PIANA pergola is designed to offer adjustable shade and protection from rain, enhancing your outdoor living space. Its bioclimatic louvers can be adjusted to control sunlight and ventilation, adapting to various weather conditions.

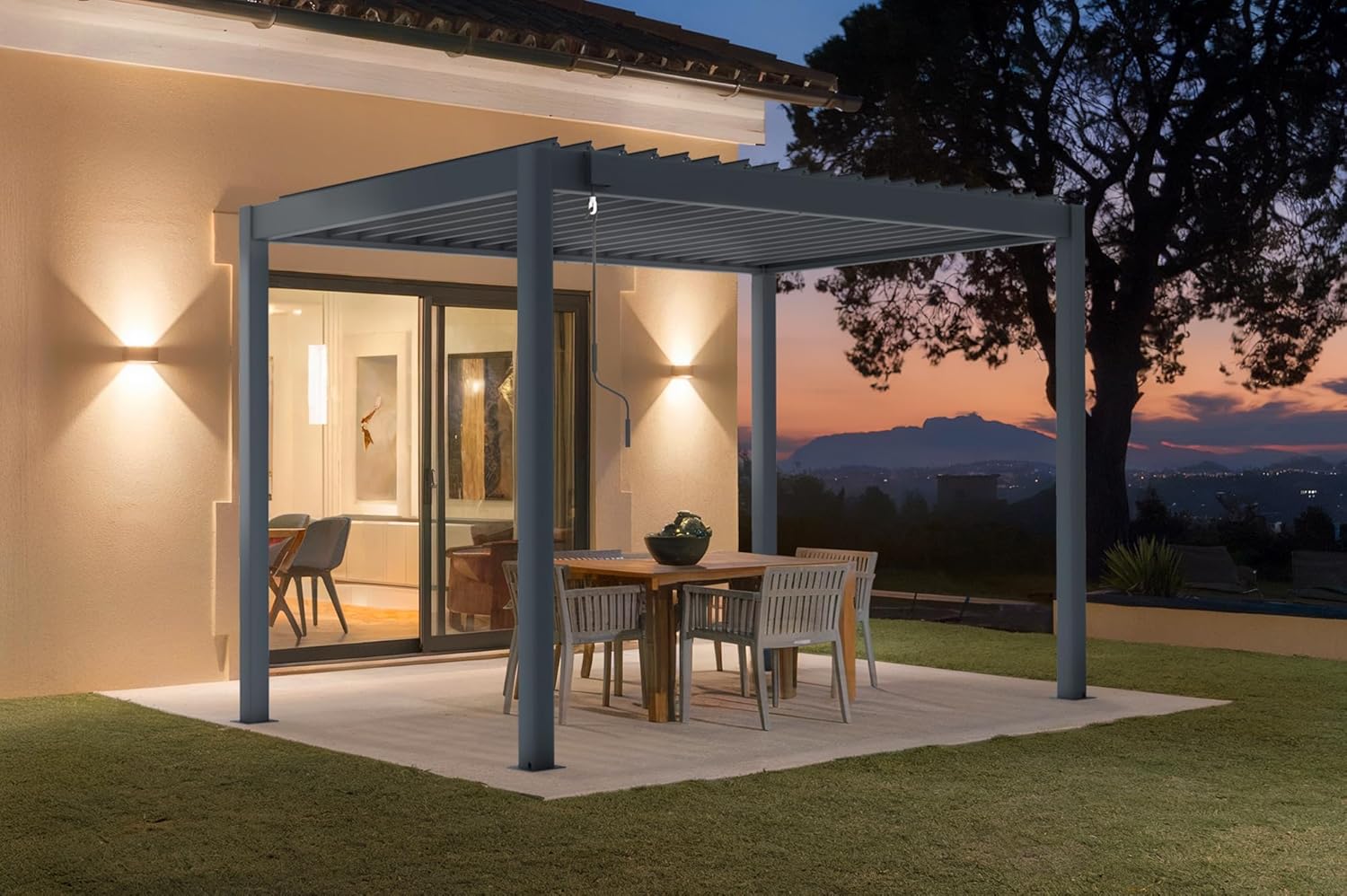

Image 1.1: The Cazeboo PIANA 3x2m Bioclimatic Pergola providing shade over an outdoor dining area.
Image 1.2: The Cazeboo PIANA 3x2m Bioclimatic Pergola enhancing a poolside area.
2. Safety Instructions
- Read all instructions: Ensure you understand all assembly and operating instructions before proceeding.
- Two-person assembly: Assembly typically requires at least two adults for safety and ease of installation.
- Use appropriate tools: Ensure you have all necessary tools as specified in the assembly section.
- Secure installation: The pergola must be securely anchored to a stable, level surface to prevent tipping or movement, especially in windy conditions.
- Inspect components: Before assembly, check all components for damage. Do not assemble if parts are damaged.
- Keep children and pets away: During assembly, keep children and pets at a safe distance from the work area.
- Weather conditions: Avoid assembling in strong winds or heavy rain.
- Weight limits: Do not hang heavy objects from the pergola structure or louvers.
3. Components and Dimensions
Before starting assembly, verify that all components listed below are present and undamaged. Refer to the diagram for visual identification and dimensions.
Image 3.1: Detailed technical diagram showing the pergola's overall dimensions, louver mechanism, and water drainage system.
Key Dimensions:
- Overall Length (L): Approximately 304 cm (3.04 meters)
- Overall Width (W): Approximately 196 cm (1.96 meters)
- Overall Height (H): Approximately 218 cm (2.18 meters)
- Louver Dimensions: 164 mm wide, 140 mm deep, 1.1 mm thick
- Post Dimensions: 90 mm x 90 mm
Main Components:
- Aluminum structure (posts and beams)
- Steel louvers (anthracite grey)
- Operating mechanism for louvers
- Specific accessories and hardware (screws, bolts, etc.)
- Anchoring hardware (x16, as shown in diagram)
4. Assembly Instructions
Follow these steps carefully for proper assembly. It is recommended to have at least two people for this process.
- Prepare the site: Choose a level and stable surface for installation. Clear the area of any obstructions.
- Unpack and identify parts: Carefully unpack all components and lay them out. Compare them with the components list and diagram (Image 3.1).
- Assemble the frame: Connect the horizontal beams to the vertical posts using the provided hardware. Ensure all connections are secure but do not fully tighten bolts until the frame is squared.
- Install the louvers: Attach the steel louvers to the frame according to the specific mechanism design. Ensure they are correctly oriented for proper operation.
- Attach the operating mechanism: Connect the crank or lever mechanism that controls the louver angle. Test its movement to ensure smooth operation.
- Square and tighten: Once the entire structure is assembled, ensure it is square and level. Then, fully tighten all bolts and screws.
- Anchor the pergola: Securely anchor the pergola posts to the ground using the provided anchoring hardware (e.g., 16 anchors as indicated in Image 3.1). This step is critical for stability and safety.
Image 4.1: Visual guide for key assembly steps, including frame construction and anchoring.
5. Operating Instructions
The Cazeboo PIANA pergola features adjustable bioclimatic louvers, allowing you to control sunlight, ventilation, and protection from rain.
Adjusting the Louvers:
- Locate the operating crank or lever, typically attached to one of the pergola posts (see Image 5.1).
- Turn the crank or move the lever to adjust the angle of the louvers.
- For sun protection: Adjust the louvers to a closed or partially closed position to block direct sunlight and create shade.
- For ventilation: Partially open the louvers to allow air circulation while still providing some shade.
- For rain protection: Close the louvers completely to form a waterproof roof. The integrated drainage system will channel rainwater away through the posts (see Image 5.2).

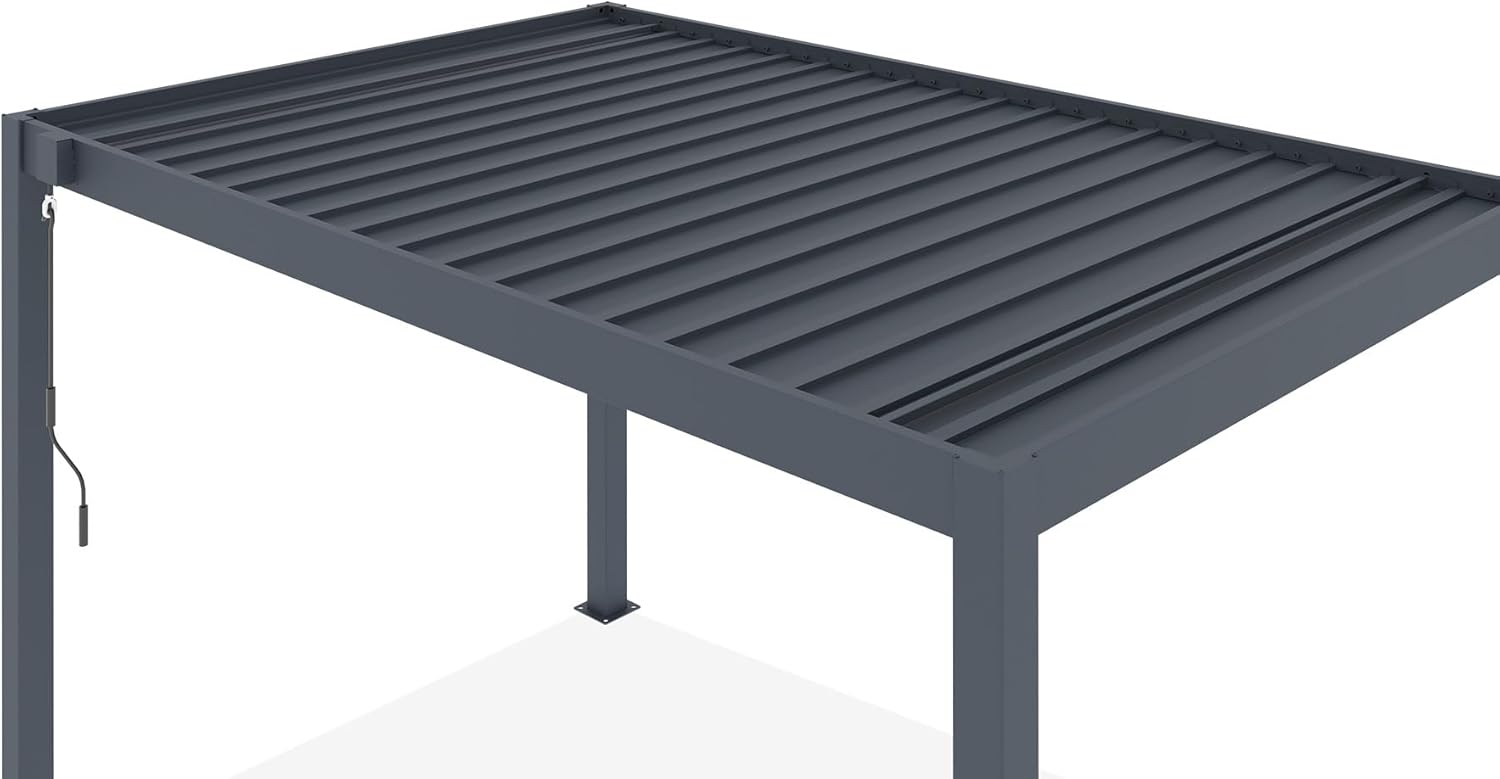

Image 5.1: Detail of the louver adjustment mechanism and the louvers in a partially open position.
Image 5.2: Illustration of how rainwater is collected by the closed louvers and drained through the pergola posts.
Important: In anticipation of heavy snowfall or strong winds, it is recommended to open the louvers to prevent excessive load on the structure.
6. Maintenance
Regular maintenance will help preserve the appearance and functionality of your pergola.
- Cleaning the aluminum structure: The aluminum frame can be cleaned with soapy water. Use a soft cloth or sponge to wipe down surfaces. Rinse thoroughly with clean water and dry to prevent water spots. Avoid abrasive cleaners or harsh chemicals.
- Cleaning the louvers: Clean the steel louvers similarly with soapy water and a soft cloth. Ensure any debris (leaves, dirt) is removed from the louver surfaces and the drainage channels to prevent blockages.
- Lubrication: Periodically check the louver operating mechanism. If movement becomes stiff, apply a silicone-based lubricant to moving parts as needed.
- Hardware inspection: Annually inspect all bolts, screws, and anchoring points for tightness. Re-tighten any loose fasteners to ensure structural integrity.
- Winter care: In areas with heavy snowfall, it is advisable to keep the louvers open to prevent snow accumulation, which can put excessive stress on the structure.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Louvers are difficult to open/close. | Debris in mechanism, lack of lubrication, loose fasteners. | Clean the mechanism, apply silicone lubricant, check and tighten fasteners. |
| Water pooling on louvers when closed. | Drainage channels blocked, louvers not fully closed. | Clear debris from drainage channels, ensure louvers are completely closed. |
| Pergola feels unstable. | Anchoring not secure, loose frame connections. | Check and re-secure all anchoring points. Tighten all frame bolts. Ensure installation surface is level. |
8. Product Specifications
| Feature | Detail |
|---|---|
| Model Number | KIT-000585 |
| Brand | Cazeboo |
| Type | Bioclimatic Self-supporting Pergola |
| Dimensions (L x W x H) | 304 cm x 196 cm x 218 cm (3.04m x 1.96m x 2.18m) |
| Weight | 20 Kilograms |
| Frame Material | Aluminum |
| Louver Material | Steel |
| Color | Anthracite Grey |
| Water Resistance Level | Waterproof (when louvers are closed) |
| Assembly Required | Yes |
| Country of Origin | China |
9. Warranty Information
Specific warranty details for the Cazeboo PIANA pergola are typically provided at the point of purchase or within separate documentation. Please refer to your purchase receipt or contact the retailer for information regarding warranty coverage and terms.
10. Customer Support
If you encounter any issues not covered in this manual or require further assistance, please contact your retailer or the manufacturer's customer service. Have your model number (KIT-000585) and purchase details ready when contacting support.
For more information about Cazeboo products, you may visit the official Cazeboo store: Cazeboo Store.
