ML Lighting Keylee 19602-PN Vanity Light Instruction Manual

1. Introduction

Thank you for choosing the ML Lighting Keylee 19602-PN 2-Light Vanity Fixture. This manual provides detailed instructions for the safe installation, operation, and maintenance of your new lighting fixture. Please read this manual thoroughly before beginning installation and retain it for future reference.

The Keylee vanity light, finished in polished nickel, features a delicate silhouette with a round backplate and gently arcing light bars, designed to complement various interior styles from traditional to modern transitional. It is crafted to add warmth, character, and a touch of luxury to your home.

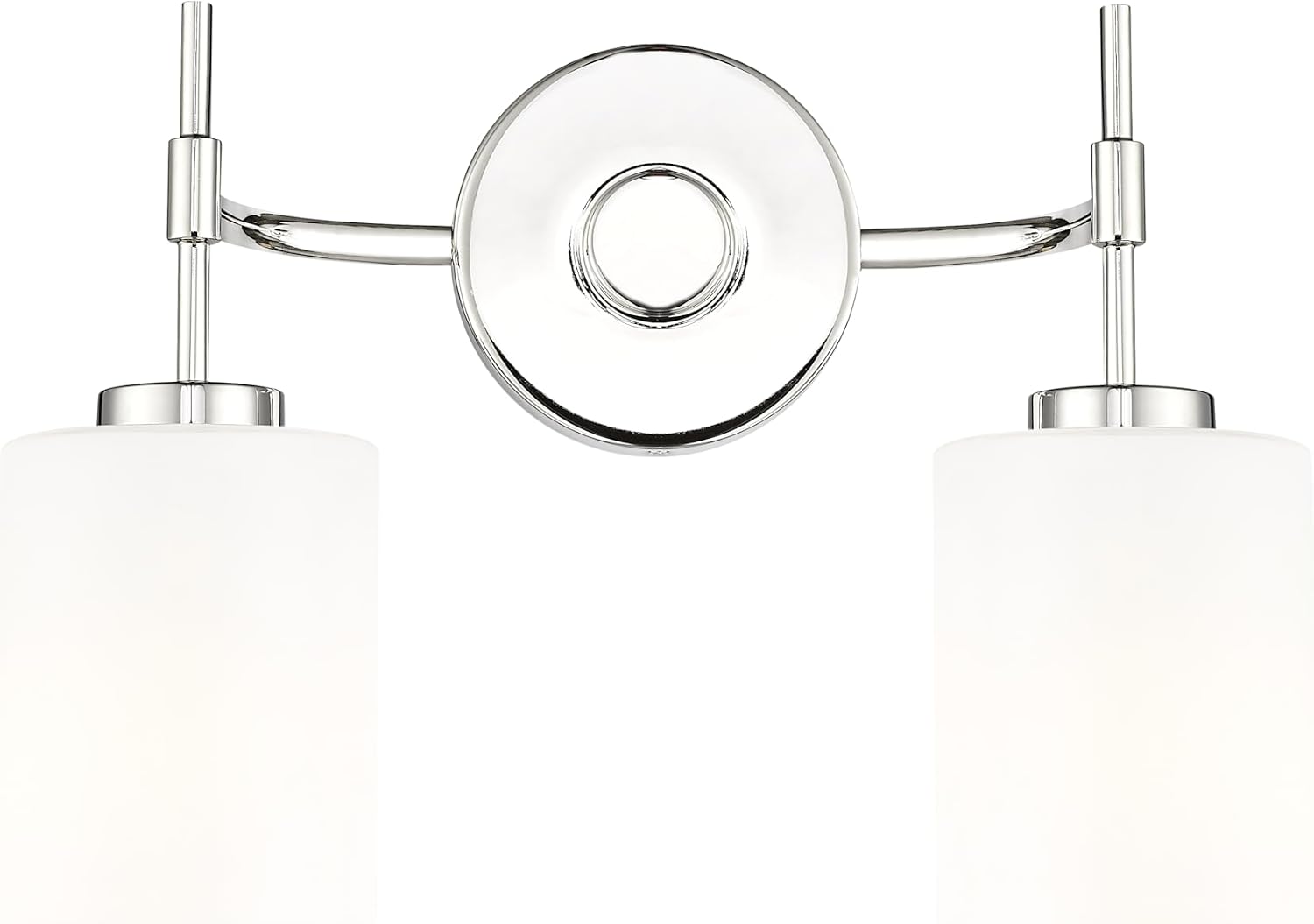

Figure 1.1: Front view of the ML Lighting Keylee 19602-PN 2-Light Vanity Fixture in Polished Nickel.

2. Important Safety Information

WARNING: Risk of Electric Shock. Disconnect power at the fuse box or circuit breaker before installation or servicing.

• All electrical connections must be in accordance with local codes, ordinances, or the National Electric Code (NEC). Contact a qualified electrician if you are unfamiliar with proper electrical wiring connections.
• Use only UL/cUL listed wire connectors.
• Do not exceed the recommended wattage for bulbs. Refer to the fixture's marking for maximum wattage.
• Handle glass components with care.
• This fixture is designed for indoor use only.
• Proposition 65 Warning: This product may expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

3. Package Contents

Carefully unpack your fixture and inspect all components for damage. Keep all packaging materials until installation is complete to ensure no parts are missing. The package should include:

• Vanity Light Fixture Body (1)
• Glass Shades (2)
• Mounting Hardware Kit (includes mounting strap, outlet box screws, wire nuts, ground screw)
• Instruction Manual (this document)

Note: Bulbs are not included and must be purchased separately.

4. Product Specifications

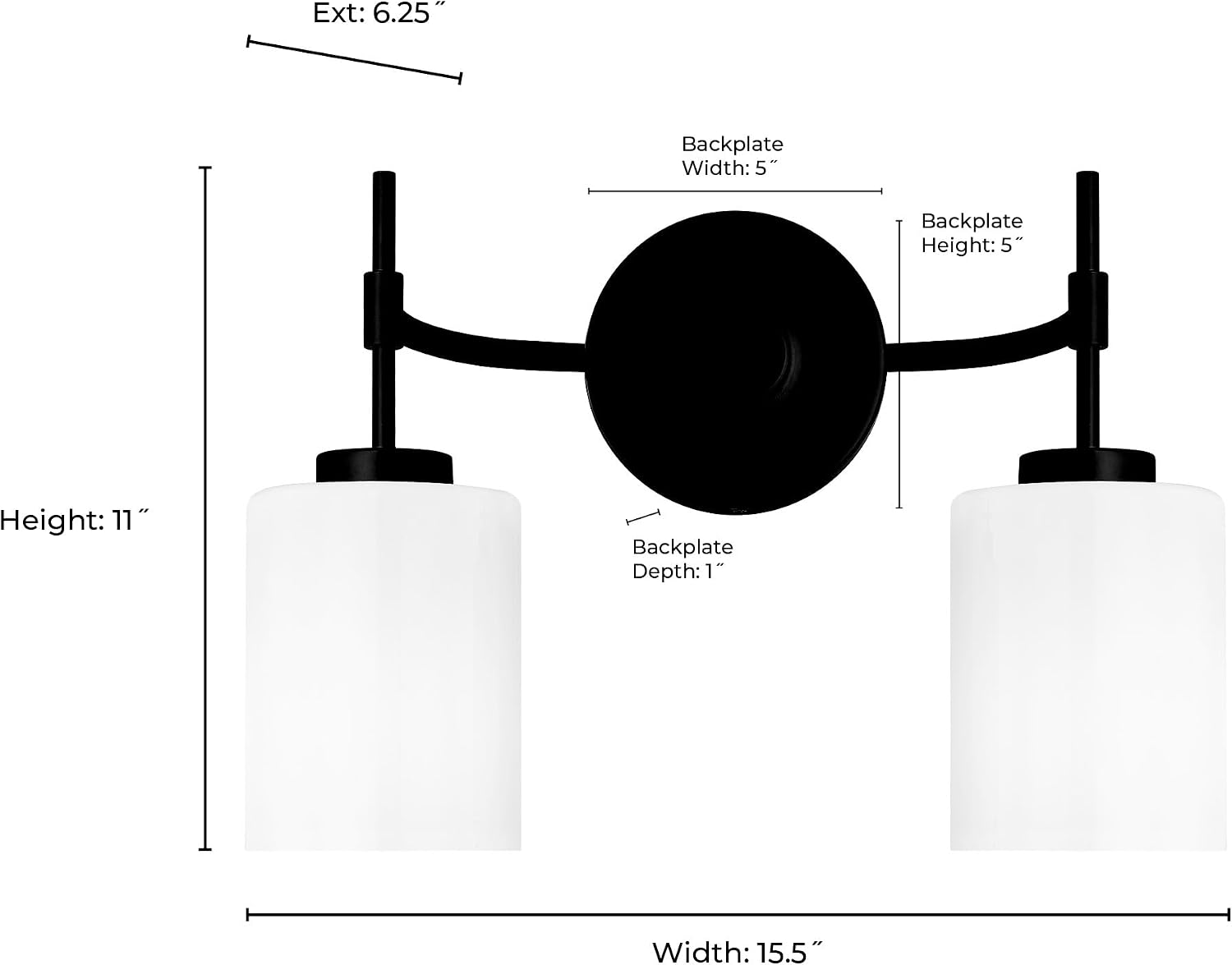

Figure 4.1: Dimensional drawing of the Keylee 19602-PN fixture, indicating 15.5" width, 11" height, and 6.25" extension from the wall.

5. Installation Instructions

5.1 Tools Required (Not Included)

• Phillips Head Screwdriver
• Flat Head Screwdriver
• Wire Strippers
• Electrical Tape
• Safety Glasses
• Ladder (if necessary)

5.2 Installation Steps

1. Turn Off Power: Before starting installation, ensure the power to the circuit is turned off at the main fuse box or circuit breaker to prevent electric shock.
2. Prepare Mounting Strap: Attach the mounting strap to the outlet box using the provided outlet box screws. Ensure the strap is securely fastened.
3. Make Electrical Connections:
   • Connect the green or bare copper wire from the fixture to the ground wire from the outlet box (usually bare copper or green) using a wire nut. Secure the ground wire to the mounting strap with the provided ground screw.
   • Connect the white wire from the fixture to the white (neutral) wire from the outlet box using a wire nut.
   • Connect the black wire from the fixture to the black (hot) wire from the outlet box using a wire nut.
   • Wrap all wire connections with electrical tape for added security.
4. Mount Fixture: Carefully tuck all wires into the outlet box. Align the fixture's backplate with the mounting strap and secure it with the provided mounting screws.
5. Install Glass Shades: Gently slide the glass shades onto the fixture's lamp holders and secure them according to the design (typically by tightening a ring or screw).
6. Install Bulbs: Insert the recommended type and wattage of bulbs (not included) into the sockets. Do not exceed the maximum wattage indicated on the fixture.
7. Restore Power: Once installation is complete and all components are secure, restore power at the circuit breaker.

Figure 5.1: Angled view of the fixture, illustrating the polished nickel finish and the design of the glass shades.

6. Operating Instructions

The ML Lighting Keylee 19602-PN vanity light is operated via a standard wall switch connected to the fixture's electrical circuit. Ensure the wall switch is in the "ON" position for the fixture to receive power.

6.1 Bulb Replacement

1. Turn Off Power: Always turn off the power to the fixture at the circuit breaker before replacing bulbs.
2. Allow to Cool: Allow bulbs to cool completely before touching them.
3. Remove Old Bulb: Carefully unscrew the old bulb from the socket.
4. Install New Bulb: Screw in the new bulb, ensuring it is of the correct type and does not exceed the maximum wattage specified on the fixture.
5. Restore Power: Turn the power back on at the circuit breaker.

7. Maintenance and Care

Proper care of your ML Lighting fixture will ensure its lasting beauty and performance.

• Cleaning: To clean the fixture, wipe it with a soft, dry cloth. Do not use abrasive cleaners, polishes, or solvents as they may damage the finish.
• Glass Shades: The glass shades can be removed and washed with mild soap and water. Ensure they are completely dry before reattaching.
• Bulb Replacement: Refer to Section 6.1 for bulb replacement instructions.
• Regular Inspection: Periodically check all electrical connections and mounting hardware to ensure they remain secure.

8. Troubleshooting

If you experience issues with your ML Lighting Keylee 19602-PN fixture, consult the following table before contacting customer support.

9. Warranty and Customer Support

This ML Lighting fixture is covered under a 1-year limited manufacturer warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.

If you experience any problem with this product or require further support, please do not hesitate to contact ML Lighting customer service. We are committed to resolving your issues within 24 hours, including inquiries regarding returns, replacements, shipment tracking, or product information.

For support, please visit the ML Lighting Store on Amazon or refer to your purchase documentation for direct contact information.
