Ganiza 5-in-1 Electric Cheese Grater User Manual

Introduction

The Ganiza 5-in-1 Electric Cheese Grater is a versatile kitchen appliance designed for efficient slicing, shredding, and grating of various foods. With its powerful 250W motor and interchangeable blades, it simplifies food preparation for salads, cheeses, vegetables, and more.

Figure 1: The Ganiza 5-in-1 Electric Cheese Grater with its five interchangeable blades and examples of grated food.

Important Safety Information

• Read all instructions before use: Familiarize yourself with the appliance's operation and safety features.
• Electrical Safety: Ensure the power supply is disconnected before assembling, disassembling, or cleaning the unit. Never immerse the motor base in water or other liquids.
• Blade Safety: Blades are sharp. Handle with extreme care. Always use the food pusher to guide food into the chute; never use fingers or other utensils.
• Children: Keep the appliance out of reach of children. Close supervision is necessary when the appliance is used near children.
• Proper Use: Use the appliance only for its intended purpose as described in this manual. Do not attempt to process frozen foods or extremely hard items that may damage the blades or motor.
• Ventilation: Ensure adequate ventilation around the motor base during operation.
• Maintenance: Do not attempt to repair the appliance yourself. Contact qualified service personnel for any repairs.

Warning: Before replacing or removing parts, always cut off the power supply or unplug the unit from the power outlet.

Parts List

The Ganiza 5-in-1 Electric Cheese Grater includes the following components:

• Motor Base Unit
• Transparent Feeding Chute with Food Pusher
• Blade Holder/Drum
• 5 Interchangeable Blades:
  • Fine Slicer
  • Thick Slicer
  • Fine Grater
  • Coarse Grater
  • Coarse Grinder
• Extra Zester Grater
• Cleaning Brush

Figure 2: Overview of the five versatile blades and their suggested applications for various foods.

Setup

1. Unpack: Carefully remove all components from the packaging. Retain packaging for future storage or transport.
2. Clean Before First Use: Wash all removable parts (feeding chute, food pusher, blades, blade holder) with warm soapy water, rinse thoroughly, and dry completely. Wipe the motor base with a damp cloth.
3. Assemble the Unit:
   • Place the motor base on a stable, flat, and dry surface.
   • Insert the desired blade into the blade holder/drum. Ensure it is securely seated.
   • Attach the blade holder/drum assembly to the motor base by aligning the tabs and twisting until it locks into place.
   • Place the transparent feeding chute onto the top of the blade holder/drum.
4. Prepare Food: Cut food items into pieces that fit easily into the feeding chute. For best results, ensure food is firm enough to be processed.

Figure 3: Step-by-step assembly of the Ganiza Electric Cheese Grater, showing how to attach the components and insert food.

Operating Instructions

1. Plug In: Connect the power cord to a suitable electrical outlet.
2. Place Container: Position a bowl or container under the large diameter outlet to collect the processed food.
3. Add Food: Place the prepared food into the feeding chute.
4. Start Operation: Press and hold the power button located on the top of the motor base.
5. Push Food: Gently push the food down the chute using the food pusher. Apply steady, even pressure. Do not force food into the chute.
6. Stop Operation: Release the power button to stop the appliance. Unplug the unit from the power outlet after use.

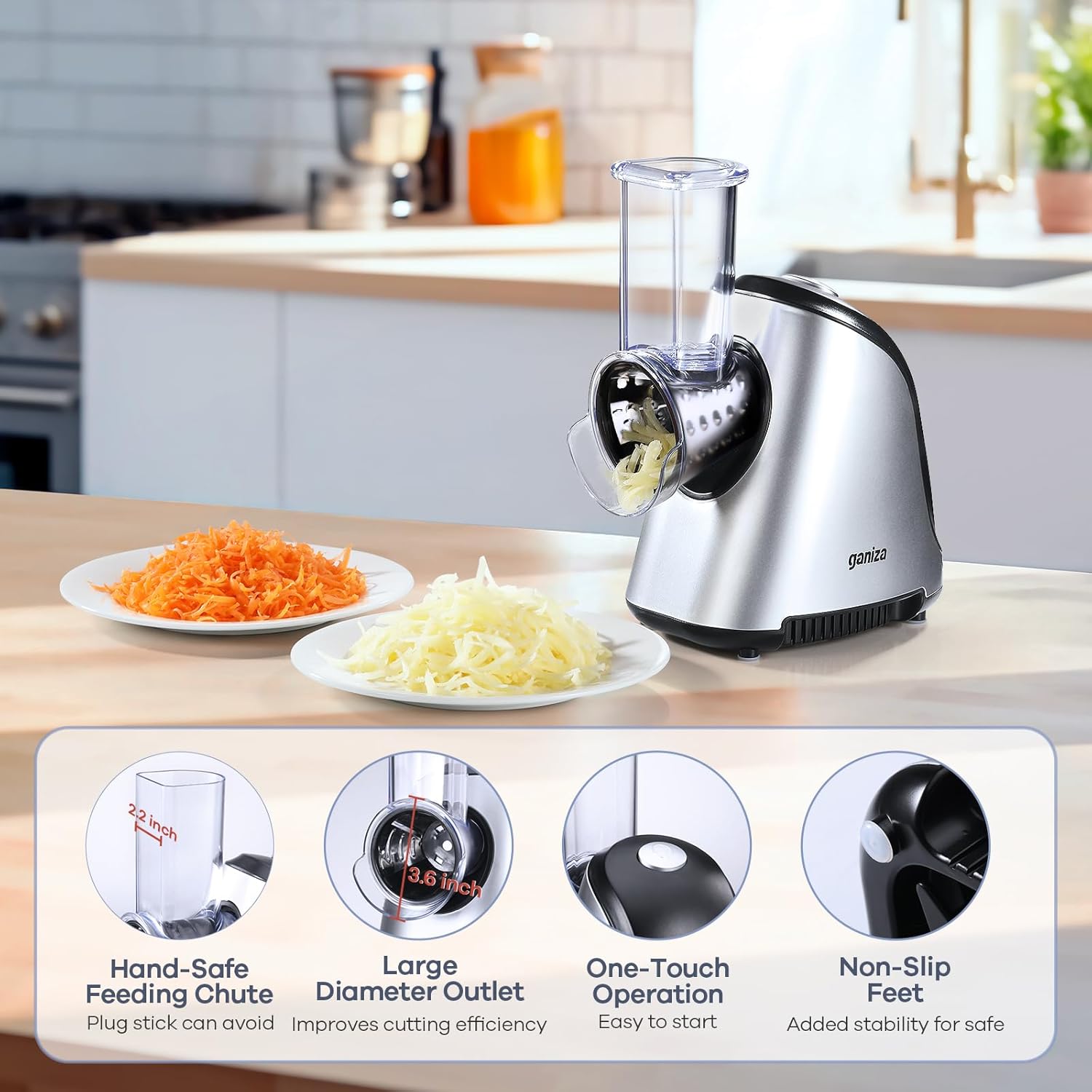

Figure 4: Key operational features including the hand-safe feeding chute, large diameter outlet, one-touch operation, and non-slip feet for stability.

Blade Usage Guide:

• Fine Slicer: Ideal for thin slices of onions, turnips, red cabbage, and potatoes.


  Figure 5: Fine Slicer blade and its output.

• Thick Slicer: Best for thicker slices of potatoes, carrots, courgettes, and onions.


  Figure 6: Thick Slicer blade and its output.
• Fine Grater: Suitable for carrots, hard cheese, courgettes, and chocolate.


  Figure 7: Fine Grater blade and its output.

• Coarse Grater: For carrots, courgettes, potatoes, and hard cheese.


  Figure 8: Coarse Grater blade and its output.

• Coarse Grinder: Use for chocolate, dry bread/rolls or pastries, and hazelnuts.


  Figure 9: Coarse Grinder blade and its output.

Maintenance & Cleaning

Regular cleaning and maintenance will ensure the longevity and optimal performance of your Ganiza Electric Cheese Grater.

1. Unplug: Always unplug the appliance from the power outlet before cleaning.
2. Disassemble: Carefully remove the feeding chute, food pusher, and blade holder/drum with the blade.
3. Cleaning Removable Parts: All removable parts are dishwasher-safe. For hand washing, use warm soapy water and the provided cleaning brush to remove any food residue. Rinse thoroughly and dry completely before reassembly or storage.
4. Cleaning Motor Base: Wipe the motor base with a damp cloth. Do not immerse the motor base in water or any other liquid.
5. Storage: Store the appliance and its accessories in a clean, dry place when not in use.

Figure 10: Cleaning instructions for the grater, illustrating both hand washing with the included brush and dishwasher compatibility for removable parts.

Troubleshooting

Specifications

• Model: GCP002
• Brand: Ganiza
• Power: Max 250W
• Product Dimensions: 8.6 x 5.5 x 10.6 inches (L x W x H)
• Item Weight: 3.94 pounds
• Material: Metal, Plastic
• Color: Silver
• Blades: 5 interchangeable cones (Fine Slicer, Thick Slicer, Fine Grater, Coarse Grater, Coarse Grinder)

Figure 11: The compact dimensions of the Ganiza Electric Cheese Grater, measuring 10.6 inches in height, 8.6 inches in length, and 5.5 inches in width.

Warranty & Support

Ganiza offers comprehensive support for its products:

• Customer Service: Quick response via phone or email within 24 hours.
• Return Policy: 30 days no reason to return policy.
• Warranty: 1 year free replacement.
• Support: Lifetime support and satisfied solution.

For further assistance, please visit the official Ganiza store or contact customer support.

Figure 12: Ganiza's commitment to customer satisfaction, including support, return, and warranty details.
