1. Introduction
This manual provides essential information for the safe and correct installation, operation, and maintenance of your new JUDAOLE replacement oven bake heating element. Please read these instructions thoroughly before proceeding with installation to ensure proper function and safety.
2. Safety Information
Important Safety Instructions
- WARNING: Always disconnect power to the oven at the circuit breaker or fuse box before attempting any installation, maintenance, or repair. Failure to do so can result in electric shock, serious injury, or death.
- Wear appropriate personal protective equipment, such as gloves and eye protection, during installation.
- Ensure the work area is well-lit and clear of obstructions.
- If you are unsure about any part of the installation process, consult a qualified appliance technician.
- Do not operate the oven if the heating element is damaged or improperly installed.
3. Compatibility
Compatible Oven Models
This JUDAOLE replacement oven bake heating element is designed for use with the following Frigidaire electric oven models:
- FCRC3012ABD
- FCRC3012ABE
- FCRC3012ABF
- FCRC3012ABG
Verify your oven's model number before proceeding with installation to ensure proper fit and function.
4. Installation (Setup)
Installation Instructions
The following steps outline the general procedure for replacing an oven bake heating element. Specific oven designs may vary slightly.
- Disconnect Power: Locate the circuit breaker for your oven and switch it to the "OFF" position. Verify power is off by attempting to turn on the oven light or controls.
- Access Oven Interior: Open the oven door.
- Locate and Remove Old Element:
- Identify the existing bake heating element at the bottom of the oven cavity.
- Locate the screws or clips securing the element to the back wall of the oven.
- Carefully remove these fasteners.
- Gently pull the element forward a few inches to expose the electrical terminals.
- Note: The element may be stiff due to age or carbon buildup.
- Disconnect Wiring:
- Carefully disconnect the two electrical wires from the terminals of the old heating element. It may be helpful to take a picture of the wiring configuration before disconnecting.
- Caution: Do not allow the wires to retract into the back wall of the oven. You may need to temporarily secure them with tape or clips.
- Remove Old Element: Once wires are disconnected, remove the old heating element from the oven cavity.
- Install New Element:
- Align the terminals of the new JUDAOLE heating element with the electrical wires.
- Connect the wires securely to the new element's terminals. Ensure connections are tight.
- Slide the new element into position, aligning its mounting brackets with the screw holes in the back wall of the oven.
- Secure the element with the screws or clips removed earlier. Do not overtighten.
- Restore Power and Test:
- Close the oven door.
- Return to the circuit breaker and switch the power back to the "ON" position.
- Turn on the oven to a bake setting (e.g., 350°F / 175°C) and observe the new element. It should begin to heat up and glow red.
- Allow the oven to heat for a few minutes to ensure proper function.

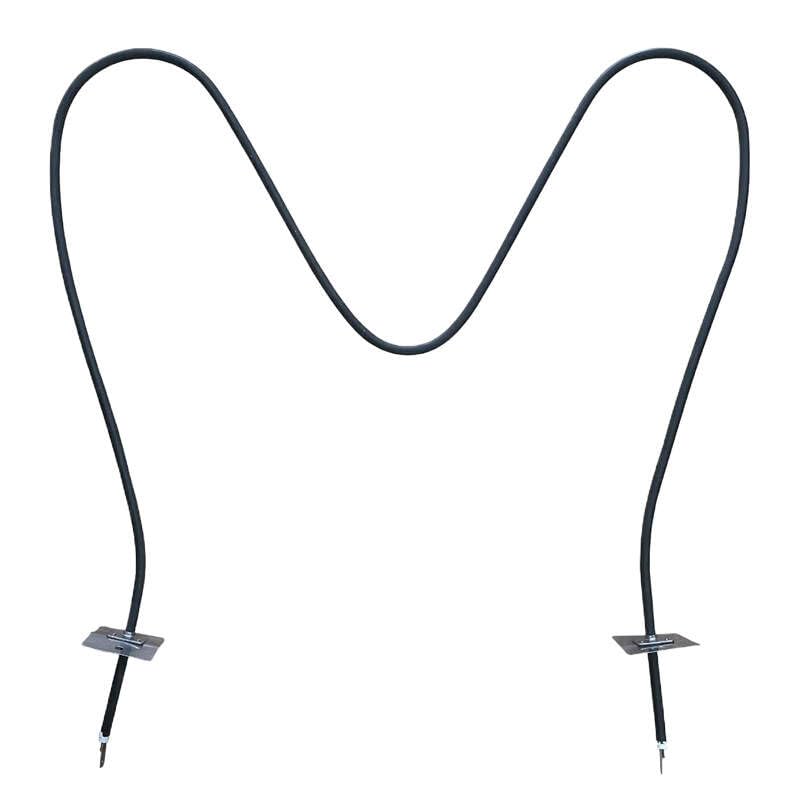

Image 1: JUDAOLE Replacement Oven Bake Heating Element. This image shows the general appearance of the heating element with its coiled structure and terminal connections.
5. Operation
Element Function
The oven bake heating element is an internal component responsible for generating heat at the bottom of the oven cavity during baking cycles. Once installed, its operation is controlled by the oven's thermostat and control board. No direct user interaction with the element itself is required during normal oven operation.
6. Maintenance
Care and Cleaning
- The heating element itself generally requires no routine cleaning.
- Avoid direct contact with the element when cleaning the oven interior.
- If food spills occur on the element, allow the oven to cool completely, then gently wipe away any residue with a dry cloth. Do not use abrasive cleaners or sharp objects, as these can damage the element.
- Regularly inspect the element for any visible signs of damage, such as cracks, breaks, or severe discoloration. If damage is observed, disconnect power and replace the element.
7. Troubleshooting
Common Issues
| Problem | Possible Cause | Solution |
|---|---|---|
| Element does not heat | No power to oven | Check circuit breaker; ensure oven is plugged in. |
| Element does not heat | Loose wire connection | Disconnect power and re-check wire connections at element terminals. |
| Element does not heat | Faulty element (rare for new) | If power and connections are good, element may be defective. Contact support. |
| Oven not heating evenly | Other oven components (e.g., thermostat, fan) | This element primarily controls bottom heat. If uneven heating persists, other components may need inspection. |
8. Specifications
Product Specifications
- Product Type: Oven Bake Heating Element
- Brand: JUDAOLE
- Compatibility: Frigidaire FCRC3012ABD, FCRC3012ABE, FCRC3012ABF, FCRC3012ABG
- Material: High-quality nickel-chromium alloy
- Features: Quick heating, even heat distribution, high resistance to heat and corrosion.
9. Warranty and Support
Warranty Information
For warranty details or technical support regarding your JUDAOLE replacement oven bake heating element, please refer to the product packaging or contact the manufacturer directly. Contact information is typically provided with the product or on the manufacturer's official website.
Manufacturer: JUDAOLE
ASIN: B0F7XK623P
