EAFCAuto 512001-US Cordless High-Pressure Car Cleaning Machine

1. Introduction

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your EAFCAuto 512001-US Cordless High-Pressure Car Cleaning Machine. Please read this manual thoroughly before first use and retain it for future reference.

2. Product Overview

Key Features:

• Wireless design for enhanced portability and ease of use.
• High-pressure direct spray and fan-shaped spray options for versatile cleaning.
• Multi-function water gun allows switching water shape as needed.
• Built-in stainless steel fine filter for efficient and deep filtering of water impurities.
• Powerful all-copper motor ensures strong performance.
• Automatic shutdown and start-stop function for energy efficiency and safety.
• Portable self-priming capability for drawing water from various sources.

Components:

The EAFCAuto 512001-US includes the main cleaning unit, a rechargeable battery, a charging station, a water inlet hose with filter, various spray attachments, and a soap dispenser bottle.

This image displays the overall dimensions of the EAFCAuto Cordless High-Pressure Car Cleaning Machine, showing its length, height, and width for reference.

Detailed views highlighting key design elements: top section showing ventilation holes for heat dissipation, middle section illustrating the ergonomic handle for comfortable grip, and bottom section featuring the simple control switch button.

An internal diagram showcasing the high-speed pure copper motor, emphasizing its powerful, stable, and energy-efficient design for increased water pressure and long life.

Illustrations demonstrating the versatile spray patterns: a 0-degree high-pressure direct spray for strong decontamination, a 40-degree fan jet for increased cleaning area, and a foam cleaning option for applying detergent.

A visual guide to the machine's multifunctional capabilities, depicting its use for cleaning various surfaces and objects such as courtyards, cars, houses, bicycles, and even for watering plants or washing pets.

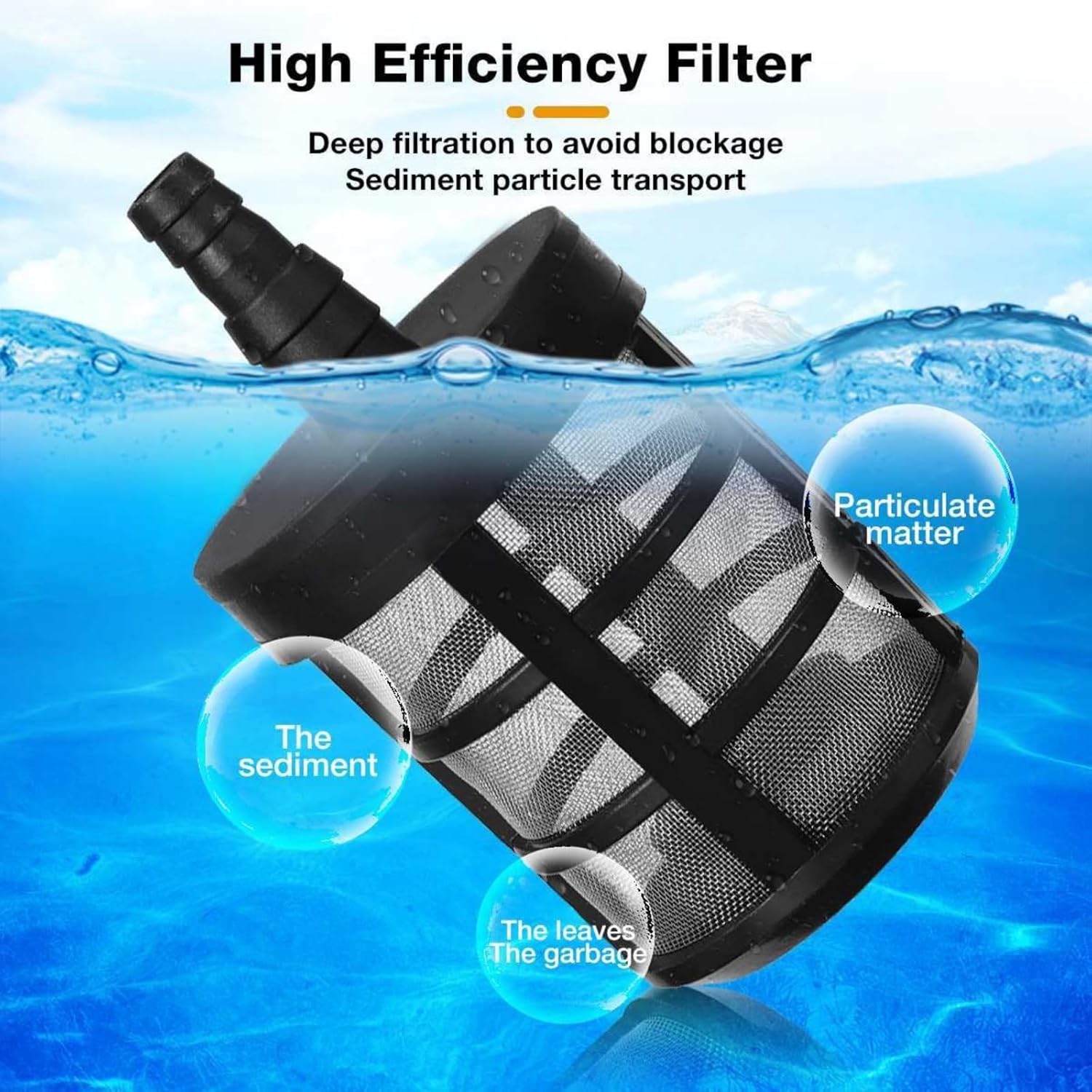

An illustration of the high-efficiency filter, designed for deep filtration to prevent blockages by effectively removing sediment, leaves, and other particulate matter from the water source.

3. Setup

1. Charge the Battery: Connect the battery to the charging station and plug it into a power outlet. Ensure the battery is fully charged before first use.
2. Attach the Water Inlet Hose: Securely connect the water inlet hose to the designated port on the cleaning machine.
3. Prepare Water Source:
   • Bucket Use: Place the filter end of the water inlet hose into a bucket filled with clean water. For optimal performance, ensure the filter remains submerged at the bottom of the bucket. Adding a small weight to the filter may help keep it submerged and prevent air intake.
   • Direct Hose Connection: If using a direct water hose, attach the appropriate adapter (if included) to the water inlet hose and connect it to your garden hose.
4. Attach Spray Nozzle/Accessory: Select the desired spray nozzle (e.g., 0-degree, 40-degree, or foam dispenser) and securely attach it to the end of the spray wand.
5. Insert Battery: Slide the charged battery into the battery compartment on the main unit until it clicks into place.

4. Operating Instructions

1. Power On: Press and hold the power button (or trigger) to start the machine. The pump will begin to draw water.
2. Prime the Pump: If using a bucket, it may take a few seconds for water to be drawn and for the pressure to build. Point the nozzle away from people and objects until a steady stream of water is achieved.
3. Select Spray Pattern: Rotate the nozzle head to switch between different spray patterns (e.g., direct jet, fan spray).
4. Apply Detergent (Optional): If using the foam cleaning attachment, fill the soap dispenser with appropriate car wash soap or cleaning solution. Attach it to the machine and spray evenly over the surface.
5. Clean the Surface: Hold the machine at an appropriate distance from the surface to be cleaned. Move the spray in a consistent pattern to remove dirt and grime.
6. Rinse: After applying soap or cleaning, switch to a rinse spray pattern (e.g., fan spray) and thoroughly rinse the surface until all soap residue is gone.
7. Power Off: Release the power button/trigger to stop the machine. Remove the battery when finished.

5. Maintenance

• Clean the Filter: Regularly inspect and clean the stainless steel filter on the water inlet hose to prevent blockages and ensure optimal water flow. Rinse it under running water to remove debris.
• Rinse After Use: After using soap or chemicals, run clean water through the machine for a few minutes to flush out any remaining residue and prevent corrosion.
• Battery Care: Store the battery in a cool, dry place. Do not expose it to extreme temperatures. Recharge the battery periodically if not used for extended periods to maintain its lifespan.
• Storage: Disconnect all hoses and attachments. Drain any remaining water from the machine. Store the unit and accessories in a dry, protected area, away from direct sunlight and freezing temperatures.

6. Troubleshooting

• No Water Flow or Low Pressure:
  • Check if the water inlet hose filter is clean and not clogged.
  • Ensure the water inlet hose is fully submerged in the water source (if using a bucket) and that the filter is at the bottom. Air intake can prevent proper priming.
  • Verify that all connections are secure and there are no kinks in the hose.
  • Ensure the battery is fully charged.
• Machine Not Turning On:
  • Check if the battery is properly inserted and fully charged.
  • Ensure the power button/trigger is being pressed correctly.
• Leaking Connections:
  • Tighten all hose and attachment connections.
  • Inspect O-rings and seals for damage and replace if necessary.

7. Specifications

8. Warranty and Support

For warranty information or technical support, please refer to the product packaging or contact EAFCAuto customer service directly. Keep your purchase receipt as proof of purchase.
