1. Introduction
This manual provides essential instructions for the safe and correct assembly, operation, and maintenance of your vidaXL Double Gate with Lock. Please read this manual thoroughly before installation and retain it for future reference.
The vidaXL Double Gate is designed for outdoor use, providing a secure and functional entrance for gardens and terraces. It features a durable steel construction with a grey powder-coated finish.
2. Safety Information
- Always ensure the gate is securely installed to prevent accidental opening or collapse.
- Keep children and pets away from the assembly area during installation.
- Wear appropriate personal protective equipment (PPE) such as gloves and safety glasses during assembly.
- Do not attempt to modify the gate structure, as this may compromise its integrity and safety.
- Regularly inspect the gate for any signs of wear, damage, or loose components. Address any issues promptly.
- Ensure the ground bolt is properly engaged when the gate is closed and locked to prevent unauthorized entry.
3. Package Contents
Verify that all components are present before beginning assembly. If any parts are missing or damaged, contact customer support.
- Double Gate Panels (2)
- Gate Posts (2)
- Lock Mechanism with Sliding Bolt
- Hinges and Fasteners
- Ground Bolt
- Assembly Hardware (screws, bolts, nuts)
Figure 3.1: Diagram of the gate components.
4. Setup and Assembly
Assembly requires two people and basic tools such as a drill and a screwdriver. Follow these steps carefully:
- Prepare the Installation Area: Ensure the ground where the gate posts will be installed is level and stable. Mark the positions for the two gate posts, considering the total width of the gate (approximately 400 cm).
- Install Gate Posts: Securely anchor the two gate posts into the ground. Depending on your specific ground conditions, this may involve digging holes and setting the posts in concrete for maximum stability. Ensure the posts are plumb and at the correct distance apart to accommodate the gate panels.
- Attach Hinges: Mount the hinges to the gate posts and the gate panels. Ensure they are aligned correctly for smooth gate operation.
- Mount Gate Panels: Carefully lift and attach the gate panels to the hinges on the posts. Adjust as necessary to ensure the panels swing freely and meet correctly in the middle.
- Install Locking Mechanism: Attach the sliding bolt lock mechanism to one of the gate panels and the corresponding receiver on the other panel or the ground. Install the ground bolt for additional security.
- Final Adjustments: Check that both gate panels open and close smoothly. Ensure the locking mechanism engages properly and the ground bolt secures the gate when closed.

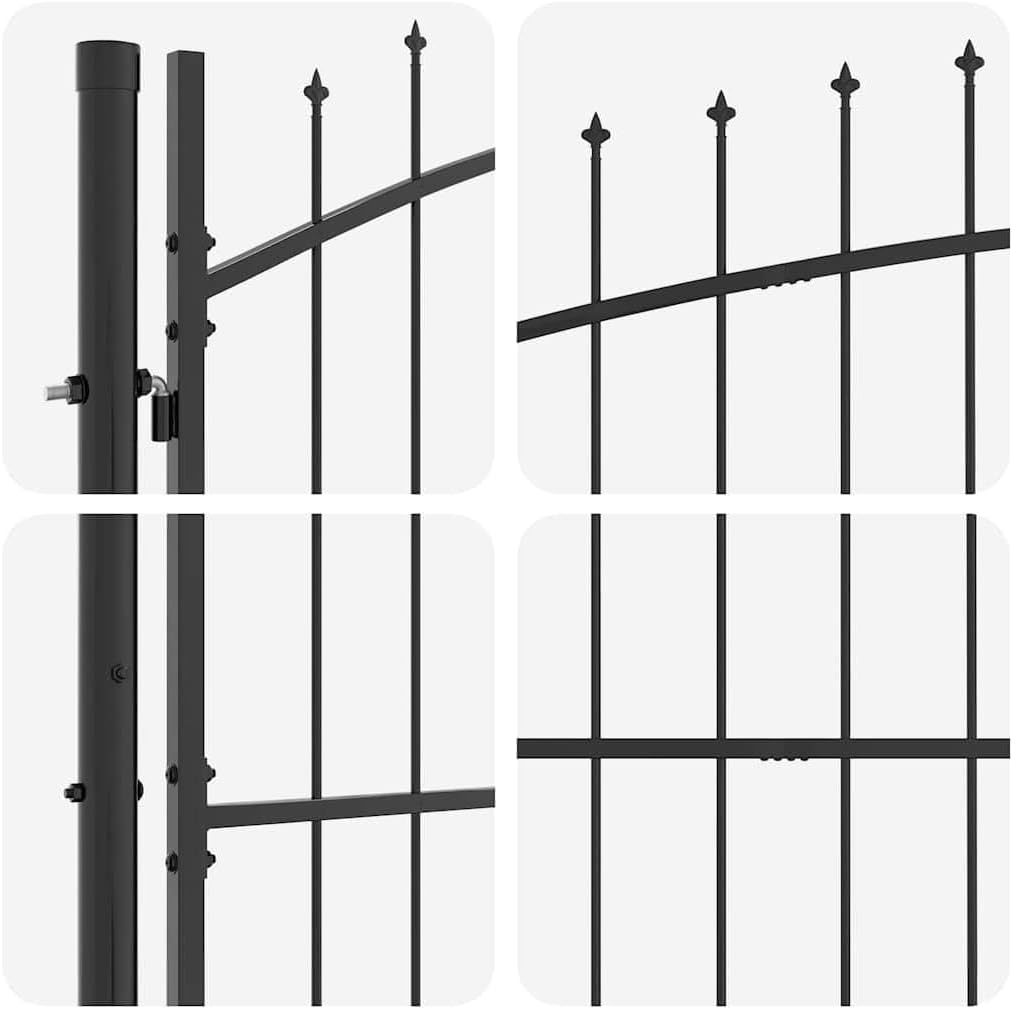

Figure 4.1: Detail of hinge attachment and gate construction.
Figure 4.2: Detail of the sliding bolt lock and ground anchor.
5. Operating Instructions
- Opening the Gate: Disengage the sliding bolt lock and lift the ground bolt. Gently push the gate panels inwards or outwards, depending on hinge setup, to open.
- Closing the Gate: Guide the gate panels back to their closed position. Ensure they meet correctly in the center.
- Locking the Gate: Engage the sliding bolt lock by sliding it into its receiver. Lower the ground bolt into its designated hole for added security.
Figure 5.1: Example of the installed double gate.
6. Maintenance
- Cleaning: Clean the gate regularly with a soft cloth and mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the powder-coated finish.
- Lubrication: Periodically lubricate hinges and the locking mechanism with a suitable outdoor lubricant to ensure smooth operation and prevent rust.
- Inspection: Regularly check all bolts, screws, and connections for tightness. Re-tighten any loose fasteners. Inspect the gate for any signs of rust, damage, or structural fatigue.
- Rust Prevention: Although powder-coated, minor scratches can expose the steel to moisture. Touch up any deep scratches with rust-inhibiting paint to prevent corrosion.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Gate panels do not close properly. | Misaligned posts or hinges; uneven ground. | Check post alignment and adjust hinges. Ensure the ground is level. |
| Gate is difficult to open/close. | Stiff or rusty hinges; debris in mechanism. | Clean and lubricate hinges and locking mechanism. Remove any obstructions. |
| Lock mechanism is not engaging. | Misalignment of lock components; debris. | Inspect and adjust the lock components. Clear any debris from the sliding bolt path. |
| Gate feels wobbly or unstable. | Loose fasteners; improperly secured posts. | Tighten all bolts and screws. Re-evaluate post installation and reinforce if necessary. |
8. Specifications
| Model Number | 42008856 |
| Brand | vidaXL |
| Color | Grey |
| Material | Steel, Powder Coated |
| Overall Dimensions (W x H) | Approximately 400 cm x 199.5 cm (including posts and decorative top) |
| Gate Panel Height | Approximately 125 cm (49.2 inches) |
| Item Weight | 27.85 Kilograms |
| Assembly Required | Yes (Recommended 2 people) |

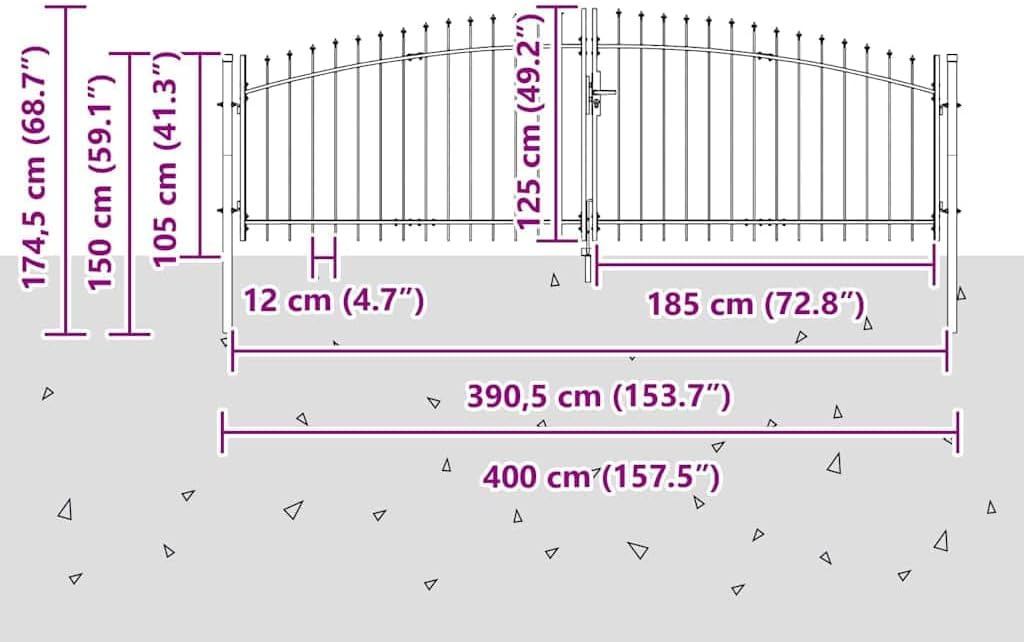

Figure 8.1: Detailed dimensions of the vidaXL Double Gate.
Figure 8.2: Gate height reference.
9. Warranty and Support
For warranty information or technical support, please refer to the documentation provided with your purchase or visit the official vidaXL website. Keep your proof of purchase for any warranty claims.
